Satco-Nuvo S39913 T8 LED Lamp 14 Watt 4Ft

Product Description

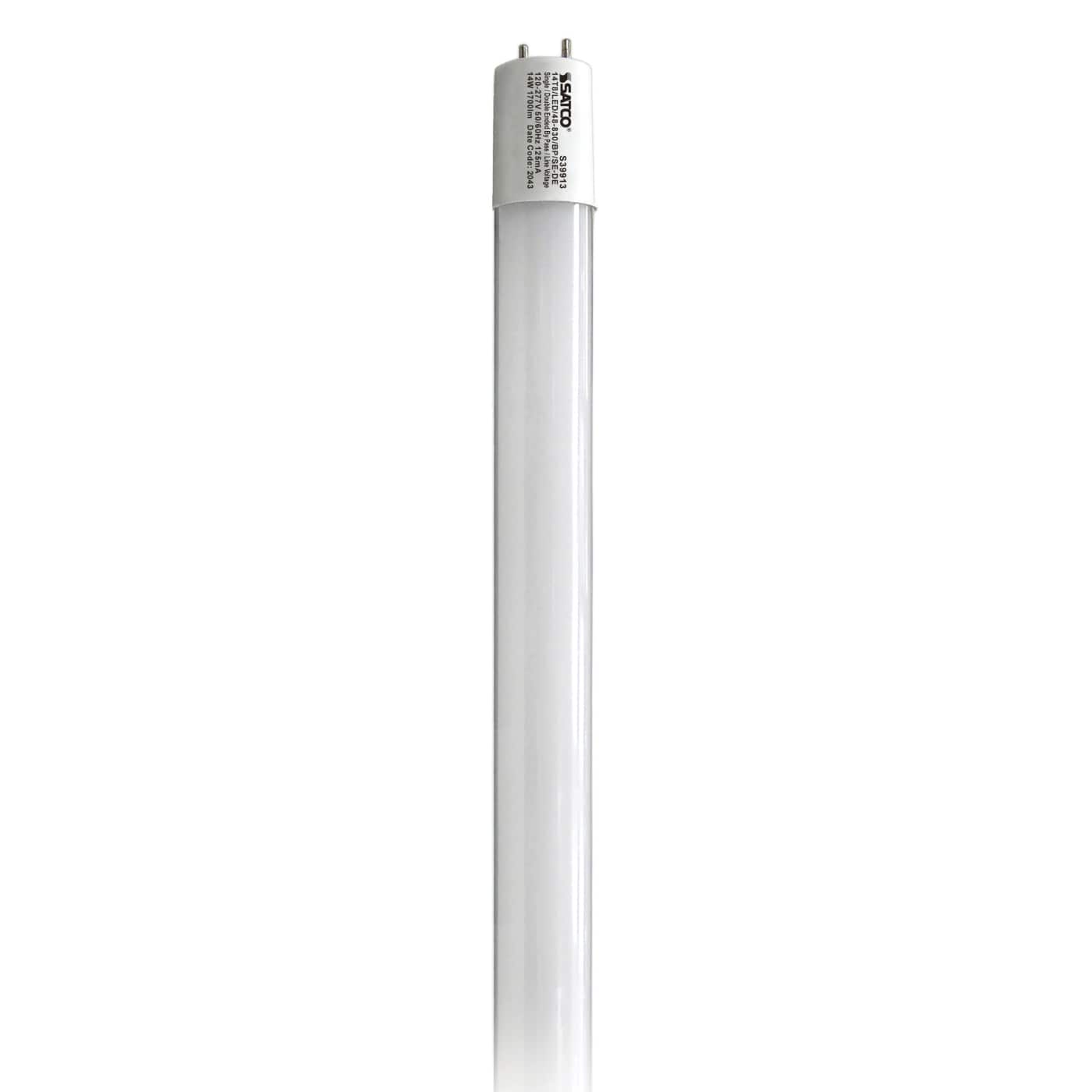

The SATCO-NUVO S39913 is a 14 Watt T8 LED lamp, 4 feet in length, featuring a 3000K warm white color temperature. This Type B (Ballast Bypass) lamp supports both single and double-ended wiring, making it suitable for various indoor and outdoor applications. It provides 1700 lumens of illumination and has an average rated life of 50,000 hours, ensuring long-lasting performance. The lamp is constructed with a glass material and has a Medium Bi Pin base.

• Damp Location Rated and UL Certified for safety.
• Features a built-in shock resistant circuit, ensuring safety during installation.
• Designed for ballast bypass, supporting single or double-ended wiring.

Product Highlights

This 14 Watt T8 LED lamp offers 1700 lumens and a 3000K warm white light, ideal for general-purpose lighting with a 50,000-hour lifespan.

Product Information

Standard Information

• Brand: SATCO-NUVO
• Manufacturer Part Number: S39913

Technical Specifications

• Brand: SATCO
• Ballast Type: Type B
• Ballast Requirement: Ballast Bypass
• Technology: LED
• Material: Glass
• Fixture Type: Linear
• Product Notes: Built-in shock resistant circuit (not hot until both ends are installed)
• Total Harmonic Distortion: 20%
• Tube Guard Use: Yes
• CCT Selectable: No
• Wattage Selectable: No
• Finish: Gloss White
• Amperage: 0.117-0.051A
• Lens Finish: Gloss White
• Lens Material: Glass
• Length (Nominal): 48.0 inches
• Operating Position: Universal
• Power Factor: 0.9
• Location Use: Indoor, Outdoor
• Fluorescent Equivalent: 25W/28W/30W/32W
• Incandescent Equivalent: 75W
• Color Temperature (CCT): 3000K
• Rated Life: 50000 hours
• Beam Angle: 210 degrees
• Color: Warm White
• CRI: 80+
• Operating Frequency: 50/60Hz
• Operating Temperature: -4F to +113F (-20C to +45C)
• Lumens: 1700
• Input Voltage: 120V-277V
• Wattage: 14W

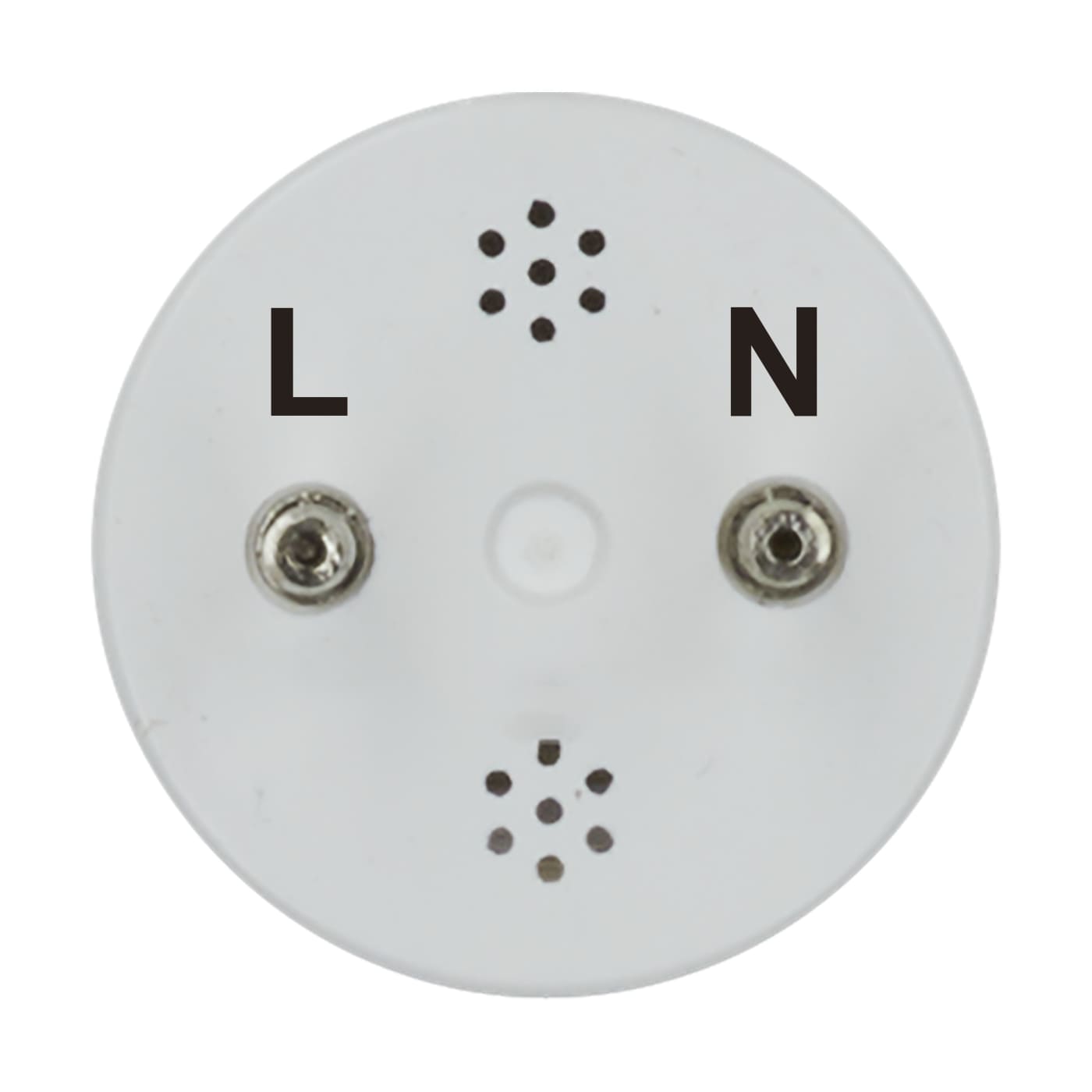

• Lamp Base: Medium Bi Pin
• Housing Color: White
• ANSI Base: G13
• Lamp Type: T8
• Length (MOL): 47.78 inches
• Rated For Enclosed Fixture: Yes
• Location Rating: Damp
• Diameter: 1.1 inches
• Glass Finish: White

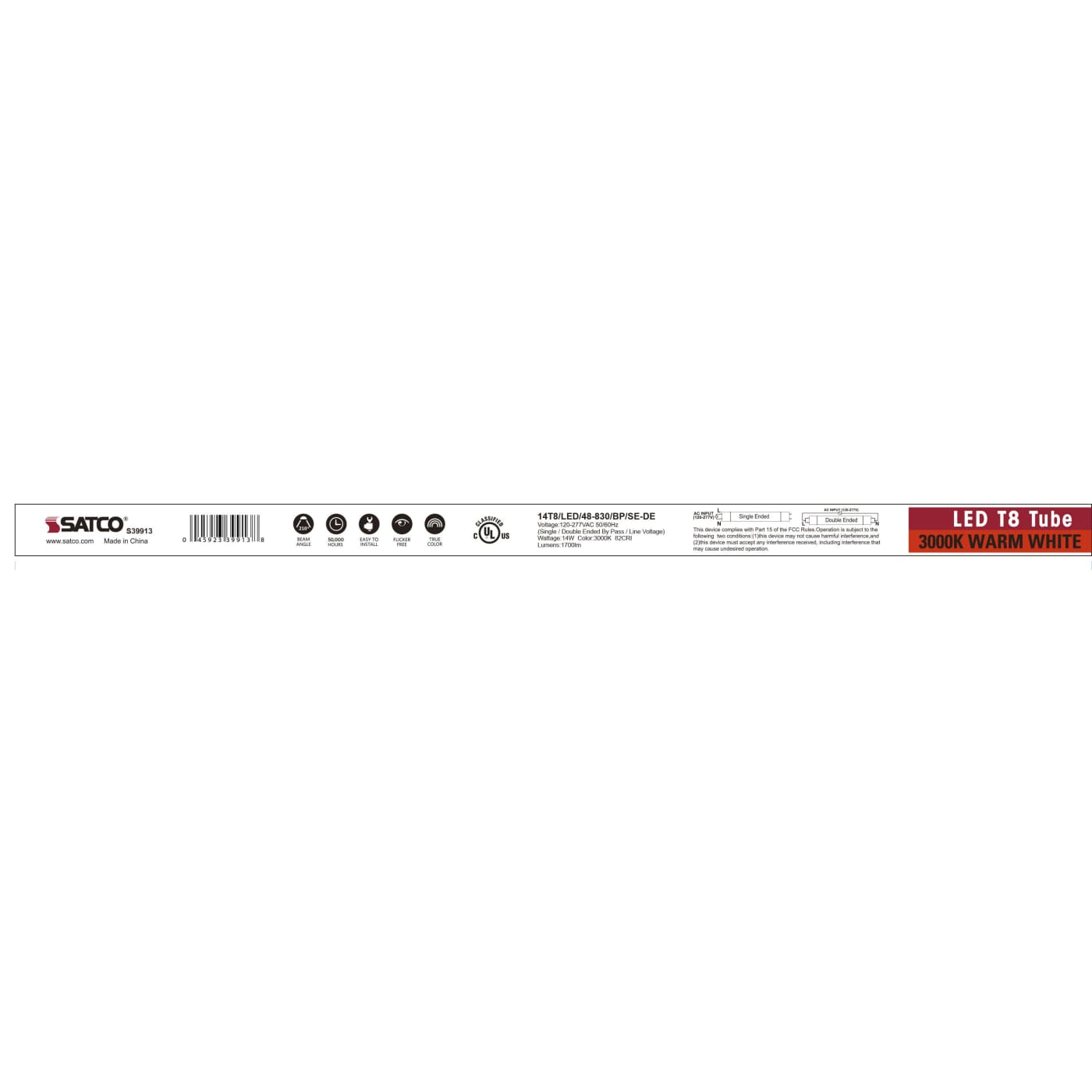

• Lamp Code: 14T8/LED/48-830/BP/SE-DE
• Open Rated: No
• Power Consumption: 14 Watts
• Wiring Configuration: Single Or Double
• Product Type: Linear Fluorescent LED Lamp
