Satco-nuvo S21427 Pl Led Lamp 7W G24D 3500K Dual Ballast

Product Description

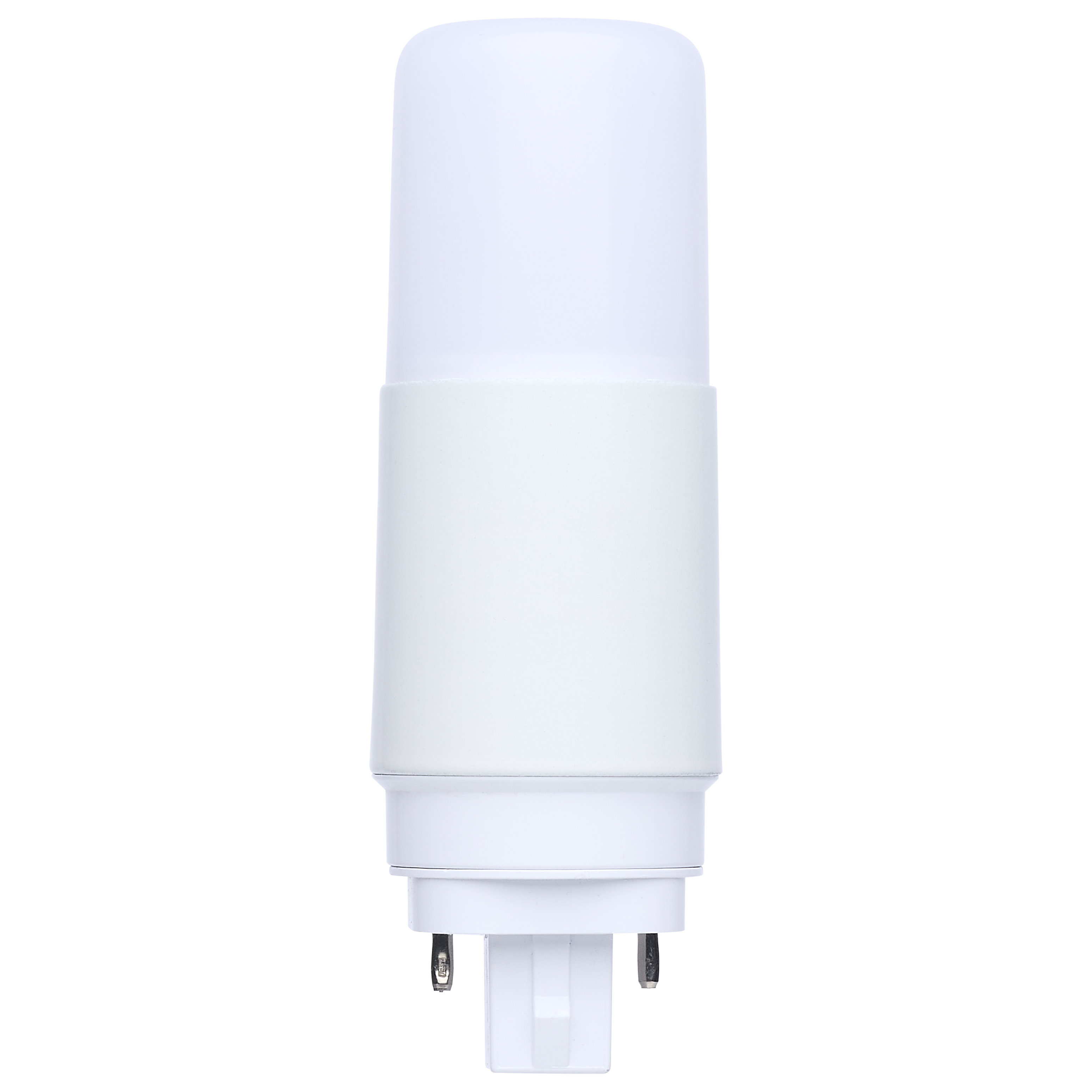

The SATCO-NUVO S21427 is a 7-watt PL LED lamp designed as a direct CFL replacement in a compact plug-in form factor. It operates on a G24d two-pin base and produces 3500K neutral white light with a frosted finish that delivers even, glare-free output. The Type A/B dual-mode design supports both plug-and-play ballast-compatible operation and direct-wire ballast bypass, giving installers flexibility on the jobsite. Input voltage range spans 120 to 277 volts, making it suitable for commercial and light-industrial fixtures across varying electrical systems. The lamp is non-dimmable and rated for universal operating positions.

This lamp is suited for commercial, retail, office, and institutional lighting applications where compact fluorescent PL lamps are currently installed. It fits troffer-style, downlight, and wall-sconce fixtures using the G24d base. The dual ballast compatibility makes it practical for both retrofit-in-place scenarios and full ballast bypass upgrades during a lighting overhaul. Its damp location rating extends its use to restrooms, locker rooms, covered entryways, and similar environments where moisture exposure is a concern.

Key Features

• Type A/B dual-mode operation supports ballast-compatible and ballast bypass installations
• 3500K neutral white color temperature suits task and ambient commercial lighting
• 120 to 277 volt input range covers standard commercial electrical systems
• Frosted finish diffuses light evenly and reduces glare
• Damp location rated for use in moisture-prone environments
• 50,000-hour rated lifespan with a 5-year warranty

Compatibility

Designed as an OEM-style CFL replacement for fixtures using a G24d two-pin base. Compatible with Type A ballast-driven circuits and with Type B direct-wire ballast bypass configurations.

Installation Notes

A licensed electrician should perform ballast bypass wiring in accordance with NEC requirements. For plug-and-play Type A installations, confirm the existing ballast is compatible before energizing. For Type B bypass, de-energize the fixture at the breaker and remove the ballast before rewiring. This lamp is non-dimmable and must not be installed on a dimmer circuit.

Technical Specifications

• Wattage: 7 watts
• Base Type: G24d (2-pin)
• Color Temperature: 3500K
• Voltage Range: 120 to 277 volts
• Ballast Compatibility: Type A/B Dual Mode
• Finish: Frost
• Operating Position: Universal
• Location Rating: Damp
• Rated Lifespan: 50,000 hours
• Dimmable: No
• Warranty: 5 years
• UPC: 045923409424

Standard Information

• Brand: SATCO-NUVO
• Manufacturer Part Number: S21427
