Satco-Nuvo S18410 13 Watt T8 U-Bend LED REPLACES FB32T8/U6

Product Description

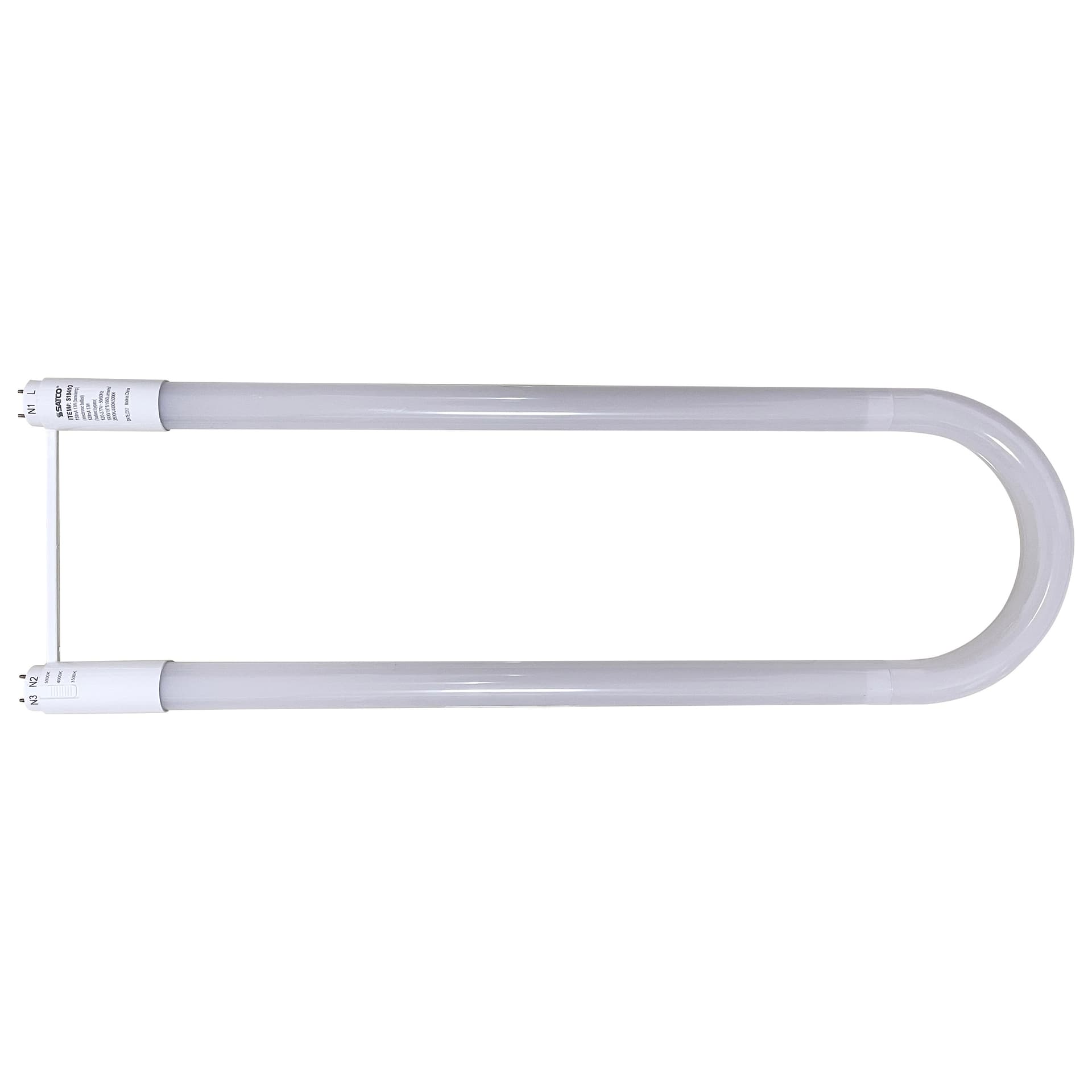

The SATCO-NUVO S18410 is a 13 Watt T8 U-Bend LED with a medium bi-pin base, designed for 50000 hours of use. This Type A/B LED lamp is CCT selectable and operates on 120-277 volts. It features a white finish and can be used with a ballast or in ballast bypass configurations. It replaces FB32T8/U6.

• CCT Selectable
• Dimmable
• Rated For Enclosed Fixture

Product Highlights

This LED T8 U-Bend lamp offers versatility with CCT selection and dual-mode operation, ensuring compatibility with various lighting systems.

Product Information

Standard Information

• Brand: SATCO-NUVO
• Manufacturer Part Number: S18410
• Country of Origin: China

Technical Specifications

• Lamp Ballast Type: AB
• Type: A/B
• Ballasting Requirements: Ballast required (Type A) or Ballast Bypass (Type B)
• Dimmable Text: Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
• Lamp Filament: LED
• Material: Plastic
• Fixture Type: U-Bend
• Most Current Generation: S18413
• Surge Protection: Built-in-surge protection - 0.7KV
• Total Harmonic Distortion: 20%

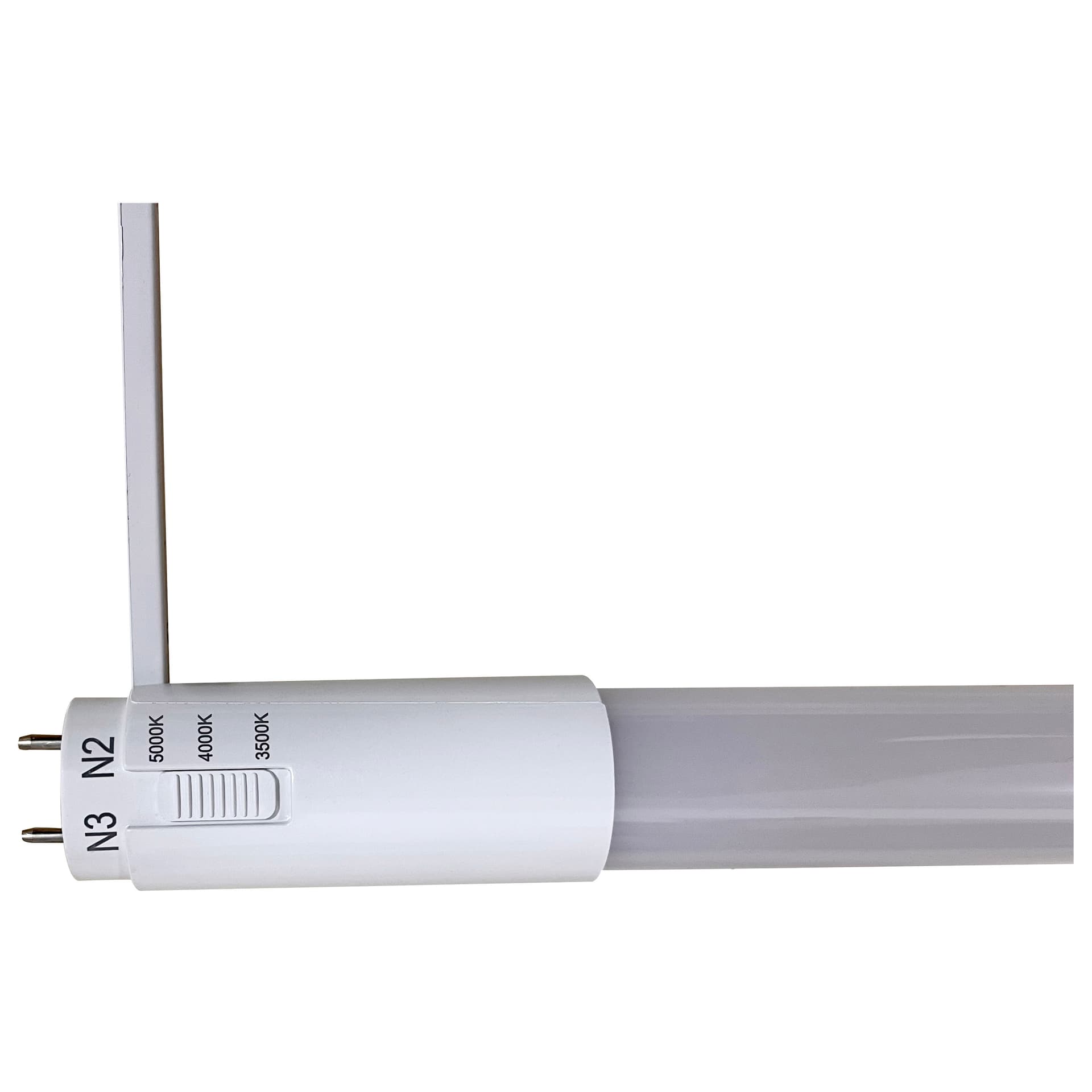

• CCT Selectable: True
• Finish Family: White
• Additional Info: Replaces FB32T8/U6
• Amps: .15A with Electronic Ballast; .12A Ballast Bypass
• Leg Spacing: 6.0
• Lens Finish: Frost
• Lens Material: Plastic
• Nominal Length: 22.5
• Operating Position: Universal
• Power Factor: 0.9
• Indoor Outdoor: Indoor
• Product Technology: LED
• Fluor Equiv: 32W
• Incandescent Equivalent: 50W
• Color Temperature: Neutral White to Natural Light
• Dimmable: Yes-Dimmable
• Hours Rated: 50000
• Beam Angle (degree): 160
• CRI: 80+
• Operating Frequency: 50/60Hz
• Operating Temp: -20C (-4F) to +45C (+113F)
• Lumens: 1900L/1975L/1950L
• Volts: 120V-277V
• Watts: 13W
• Lamp Base: Medium Bi Pin
• Finish: WHITE
• Housing Color: White
• ANSI Base: G13
• Lamp Type: T8
• MOD Lamps: 1.0
• MOL: 22.6
• Warranty: 5-Years
• Installation Notes: Not for use in vapor tight fixtures.
• Rated For Enclosed Fixture: True
• Average Rated Life: 50000 hr
• Beam Spread: 160
• Correlated Color Temp: 3500 K
• IP Rating: IP20
• Length: 22-1/2 Inch
• Wet Location: Damp
• Pkg Qty: 1
• Brand: Satco
• Adjustable Color Temperature: Yes
• Color Rendering Index: 80
• Certifications: ETL, UL
• Location Rating: Damp Location
• Manufacturer Warranty: 5 Year Limited
• Volts AC Range: 120 - 277
• Shape: T8 (U-Bend)
