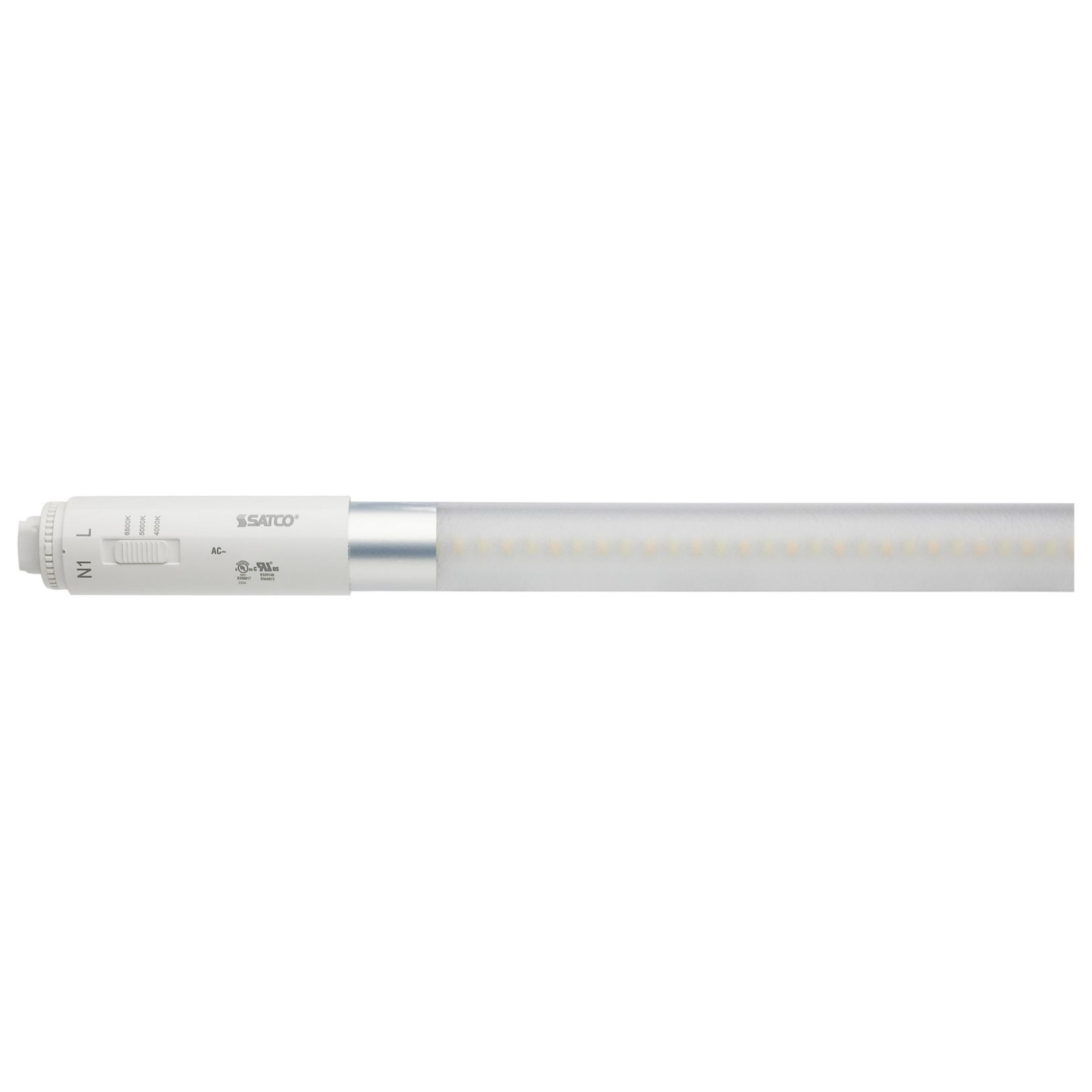

SATCO-NUVO S16442 45W T8 LED 117 in CCT Selectable Ballast Bypass

Product Description

The SATCO-NUVO S16442 is a 45-watt T8 LED lamp ideal for sign applications. It operates on 120 to 277 volts and offers selectable color temperature options of 4000K, 5000K, and 6500K. This lamp supports both single and double-ended wiring configurations and requires a Type B ballast bypass installation. The double-sided LED design provides 360-degree illumination. It is ETL Sanitation listed, making it suitable for damp locations.

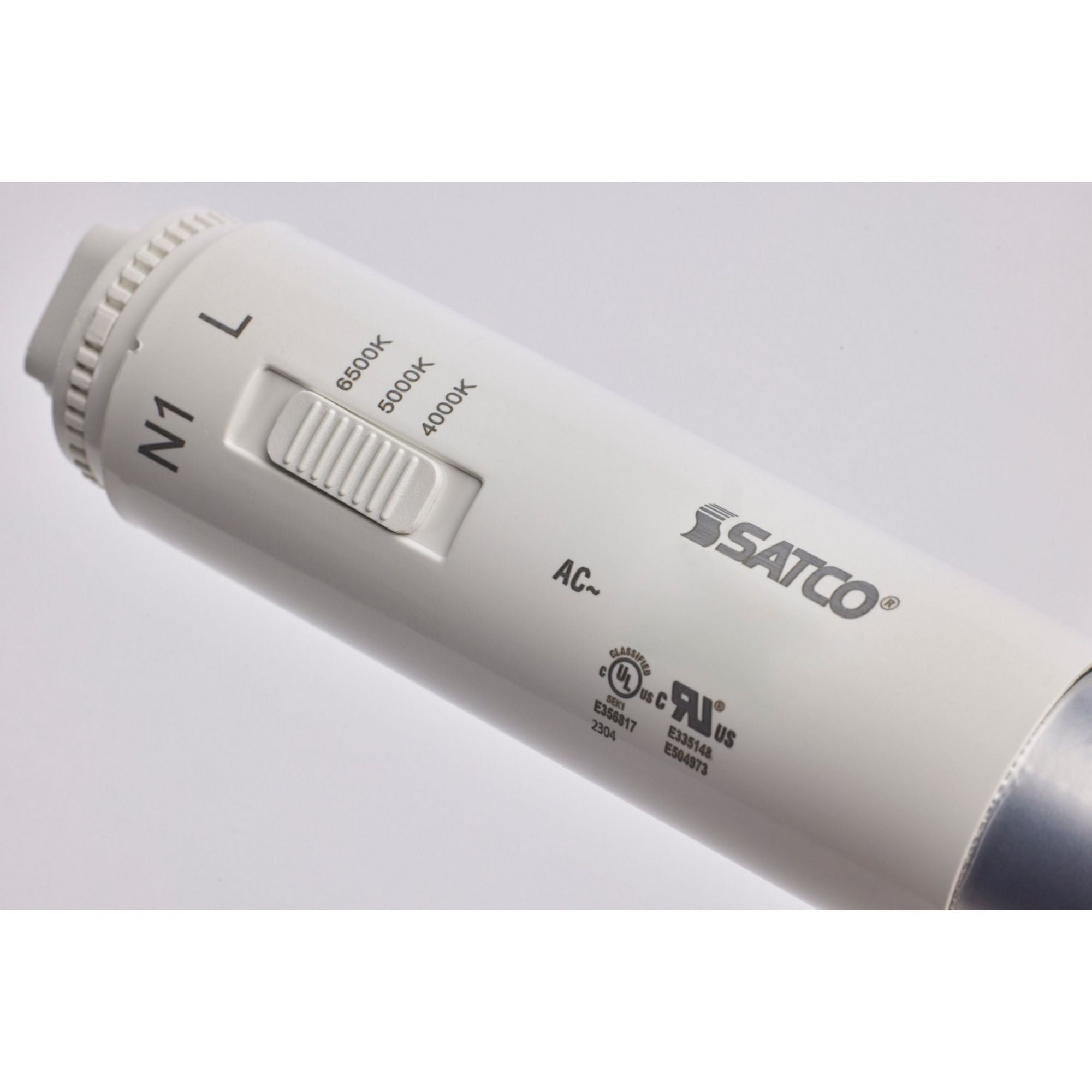

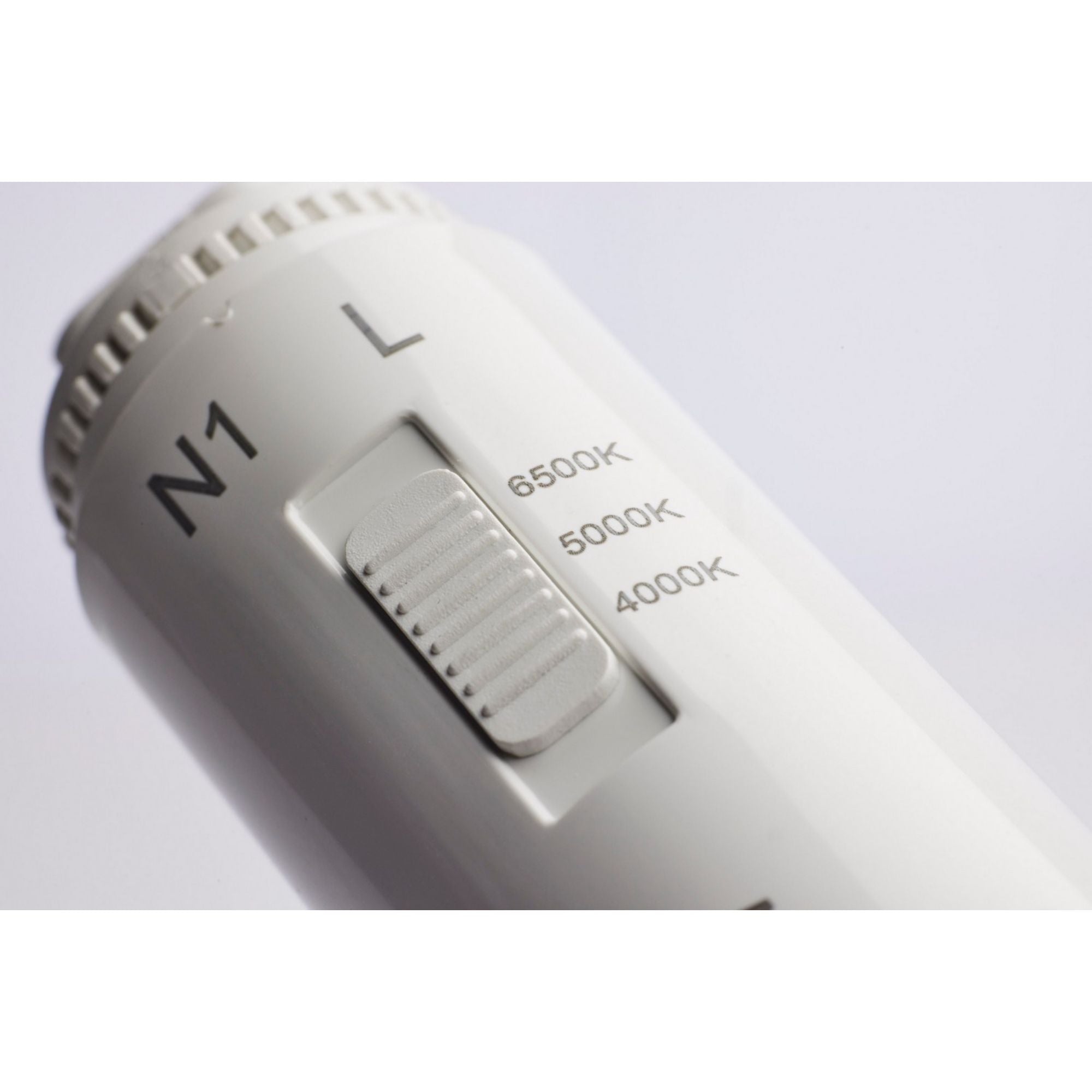

• Selectable color temperature: 4000K, 5000K, and 6500K
• Requires ballast bypass installation (Type B)
• Suitable for damp locations and conforming to NSF standards

Product Highlights

The SATCO-NUVO S16442 lamp features high efficiency with 6300 to 6500 lumens output. It is durable, with a rated life of 50000 hours and built-in surge protection up to 1KV.

Product Information

Standard Information

• Brand: SATCO-NUVO
• MPN: S16442

Technical Specifications

• Wattage: 45W
• Input Voltage: 120-277V
• Bulb Shape: T8
• Length: 117 inches
• Diameter: 1.13 inches
• Color Temperature: Selectable 4000K, 5000K, 6500K
• Rated Life: 50000 hours
• Operating Temperature: -20C to +45C
