Satco-Nuvo S16438 30W 72-Inch LED T8 Sign Tube

Product Description

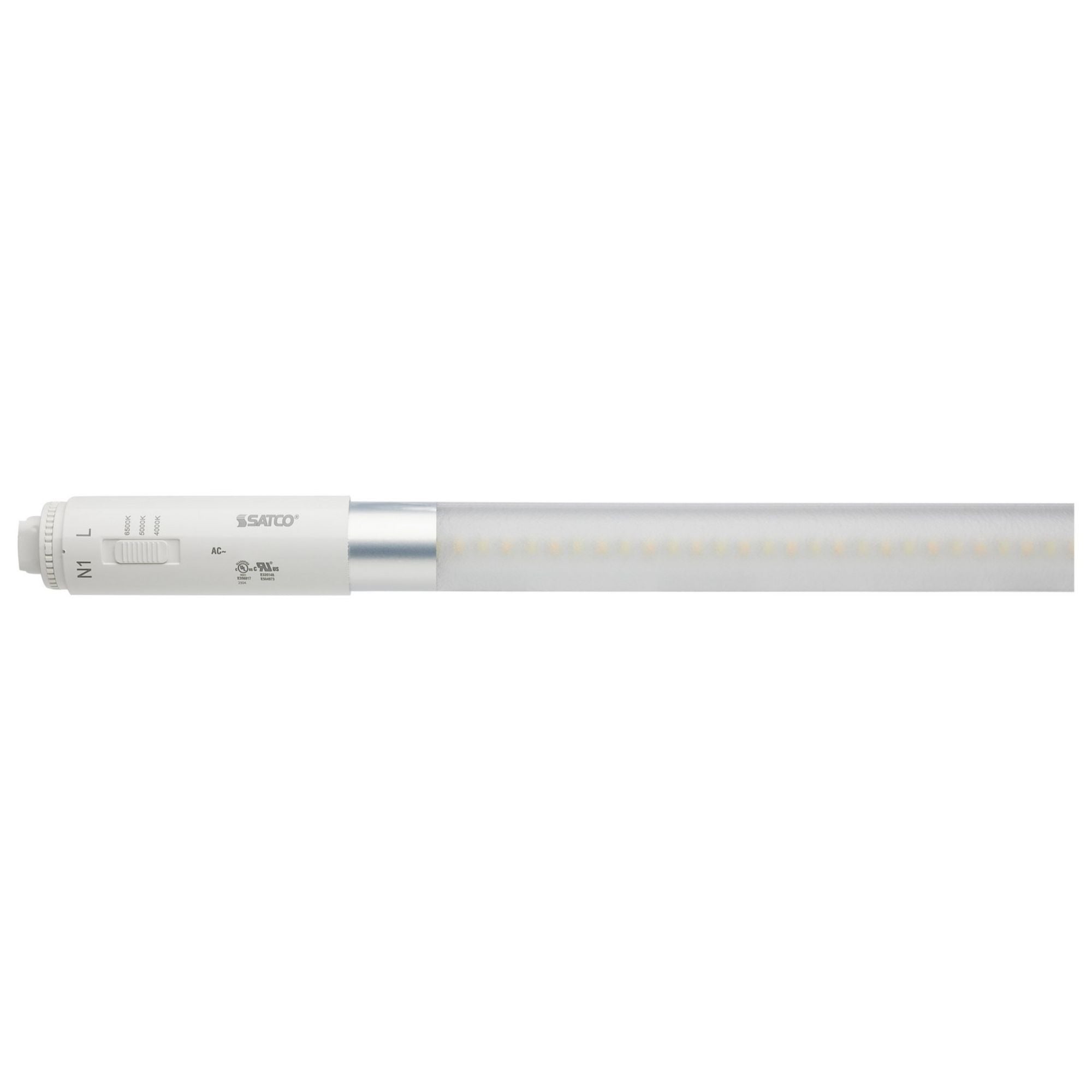

The Satco-Nuvo S16438 is a 30-watt LED T8 tube specifically created for illuminating signs. This tube operates within a voltage range of one hundred twenty to two hundred seventy-seven volts. It features selectable color temperatures including four thousand Kelvin, five thousand Kelvin, and six thousand five hundred Kelvin. Installation requires a Type B ballast bypass and supports both single-ended and double-ended wiring, providing versatile installation options.

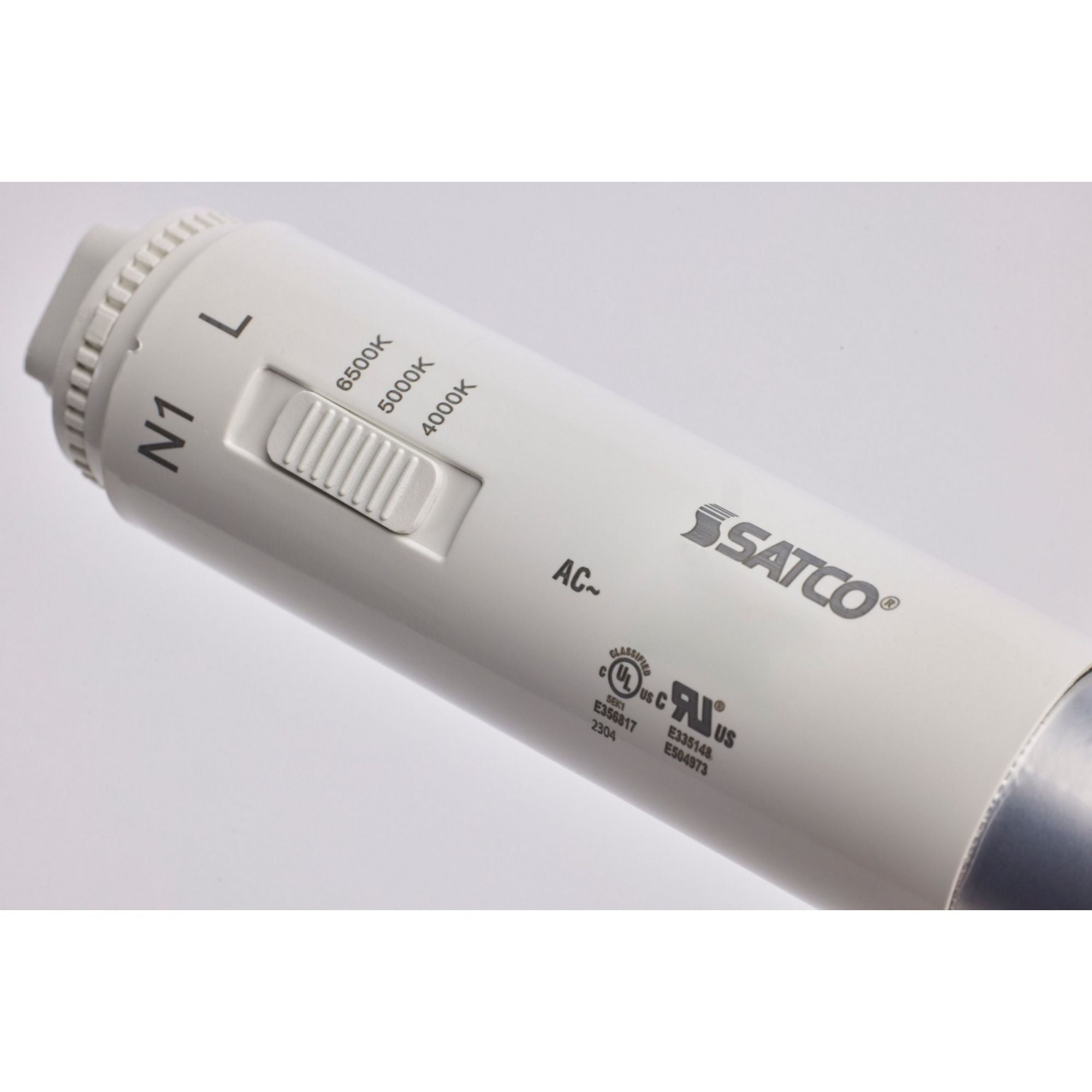

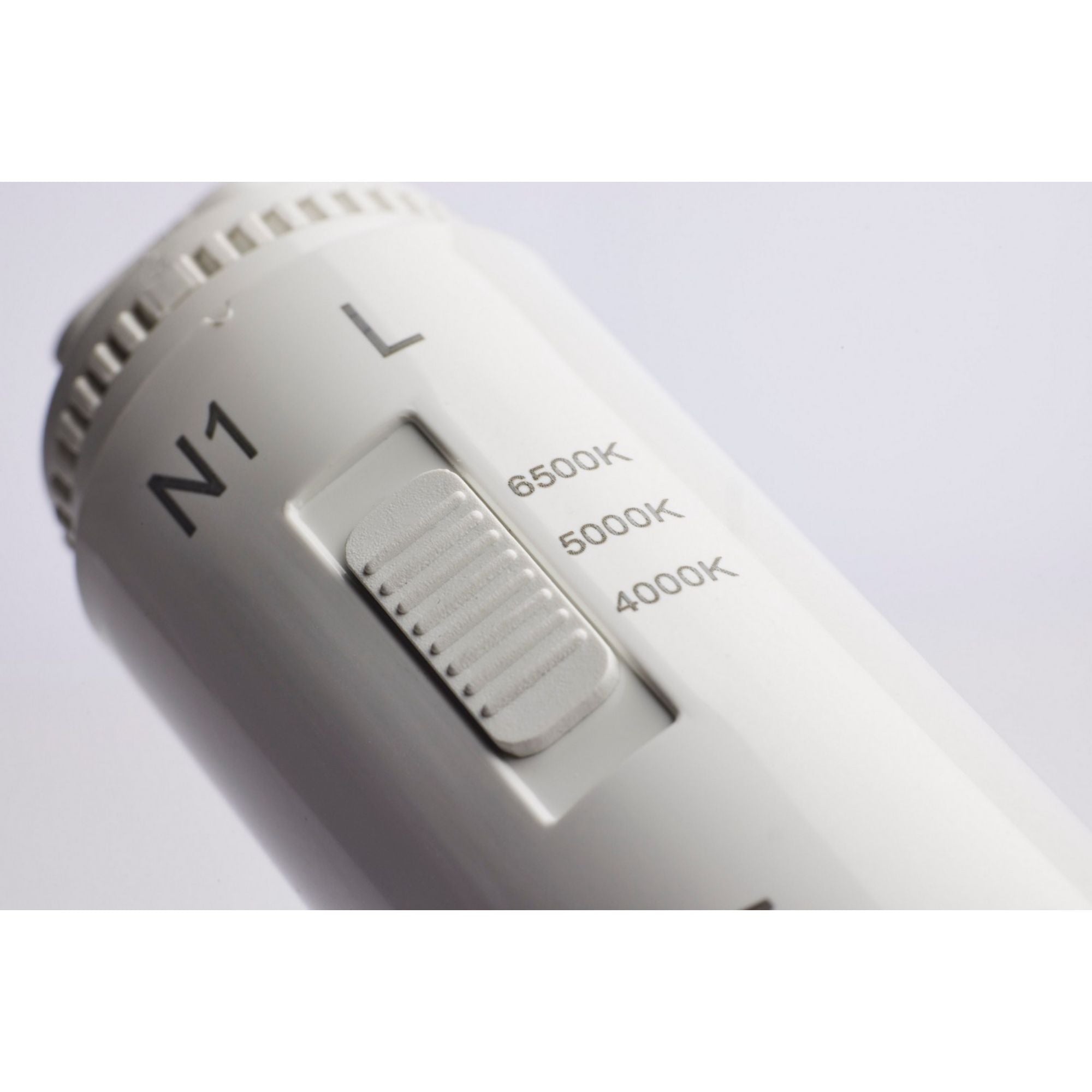

• 30-watt LED T8 lamp with selectable color temperature options.
• Operates on 120 to 277 volts; requires ballast bypass for installation.

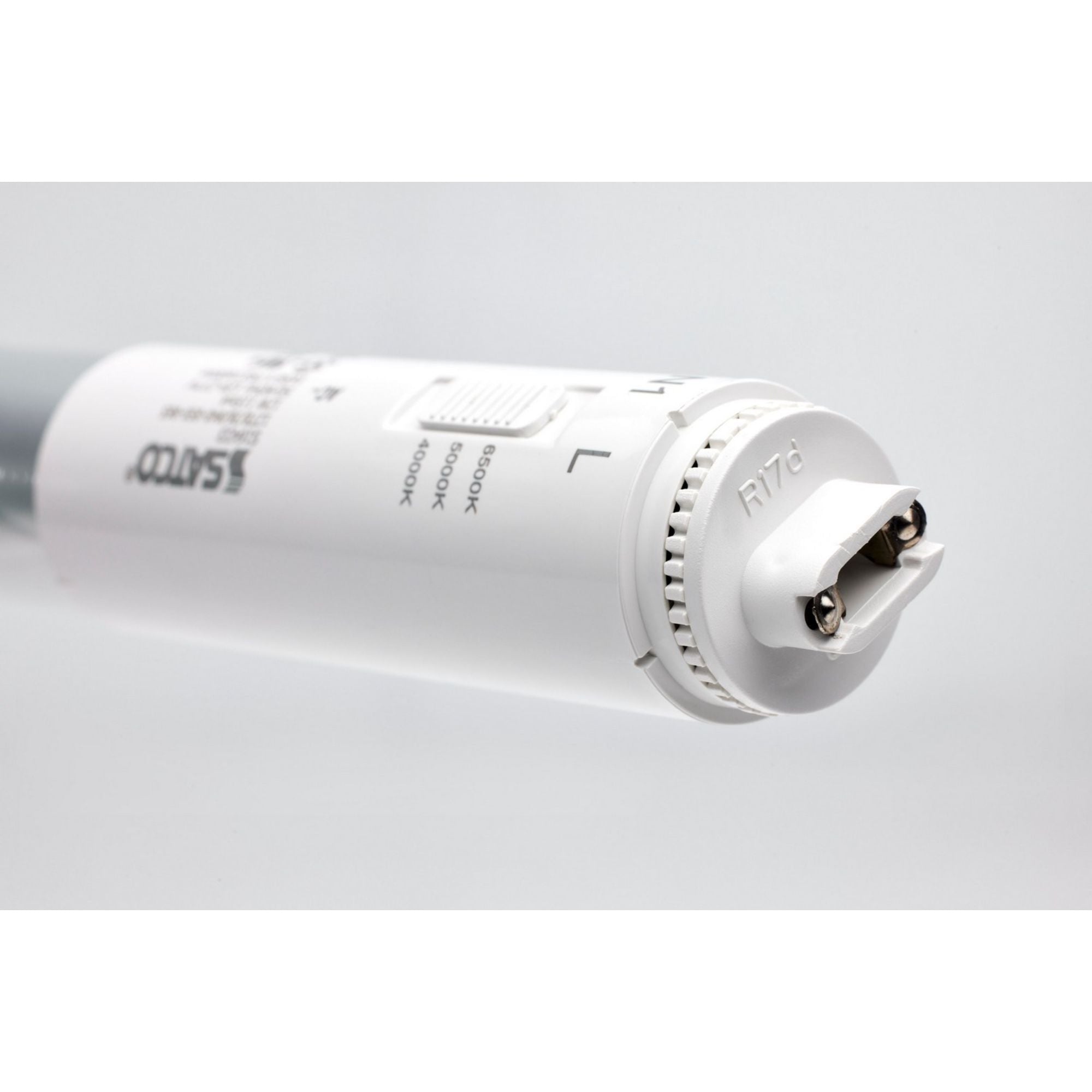

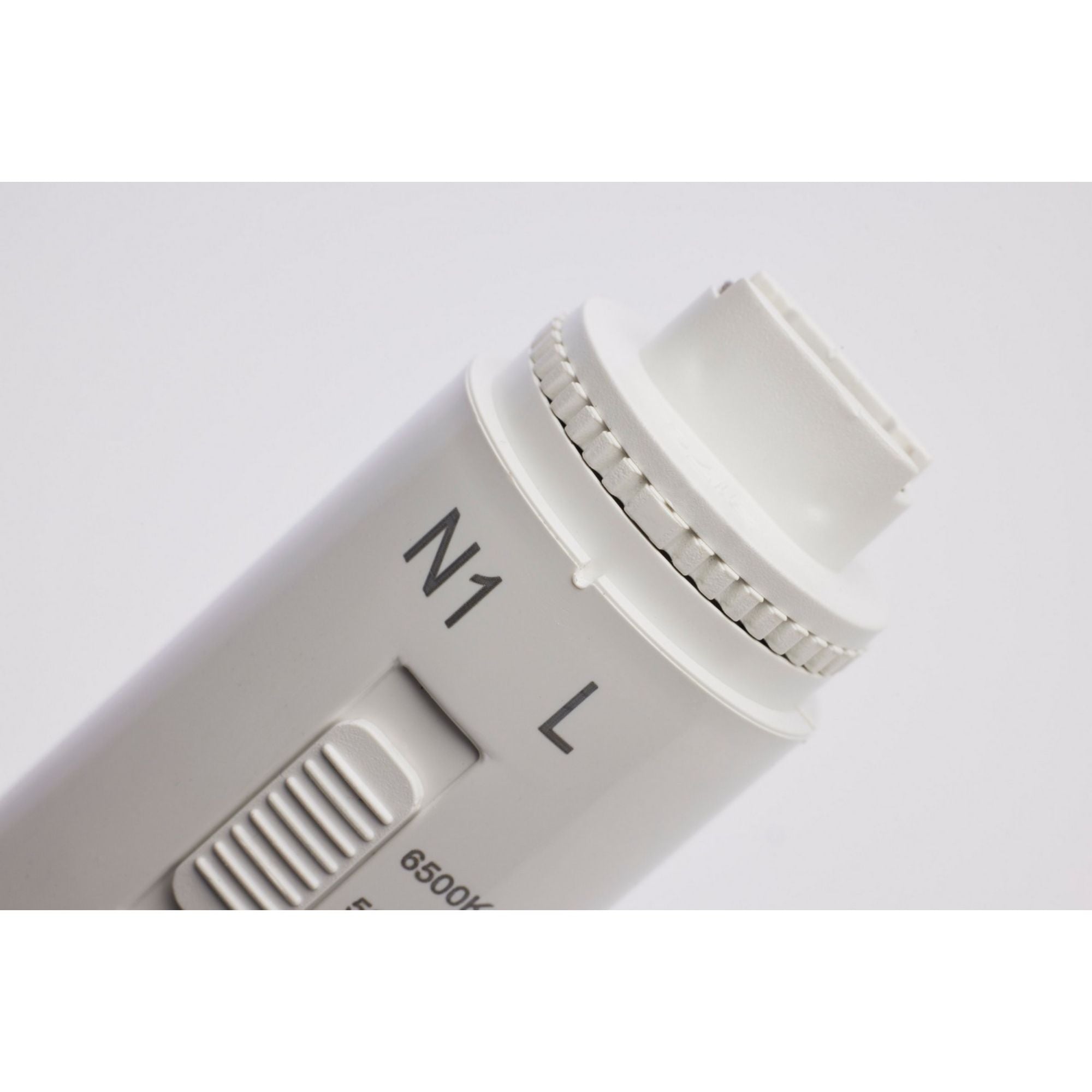

• Features a recessed double contact R17d base for secure fitting.

Product Highlights

This lamp provides wide, 360-degree illumination, making it suitable for various signage applications. Its durable polycarbonate construction and frost lens ensure long-lasting performance.

Product Information

Standard Information

• Brand: Satco-Nuvo
• MPN: S16438

Technical Specifications

• Technology: LED
• Product Category: Linear
• Lamp Type: Linear
• Bulb Shape: T8
• Base Type: R17d Recessed Double Contact
• Input Voltage: 120V-277V
• Wattage: 30W
• Incandescent Equivalent: 125W
• Fluorescent Equivalent: 85W
• Lumens: 4200L/4350L/4150L
• Color Temperature: 4000K/5000K/6500K
• CRI: 80+
• Dimmable: Non-Dimmable
• Rated Life Hours: 50000
• Beam Spread: 360
• Power Factor: 0.9
• Total Harmonic Distortion: 25%
• Operating Frequency: 50/60Hz
• Operating Temperature: -20C (-4F) to +45C (+113F)
• Length: 69.81 inches
• Diameter: 1.13 inches
• Material: Polycarbonate
• Lens Material: Plastic
• Lens Finish: Frost
• Housing Color: White
• Enclosure Rating: Damp
• Certifications: cULus, cRUus, ETL Sanitation, FCC Compliant, RoHS Compliant
• Ballast Type: Type B
• Ballasting Requirements: Ballast Bypass
• Wiring: Double-Ended, Single-Ended
• Weight: 1.15 lb.
• Installation Notes: Not for use in vapor tight fixtures
• Rated For Enclosed Fixture: Yes
• Warranty: 5-Years
• Amperage: 0.250-0.108A
• Energy Star Rated: No
• California Status: Lawful for sale
• Efficacy: 140.00/145.00/138.33 LPW
• IP Rating: IP20
