Product Description

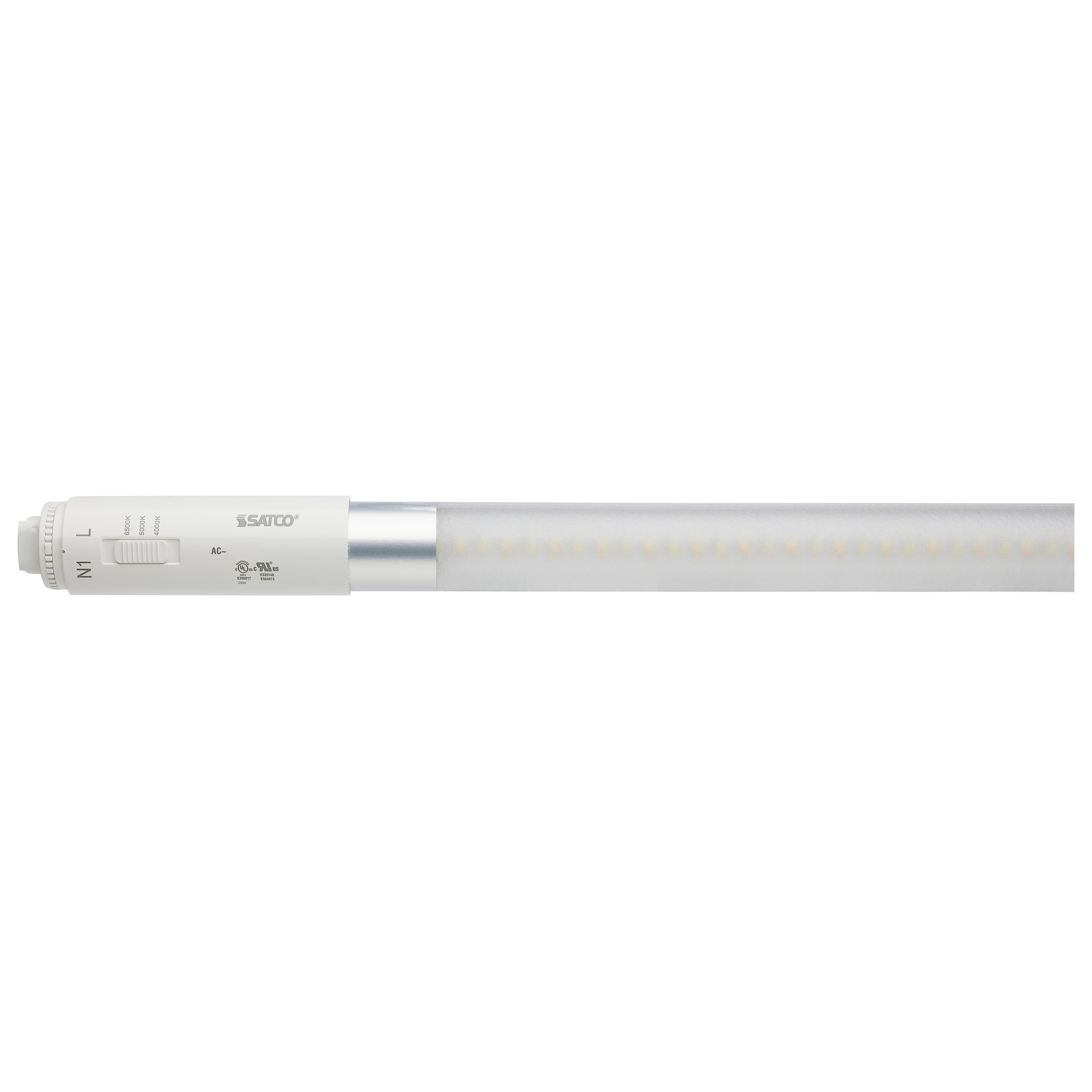

The SATCO-NUVO S16435 is an 18 Watt T8 LED lamp with CCT Selectable functionality, operating between 120-277 Volts. This lamp supports single or double-ended wiring and features a Type-B Ballast Bypass for easy installation. It delivers 360 degrees of illumination in 4000K, 5000K, or 6500K CCT and has a rated life of 50,000 hours.
- 18 Watt T8 LED

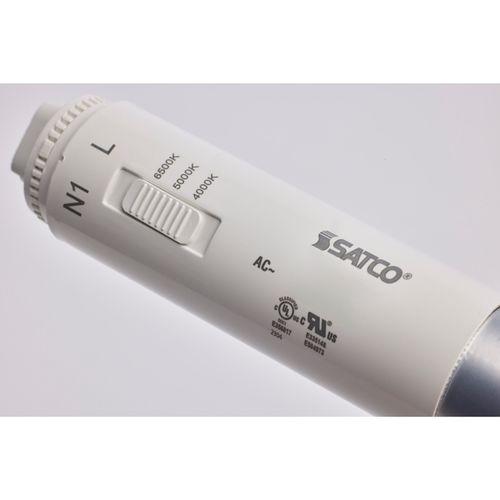

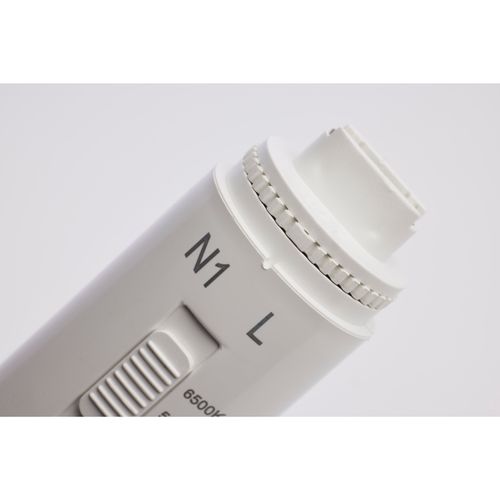

- CCT Selectable
- 120-277 Volt
- Single Or Double Ended
Product Highlights
Energy-efficient LED T8 lamp with selectable color temperature and ballast bypass installation for versatile lighting solutions.
Product Information
Standard Information
-
Brand: SATCO-NUVO
-
Manufacturer Part Number: S16435
-
Country of Origin: Vietnam
Technical Specifications
-
Brand: SATCO-NUVO
-
MPN: S16435
-
UPC: 4592316435
-
Wattage: 18 W
-
Shape: T8
-

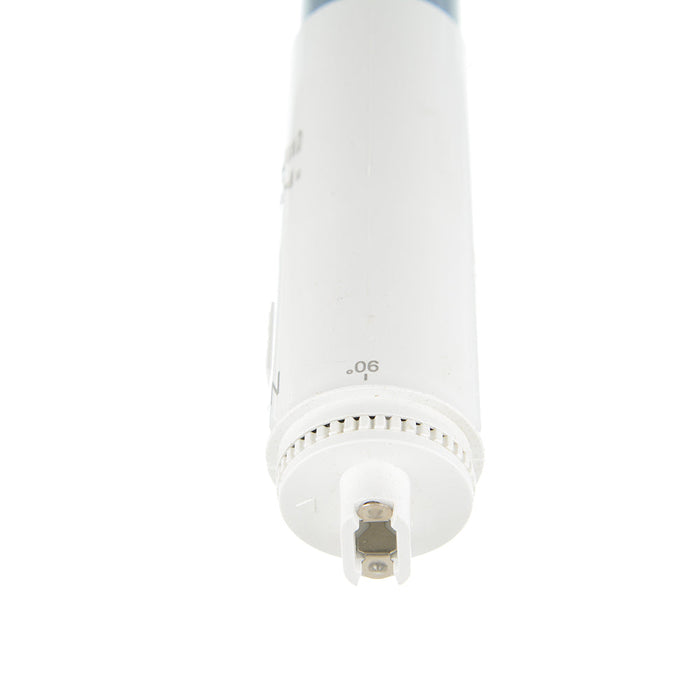

Lamp Base: R17d HO/VHO Recessed Double Contact Lamp Base
-
Incandescent Equivalent: 90 W
-
Lumens: 2500, 2600, 2450
-
Beam Spread: 360°
-
Base Type: Recessed Double Contact HO/VHO
-
Voltage: 120-277
-
Finish: White
-
Material: Polycarbonate
-
Product Type: Lamp
-
CCT (Kelvin): 5000K
4000K
6500K
-
Technology: LED
-
Rated Life (hours): 50000
-
Color Temperature: Cool White
Daylight
-
Energy Star Rated: No
-
Filament Type: LED
-
Dimmable: No
-
Lamp Type: Linear
-
Nominal Length (Inches): 48"
-
Cri: 83
-
ANSI Base: R17d
-
Operating Position: Universal
-
Amps: 0.150-0.645A
-
Ballast Bypass Direct: Ballast Bypass
-
Ballasting Requirements: Ballast Bypass
-
Brightness (Lumens): 2500/2600/2450
-
Burning Position: Universal
-
CA Web Text: Lawful for Sale
-
Catalog Description: 18 Watt T8 LED - CCT Selectable - 120-277 Volt - Single or Double Ended - Type B Ballast Bypass
-
CCT Selectable: Yes
-
Certifications: cRUus, cULus
-
Color of Light: Cool White to Daylight
-
Color Rendering Index (CRI): 80+
-
Color Temperature (Kelvin): 4000K/5000K/6500K
-
Country of Origin: Vietnam
-
Description: 18T8/LED/HO-SIGN/48-3CCT/BP/SE
-
Each Height In.: 1.15
-
Each Length In.: 48
-
Each Quantity: 1
-
Each Weight Lb.: 0.63
-
Each Width In.: 1.15
-
FCC Compliant: Yes
-
Fixture Type: Linear
-
Fluor Equiv: 60W
-
Housing Color: White
-
Image File Name: S16435.jpg
-
Indoor Outdoor: Indoor
-
Installation Notes: Not for use in vapor tight fixtures.
-
IP Rating: IP20
-
Lamp Ballast Type: Type B
-
Lamp End Type: Double/Single
-
Lamp Filament: LED
-
Lens Finish: Frost
-
Lens Material: Plastic
-
Lighting Type: Lamps
-
Location Rating: Damp
-
MOD: 1.13"
-
MOL: 45.81"
-
Nominal Length: 48"
-
NSF Approved: ETL Sanitation listed (conforms to NSF)
-
Operating Frequency: 50/60Hz
-
Operating Temp: -20C (-4F) to +45C (+113F)
-
Pack Type: Egg Crate
-
Power Factor: 0.9
-
Quantity In Pack: 1
-
Rated For Enclosed Fixture: Yes
-
Replaces: S16404/S16405
-
RoHS Compliant: Yes
-
SDS class: LED_Lamp
-
Status: Active
-
Surge Protection: Built-In Surge Protection - 1KV
-
Tariff Code: 8539.52.0051
-
THD: 25%
-
Three-Way: No
-
Tube Guard Use: No
-
UNSPSC: 39101628
-
Avg. Life (Hours): 50000
-
Beam Angle: 360
-
Kelvin Temp.: 4000-6500 Selectable
-
Max Operating Temp: 113 F (45 C)
-
Min Operating Temp: -4 F (-20 C)
-
culus Listed: Yes
-
Outdoor Rating: Damp Location Rated
-
Length: 48 in
-
Bulb Base: Double Contact (R17d)
-
Bulb Shape: T8
-
Bulb Type: LED
-
Title 20 Compliant: No
