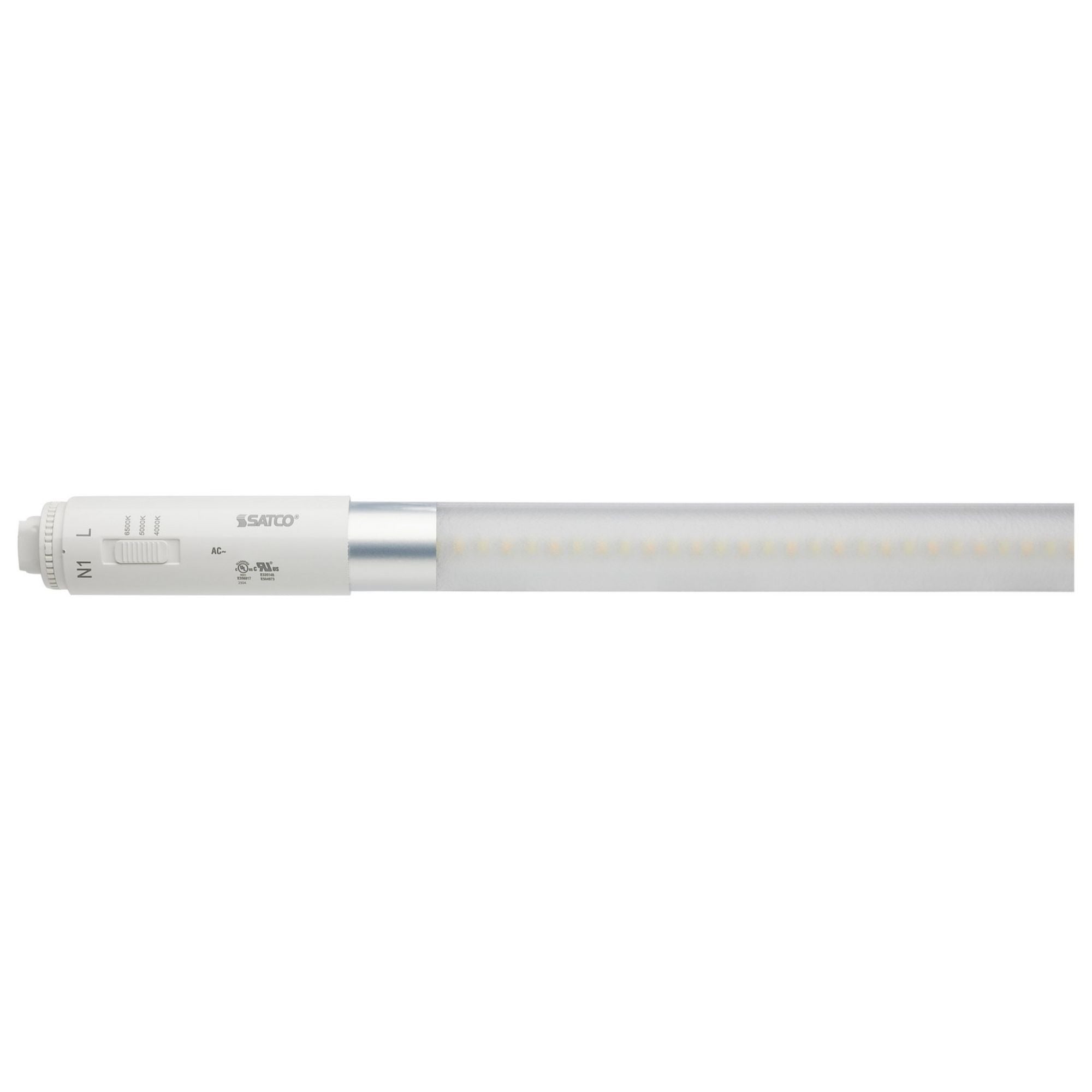

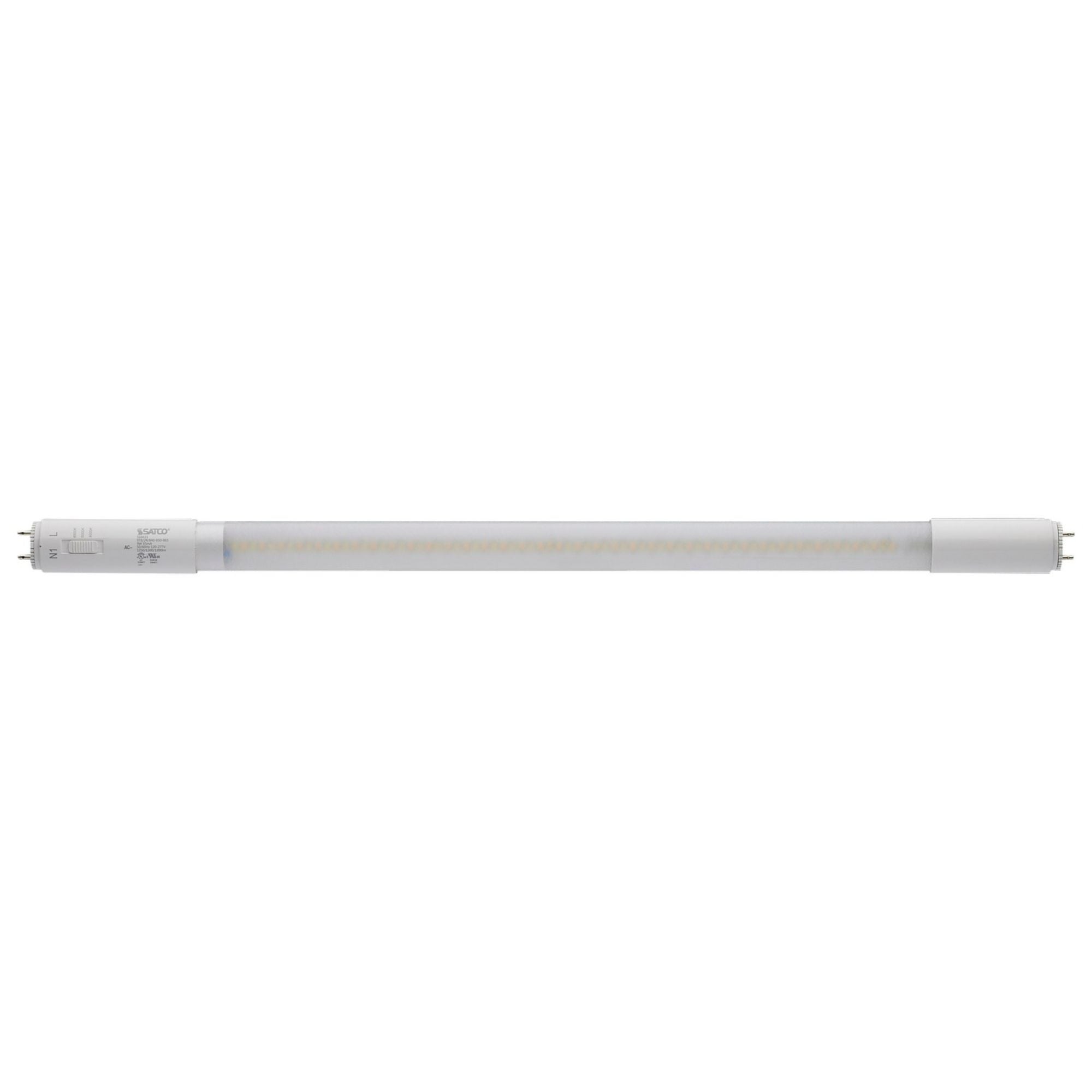

SATCO-NUVO S16431 9-Watt T8 LED CCT Selectable 120-277V Type B Ballast Bypass

Product Description

The SATCO-NUVO S16431 is a nine-watt T8 LED lamp designed to replace traditional fluorescent lamps. It operates on an input voltage range from one hundred twenty to two hundred seventy-seven volts. This model features selectable color temperatures of four thousand Kelvin, five thousand Kelvin, or six thousand five hundred Kelvin. It supports Type B ballast bypass installations and can be wired for either single or double-ended power. The lamp has a recessed double contact HO/VHO (R17d) base and emits light in a full three hundred sixty-degree pattern.

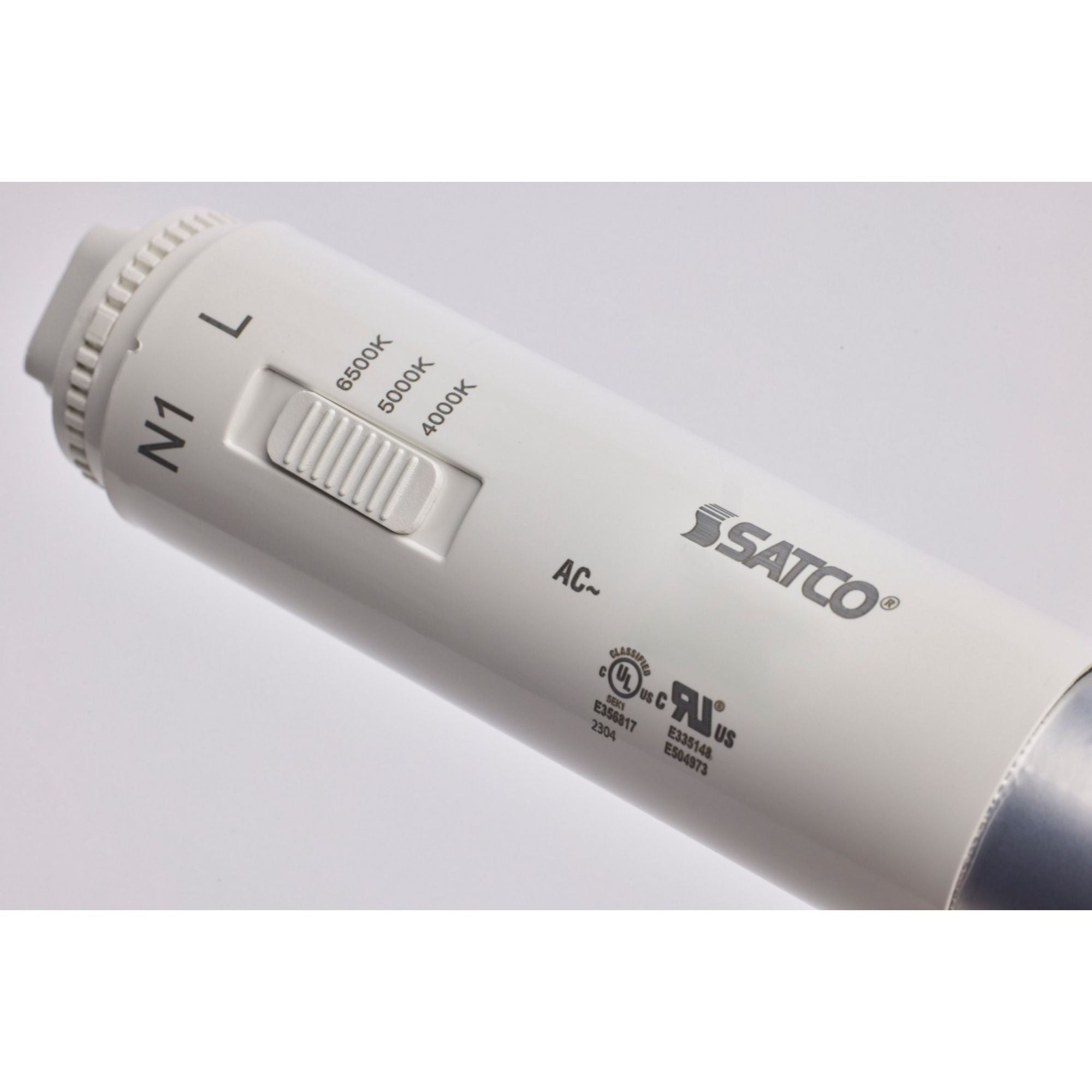

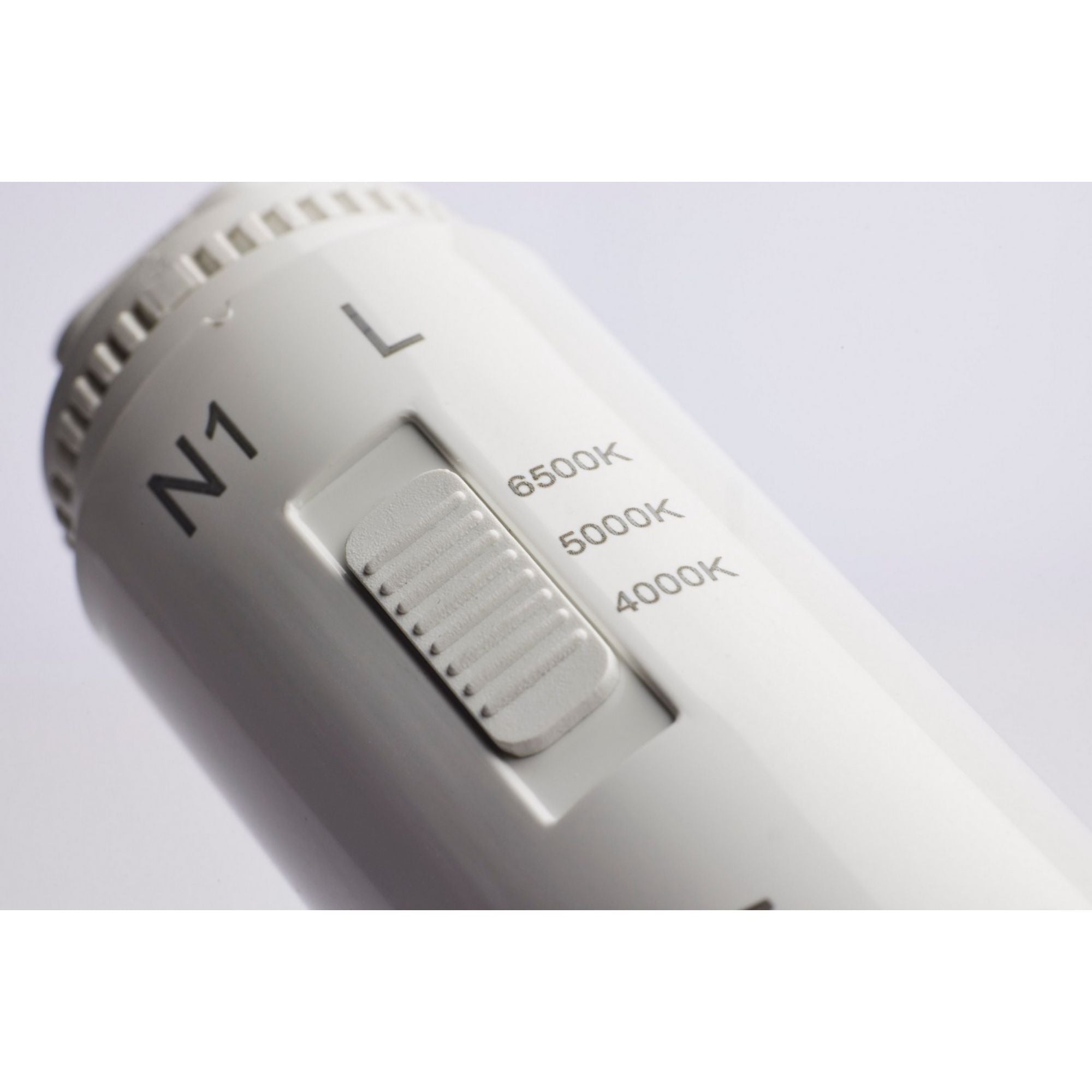

• 9W T8 LED with selectable CCT: 4000K, 5000K, 6500K
• Operates on 120-277V, designed for Type B ballast bypass

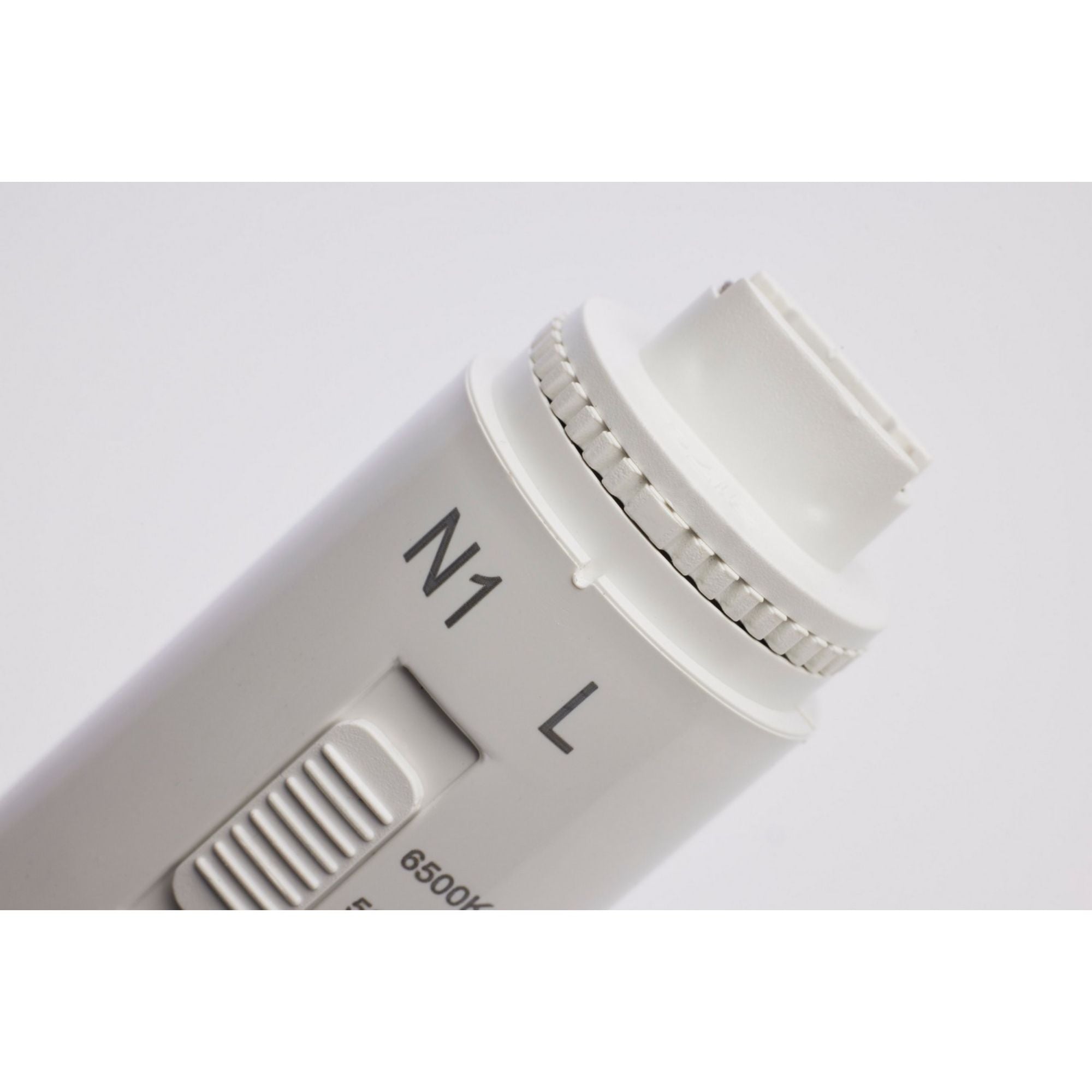

• Features a R17d base and provides 360-degree illumination

Product Highlights

This LED lamp is energy efficient and suitable for various applications, including commercial and residential settings.

Product Information

Standard Information

• Brand: SATCO-NUVO
• Manufacturer Part Number: S16431

Technical Specifications

• Power Consumption: 9W
• Input Voltage: 120V-277V
• Ballast Type: Type B
• Shape: T8
• Base: R17d
• Nominal Length: 24 inches
• CCT Options: 4000K/5000K/6500K
• Lumens: 1250L/1300L/1200L
• Beam Spread: 360 degrees
• Operating Temperature: -20C to +45C
• Rated Hours: 50000
• Material: Polycarbonate
• Safety Listing: cULus Certified
• RoHS Compliant: Yes
