Product Description
The SATCO-NUVO S11835R1 is a 9 Watt LED Downlight Retrofit designed for 5-6 inch can sizes, offering CCT selectable lighting from 2700K to 5000K. This round fixture features integrated LED technology, an alloy steel body, and built-in 2.5KV surge protection. It is dimmable (120V, Phase cut) and suitable for indoor wet locations, making it ideal for bathrooms, kitchens, and general residential or commercial use. With a 90-degree beam angle and 95 CRI, it provides quality illumination.
- 9 Watt LED Downlight Retrofit, designed for 5-6 Inch Can Size installations
- CCT Selectable (2700K/3000K/3500K/4000K/5000K) and Dimmable (120V, Phase cut)
- Energy Star Certified, IC Rated, and Wet Location Rated for versatile use
Product Highlights
This LED downlight retrofit offers versatile CCT selection, dimming capability, and robust surge protection, ensuring energy-efficient and high-quality lighting for various indoor wet locations.
Product Information
Standard Information
-
Brand: SATCO-NUVO
-
Manufacturer Part Number: S11835R1
-
Country of Origin: China
Technical Specifications
-
Brand: SATCO
-
Light Source Technology: Integrated
-
Diameter: 7.41
-
Material: Alloy Steel
-
Fixture Type: Downlight Retrofit
-
Style: Contemporary
-
Surge Protection: Built-in surge protection - 2.5KV
-
Total Harmonic Distortion: <45%
-
CCT Selectable: Yes
-
Wattage Selectable: No
-
Can Size: 5-6 in.
-
Finish: Black
-
Current: 0.095A
-
Lens Finish: Frost
-
Lens Material: Plastic (PS)
-
Power Factor: 0.92
-
Sloped Ceiling Compatible: No
-
Location Rating: Wet
-
Incandescent Equivalent: 65W
-
Color Temperature (CCT): 2700K/3000K/3500K/4000K/5000K
-
Dimmable: Yes-Dimmable
-
Rated Life: 60000 hours
-
Beam Angle: 90 degrees
-
Color Temperature Description: Warm White to Natural Light
-
CRI: 95
-
Dimming Type: 120V only, Phase cut
-
Operating Frequency: 60Hz
-
Operating Temperature: -4F to +104F (-20C to +40C)
-
Lumen Output: 800L
-
Input Voltage: 120v
-
Wattage: 9W
-

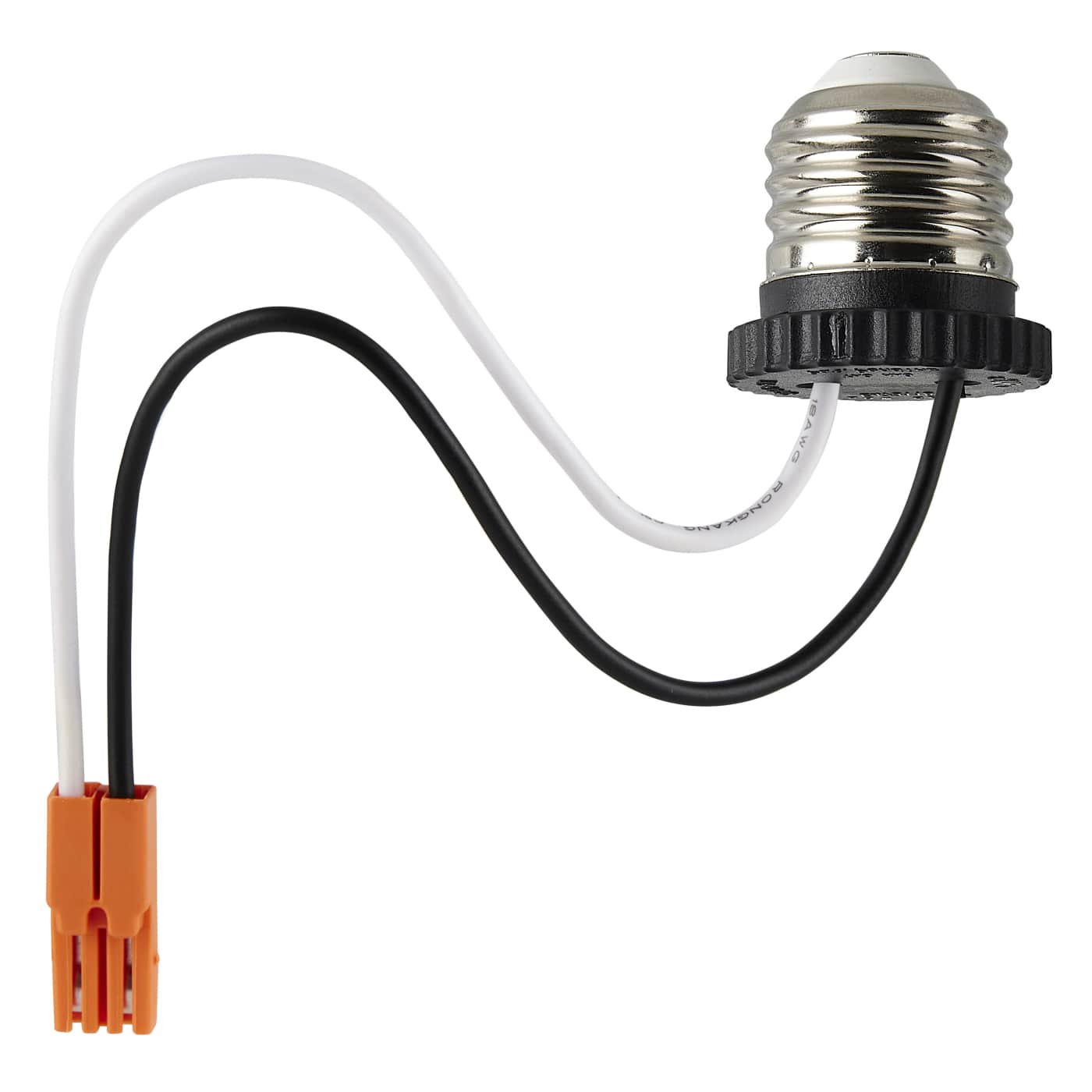

Base Type: E26 Adapter
-
Fixture Shape: Round
-
Air Tight: Yes
-
California Prop 65 Warning: Lead
-
Energy Star ID: 3354720
-
FCC Compliant: Yes
-
IC Rated: Yes
-
RoHS Compliant: Yes
-
Safety Listing: cETLus - Classified
-
California Title 24 Compliant: Yes
-
DLC Approved: No
-
Energy Star Certified: Yes
-
California Title 20 Compliant: Yes
-
Recommended Use: Bathroom, Bedroom, Home Office, Kitchen, Living Room, Commercial, Retail
-
Power Source: AC
-
Number of Light Sources: 1
-
Lighting Method: Downlight
-
Water Resistance Level: Water Resistant
-
Efficiency: 88.89 LPW
-
Mounting Type: Ceiling Mount
-
Installation Type: Flush Mount
-
Certifications Met: Energy Star, FCC, RoHS, cETL
-
Required Assembly: Yes
-
Finish Types: Polished
-
Included Components: Bulb, E26 base adapter, Mounting Hardware
-
Manufacturer: Satco
-
Connected Capable: No
-
Ceiling Aperture: 5.875 in. Cutout
-
Clearance Height: 3.25
-
Connection: Connector or Adapter
-
Dimming Range: 100 to 10 percent
-
Replaceable Light Source: No
