Product Description

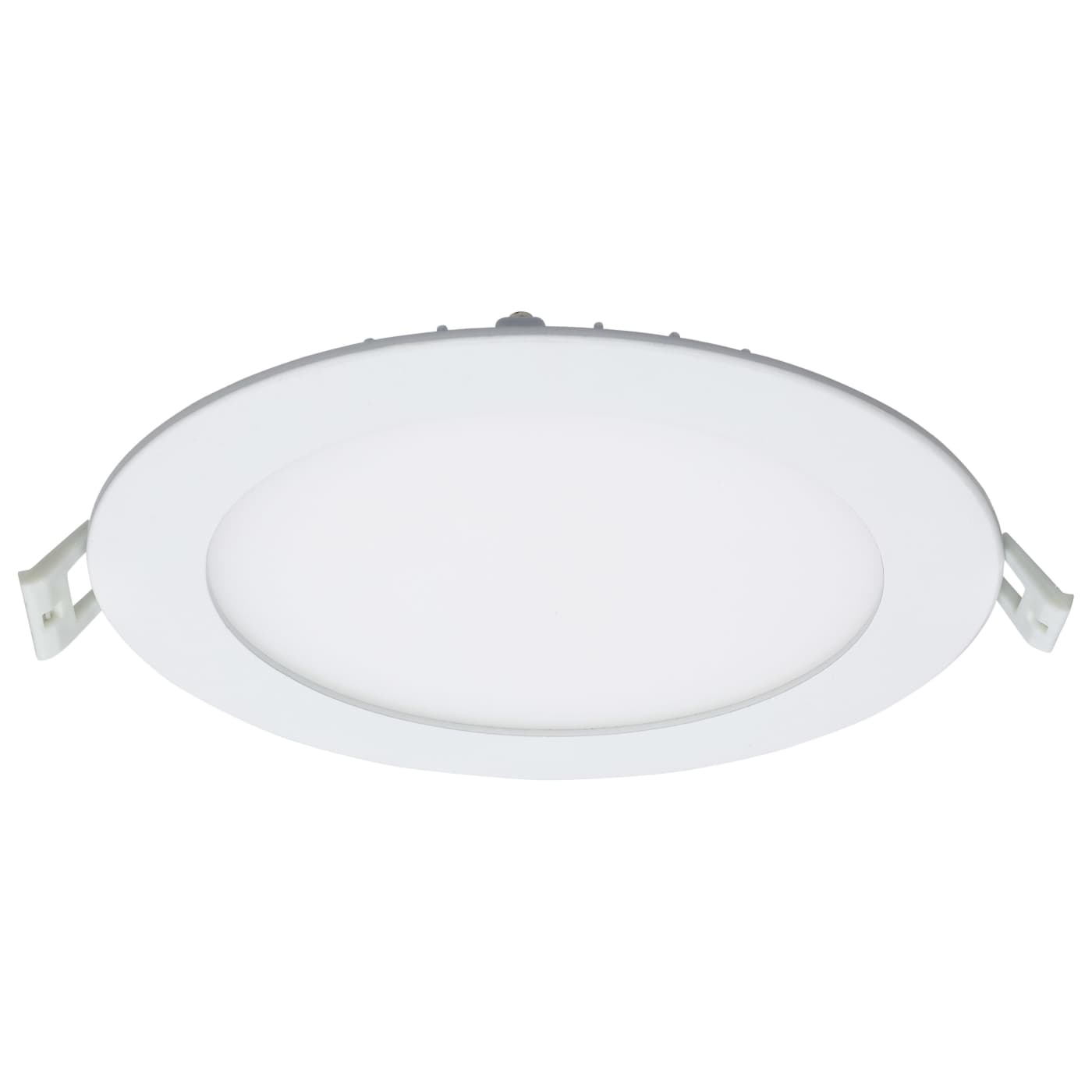

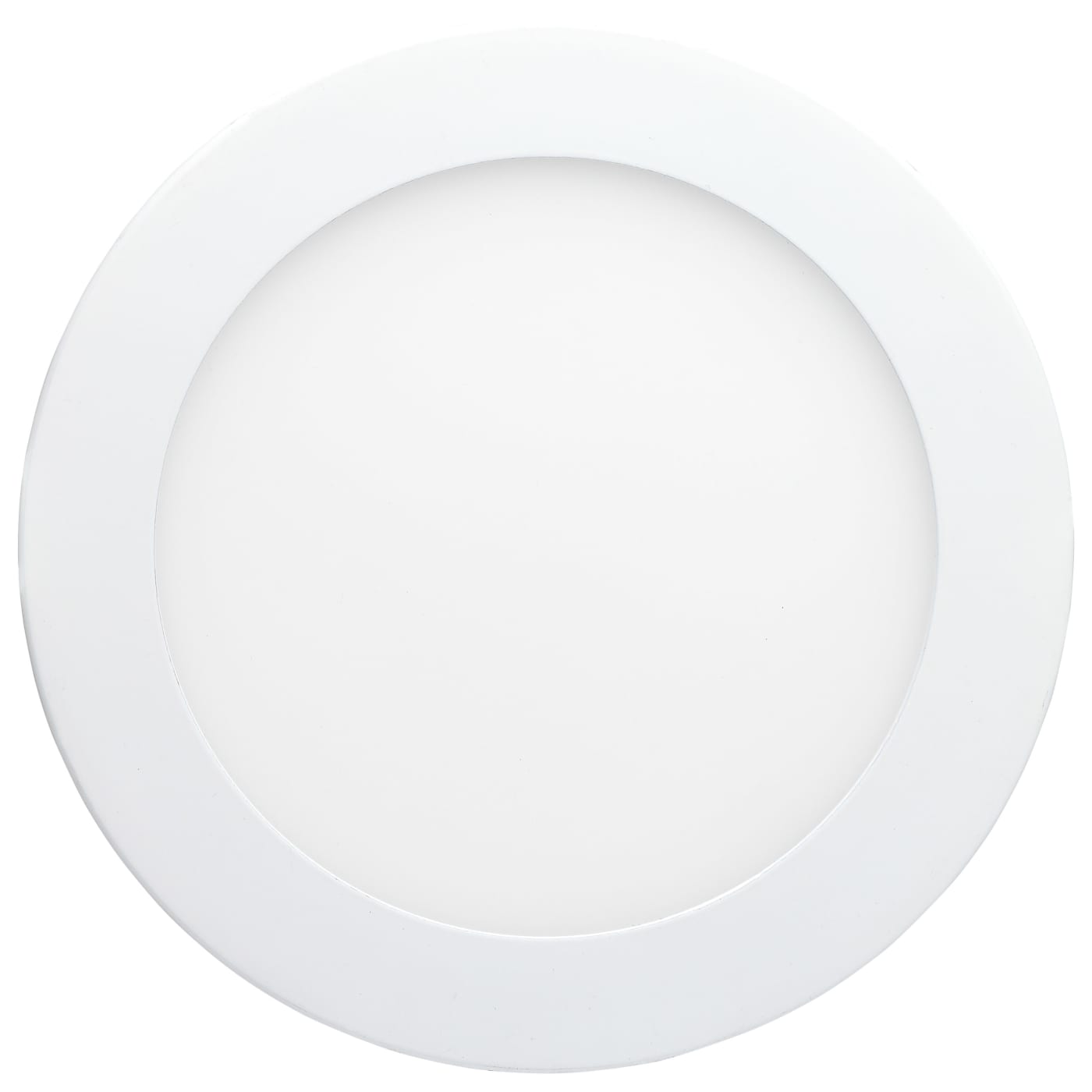

The SATCO-NUVO S11827R1 is a 12 Watt LED Direct Wire Downlight, featuring an edge-lit design and a 6-inch round form factor. This CCT selectable fixture operates at 120 volts and is dimmable, utilizing a remote driver for installation. It offers adjustable color temperatures from 2700K to 5000K, with lumens varying from 900L to 980L depending on the selected CCT. Designed for indoor use, it is IC rated and suitable for wet locations, making it ideal for various residential and commercial lighting applications.
- CCT Selectable (2700K/3000K/3500K/4000K/5000K) and Dimmable 120V operation.

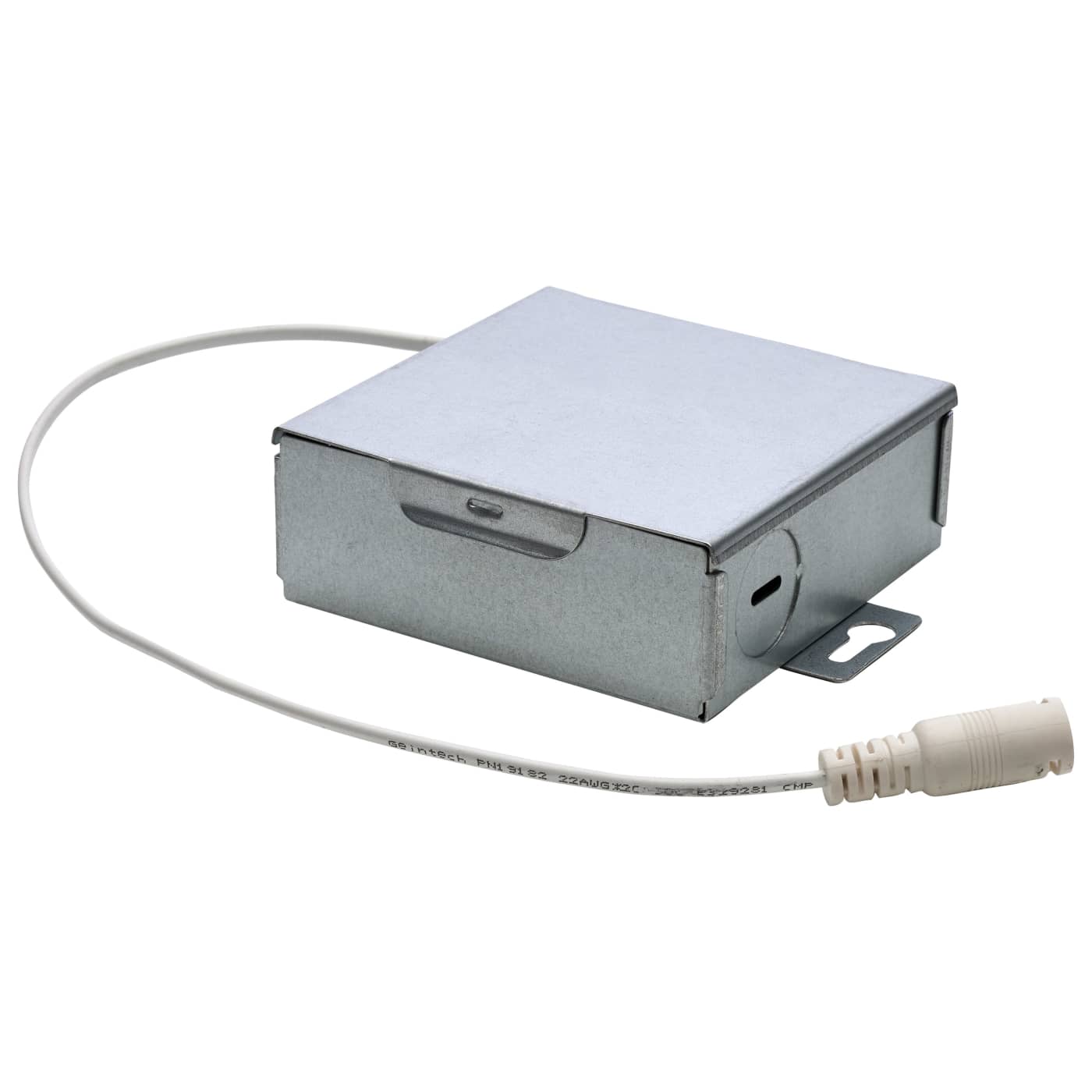

- Edge-lit 6-inch round design with a remote driver.
- IC Rated, Wet Location Rated, and Air Tight Rated for versatile installation.
Product Highlights
Versatile 12W LED downlight with selectable CCT, high CRI, and durable construction for various indoor applications.
Product Information
Standard Information
-
Brand: SATCO-NUVO
-
Manufacturer Part Number: S11827R1
-
Country of Origin: Vietnam
Technical Specifications
-
Technology: LED
-
Fixture Type: Direct Wire LED Downlight
-
Bulb Type: Integrated LED
-
Wattage: 12W
-
Input Voltage: 120v
-
Current: 0.100A
-
Operating Frequency: 60Hz
-
Power Factor: >0.9
-
Total Harmonic Distortion: <20%
-
CCT Selectable: Yes
-
Color Temperature: 2700K/3000K/3500K/4000K/5000K
-
Lumens: 900L (at 2700K), 920L (at 3000K), 980L (at 3500K/4000K), 950L (at 5000K)
-
CRI: 90+
-
Dimmable: Yes-Dimmable
-
Dimming Type: 120V only, Phase cut
-
Dimmable Down To: 10 to 100 percent
-
Rated Life: 50000 Hours
-
Incandescent Equivalent: 65W
-
Fixture Shape: Round
-
Nominal Size: 6 in.
-

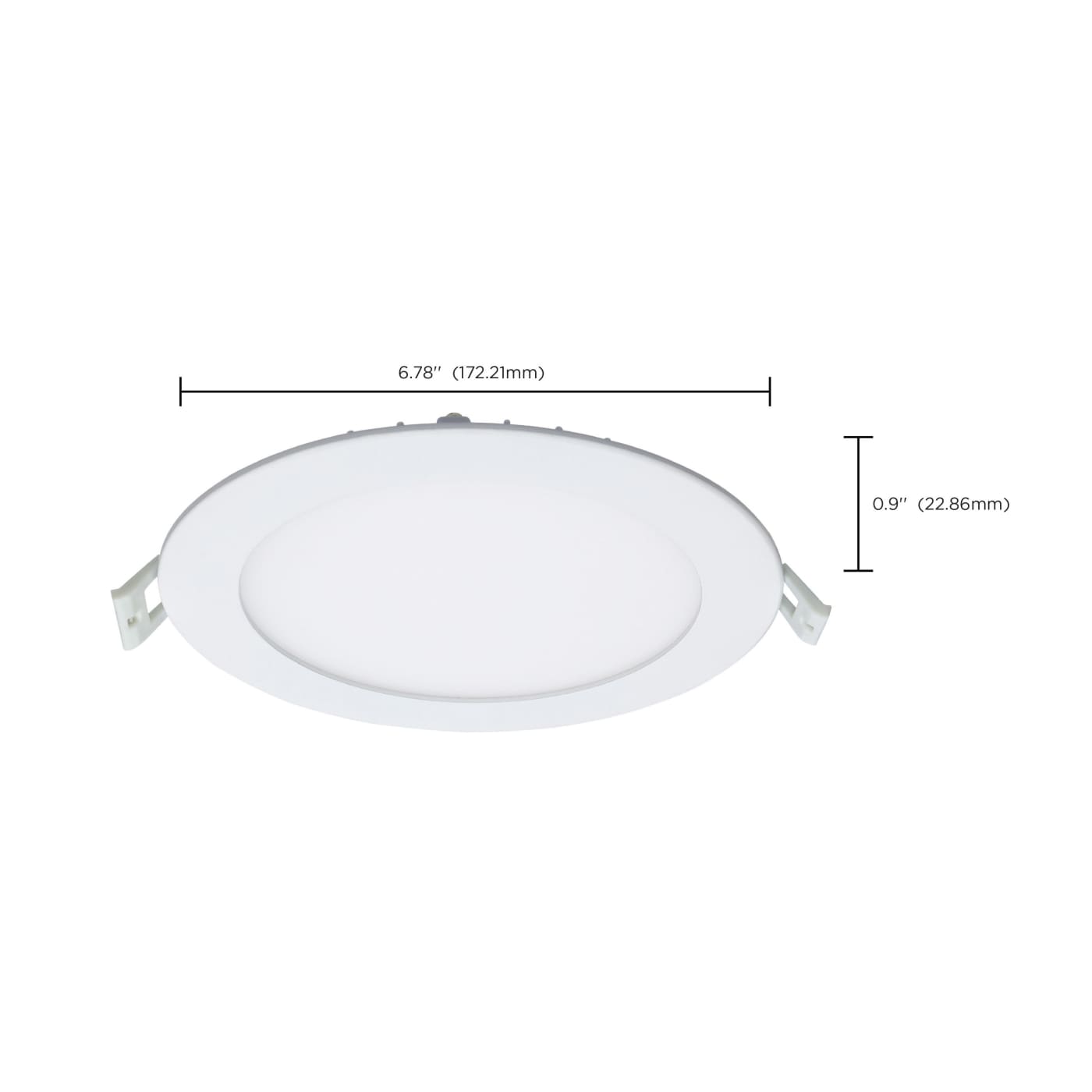

Diameter: 6.78 in.
-
Height: 0.9 in.
-
Material: Aluminum
-
Lens Material: Poly methyl methacrylate (PMMA)
-
Lens Finish: Frost
-
Beam Angle: 108 degrees
-
Operating Temperature: -4F to +113F (-20C to +45C)
-
Indoor/Outdoor Use: Indoor
-
Location Rating: Wet
-
IP Rating: IP20
-
Air Tight: Yes
-
IC Rated: Yes
-
Sloped Ceiling Compatible: No
-
Closet Rated: Yes
-
Connection: Hardwire
-
Has Driver: Yes
-
Replaceable Light Source: No
-
Efficacy: 87.50 LPW
-
Safety Listing: cETLus - Listed
-
Certifications: FCC Compliant, ROHS Compliant, CA Prop 65 (Lead)
-
Compliance: T24/JA8 Compliant, Title 20 Exempt
-
Style: Utility
-
Category: Recessed Lighting
-
Sub Category: Direct Wire
-
Trim Material: Aluminum
-
Up Down Installation: Down
-
Candle Power: 300.0
-
Mounting Length: 6.18 in.
-
Mounting Height: 1.34 in.
