Product Description
The SATCO-NUVO S11801R1 is a 9W LED Downlight Retrofit designed for 5-6 inch recessed cans. This fixture offers CCT selectable color temperatures from 2700K to 5000K and is dimmable at 120V. It features an integrated LED, a 90-degree beam angle, and includes an E26 adapter for easy installation. Rated for wet locations, it provides 800 lumens of light output.
- CCT Selectable (2700K/3000K/3500K/4000K/5000K)
- Dimmable (120V only, Phase cut)
- Long lifespan of 50,000 hours
Product Highlights
This LED downlight retrofit offers CCT selectable lighting, dimmability, and a long 50,000-hour lifespan, making it an energy-efficient and versatile lighting solution.
Product Information
Standard Information
-
Brand: SATCO-NUVO
-
Manufacturer Part Number: S11801R1
-
Country of Origin: China, Thailand
Technical Specifications
-
Brand: SATCO-NUVO
-
MPN: S11801R1
-
Reference ID: SATCONUVOS11801R1
-
Bulb Type: Integrated LED
-
Fixture Diameter: 7.4 inches
-
Material: Steel
-
Fixture Type: Downlight Retrofit
-

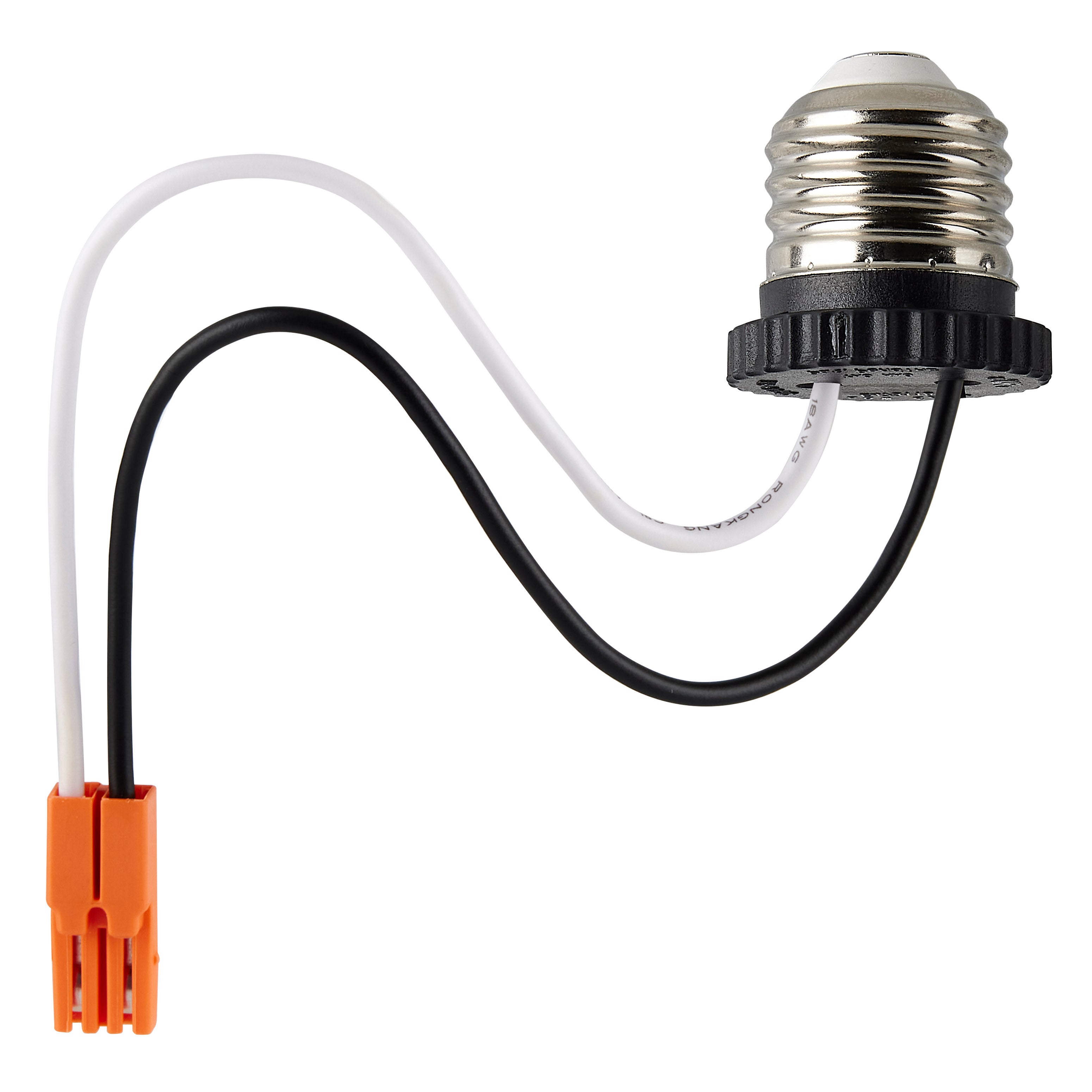

Included Components: E26 Adapter
-
Surge Protection: Built-in 2.5KV
-
CCT Selectable: Yes
-
Wattage Selectable: No
-
Downlight Diameter: 5-6 inches
-
Finish: White
-
Amperage: 0.075A
-
Lens Finish: Frost
-
Lens Material: Polycarbonate (PC)
-
Power Factor: 0.9
-
Product Technology: LED
-
Incandescent Equivalent: 65W
-
Color Temperature: 2700K/3000K/3500K/4000K/5000K
-
Dimmable: Yes
-
Rated Life: 50000 hours
-
Beam Angle: 90 degrees
-
Light Color: Warm White to Natural Light
-
CRI: 90+
-
Dimming Type: 120V only, Phase cut
-
Operating Frequency: 60Hz
-
Operating Temperature: -4F to +104F (-20C to +40C)
-
Lumens: 800 Lumens
-
Input Voltage: 120V
-
Wattage: 9W
-
Bulb Base: E26 Adapter
-
Fixture Shape: Round
-
Air Tight: Yes
-
FCC Compliant: Yes
-
Location Rating: Wet
-
ROHS Compliant: Yes
-
Safety Listing: cETLus - Listed
-
Certifications: California T24 Listed, Title 20, T24/JA8 Compliant, Energy Star Certified
-
Height: 2.32 inches
-
Width: 7.4 inches
-
Light Output Efficacy: 88.89 Lumens/W
-
Power Source: Hardwired
-
Light Direction: Downwards
