Product Description

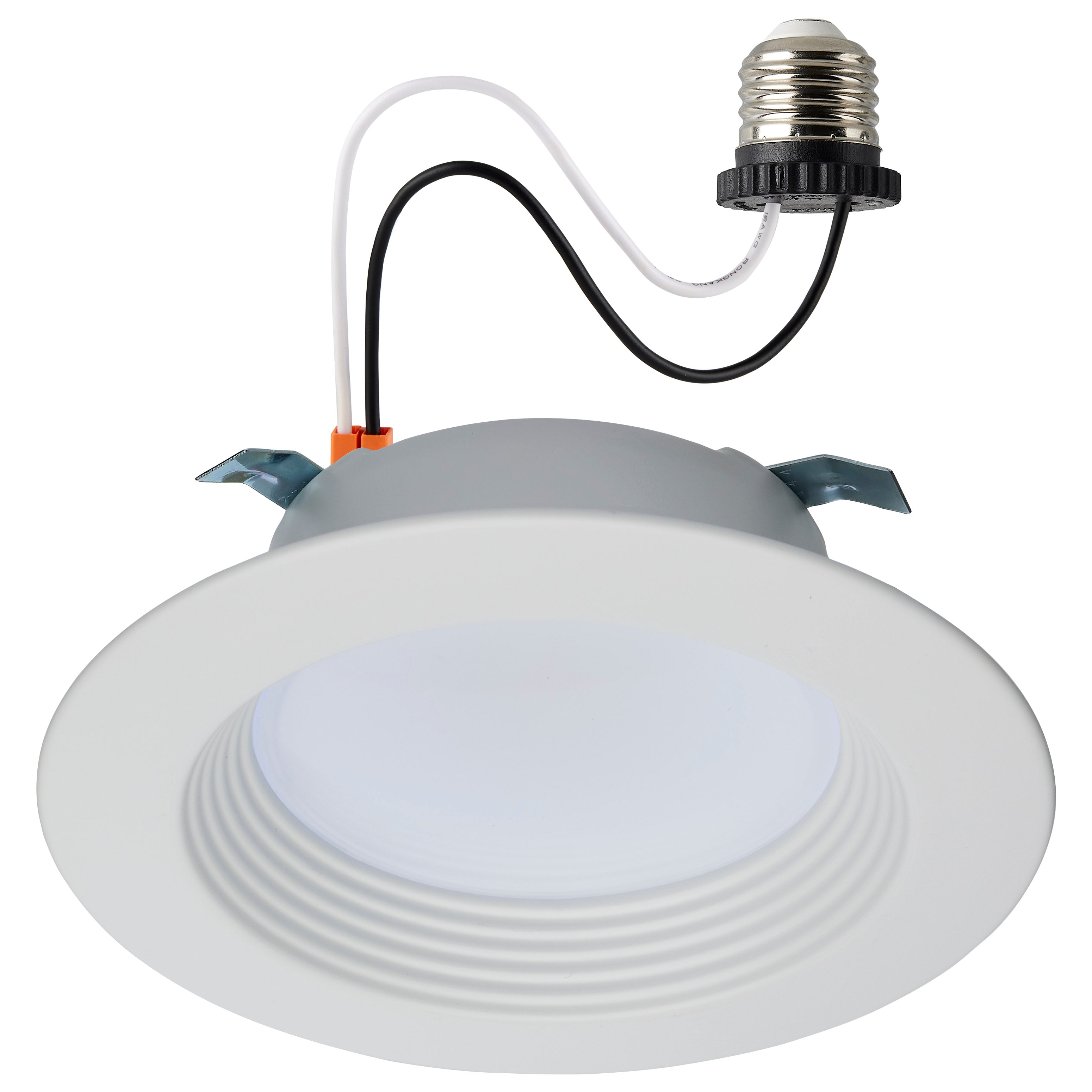

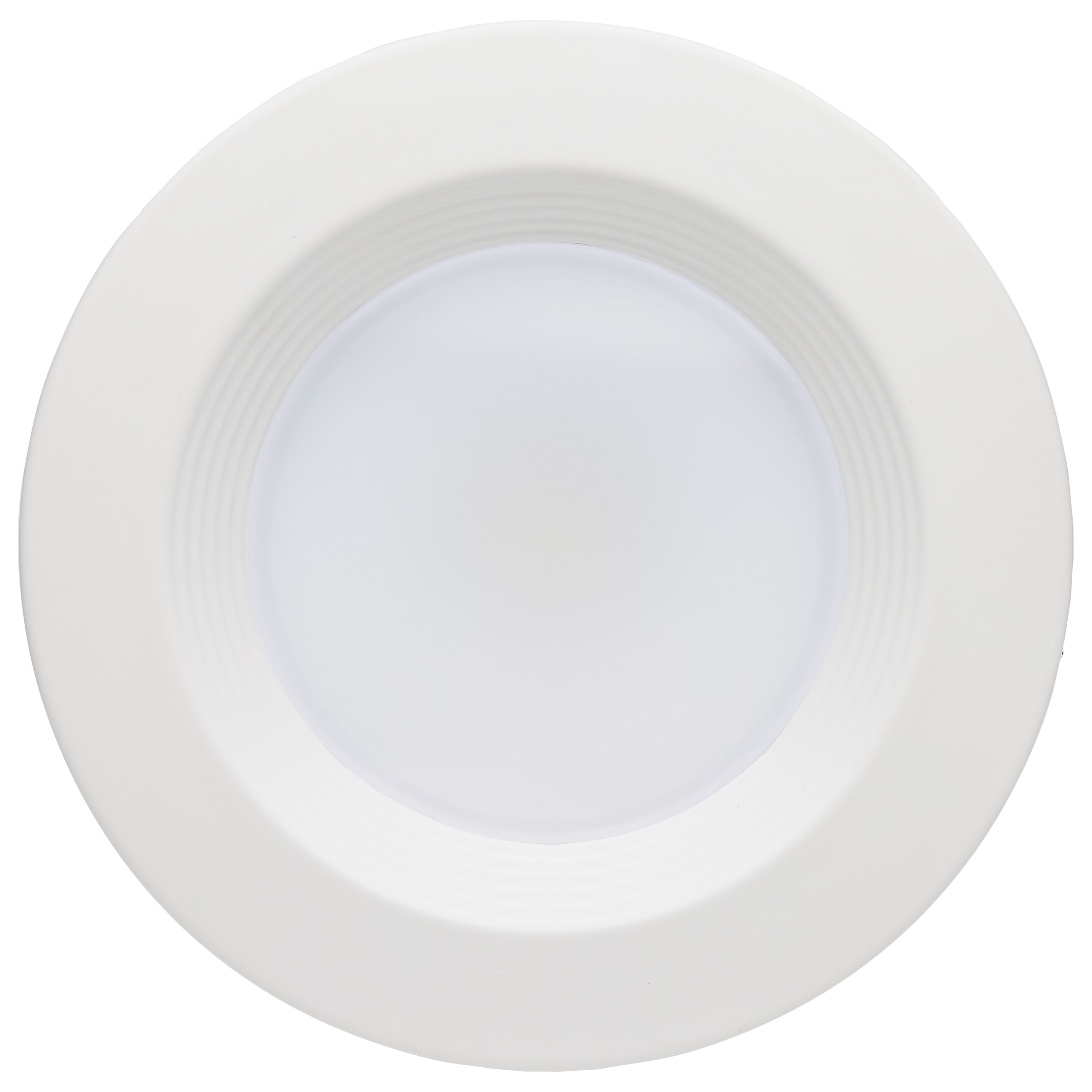

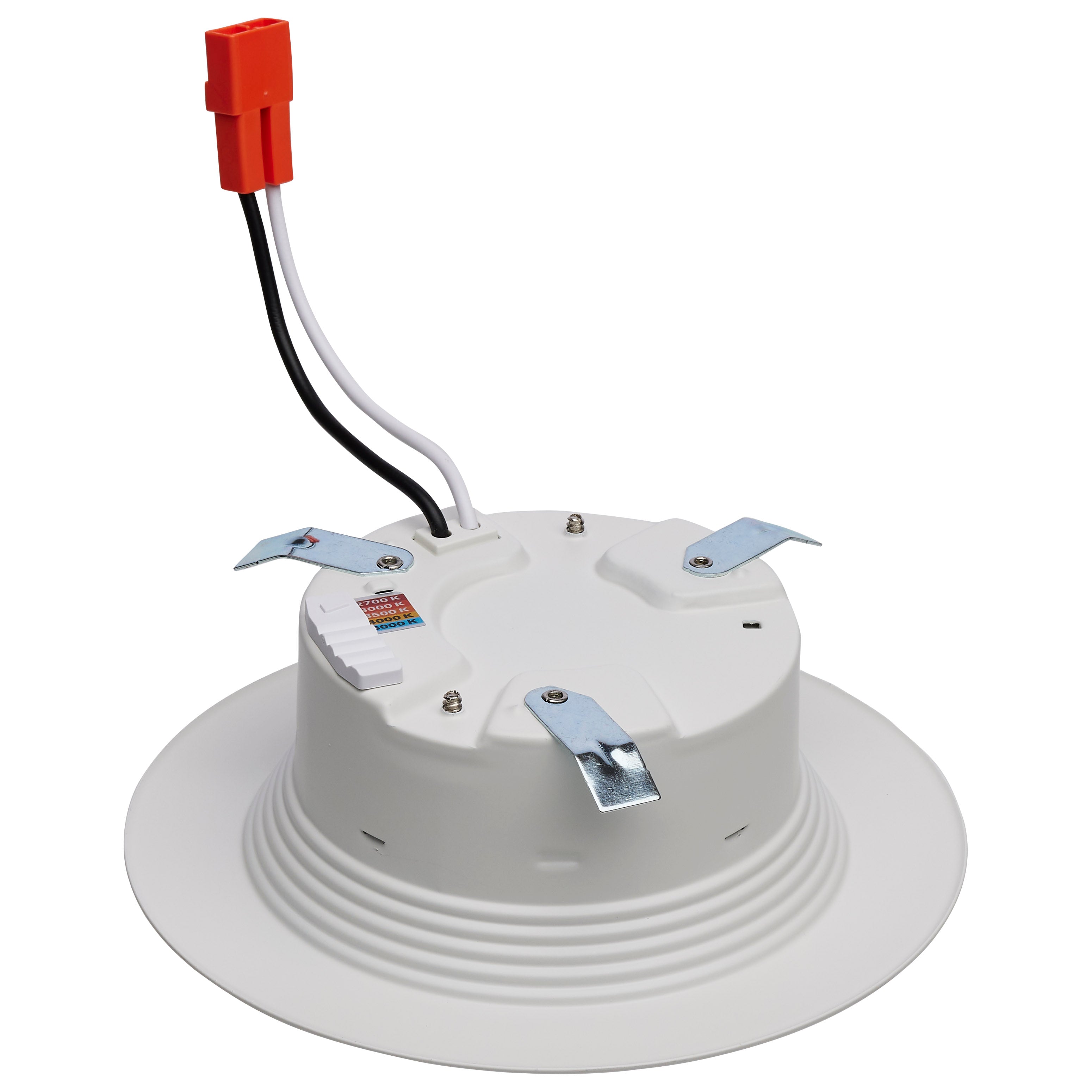

The SATCO-NUVO S11800R1 is a 6.7W LED Downlight Retrofit designed for 4-inch can sizes, offering an energy-efficient lighting solution. This fixture provides 600 lumens of light and features CCT selectable options, allowing users to choose from 2700K, 3000K, 3500K, 4000K, or 5000K color temperatures. Operating at 120V, it is dimmable and includes an E26 adapter for easy installation in existing recessed lighting.
- CCT selectable with five color temperature options (2700K/3000K/3500K/4000K/5000K).
- Dimmable 120V operation with a high 90+ Color Rendering Index (CRI).
- Wet Location Rated, Energy Star Certified, and includes an E26 adapter for simple retrofit.
Product Highlights
Integrated LED downlight with CCT selectable options, E26 adapter, and built-in 2.5KV surge protection.
Product Information
Standard Information
-
Brand: SATCO-NUVO
-
Manufacturer Part Number: S11800R1
-
Country of Origin: China
Technical Specifications
-
MPN: S11800R1
-
Brand: SATCO-NUVO
-
Wattage: 6.7W
-
Lumens: 600 Lumens
-
Input Voltage: 120V
-
Dimmable: Yes, 120V Phase Cut
-
CCT Selectable: Yes
-
Color Temperature: 2700K/3000K/3500K/4000K/5000K
-
CRI: 90+
-
Rated Life: 50,000 Hours
-
Can Size: 4 Inches
-
Diameter: 5.31 Inches
-
Material: Steel
-
Fixture Type: Downlight Retrofit
-

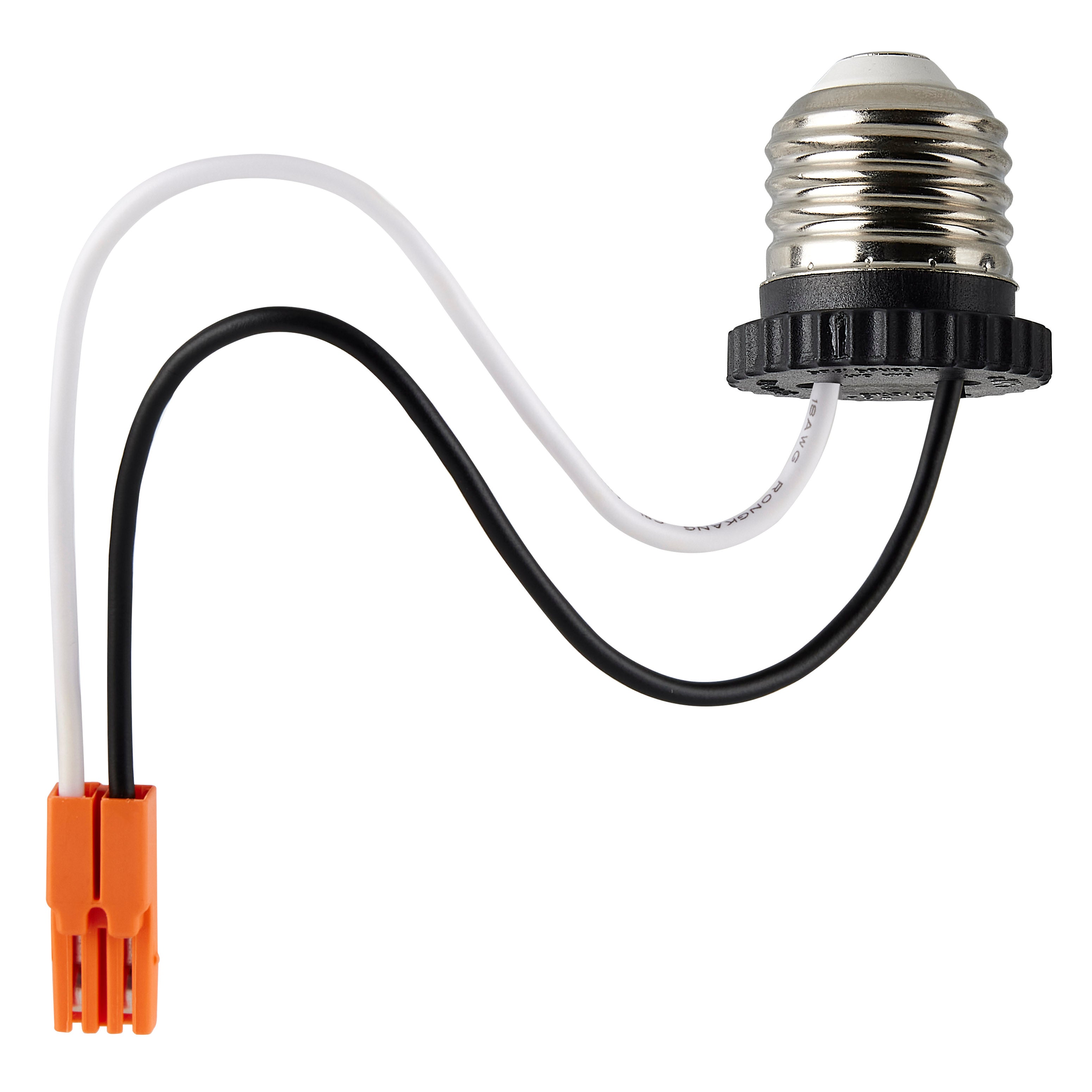

Adapter Included: E26 Adapter (S9001)
-
Surge Protection: Built-in 2.5KV
-
Amperage: 0.058A
-
Lens Finish: Frost
-
Lens Material: Polycarbonate (PC)
-
Power Factor: 0.9
-
Indoor/Outdoor Use: Indoor
-
Technology: LED
-
Incandescent Equivalent: 50W
-
Beam Angle: 90 Degrees
-
Operating Frequency: 60Hz
-
Operating Temperature: -4F to +104F (-20C to +40C)
-
Lamp Base: Medium Adapter
-
ANSI Base: E26 Adapter
-
Lamp Type: Integrated LED
-
Fixture Shape: Round
-
Air Tight: Yes
-
Location Rating: Wet
-
Height: 1.83 Inches
-
Efficacy: 89.6 lm/W
