Satco-Nuvo S11765 12t8 LED 12W 3 Foot

Product Description

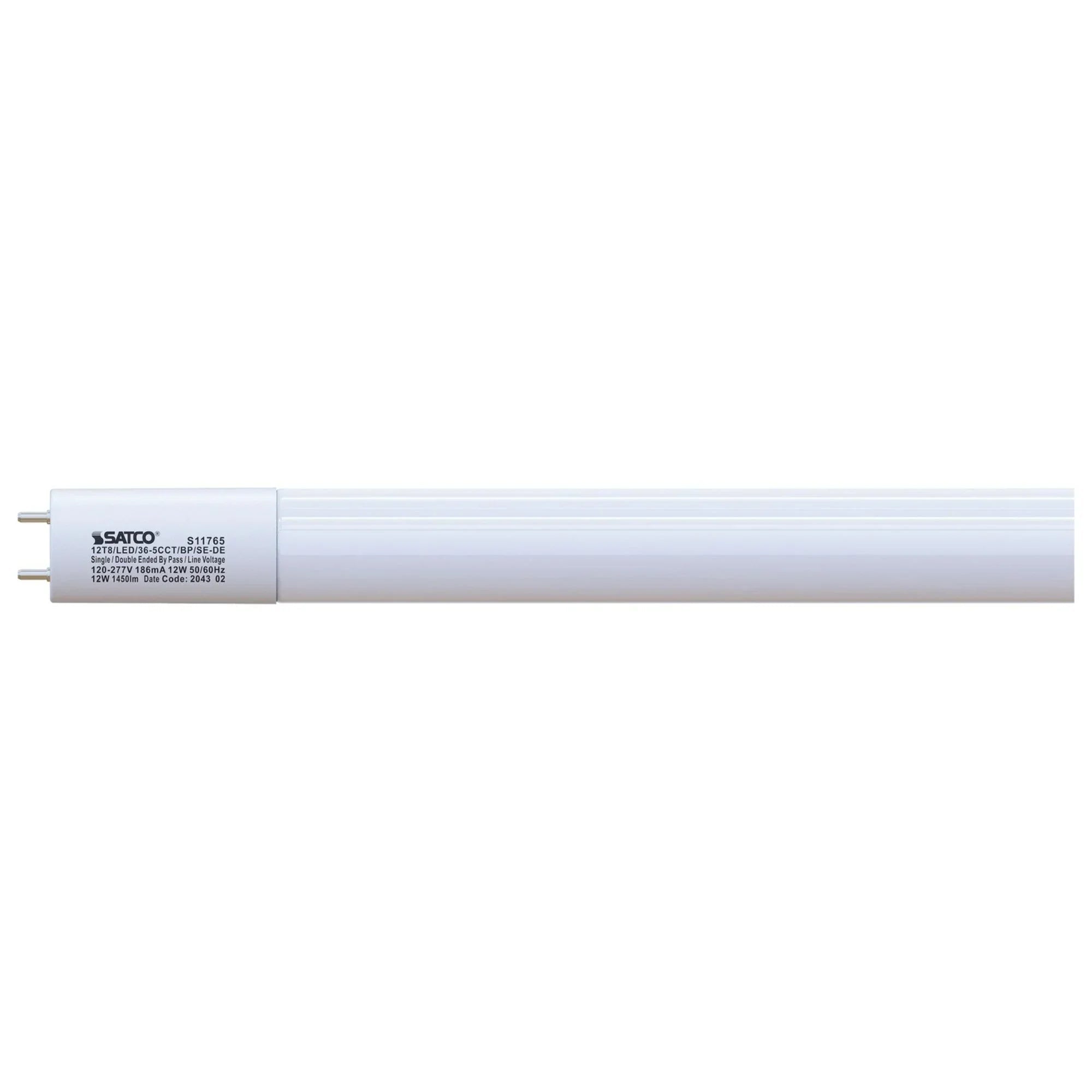

The SATCO-NUVO S11765 12T8 LED is a 12W, 3-foot LED T8 tube with a G13 base. This Type B ballast bypass lamp operates on 120-277V and features CCT selectable technology, allowing users to choose between 3000K, 3500K, 4000K, 5000K, and 6500K color temperatures. It delivers 1350 to 1450 lumens with a beam angle of 210 degrees.

• 12 Watt
• 3 Foot LED
• T8

Product Highlights

Energy-efficient and versatile, this LED T8 tube offers customizable lighting for various commercial and residential applications.

Product Information

Standard Information

• Brand: SATCO-NUVO
• Manufacturer Part Number: S11765
• Country of Origin: US

Technical Specifications

• Ballasting Requirements: Ballast Bypass
• Lamp Filament: LED
• Material: Glass / Plastic
• Status: Active
• Style: Utility
• Total Harmonic Distortion: <25%
• CCT Selectable: True
• Finish Family: White
• Amps: 0.100-0.043A
• Lens Finish: Frost
• Nominal Length: 36.0
• Operating Position: Universal
• Power Factor: 0.9
• Product Technology: LED
• Fluor Equiv: 32W
• Incandescent Equivalent: 50W
• CCT (Kelvin Temp): 3000K/3500K/4000K/5000K/6500K
• Hours Rated: 50000
• Beam Angle (degree): 210
• Color Temp: Warm White to Daylight
• CRI: 80+
• Operating Frequency: 50/60Hz
• Operating Temp: -20C (-4F) to +45C (+113F)
• Lumens: 1350L/1350L/1450L/1450L/1450L
• Volts: 120V-277V
• Watts: 12W
• Lamp Base: Medium Bi Pin
• Finish: WHITE
• Housing Color: White
• ANSI Base: G13
• Lamp Type: T8
• MOD Lamps: 1.0
• MOL: 35.17
• Warranty: 5-Years
• Installation Notes: Not for use in vapor tight fixtures.
• Rated For Enclosed Fixture: True
• Brand: SATCO/NUVO
• SKU: SATCO/NUVO-S11765
• Mfr. Part Number: S11765
• Base: Bipin (G13)
• UPC Code: #045923117657
• Materials: Glass
• Lamp Source: LED
• Bulb: T8
• Bulb Wattage: 12
• Total Wattage: 12
• Lamp Color: 3000K, 3500K, 4000K, 5000K, 6500K, Selectable CCT
• Color Rendering: 80
• Delivered Lumens: 1450
• Lamp Life: 50000 hours
• Manufacturer: SATCO | NUVO Lighting
• Part Number: S11765
• Certificate: Title 20, Title 24, RoHS Compliant, FCC, NSF, Damp Location, DLC Listed
• Color Temperature: Selectable
• Connection Type: Direct Line Voltage/Ballast ByPass
• Maximum Voltage: 120V-277V
• Tube Length: 3 ft
• Diameter: 1-in
• Average Life: 50000 hr
• Ballast Type: Type B Bypass
• Beam Type: Spread
• Country of Origin: CN
• Dimensions: 1 in Dia x 35.17 in L
• Shape: T8
• Voltage Rating: 120 to 277 V AC, 120 to 277 VAC
