Product Description
The SATCO-NUVO S11681 is an 11 Watt LED Direct Wire Performer Series Downlight designed for versatile lighting applications. This 6-inch round fixture delivers 1050 lumens and features selectable color temperatures from 2700K to 5000K. Operating at 120V, it includes built-in 2.5KV surge protection and is dimmable with phase-cut dimmers. Its wet location rating makes it suitable for various indoor and outdoor environments, including bathrooms and kitchens.

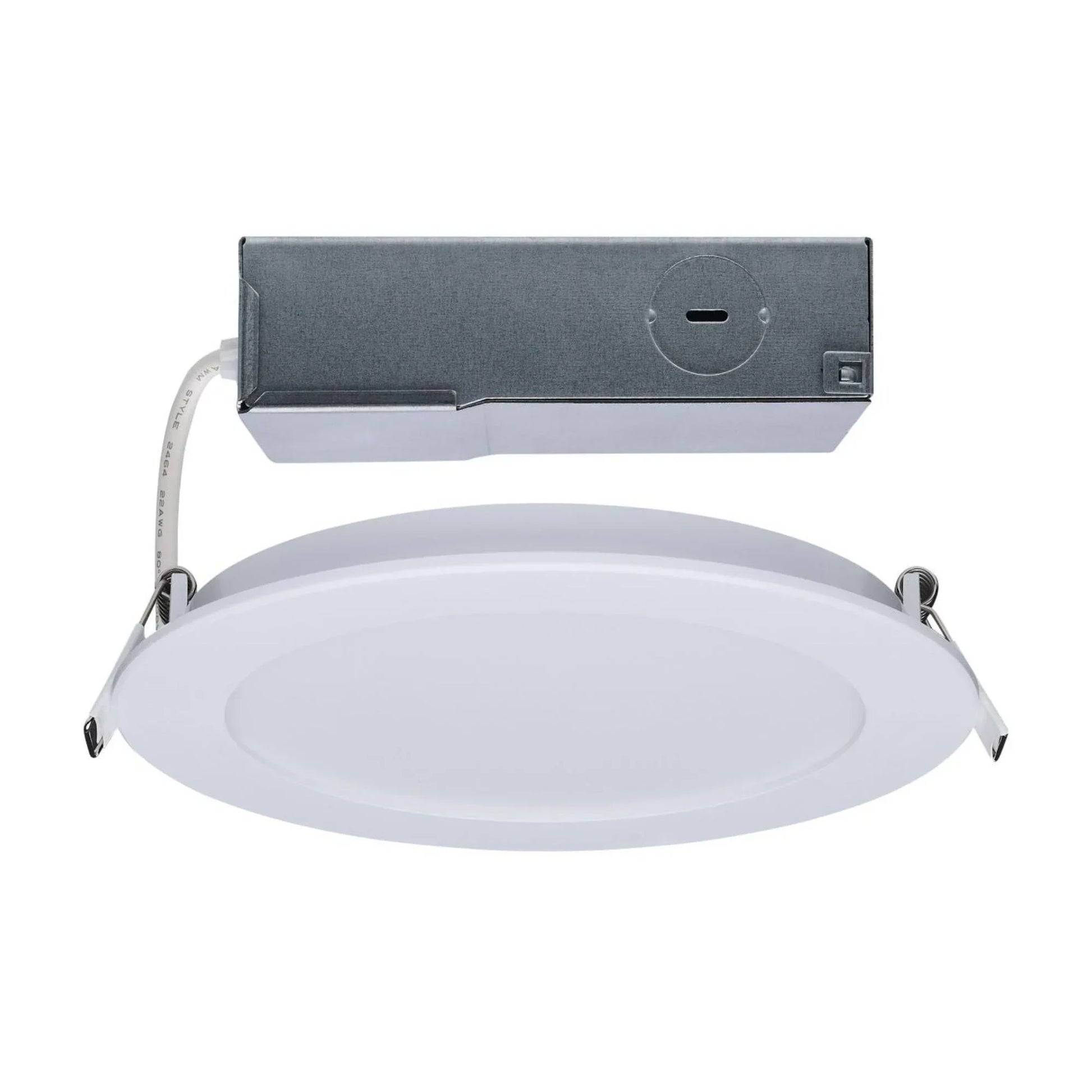

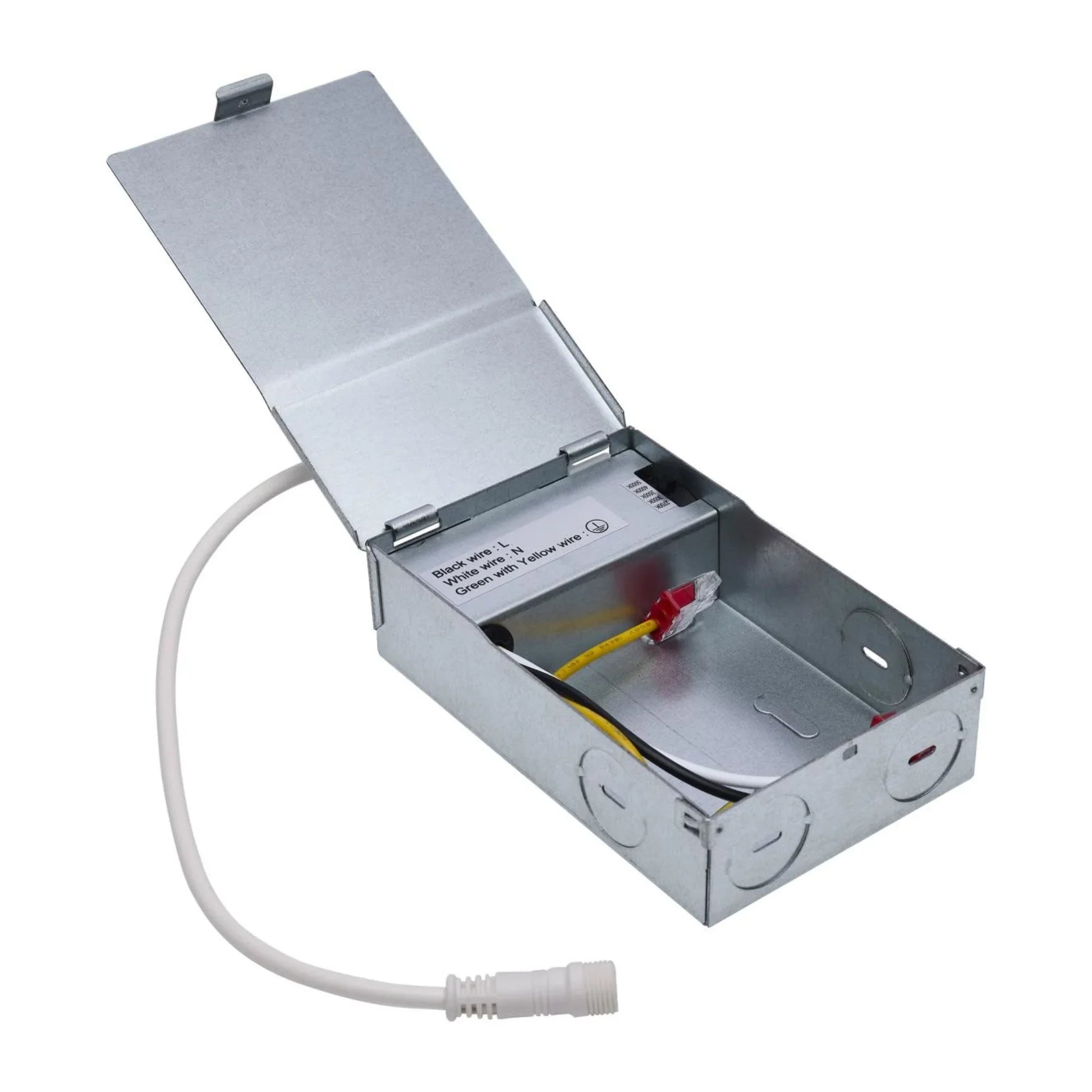

- Remote driver for easy installation and a sleek profile.
- Selectable CCT (2700K/3000K/3500K/4000K/5000K) for adaptable lighting.
- IC Rated and Wet Location Rated, suitable for diverse applications.
Product Highlights
This 11W LED downlight offers 1050 lumens, 90+ CRI, and a 50,000-hour lifespan, ensuring efficient and high-quality illumination.
Product Information
Standard Information
-
Brand: SATCO-NUVO
-
Manufacturer Part Number: S11681
-
Country of Origin: Vietnam
Technical Specifications
-
Mounting Height: 2.28
-
Bulb Included: Integrated
-
Diameter: 6.77
-
Material: Plastic
-
Fixture Type: Remote Driver LED Downlight
-
Style: Utility
-
Surge Protection: Built-in surge protection - 2.5KV
-
Total Harmonic Distortion: <20%
-
CCT Selectable: Yes
-
Wattage Selectable: No
-
Finish: WHITE
-
Current: 0.110A
-
Mounting Diameter: 6.18
-
Lens Finish: Matte Frosted
-
Lens Material: Polycarbonate (PC)
-
Power Factor: >0.9
-
Sloped Ceiling Compatible: Yes
-
Technology: LED
-
Incandescent Equivalent: 75W
-
Color Temperature: 2700K/3000K/3500K/4000K/5000K
-
Dimmable: Yes
-
Rated Life Hours: 50000
-
Beam Angle: 110
-
CRI: 90+
-
Dimming Type: 120V only, Phase cut
-
Operating Frequency: 60Hz
-
Operating Temperature: -4F to +104F (-20C to +40C)
-
Lumens: 1050L
-
Input Voltage: 120v
-
Wattage: 11W
-
Fixture Shape: Round
-
Airtight: Yes
-
Certifications: FCC Compliant, ROHS Compliant, Energy Star Certified, ETL
-
IC Rated: Yes
-
Location Rating: Wet
-
NEC Compliance: Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
-
Safety Listing: cETLus - Listed
-
Title 20 Compliant: Exempt
-
T24/JA8 Compliant: Yes
-
Depth: 6.77 in
-
Width: 6.77 in
-
Height: 1.18 in
-
Trim Type: Ultra Thin
-
Reflector: None
-
Product Family: Satco Performer Series
-
Mounting Type: Surface Mount/Canless
-
Number of Light Sources: 1
-
Trim Size: 6 in
-
Cutout Size: 6.18 in
-
Voltage Type: Line Voltage (110-120V)
-
Housing Type: New Construction Housing, Remodel Housing
-
Light Direction: Down Lighting
-
Replaceable LED Module: No
-
Retrofit Capability: No
-
Shallow Ceiling Compatible: Yes
-
Trim Style: Wafer Trims
-
Collection: ColorQuick
-
Fire Rated: No
-
Sub Category: Recessed Fixtures
-
Category: Recessed
