Product Description

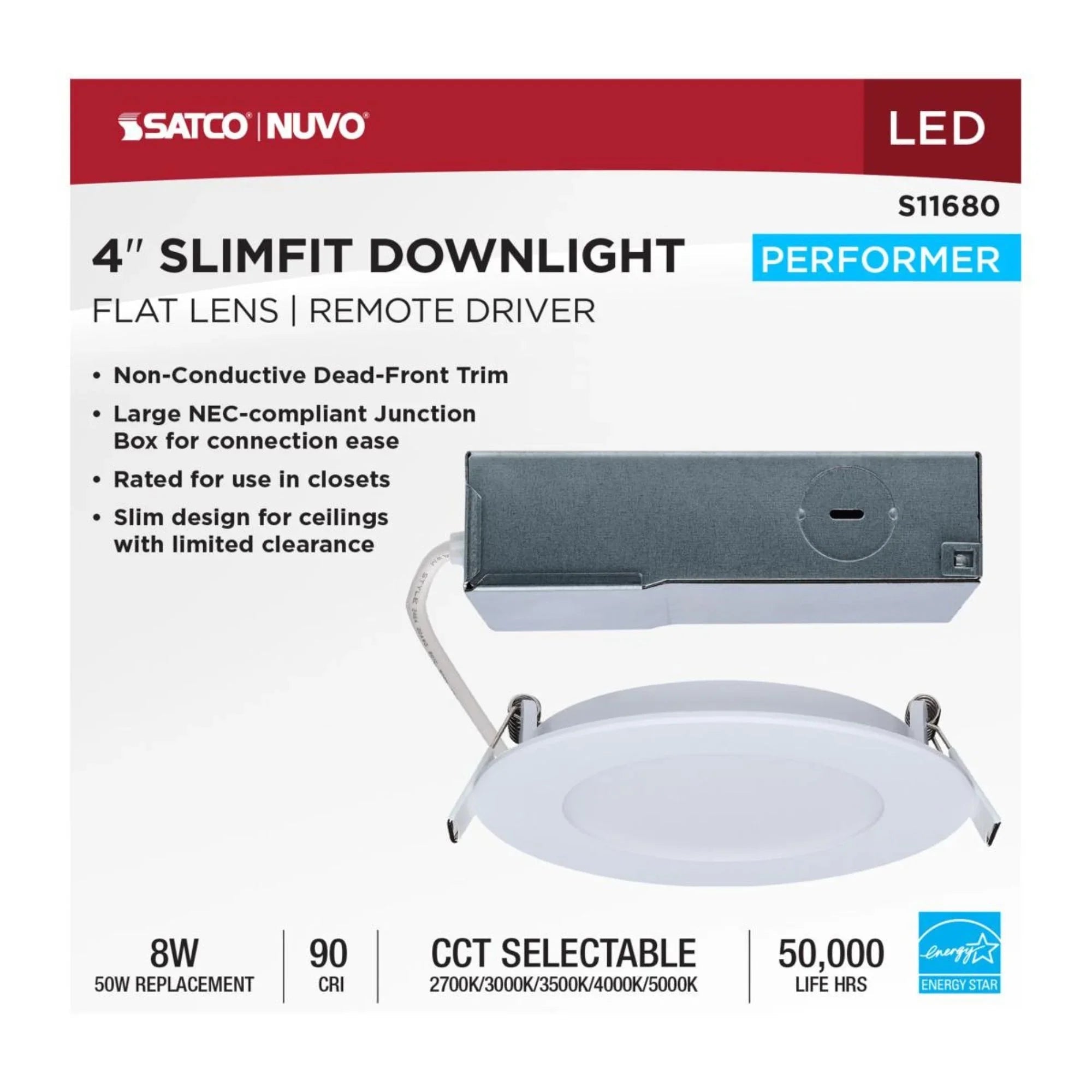

The SATCO-NUVO S11680 is an 8W LED Direct Wire Economy Downlight featuring a remote driver and a 4-inch round flat face. Operating on 120V, it provides 720 lumens with CCT selectable options from 2700K to 5000K. This dimmable downlight has a high CRI of 90 for accurate color rendering and is wet location rated, suitable for various indoor and outdoor applications. It offers a long average life of 50,000 hours.
- Moderate brightness (720 lumens) with CCT Selectable (2700K-5000K).
- Dimmable and Wet Location Rated for versatile use.
- High Color Accuracy (CRI 90) and long average life (50,000 hours).
Product Highlights
This 8W LED downlight offers CCT selectable options, dimmability, and wet location rating, making it ideal for diverse lighting needs.
Product Information
Standard Information
-
Brand: SATCO-NUVO
-
Manufacturer Part Number: S11680
-
Country of Origin: Vietnam
Technical Specifications
-
Brand: SATCO-NUVO
-
MPN: S11680
-
Wattage: 8W
-
Input Voltage: 120V
-
Technology: LED
-
Average Life: 50000 hours
-
Beam Angle: 110 degrees
-
Color Temperature: 2700K-5000K Selectable
-
Dimmable: Yes
-
CRI: 90
-
Lumens: 720
-
Max Operating Temperature: 40C (104F)
-
Min Operating Temperature: -20C (-4F)
-
Certifications: cETLus Listed, Energy Star, FCC Compliant, RoHS Compliant
-
Location Rating: Wet Location Rated
-

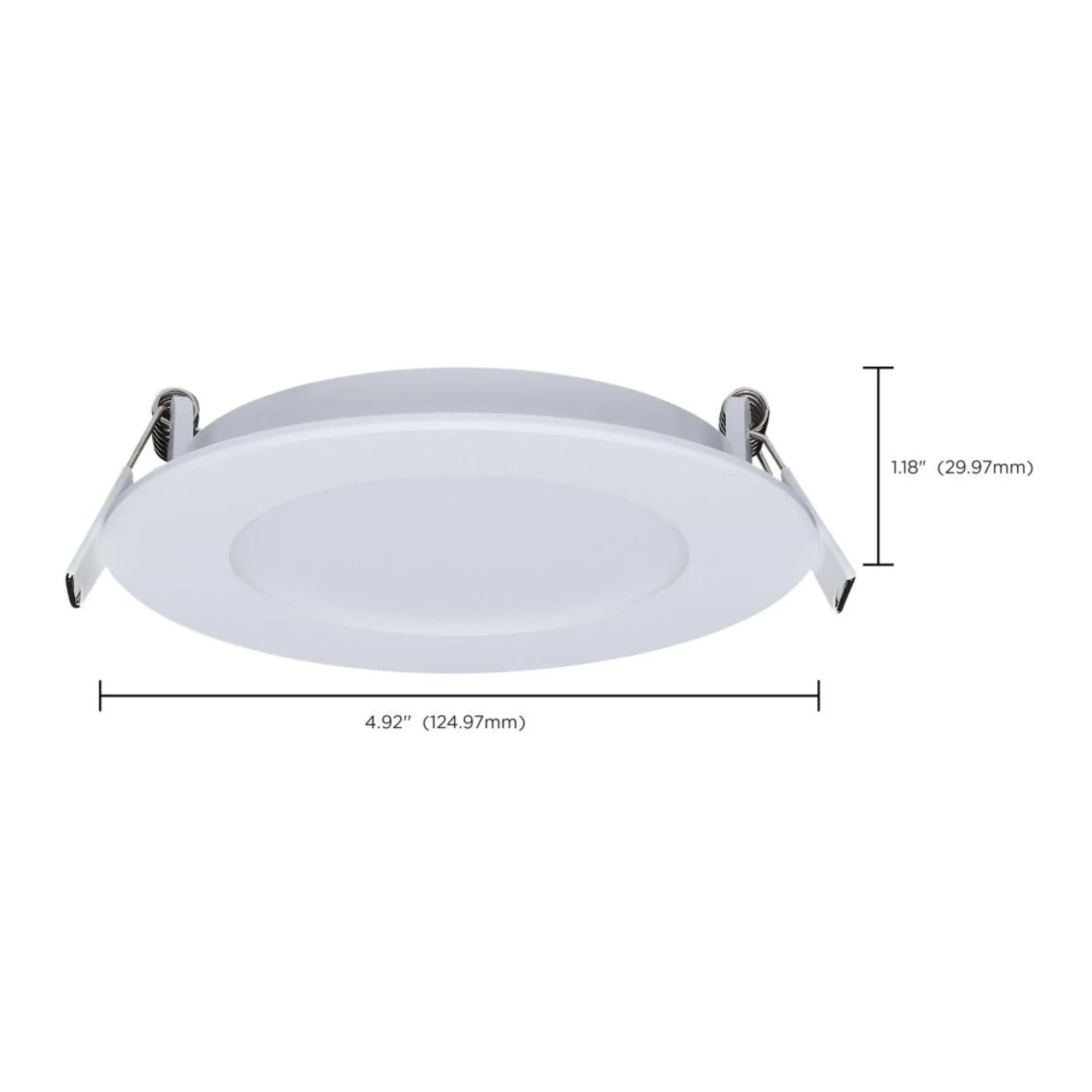

Height: 1.18 inches
-
Width: 4.94 inches
-
Depth: 4.94 inches
-
Trim Size: 4 inches
-
Cutout Size: 4.25 inches
-
Number of Light Sources: 1
-
Shade Included: Yes
-
Adjustable Color Temperature: Yes
-
Airtight: Yes
-
Bulb Base: Integrated LED
-
Housing Type: New Construction, Remodel
-
LED: Yes
-
Light Direction: Down Lighting
-
Material: Plastic
-
Replaceable LED Module: No
-
Retrofit: No
-
Shade Color: Frosted
-
Shade Material: Polycarbonate
-
Shade Shape: Round
-
Shallow Ceiling Compatible: Yes
-
Smart Home: No
-
Trim Style: Wafer Trims
-
Voltage Type: Line Voltage (110-120V)
-
Title 20 Compliant: No
-
Title 24 Compliant: Yes
-
Collection: ColorQuick
-
Category: Recessed Lighting
-
Subcategory: Other Recessed Lighting
-
Bulb Shape: Integrated LED
-
Bulb Type: LED
-
Diameter: 4.92 inches
-
Ceiling Aperture: 4.25 inches
-
Clearance Height: 2 inches
-
Closet Rated: Yes
-
Dimmable Down To: 10-100%
-
Dimmable Function: 120V only
-
Dimming Type: Phase cut
-
Efficacy: 90 LPW
-
Fixture Shape: Round
-
IC Rated: Yes
-
Incandescent Equivalent: 50W
-
JA8 Compliant: Yes
-
Lens Finish: Matte Frosted
-
Lens Material: Polycarbonate
-
Mounting Diameter: 4.25 inches
-
Mounting Height: 1.34 inches
-
NEC Compliance: Clothes Closet Certified
-
Operating Frequency: 60Hz
-
Power Factor: 0.96
-
R9 Value: 50
-
Replaceable Light Source: No
-
Sloped Ceiling Compatible: Yes
-
Total Harmonic Distortion: <20%
-
Trim Material: Plastic
-
Wattage Selectable: No
-
Catalog Number: 8WLED/DW/4/CCT/RND/FL/RD
-
UPC: 045923116803
-
Indoor/Outdoor Use: Indoor/Outdoor
-
Fixture Type: Downlight Recessed
-
IC Rating: Type IC Airtight
-
Special Features: Continuously Dimmable, White Light Tunable
-
CA Prop-65: Lead
