Product Description

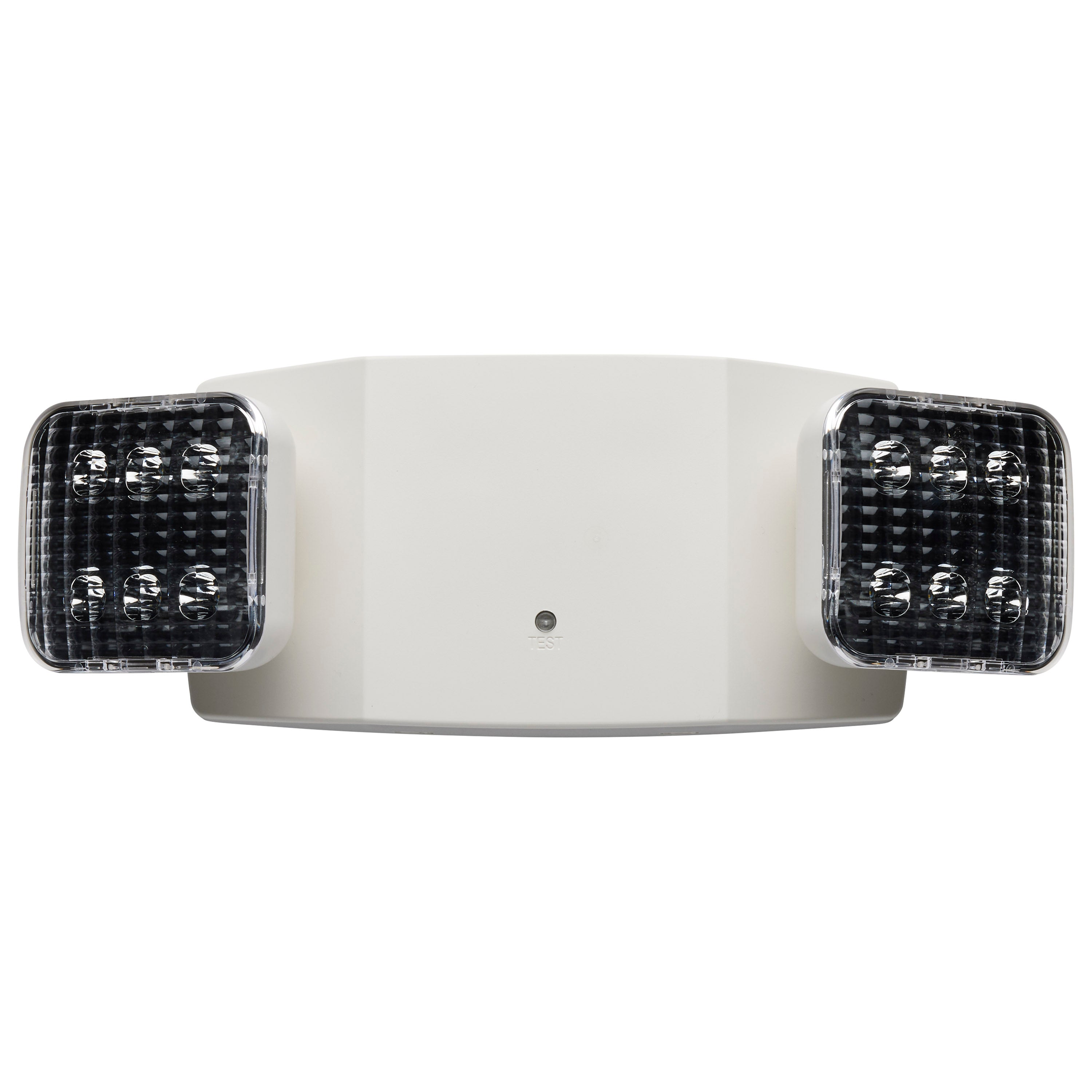

The SATCO-NUVO 67/131 is an emergency light designed for reliable illumination during power outages. This LED fixture operates on 120/277V and features a 90-minute Ni-Cad battery backup, ensuring continuous light. It includes dual adjustable heads and supports universal mounting, making it suitable for various indoor applications. Constructed from UL94V-0 rated thermoplastic, it offers durability and includes built-in 3KV surge protection. With 210 lumens and a 5700K color temperature, it provides clear emergency lighting.
- 90-minute Ni-Cad backup for extended emergency operation.
- 120/277V operation with dual head design and universal mounting.

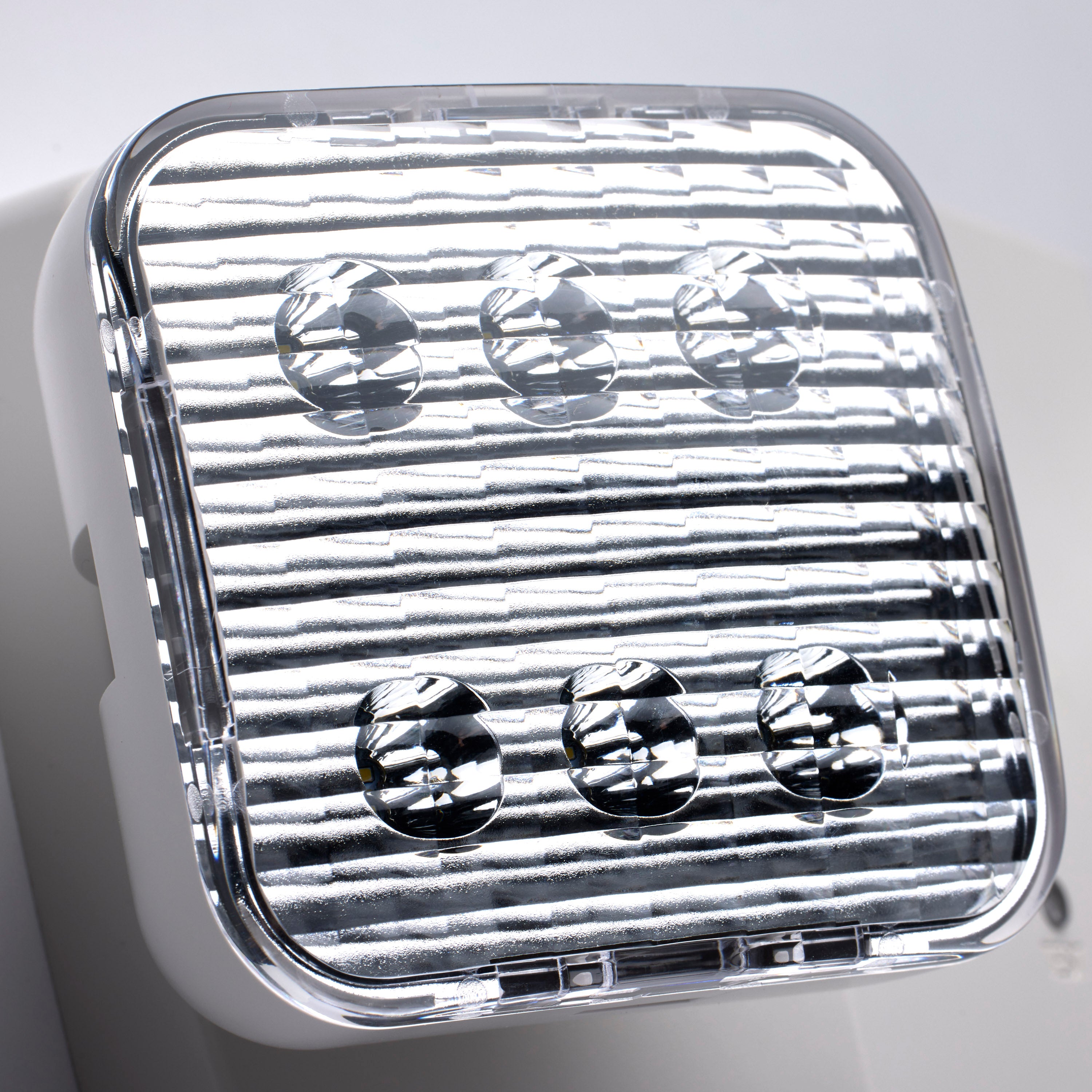

- Integrated LED technology with 210 lumens and 5700K CCT.
Product Highlights
Emergency light with 90-minute Ni-Cad backup, dual LED heads, 120/277V input, and universal mounting for indoor use.
Product Information
Standard Information
-
Brand: SATCO-NUVO
-
Manufacturer Part Number: 67/131
-
Country of Origin: China
Technical Specifications
-
Material: Thermoplastic
-
UL94V-0 Rating: Yes
-
Battery Type: 3.6V AA1000mAh Ni-Cad
-
Battery Duration: 90 minutes
-
Battery Charge Time: 24 hours
-
Operating Temperature: +10C to +40C
-
Remote Compatible: Yes
-
Path of Egress: 6 Ft.
-
Surge Protection: Built-in surge protection - 3KV
-
CCT Selectable: No
-
Wattage Selectable: No
-
Input Wattage: 1W
-
Output Wattage: 2W
-
Energy Used in Maintenance Mode: 0.8W
-
Input Current: 0.008/0.004A
-
Lens Finish: Clear
-
Lens Material: Polycarbonate (PC)
-
Sloped Ceiling Compatible: No
-
Location Rating: Damp
-
Lamp Type: Integrated LED
-
Number of Heads: 2
-
Incandescent Equivalent: 15W
-
Color Temperature: 5700K
-
Dimmable: Non-Dimmable
-
CRI: 70+
-
Operating Frequency: 50/60Hz
-
Lumens: 210
-
Input Voltage: 120V/277V
-
Lamp Base: Integrated
-
Certifications: FCC Compliant, ROHS Compliant, cULus Certified, cULus Listed, Title 20 Compliant
-
Mounting Type: Universal
