Product Description

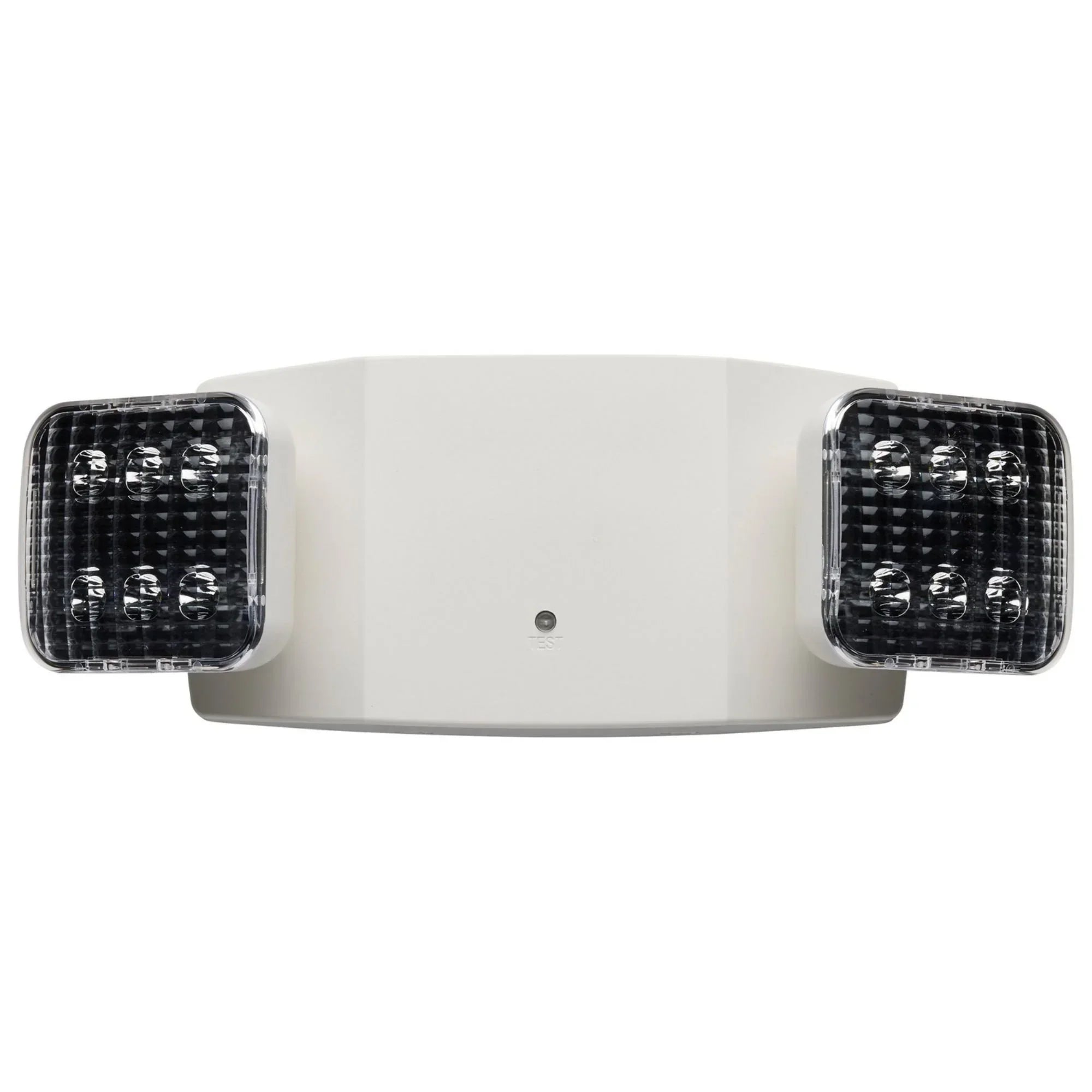

The SATCO-NUVO 67/130 Emergency Light provides reliable illumination with a 90-minute Ni-Cad battery backup, operating on 120/277V. This dual-head unit is designed for universal mounting, ensuring safety in pathways and egress areas. Constructed from UL94V-0 rated thermoplastic, it delivers 210 lumens at 5700K and is suitable for damp locations. It features built-in 3KV surge protection and is cULus certified.
- 90-minute Ni-Cad battery backup for extended emergency operation.
- Dual head design with universal mounting for versatile installation.
- Operates on 120V/277V with integrated LED lamps and 3KV surge protection.
Product Highlights
This emergency light offers 90-minute Ni-Cad backup, dual heads, universal mounting, and 120/277V operation for reliable emergency egress lighting.
Product Information
Standard Information
-
Brand: SATCO-NUVO
-
Manufacturer Part Number: 67/130
Technical Specifications
-
Fixture Type: Emergency Light
-
Material: Thermoplastic
-
Finish: White
-
Lamp Type: Integrated LED
-
Fixture Lamp Count: 2
-
Technology: LED
-
Input Wattage: 0.8W
-
Output Wattage: 2W
-
Energy Used in Maintenance Mode: 0.8W
-
Amps: 0.007/0.003A
-
Voltage: 120V/277V
-
Operating Frequency: 50/60Hz
-
Initial Lumens: 210
-
CCT (Kelvin Temp): 5700K
-
CRI: 70+
-
Dimmable: Non-Dimmable
-
Battery Type: 3.6V AA1000mAh Ni-Cad
-
Battery Duration: 90 minutes
-
Battery Charge Time: 24 hours
-
Surge Protection: 3KV
-
Operating Temperature: +50F to +104F (+10C to +40C)
-
Path of Egress: 6 Ft.
-
Location Rating: Damp
-
UL Rating: UL94V-0
-
Safety Listing: cULus - Certified, cULus - Listed
-
FCC Compliant: Yes
-
ROHS Compliant: Yes
-
Title 20 Compliant: Yes
-
CA Prop 65: Lead
-
Includes: Mounting hardware and accessories
-
Lens Finish: Clear
-
Lens Material: Polycarbonate (PC)
-
Mounting Type: Universal
-
UL Application: Unit equipment
-
Incandescent Equivalent: 6W
-
Sloped Ceiling Compatible: No
-
IOT Enabled: No
-
Has Camera: No
-
CCT Selectable: No
-
Wattage Selectable: No
-
Style: Utility
-
DLC Approved: No
-
T24/JA8 Compliant: No
