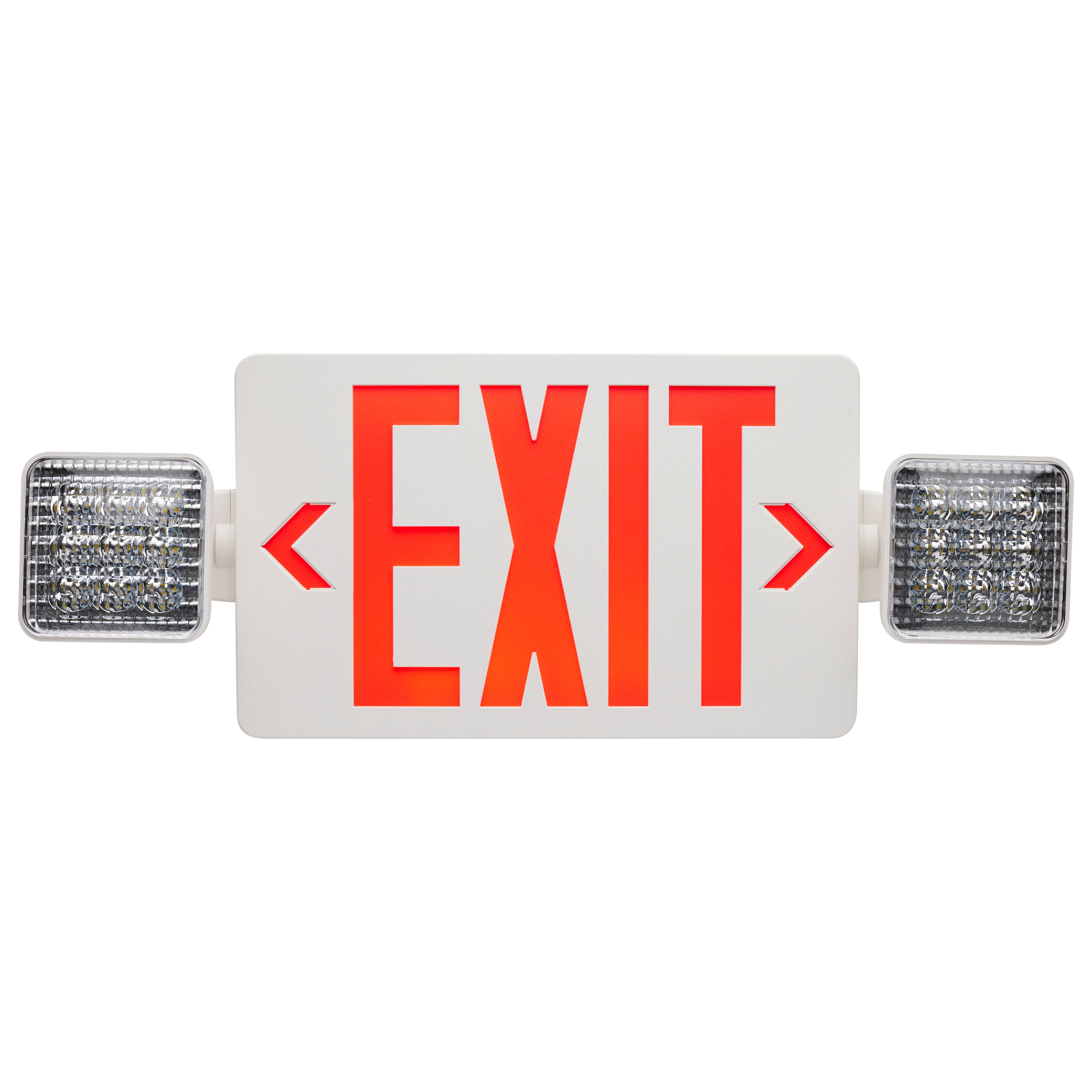

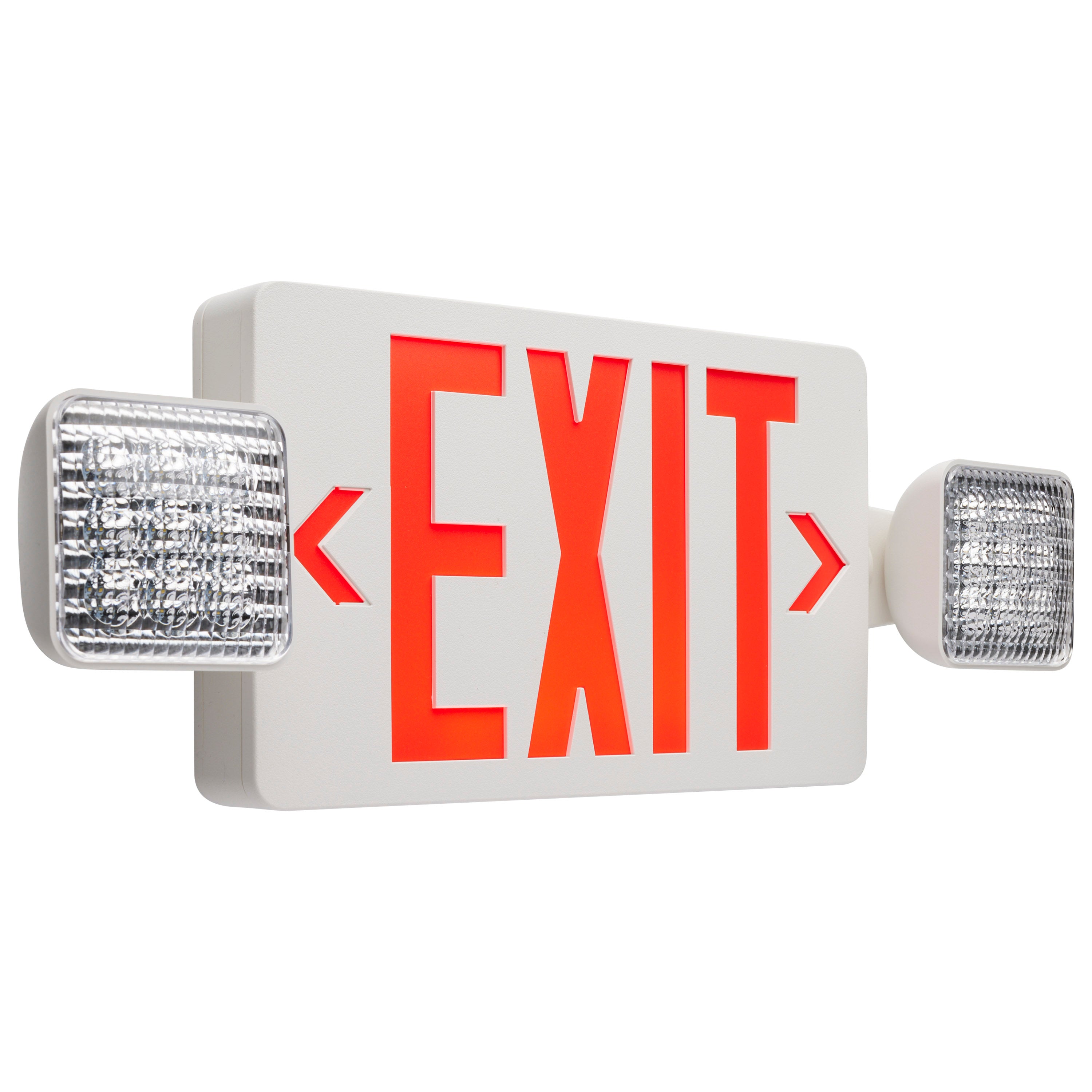

Satco-Nuvo 67/122 Combination Exit Sign And Emergency Light 3.5W Universal Mounting

Product Description

The SATCO-NUVO 67/122 is a combination exit sign and emergency light designed for reliable safety illumination. Operating at 120 to 277V with a 3.5W power consumption, it provides 150 lumens of 5700K light. This unit features universal mounting for flexible installation and includes a 90-minute Ni-Cad battery backup, ensuring continuous operation during power outages. Its thermoplastic construction and cULus certification confirm durability and safety compliance.

• Features a 90-minute Ni-Cad battery backup for emergency power.

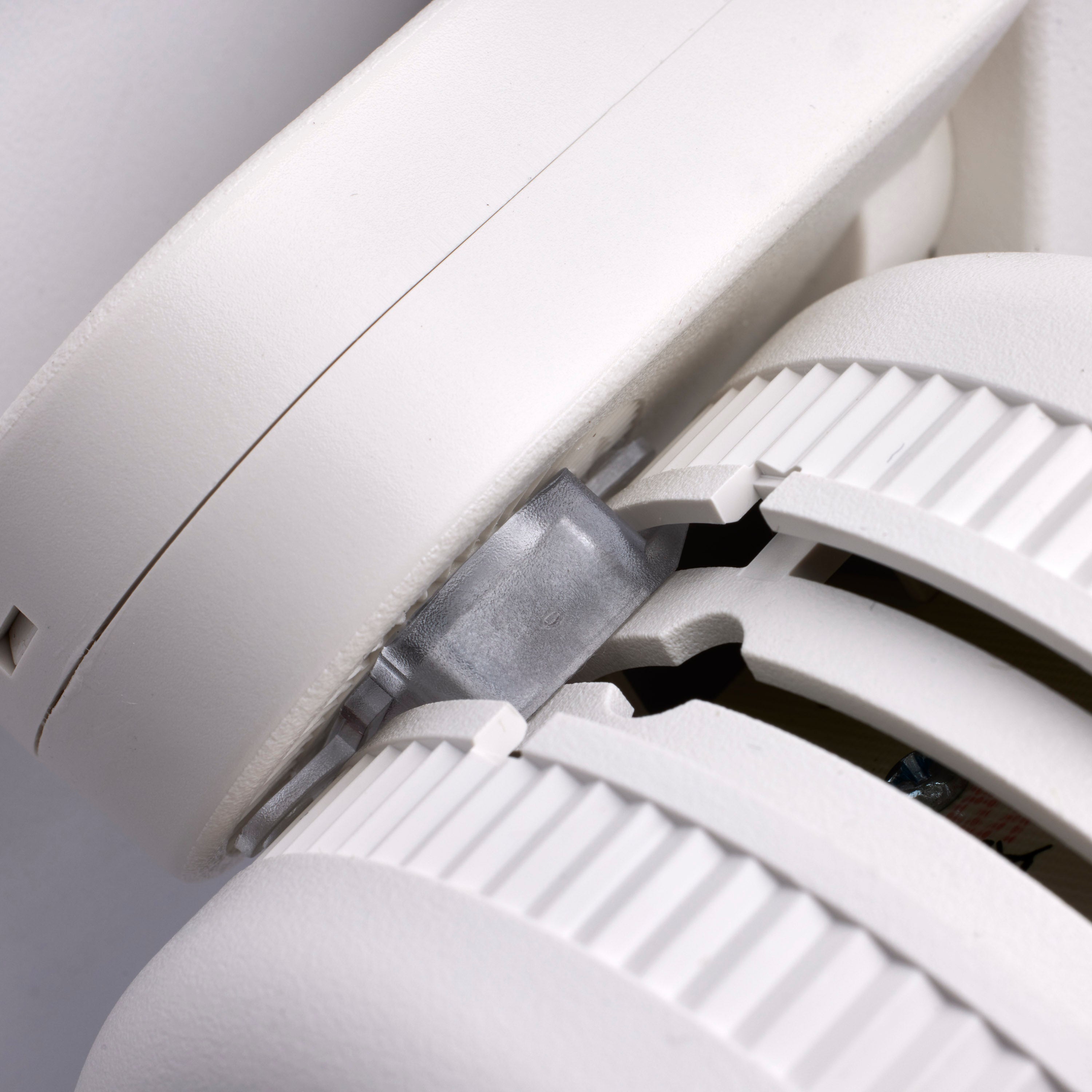

• Offers universal mounting and a dual head design for versatile installation.

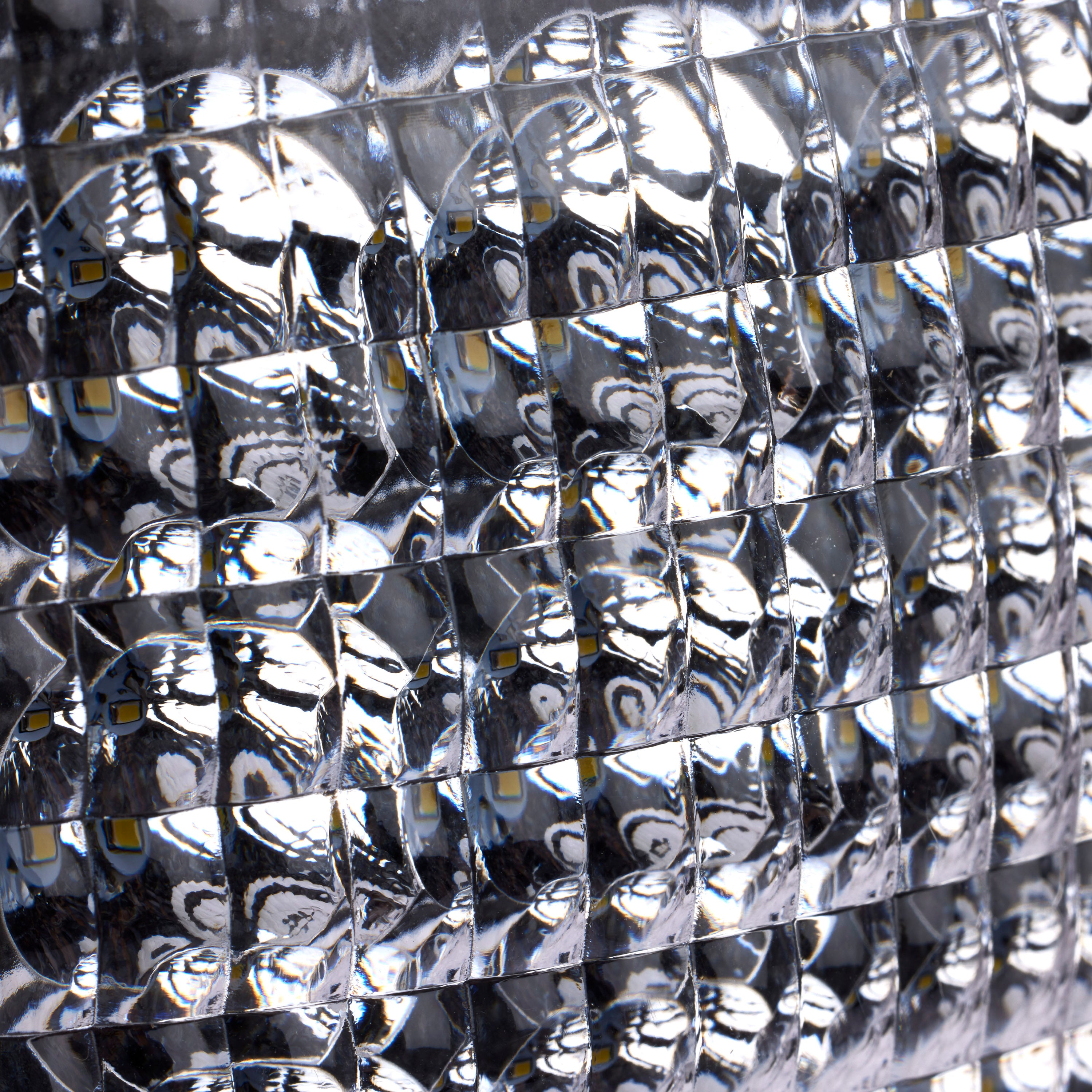

• Utilizes integrated LED technology with 150 lumens and 5700K color temperature.

Product Highlights

This combination unit provides reliable emergency lighting and exit signage, featuring a 90-minute battery backup and cULus certification for safety.

Product Information

Standard Information

• Brand: SATCO-NUVO
• Manufacturer Part Number: 67/122

Technical Specifications

• Input Voltage: 120 to 277V
• Input Wattage: 3.5W
• Color Temperature: 5700K
• Lumens: 150
• Mounting Type: Universal
• Material: Thermoplastic
• Flammability Rating: UL94V-0
• Battery Type: 3.6V AA900mAh Ni-Cad
• Battery Duration: 90 minutes
• Battery Charge Time: 24 hours
• Operating Temperature: 10C to 40C
• Remote Compatible: Yes
• Letter Height: 6 in
• Letter Stroke: 0.75 in
• Path of Egress: 6 ft
• Surge Protection: 3KV
• Output Wattage: 1.5W
• Energy Used in Maintenance Mode: 3.3W
• Amperage: 0.029/0.013A
• Lens Material: Polycarbonate (PC)
• Light Source: LED
• Lamp Count: 2
• Dimmable: No
• CRI: 70+
• Operating Frequency: 60Hz
• FCC Compliant: Yes
• Location Rating: Damp
• ROHS Compliant: Yes
• Safety Listing: cULus Certified
• Title 20 Compliant: Yes
