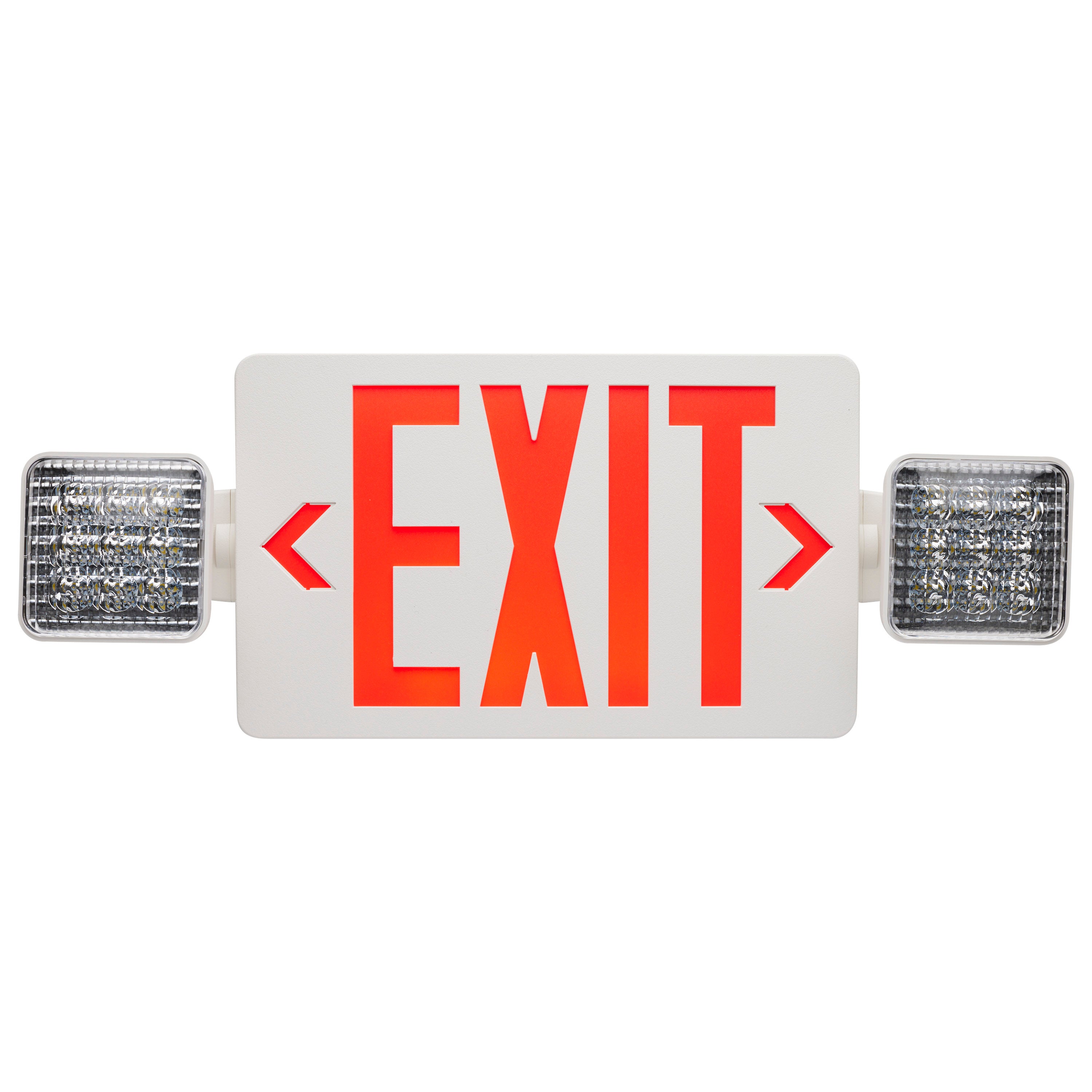

Satco-Nuvo 67/121 Combination Red Exit Sign/Emergency Light 120/277V Dual Head Single/Dual Face Universal Mounting

Product Description

The SATCO-NUVO 67/121 is a combination red exit sign and emergency light designed for commercial applications. This fixture operates on 120/277V and features a 90-minute Ni-Cad battery backup for continued operation during power failures. It includes dual heads, single/dual face capability, and universal mounting options. Constructed from UL94V-0 thermoplastic with integrated LED technology, it provides 150 lumens at 5700K CCT. Built-in 3KV surge protection enhances durability, and the unit is cULus, Title 20, FCC, and RoHS compliant for damp locations.

• 90-minute Ni-Cad battery backup for emergency operation.
• Operates on 120/277V with integrated LED technology and 3KV surge protection.
• Features dual head, single/dual face, and universal mounting options.

Product Highlights

Integrated LED exit sign and emergency light with 90-minute Ni-Cad battery backup, 120/277V input, and built-in 3KV surge protection.

Product Information

Standard Information

• Brand: SATCO-NUVO
• Manufacturer Part Number: 67/121

Technical Specifications

• Brand: SATCO-NUVO
• MPN: 67/121
• Fixture Type: Exit Sign & Emergency Light
• Housing Material: Thermoplastic
• UL94V-0 Rating: Yes
• Finish: White
• Input Voltage: 120V/277V
• Input Wattage: 2.8W
• Output Wattage: 1.5W
• Energy Used in Maintenance Mode: 2.8W
• Amperage: 0.023/0.010A
• Product Technology: LED
• Lamp Type: Integrated LED
• Number of Lamps: 2
• Color Temperature (CCT): 5700K
• Color Rendering Index (CRI): 70+
• Luminous Flux: 150L
• Dimmability: Non-Dimmable
• Operating Frequency: 60Hz
• Operating Temperature Range: +10C to +40C
• Surge Protection: Built-in 3KV
• Battery Type: 3.6V AA900mAh Ni-Cad
• Battery Backup Duration: 90 minutes
• Battery Recharge Time: 24 hour
• Lettering Height: 6 in.
• Lettering Stroke: 0.75 in.
• Path of Egress Visibility: 6 Ft
• Lens Finish: Clear
• Lens Material: Polycarbonate (PC)
• Mounting Type: Universal
• Mounting Hardware Included: Yes
• Location Rating: Damp
• Safety Listing: cULus - Certified, cULus - Listed
• FCC Compliant: Yes
• ROHS Compliant: Yes
• Title 20 Compliant: Yes
• UL Application: EXIT Signs
• CCT Selectable: No
• Wattage Selectable: No
• Sloped Ceiling Compatible: No
• Indoor/Outdoor Use: Indoor
• Equivalent Incandescent Wattage: 25W
• Has Camera: No
• IOT Enabled: No
