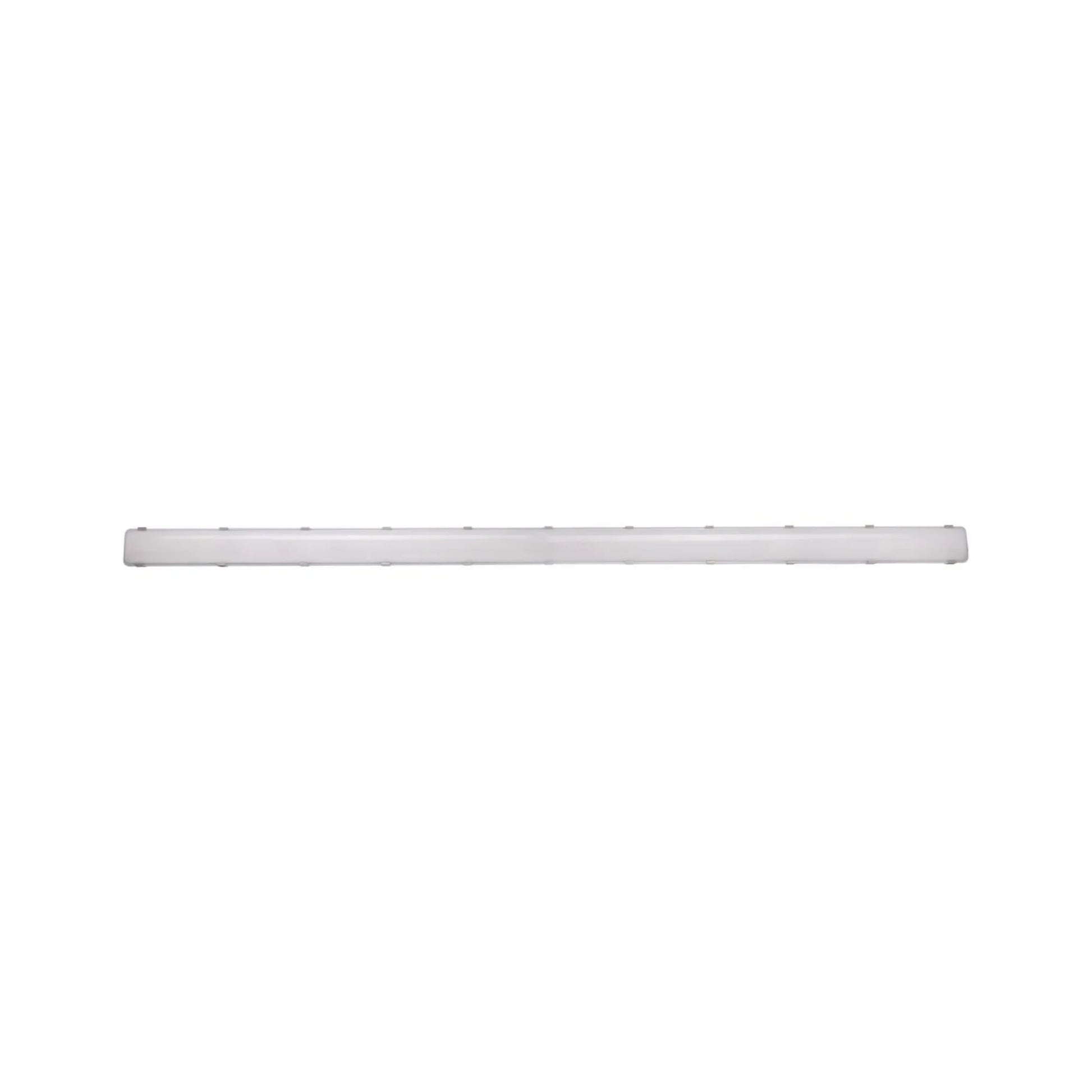

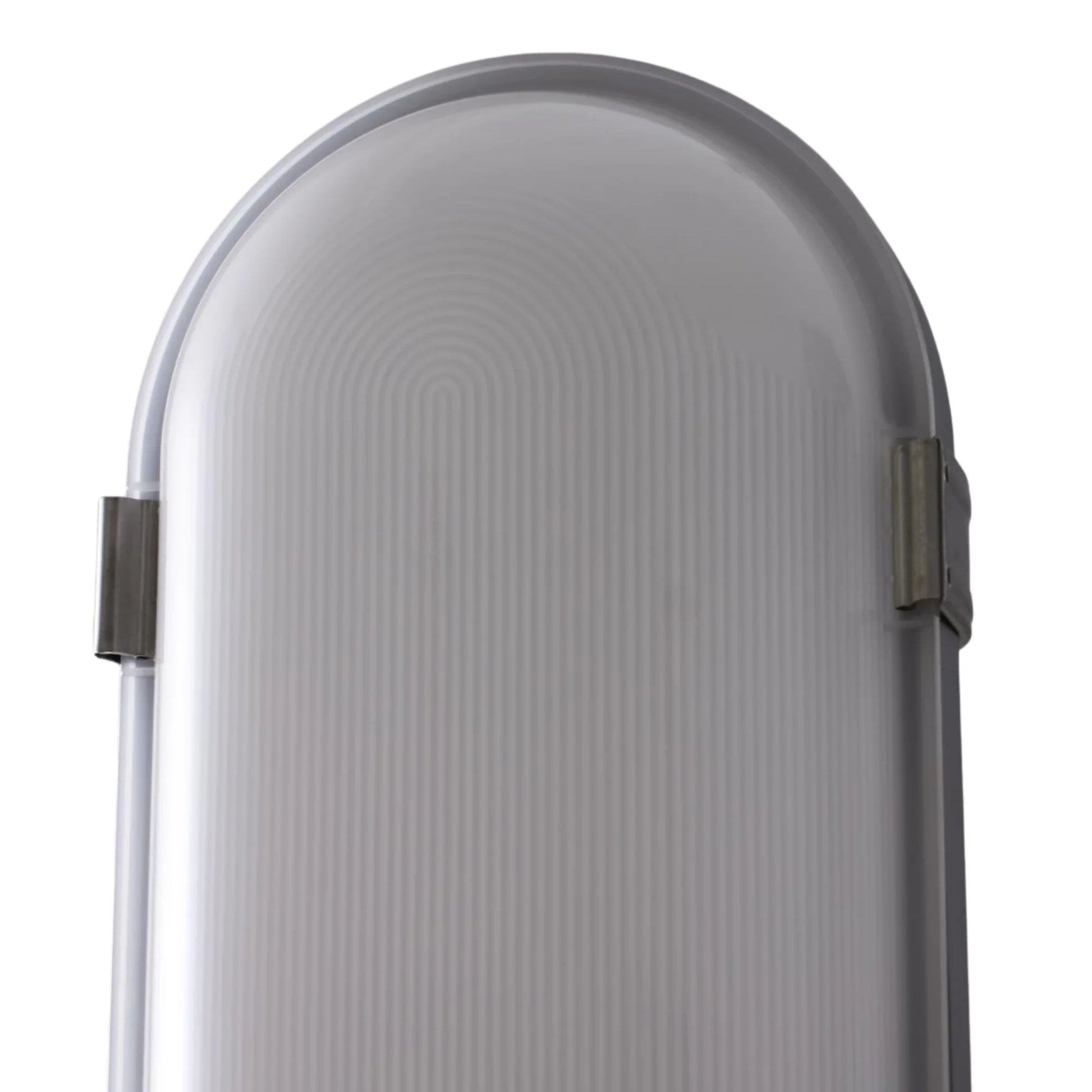

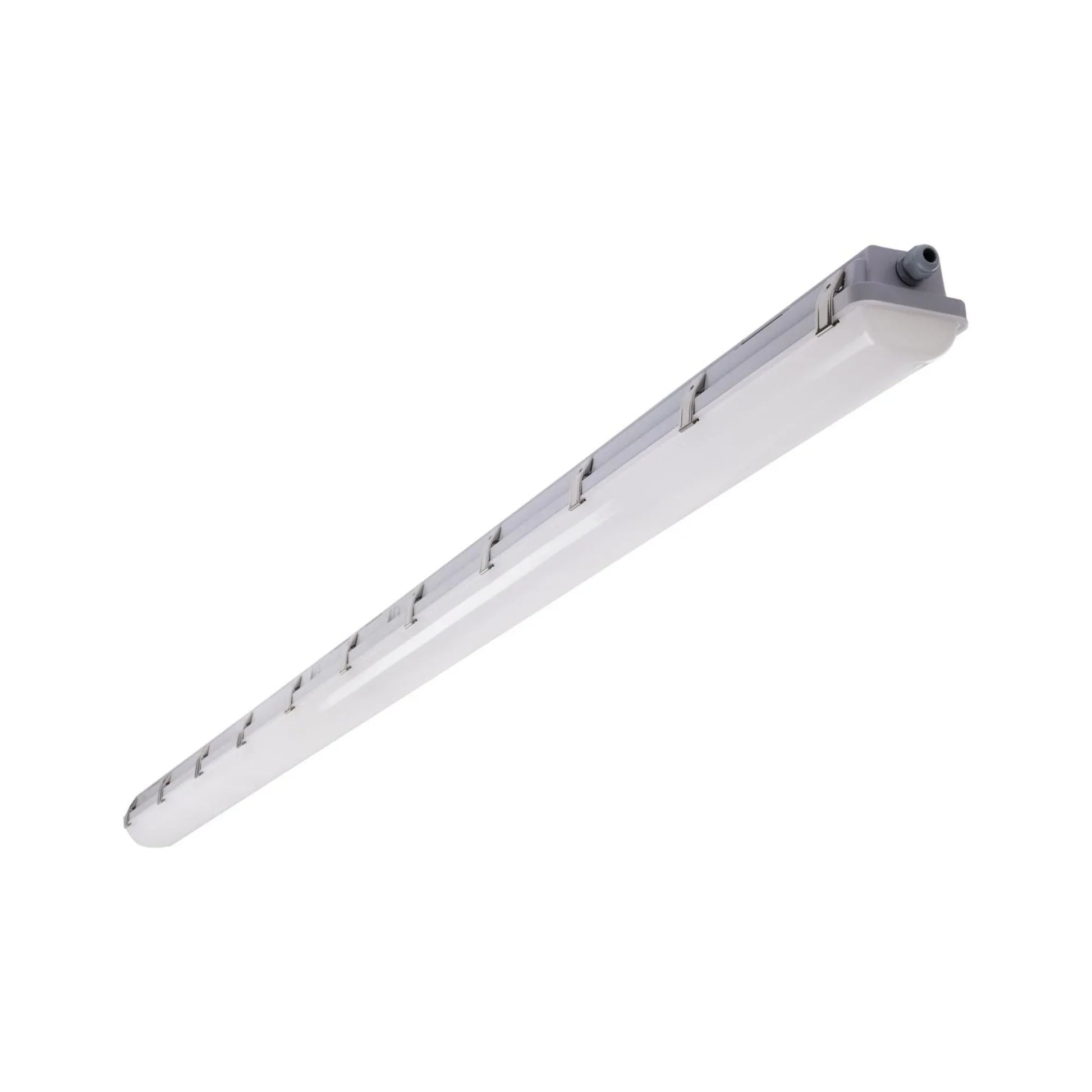

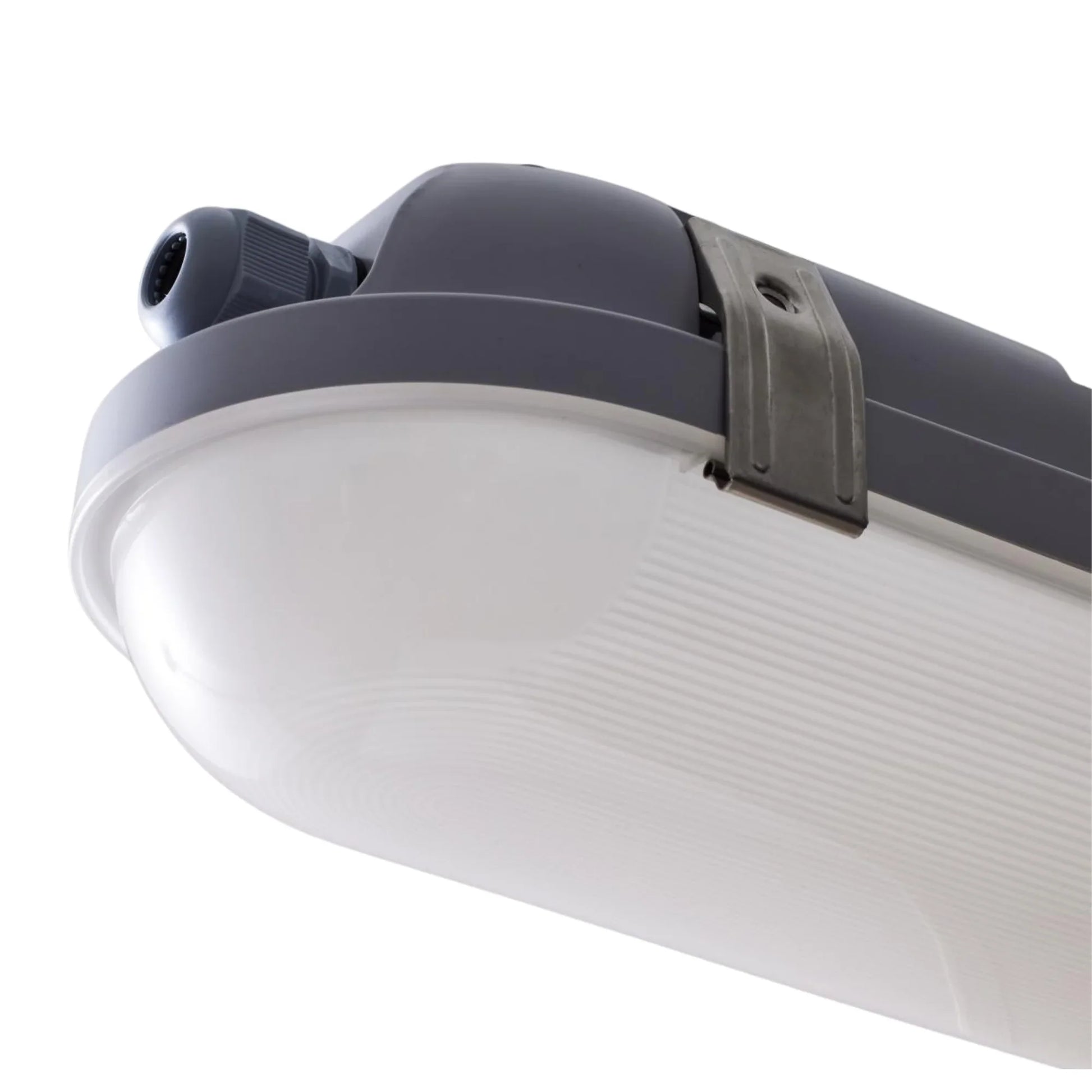

Satco-Nuvo 65/822R1 8 Foot Linear Vapor Proof 50W/60W/72W

Product Description

The SATCO-NUVO 65/822R1 is an 8-foot vapor proof linear LED fixture designed for demanding indoor and outdoor environments. It offers CCT and wattage selectable options (50W/60W/72W and 3000K/4000K/5000K) for versatile illumination. Featuring IP65 and IK08 ratings, this fixture provides protection against water, dust, and impact. It supports 0-10V dimming and operates on 120V-347V, making it suitable for industrial and commercial applications.

• 8 Foot Linear Vapor Proof Fixture
• CCT & Wattage Selectable (50W/60W/72W, 3000K/4000K/5000K)
• IP65 and IK08 Rated with 0-10V Dimming

Product Highlights

This 8-foot linear vapor proof fixture offers selectable CCT and wattage, IP65/IK08 durability, and 0-10V dimming for versatile, efficient lighting in harsh environments.

Product Information

Standard Information

• Brand: SATCO-NUVO
• Manufacturer Part Number: 65/822R1
• Country of Origin: Thailand

Technical Specifications

• Brand: SATCO-NUVO
• MPN: 65/822R1
• Manufacturer: Satco Products, Incorporated
• Product Family: LED Vapor Proof and TRI-Proof Fixtures
• Technology Type: LED
• Fixture Type: Linear Vapor Tight
• Fixture Shape: Linear
• Style: Utility
• Housing Material: Polycarbonate (PC)
• Lens Material: Polycarbonate (PC)
• Lens Finish: Opaque
• Finish: Gray
• Input Voltage: 120V-347V
• Wattage: 50W/60W/72W
• Wattage Selectable: Yes
• Input Current: 0.417-0.144/0.500-0.173/0.600-0.207A
• Operating Frequency: 50/60Hz
• Power Factor: >0.96
• Lumens: 6400L-9360L
• Color Temperature: 3000K/4000K/5000K
• CCT Selectable: Yes
• CRI: 80+
• Dimmable: Yes
• Dimming Type: 0-10V Dimming
• Beam Angle: 120 degrees
• Lifespan: 50000 Hours
• Operating Temperature: -40F to +113F (-40C to +45C)
• IP Rating: IP65
• IK Rating: IK08
• Location Rating: Wet, Indoor, Outdoor
• Surge Protection: Built-in surge protection - 2KV
• Total Harmonic Distortion: 14.20%
• Incandescent Equivalent: 400W-500W
• HID Equivalent: 150W-200W
• Lamp Type: Integrated LED
• Lamp Base: Integrated
• Safety Listing: cETLus - Listed
• Certifications: FCC Compliant, NSF Approved, ROHS Compliant, DLC Approved
