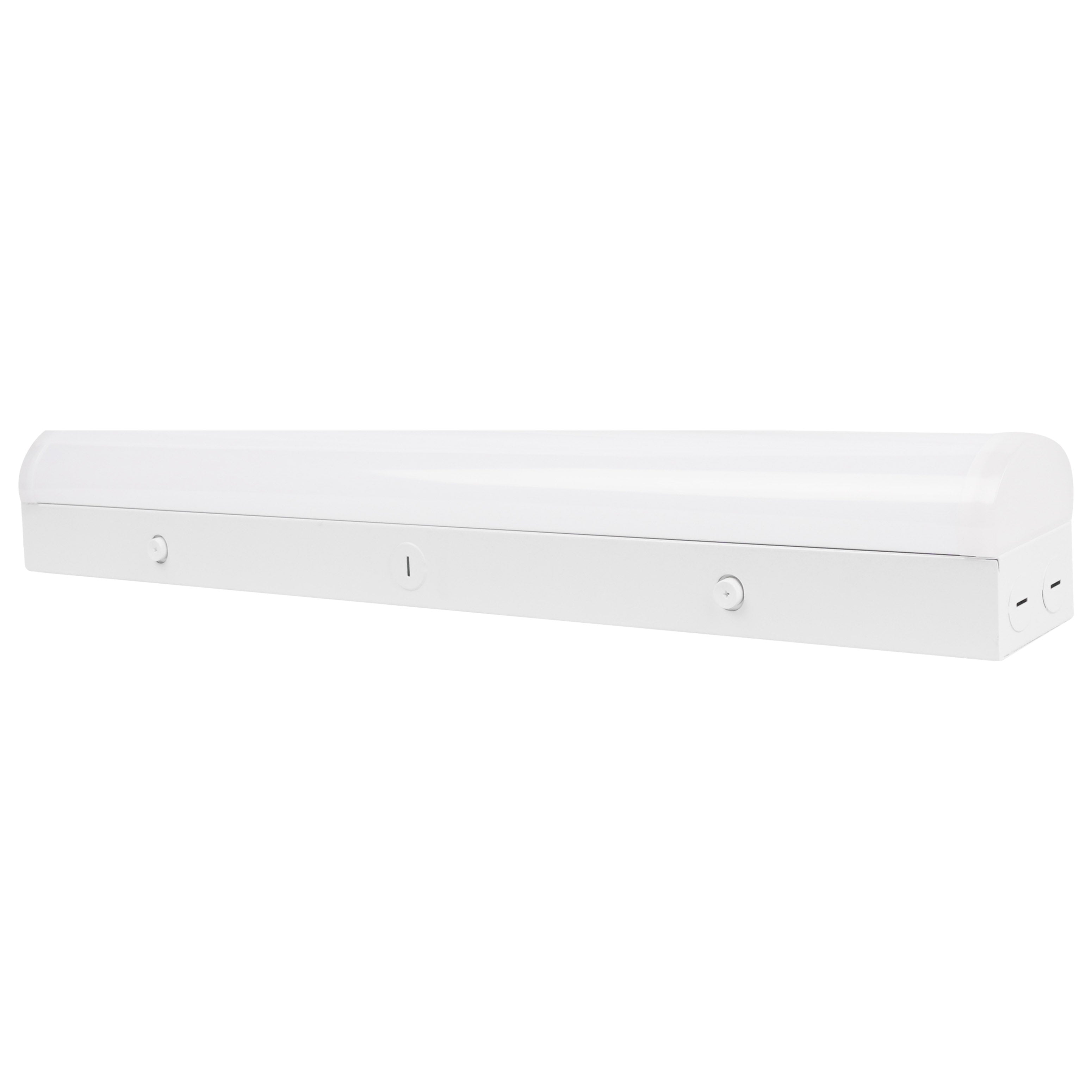

Satco-Nuvo 65/700R1 2 feet LED Linear Strip Light Field Selectable 15W-25W

Product Description

The SATCO-NUVO 65/700R1 is a 2-foot LED Linear Strip Light designed for adaptable lighting applications. This field-selectable fixture offers wattage options of 15W, 20W, or 25W and color temperature settings of 3500K, 4000K, or 5000K. Operating on a universal voltage range of 120V-277V, it supports installation in various commercial and industrial settings. Its flicker-free driver ensures consistent, comfortable illumination.

• Field selectable wattage (15W, 20W, 25W) and color temperature (3500K, 4000K, 5000K).
• Universal 120V-277V operation with a flicker-free driver for consistent illumination.
• Durable polycarbonate lens and damp location rated for versatile installation.

Product Highlights

Adaptable LED linear strip light with field-selectable wattage and CCT for diverse environments.

Product Information

Standard Information

• Brand: SATCO-NUVO
• Manufacturer Part Number: 65/700R1

Technical Specifications

• Wattage: 15W, 20W, or 25W
• Color Temperature (CCT): 3500K, 4000K, or 5000K
• Input Voltage: 120V-277V
• Bulb Type: Integrated LED
• Housing Material: Steel
• Fixture Type: Strip Light
• Surge Protection: Built-in 2KV
• CCT Selectable: Yes
• Wattage Selectable: Yes
• Amperage: 0.125-0.054/0.167-0.072/0.208-0.090A
• Lens Material: Polycarbonate (PC)
• Power Factor: 0.9
• Sloped Ceiling Compatible: Yes
• Location: Indoor
• Technology: LED
• Incandescent Equivalent: 150W-175W
• Dimmable: Yes
• Rated Life: 50000 Hours
• Beam Angle: 120 Degrees
• CRI: 80+
• Dimming Type: 0-10V Dimming
• Operating Frequency: 50/60Hz
• Operating Temperature: -4F to +140F (-20C to +60C)
• Lumens: 1950L-3500L
• Bug Rating: B1-U3-G1
• IP Rating: IP20
• Location Rating: Damp
• UL Application: Ceiling / Wall
• HID Equivalent: 100W-150W
• Photo Cell: Optional Add-On
