Product Description

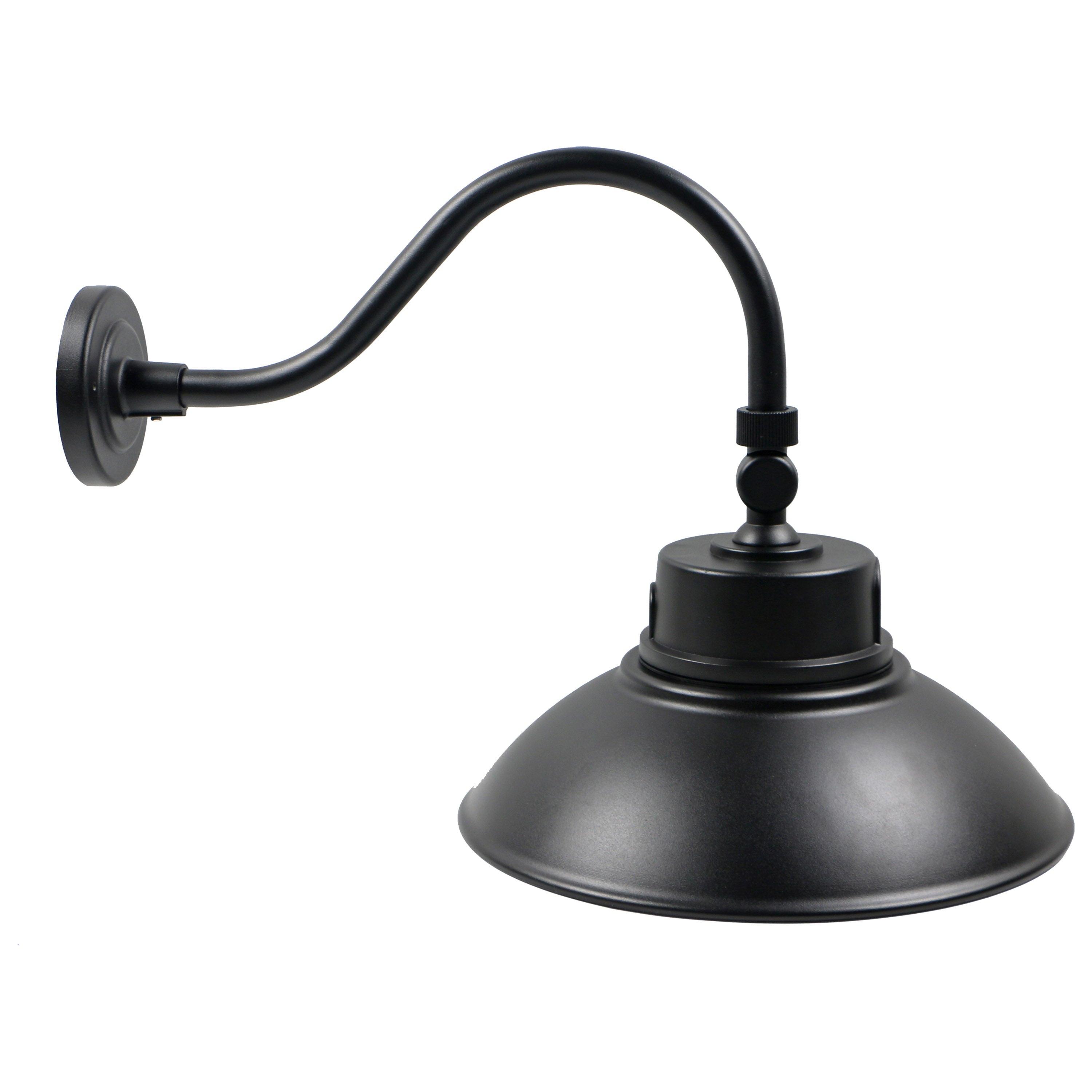

The SATCO-NUVO 65/661 LED Gooseneck fixture provides versatile outdoor illumination with selectable wattage options of 30W, 40W, or 50W and CCT selectable temperatures of 3000K, 4000K, or 5000K. Designed for wet locations with an IP65 rating, this fixture features a durable die-cast aluminum body, integrated photocell, and 0-10V dimming capabilities. It operates on 120-277V and offers 3300-5500 lumens.
- Selectable wattage (30W/40W/50W) and CCT (3000K/4000K/5000K) for customizable lighting.
- Durable die-cast aluminum construction with UV powder coated finish and IP65 wet location rating.
- Integrated photocell, 0-10V dimming, and built-in 2KV surge protection.
Product Highlights
Durable, energy-efficient LED gooseneck fixture with selectable wattage, CCT, integrated photocell, and 0-10V dimming for outdoor applications.
Product Information
Standard Information
-
Brand: SATCO-NUVO
-
Manufacturer Part Number: 65/661
Technical Specifications
-
Brand: Nuvo
-
Manufacturer Part Number: 65-661
-
UPC: 045923656613
-
Lamp Type: Integrated LED
-

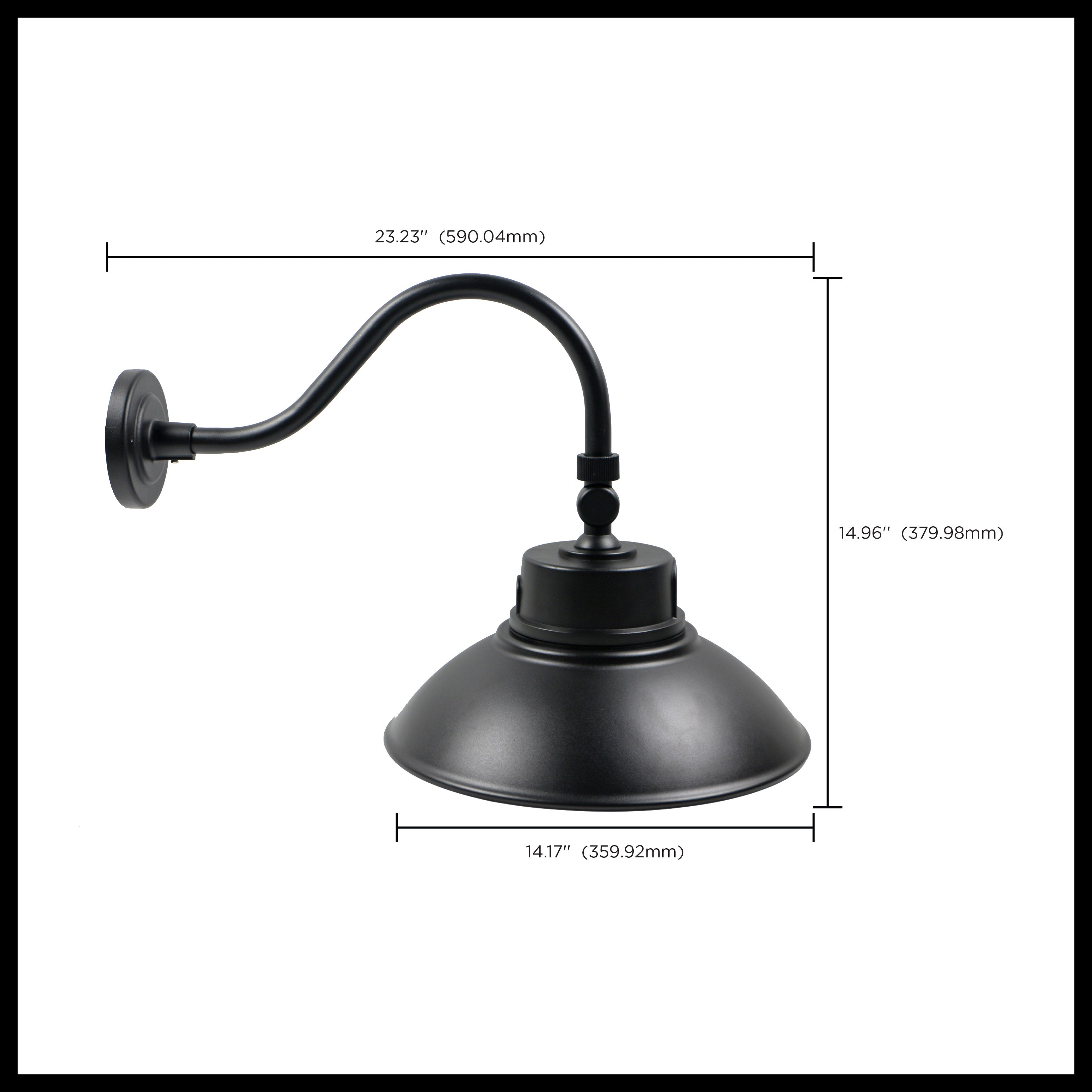

Diameter: 14.17 inches
-
Extension: 23.23 inches
-
Height: 14.96 inches
-
Material: Die-cast Aluminum
-
Fixture Type: Gooseneck
-
Includes: 16 Inch Mounting Arm
-
Style: Traditional
-
Surge Protection: Built-in 2KV
-
Total Harmonic Distortion: 5.20%
-

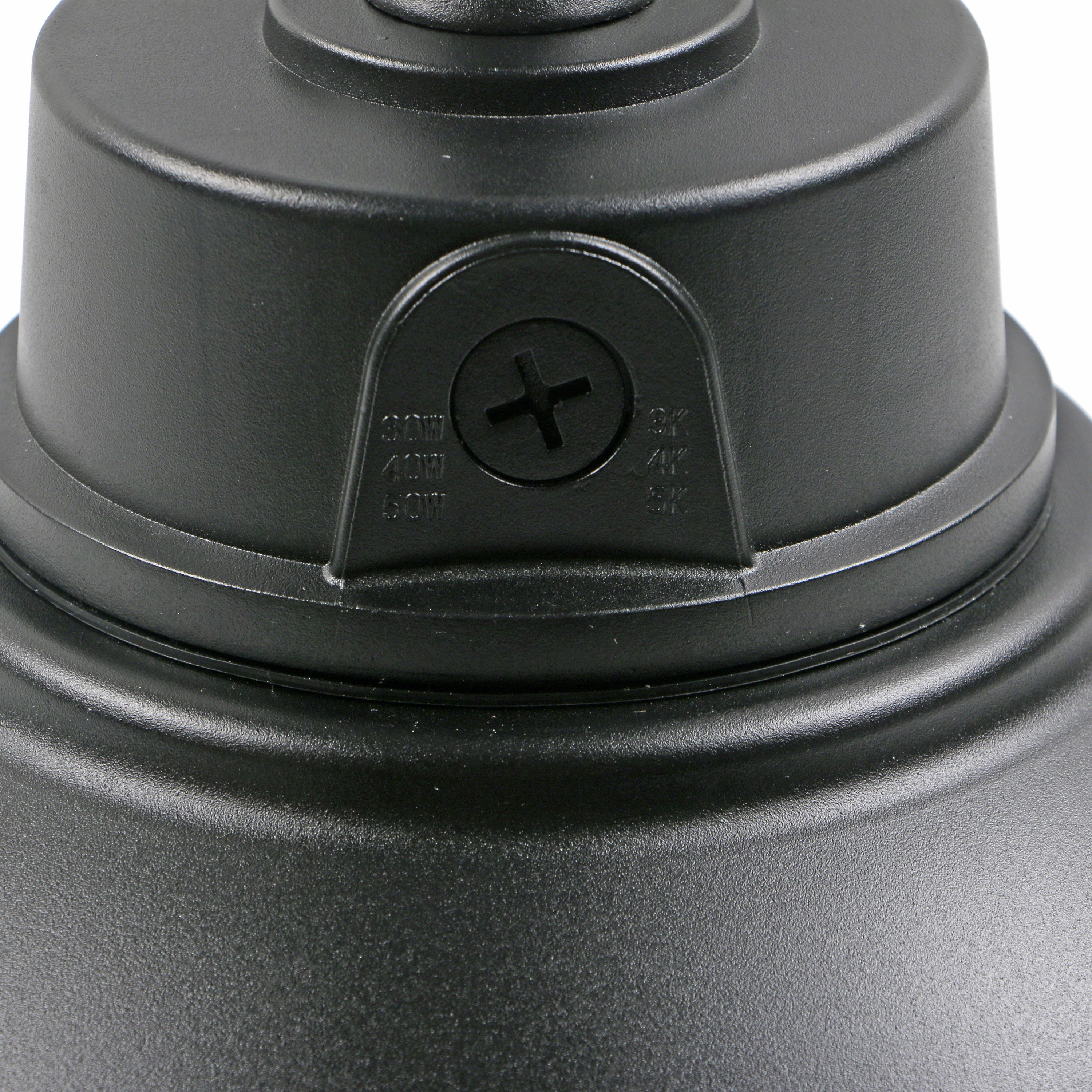

CCT Selectable: Yes
-
Wattage Selectable: Yes
-
Finish: Black
-
Finish Coating: UV Powder Coated
-
Current: 0.250-0.108/0.333-0.144/0.417-0.181A
-
Mounting Diameter: 4.65 inches
-
Photocell: Integrated
-
Lens Finish: Clear
-
Lens Material: Polycarbonate (PC)
-
Power Factor: >0.9
-
Location: Outdoor
-
Product Technology: LED
-
Incandescent Equivalent: 250W/300W/400W
-
Color Temperature: 3000K/4000K/5000K
-
Dimmable: Yes (0-10V Dimming)
-
Rated Hours: 50,000 Hours
-
Beam Angle: 100 degrees
-
CRI: 80+
-
Operating Frequency: 50/60Hz
-
Operating Temperature: -22F to +122F (-30C to +50C)
-
Lumens: 3300-5500 Lumens
-
Input Voltage: 120-277V
-
Wattage: 30W/40W/50W
-
ADA Compliant: No
-
Bug Rating: B2-U2-G0
-
IP Rating: IP65
-
Location Rating: Wet
