Satco-Nuvo 65/573R1 1x4 LED Backlit Flat Panel 20/30/40W (1x4)

Brand: SATCO-NUVO
SKU: 65/573R1
Availability: Out Of Stock
$82.46
$82.46
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

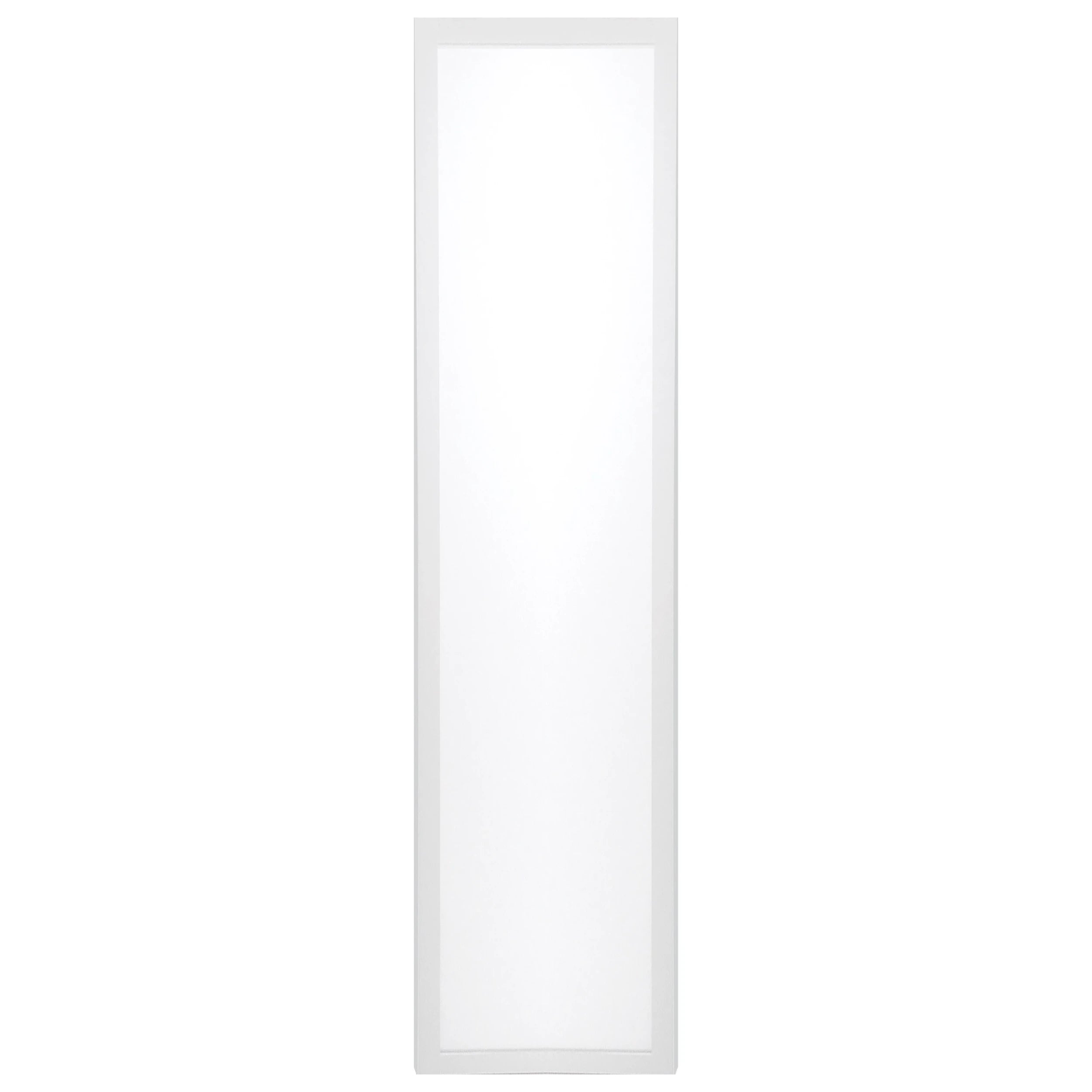

The Satco-Nuvo 65/573R1 is a 1x4 LED backlit flat panel with field-selectable wattage (20/30/40W) and selectable CCT (3500K/4000K/5000K). The fixture operates on 120-277V, includes an integrated LED and driver (VDC 38-48V; 430/620/810 mA), supports 0-10V dimming, and has built-in 2 kV surge protection. It delivers 2,200–4,600 lumens with CRI 80+ and a 50,000-hour rated life for indoor damp locations.

  • Field-selectable 20W/30W/40W and 3500K/4000K/5000K CCT via ColorQuick/PowerQuick
  • Operates on 120–277V with integrated driver (VDC 38–48V; 430/620/810 mA), 0-10V dimming, and 2 kV surge protection
  • Integrated LED delivering 2,200–4,600 lm, CRI 80+, 120° beam angle, IP20 enclosure, 50,000-hour rated life

Product Highlights

Selectable 20/30/40W and 3500/4000/5000K; 120–277V; 0-10V dimmable; 2 kV surge protection; 2,200–4,600 lm; cETLus and DLC listed.

Product Information

Standard Information

  • Brand: SATCO-NUVO
  • Manufacturer Part Number: 65/573R1
  • Country of Origin: Vietnam
Technical Specifications
Brand
SATCO-NUVO
MPN
65/573R1
Product Name
1x4 LED Backlit Flat Panel
Wattage
20W / 30W / 40W (field-selectable)
Input Voltage
120-277V
Correlated Color Temperature (CCT)
3500K / 4000K / 5000K (field-selectable)
Lumens
2,200–4,600 lm
Color Rendering Index (CRI)
80+
Dimmable
0-10V
Driver
Integrated, VDC 38-48V; 430/620/810 mA
Surge Protection
Built-in 2 kV
Rated Life
50,000 hours
Beam Angle
120°
Power Factor
0.9
Total Harmonic Distortion
8.7%
Lens Material
PMMA (frosted)
Housing Material
Aluminum / Steel
Fixture Shape
Rectangle (1x4)
IP Rating
IP20
Location Rating
Damp (indoor)
Operating Frequency
50/60 Hz
Operating Temperature
+1.4°F to +113°F (-17°C to +45°C)
Certifications
cETLus; DLC listed; RoHS compliant
UPC
04592365709
MPN/Model Notes
Integrated LED luminaire, field-selectable wattage and CCT
