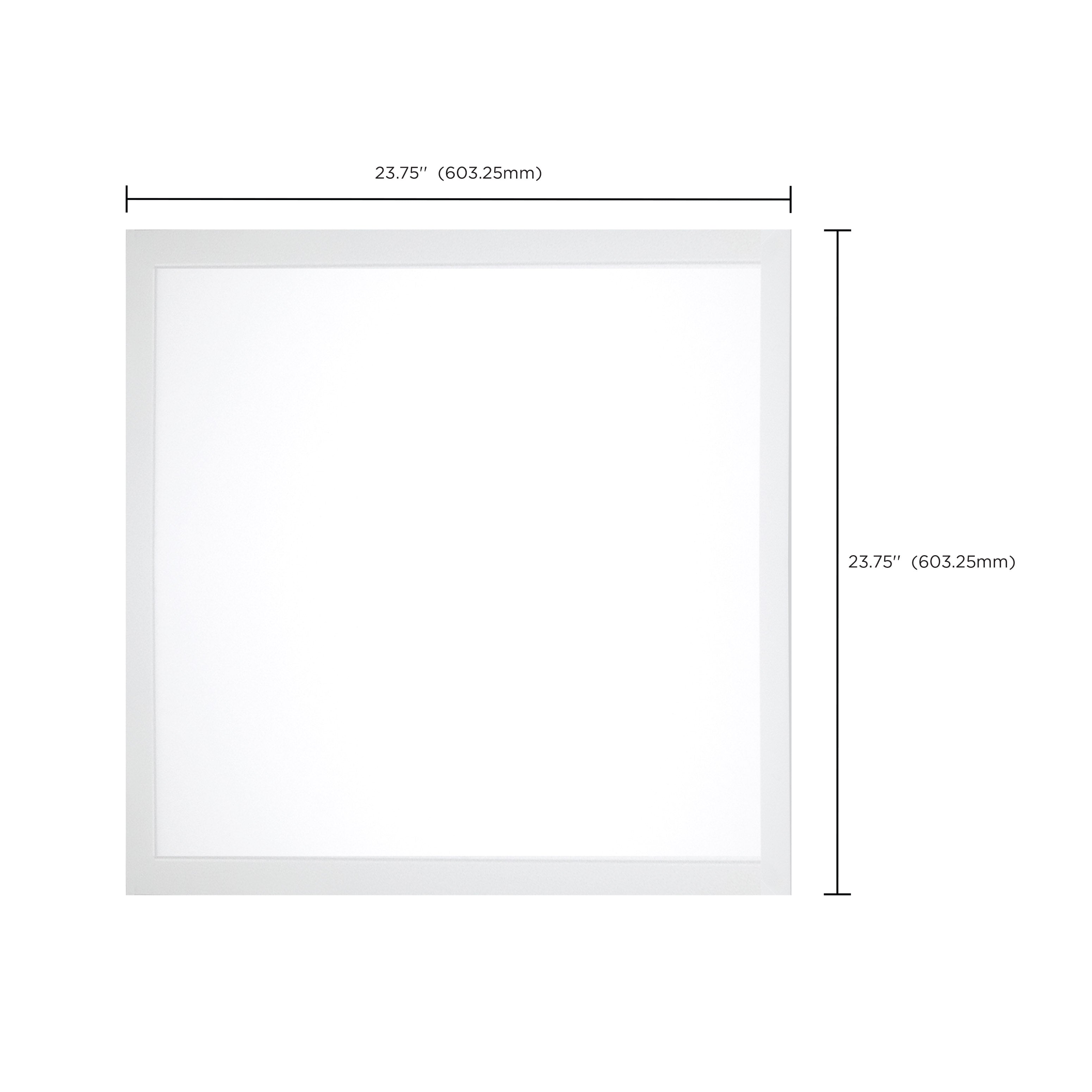

Satco-Nuvo 65/571R1 LED backlit flat panel 2 ft. x 2 ft. wattage and CCT selectable

Product Description

The SATCO-NUVO 65/571R1 LED Backlit Flat Panel is a versatile 2 ft. x 2 ft. lighting solution featuring ColorQuick and PowerQuick technologies. This fixture offers selectable wattage (20W, 30W, 40W) and CCT (3500K, 4000K, 5000K), allowing for nine possible configurations. Designed with high-quality optic materials, it ensures even light distribution and a flicker-free experience, suitable for long-term task usage in various indoor applications like offices, retail, education, and hospitality.

• 3500K/4000K/5000K CCT Selectable
• 20W/30W/40W Wattage Selectable
• Flicker Free, Even Light Distribution

Product Highlights

Versatile LED panel with selectable wattage and CCT, providing even, flicker-free illumination for various indoor environments.

Product Information

Standard Information

• Brand: SATCO-NUVO
• Manufacturer Part Number: 65/571R1
• Country of Origin: Vietnam

Technical Specifications

• Dimmable: Yes
• CRI: 80+
• Base Type: Integrated
• Input Voltage: 120V, 277V
• Wattage: 20W, 30W, 40W
• Style: Utility
• Operating Frequency: 50-60 Hz
• Lumens: 2200-4600
• Product Technology: LED
• Location Rating: Damp
• Power Method: Hardwired
• Material: Steel, Aluminum
• Energy Star Rated: No
• CCT (Kelvin): 3500K, 4000K, 5000K
• Fixture Shape: Square
• Operating Temperature: 1.4°F to 113°F
• CCT Selectable: Yes
• Wire Length: 3.54"
• Replaceable Light Source: No
• Finish: White
• ANSI Base: Integrated
• Incandescent Equivalent: 100W, 150W
• Beam Angle: 120
• Lamp Type: Integrated LED
• Fixture Type: Backlit Flat Panel
• Mounting Type: Ceiling
• Bulb Included: Integrated
• Indoor Outdoor: Indoor
• Surge Protection: Built-in surge protection - 2KV
• Total Harmonic Distortion: 9%
• Wire Color: White / Black / Green
• Wattage Selectable: Yes
• Driver Specs: VDC38-48V; 430/620/810mA
• Amps: 0.167-0.072/0.250-0.108/0.333-0.144A
• Lens Finish: Frost
• Lens Material: Poly methyl methacrylate (PMMA)
• Power Factor: 0.9
• Rated Hours: 50000
• Dimming Type: 0-10V Dimming
• Compliance - IP Rating: IP20
• Number of Light Sources: 1
• Lighting Method: Downlight
• Water Resistance Level: Not Water Resistant
• Efficiency: 110-115 lumens/watt
• Shade Material: Plastic
