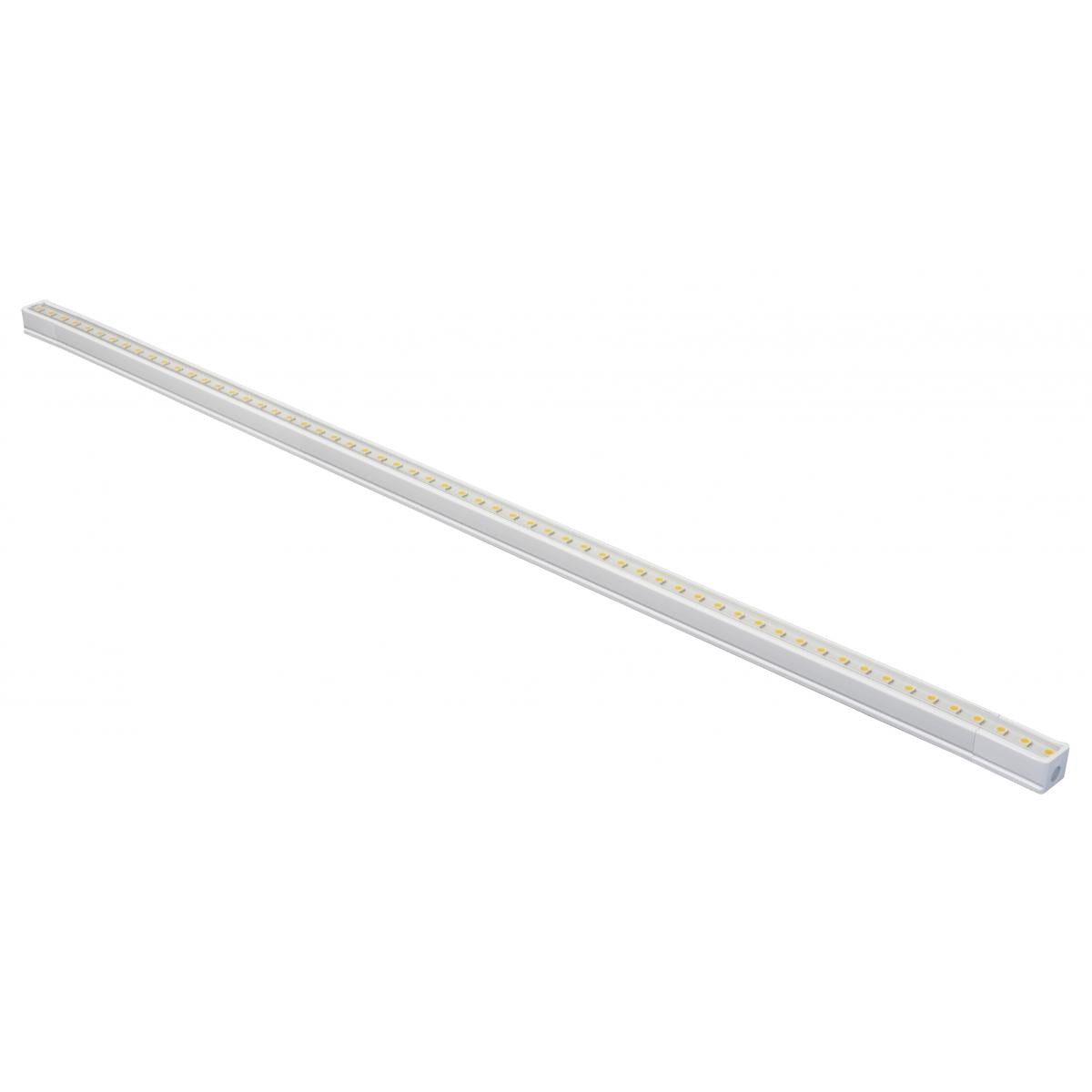

Satco-Nuvo 63-104 Thread 120V LED 30 inch Undercabinet

Product Description

The SATCO-NUVO 63-104 Thread 10W LED Under Cabinet/Cove kit is 30 inches long and operates at 120V. This system is easy to install and allows for linking uninterrupted runs. It provides dramatic lighting effects and is designed not to attract attention. Ideal for accent, under cabinet, or cove lighting.

• Rated for 50000 average hours
• Features a 110 degree beam angle
• Emits a warm white light

Product Highlights

This 30 inch LED undercabinet light offers a sleek design and provides 800 lumens of light. It includes flat mounting clips, 45-degree clips, and a closed end cap.

Product Information

Standard Information

• Brand: SATCO-NUVO
• Manufacturer Part Number: 63-104
• Country of Origin: China

Technical Specifications

• Brand: Nuvo
• Brand Category: Undercabinet
• SKU: 63-104
• UPC: 45923261046
• Color Rendering Index: 80
• Color Temperature: Warm White
• Dimmable: Yes
• Lamping Category: LED
• Lamping Included: Yes
• Lamping Type: Linear LED Module
• Lumens: 800
• Wattage: 10.00
• Voltage: 120V
• Height: 0.69
• Length: 30
• Width: 0.81
• Energy Star: Yes
• Prop 65: Yes
• UL Ratings: cETLus Damp
• Warranty: 3 Year Limited
• Avg Rated Hours: 50000
• Beam Angle: 110
• CEC Terse: Lawful for sale in California
• Housing Finish: White
• Housing Material: Extruded Polycarbonate
• Lens Type: Diffuser
• Series: Thread
• Voltage Rating: 120 VAC
• Application: For damp location
• Standard & Approvals: UL, ETL Listed, RoHS Compliant
• Average Life: 50000 hr
• Includes: Flat Mounting Clips, 45 deg Mounting Clips, Removable Diffusing Lens and Closed End Cap
• CCT (Kelvin): 2700K
• Indoor or Outdoor Fixture: Indoor
• IOT Enabled: No
• Integrated Camera: No
• Technology: LED
• CRI: 80+
• Lumen Output: 800L
• Rated Hours: 50000
• Fixture Material: Plastic
• Fixture Type: Under Cabinet
• Max. Connectable Units: 26
• Safety Listing: cETLus
• Location Rating: Damp
• UL Application: Undercabinet & Cove
• RoHS Compliant: Yes
• FCC Compliant: Yes
• Finish: White
• Correlated Color Temp: 2,700 K
• Style: Contemporary
• Type: Fixtures
• Depth: 0.81
• LPW: 61
• Life Hours: 50,000
• Ratings and Certifications: Damp Location/ UL
• Case Quantity: 6
• Number of Lamps: 1
