Product Description
The SATCO-NUVO 62/1811R1 is a 10 Inch LED Disk Light, offering versatile illumination with a 13.4W power consumption. This fixture features CCT selectable technology, allowing users to choose from 2700K to 5000K color temperatures, and is dimmable for adjustable light levels. With a 90+ CRI and 1100 lumens, it provides quality light. It is wet location rated, suitable for various indoor environments, and includes built-in 2.5kV surge protection.
- CCT selectable (2700K/3000K/3500K/4000K/5000K) for customizable lighting.
- Dimmable functionality and wet location rating for versatile indoor use.
- Integrated 2.5kV surge protection ensures enhanced durability and reliability.
Product Highlights
This 10-inch LED disk light offers customizable CCT, dimming capabilities, and robust surge protection for diverse indoor applications.
Product Information
Standard Information
-
Brand: SATCO-NUVO
-
Manufacturer Part Number: 62/1811R1
-
Country of Origin: Thailand
Technical Specifications
-
Brand: Nuvo
-
MPN: 62/1811R1
-
UPC: 045923406317
-
Product Technology: LED
-
Fixture Type: Disk Light
-
Fixture Shape: Round
-
Style: Contemporary
-
Material: Steel
-
Lens Material: Polycarbonate (PC)
-
Lens Finish: White
-
Finish: WHITE
-

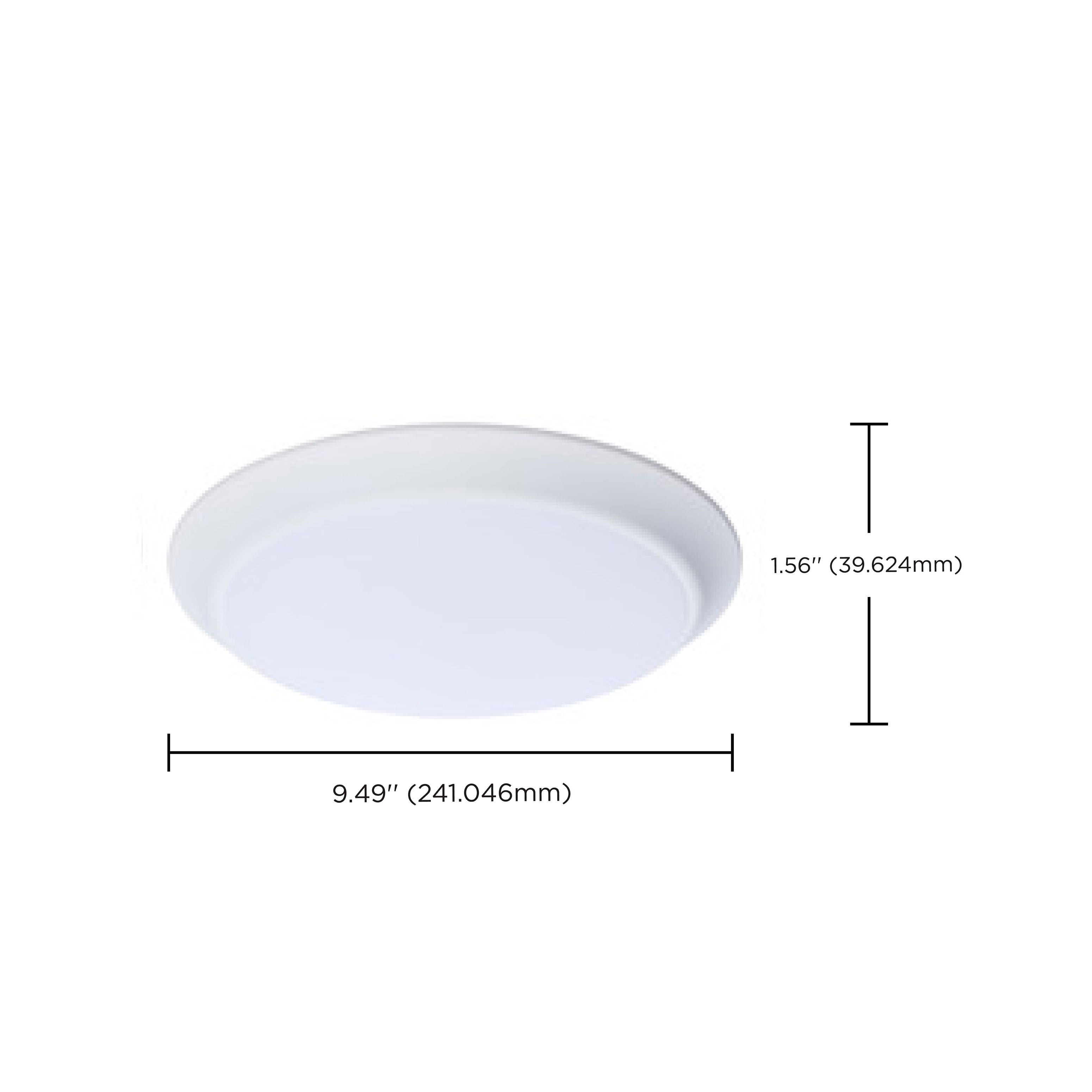

Diameter: 9.49 inches
-
Height: 1.56 inches
-
Weight: 1.08 lbs
-
Input Voltage: 120V
-
Operating Frequency: 60Hz
-
Wattage: 13.4W
-
Amperage: 0.162A
-
Lumens: 1100
-
Lumens Per Watt: 82.09 LPW
-
Incandescent Equivalent: 75W
-
Power Factor: 0.9
-
CCT Selectable: Yes
-
Color Temperature: 2700K/3000K/3500K/4000K/5000K
-
CRI: 90+
-
Dimmable: Yes
-
Dimming Type: 120V only, Phase cut
-
Dimmer Range: 100 to 10 percent
-
Lamp Type: Integrated LED
-
Lamp Base: Integrated
-
Beam Angle: 110 degrees
-
Rated Life: 50000 hours
-
Operating Temperature: -20C to +40C
-
Surge Protection: 2.5kV
-
Location Rating: Wet
-
Sloped Ceiling Compatible: Yes
-
Hardwired: Yes
-
Commercial Usage: Yes
-
Residential Use: Yes
-
Motion Sensored: No
-
Energy Star Certified: Yes
-
FCC Compliant: Yes
-
ROHS Compliant: Yes
-
Safety Listing: cETLus
-
Title 24/JA8 Compliant: Yes
