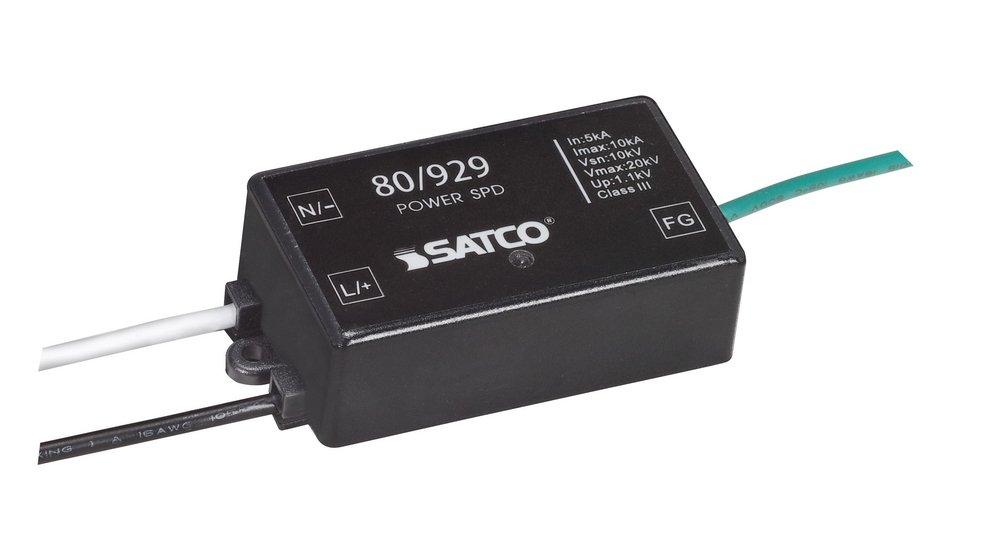

SATCO 80/929 LED High Intensity Discharge Surge Protector 100-277V AC 10kV Protection Level

Product Description

SATCO LED High Intensity Discharge Surge Protector, MPN 80/929, is designed to provide reliable protection for high-intensity discharge lighting systems. This surge protector works with Hi-Pro LED HID replacement lamps, ensuring that your lighting installations remain safe against voltage spikes.

• Operating voltage range: 100 to 277 volts AC
• Surge protection level up to 10 kV
• IP67 rated; suitable for outdoor applications

Product Highlights

This surge protector is engineered for efficiency and protection. It supports a wide range of operating voltages and offers excellent thermal resistance, making it ideal for varied environments.

Product Information

Standard Information

• Brand: SATCO
• MPN: 80/929

Technical Specifications

• Nominal Voltage: 100 to 277 VAC
• Maximum Discharge Current Voltage: 320 VAC
• Nominal Discharge Current: 10 kV
• Maximum Discharge Voltage: 20 kV
• Operating Temperature Range: -40 degrees C to 80 degrees C
• Response Time: Less than 25 ns
• Dimensions: 3.19 in L x 1.42 in W x 0.83 in H
• Package Weight: 0.4 lbs
