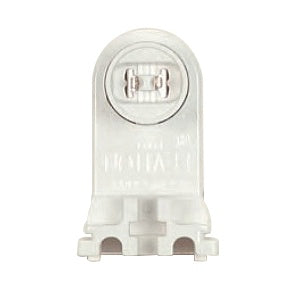

Satco 80-2020 Double Contact Base Pedestal Fluorescent Lampholder 600-Volt

Product Description

The Satco 80-2020 is a pedestal fluorescent lampholder designed to handle a maximum load of 660 watts. It operates at a voltage of 600 volts. The product is finished in white and has dimensions of two and one-quarter inches by one and a-half inches by one and five-eighths inches in diameter. This fluorescent lampholder is cULus certified, ensuring it meets safety standards.

• Compatible with high output 800 Milli-Amp and 1500 Milli-Amp (T12) recessed double contact.
• Pedestal type for easy mounting.
• Screw mountable with screws and nuts included.

Product Highlights

The Satco 80-2020 lampholder is suitable for various lighting applications and provides secure installation options with its screw mount design.

Product Information

Standard Information

• Brand: Satco
• Standards: cULus Certified

Technical Specifications

• UNSPSC: 39110000
• Item Name: Fluorescent Lampholder
• Contact Type: Plunger
• Bulb Base: Double Contact
• Maximum Load Capacity: 660 Watt
• Voltage Rating: 600 Volt
• Dimensions: 1-1/2 Inch Depth x 2-1/4 Inch Height
• Color/Finish: White
• Terminal Connection: Push-In Wiring
• Dimmable: No
