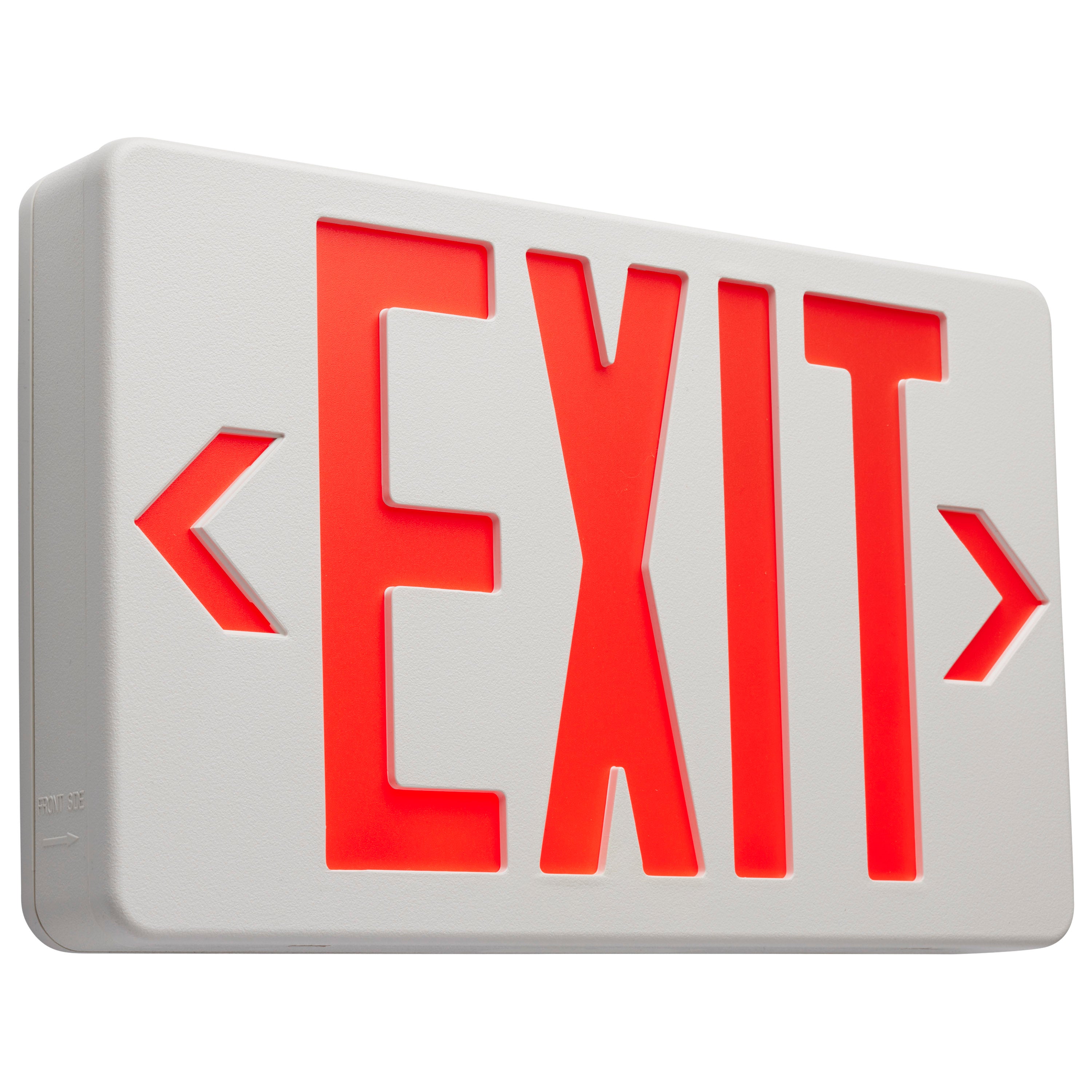

Satco 67-101 Exit Sign - Red 2.5W Single/Dual Face

Product Description

The SATCO 67-101 red LED exit sign provides efficient emergency lighting. Features include 90-minute Ni-Cad backup, 120/277V compatibility, and single/dual face configuration with universal mounting. Constructed from UL94V-0 thermoplastic, it includes mounting hardware for quick installation. Suitable for damp locations and indoor use.

• Provides 90 minutes of illumination during outages with integrated Ni-Cad backup.
• Red letters with 6-inch height and 0.75-inch stroke improve legibility.
• Includes mounting hardware and accessories for straightforward setup.

Product Highlights

Durable LED exit sign with emergency battery backup, high visibility, and easy installation for commercial and residential applications.

Product Information

Standard Information

• Brand: SATCO
• Manufacturer Part Number: 67-101

Technical Specifications

• Bulb Included: Integrated
• Material: Thermoplastic
• Fixture Type: Exit Sign
• Includes: Mounting hardware and accessories
• Product Notes: UL94V-0, Thermoplastic, 2.4V AA300mAh Ni-Cad Battery, 90 minutes duration, 24 hour charge time, 10C-40C; Letter Height: 6 in.; Letter Stroke: 0.75 in.
• Status: Active
• Style: Utility
• Surge Protection: Built-in surge protection - 3KV
• CCT Selectable: False
• Wattage Selectable: False
• Finish Family: White
• Additional Info: Input Wattage: 2.5W; Output Wattage: 0.4W; Energy Used in Maintenance Mode: 2.5W
• Amps: 0.008/0.003A
• Has Camera: False
• IOT Enabled: False
• SDS Class: LED_Fixture
• Sloped Ceiling Compatible: No
• Indoor Outdoor: Indoor
• Product Technology: LED
• Dimmable: Non-Dimmable
• Operating Frequency: 60Hz
• Operating Temp: +10C (+50F) to +40C (+104F)
• Volts: 120V/277V
• Watts: 2.5W
• Lamp Base: Integrated
• Finish: White
• ANSI Base: Integrated
• Lamp Type: Integrated LED
• Output Wattage: 0.4W
• Energy Used in Maintenance Mode: 2.5W
• Voltage: 120V/277V
• Operating Temperature: +10C (+50F) to +40C (+104F)
• Location Rating: Damp
• Battery: 2.4V AA 300mAh Ni-Cad; 90-minute duration; 24-hour charge time
• Letter Height: 6 in
• Letter Stroke: 0.75 in
• Safety Listing: ULus - Certified
• RoHS Compliant: Yes
• FCC Compliant: Yes
• Energy Star: No
• California Title 20: Listed
• California Status: Lawful for sale in California
• California Prop 65: Lead
• Input Voltage: 120V/277V

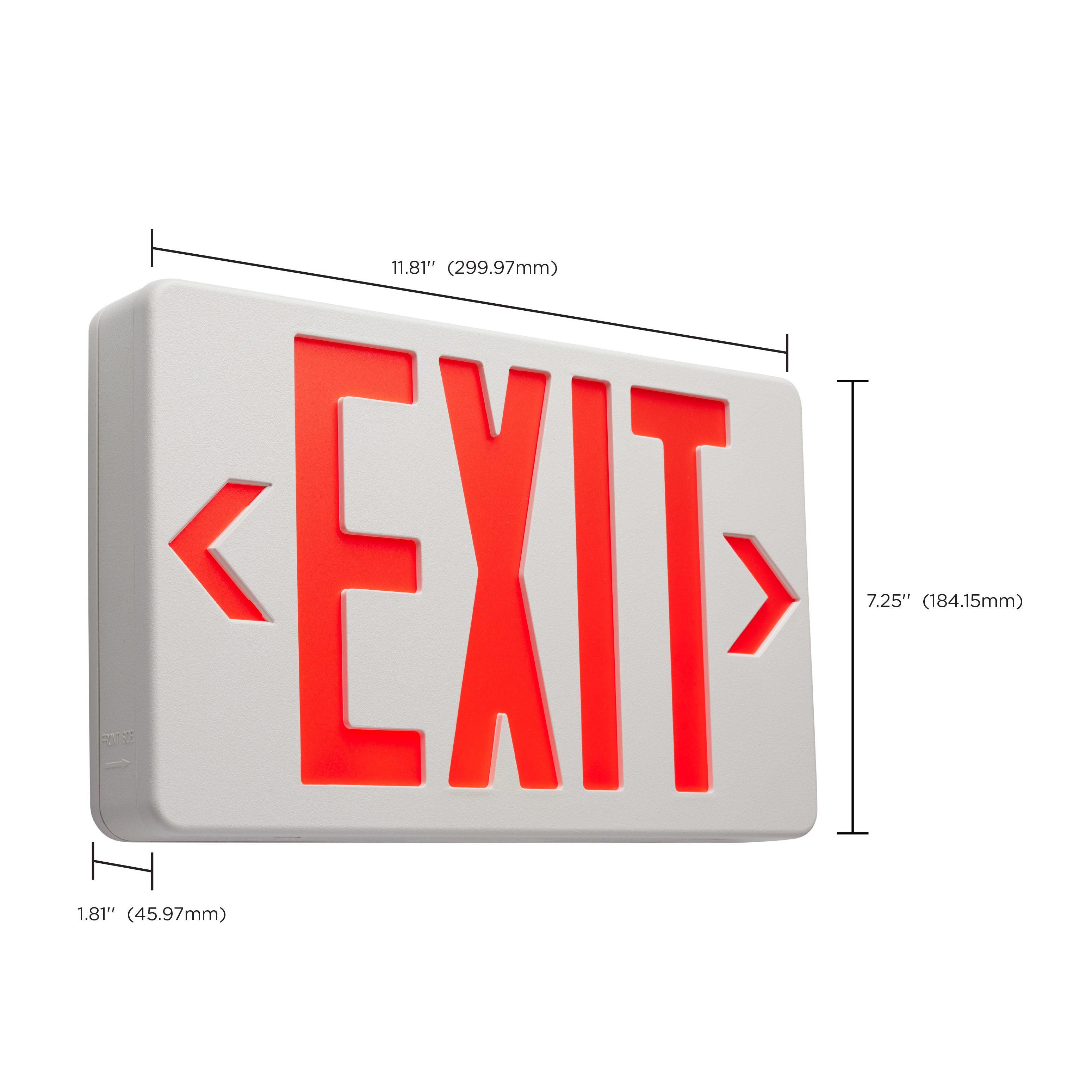

• Width: 11.81"
• Height: 7.25"
• Depth: 1.81"
• Input Wattage: 2.5W
