Product Description

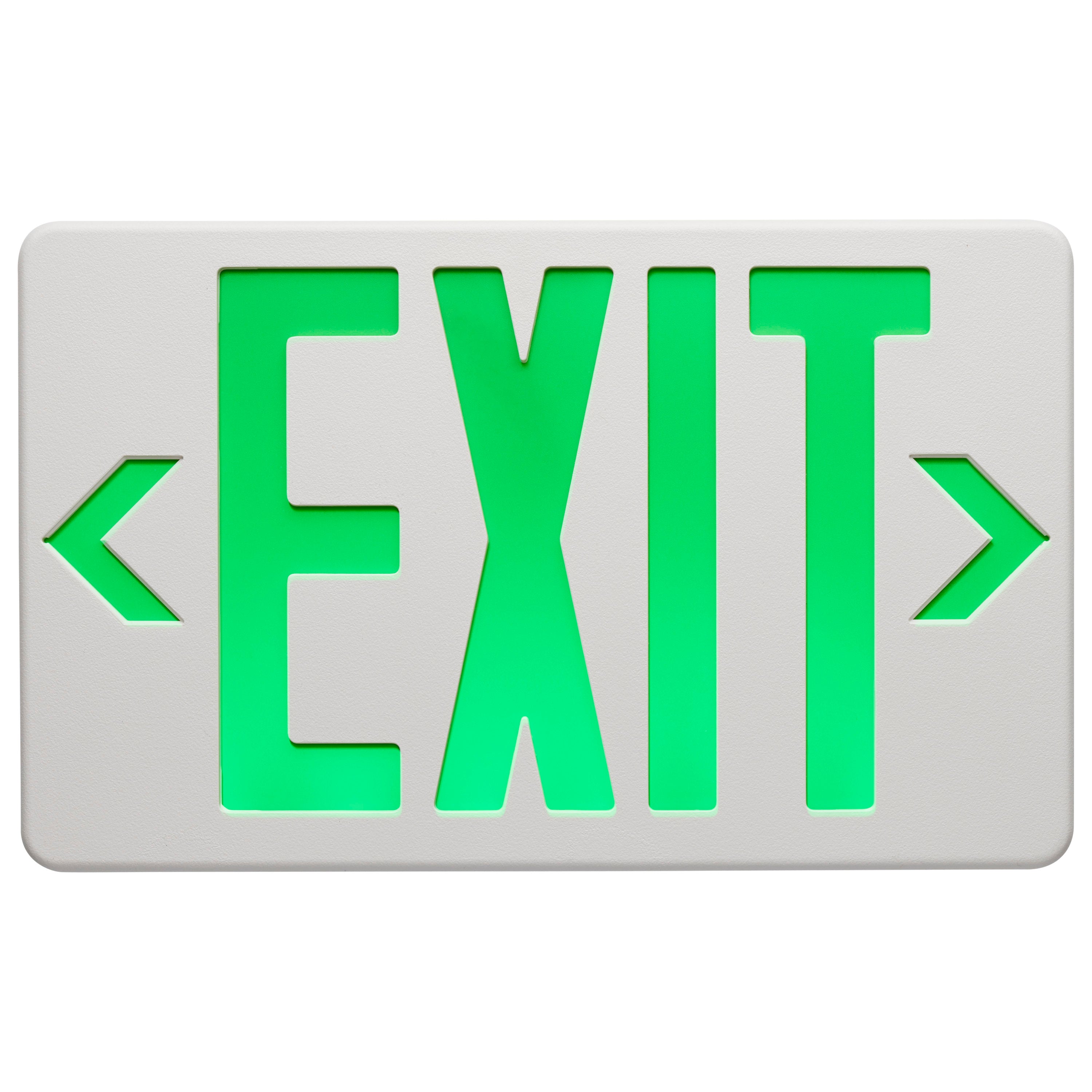

The SATCO 67-100 green LED exit sign provides efficient emergency lighting. It features a 90-minute Ni-Cad battery backup and operates at 120/277V. Suitable for single or dual face use with universal mounting and a white finish. The thermoplastic housing is UL94V-0 rated and includes mounting hardware.
- Equipped with a green LED and a 90-minute Ni-Cad backup.
- Operates at 120/277V and is suitable for single or dual face use.
- Includes universal mounting hardware and accessories for streamlined setup.
Product Highlights
Provides reliable emergency lighting with a durable thermoplastic housing, long-lasting battery, and dual-voltage inputs.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: 67-100
Technical Specifications
-
Bulb Included: Integrated
-
Material: Thermoplastic
-
Fixture Type: Exit Sign
-
Includes: Mounting hardware and accessories
-
Product Notes: UL94V-0, Thermoplastic, 3.6V AA300mAh Ni-Cad Battery, 90 minutes duration, 24 hour charge time, 10C-40C; Letter Height: 6 in.; Letter Stroke: 0.75 in.
-
Status: Active
-
Style: Utility
-
Surge Protection: Built-in surge protection - 3KV
-
CCT Selectable: False
-
Wattage Selectable: False
-
Finish Family: White
-
Additional Info: Input Wattage: 2.9W; Output Wattage: 0.5W; Energy Used in Maintenance Mode: 2.9W
-
Amps: 0.008/0.003A
-
Has Camera: False
-
IOT Enabled: False
-
SDS Class: LED_Fixture
-
Sloped Ceiling Compatible: No
-
Indoor Outdoor: Indoor
-
Product Technology: LED
-
Dimmable: Non-Dimmable
-
Operating Frequency: 60Hz
-
Operating Temp: +10C (+50F) to +40C (+104F)
-
Volts: 120V/277V
-
Watts: 2.9W
-
Lamp Base: Integrated
-
Finish: White
-
ANSI Base: Integrated
-
Lamp Type: Integrated LED
-
Technology: LED
-
Wattage (Input): 2.9W
-
Output Wattage: 0.5W
-
Energy Used in Maintenance Mode: 2.9W
-
Battery: 3.6V AA 300mAh Ni-Cad
-
Emergency Duration: 90 minutes
-
Charge Time: 24 hours
-
Location Rating: Damp
-
Legend Color: Green
-
Letter Height: 6 in
-
Letter Stroke: 0.75 in
-
Safety Listing: ULus - Certified
-
California Title 20: Listed
-
California Status: Lawful for sale in California
-
RoHS Compliant: Yes
-
FCC Compliant: Yes
-
Energy Star: No
-
California Prop 65: Lead
-
Product Category: Exit & EM - Exit Sign
-
Brand: Satco | Nuvo
-
Manufacturer Part Number: 67/100
-
UPC: 045923675676
-
Input Voltage: 120V/277V
-

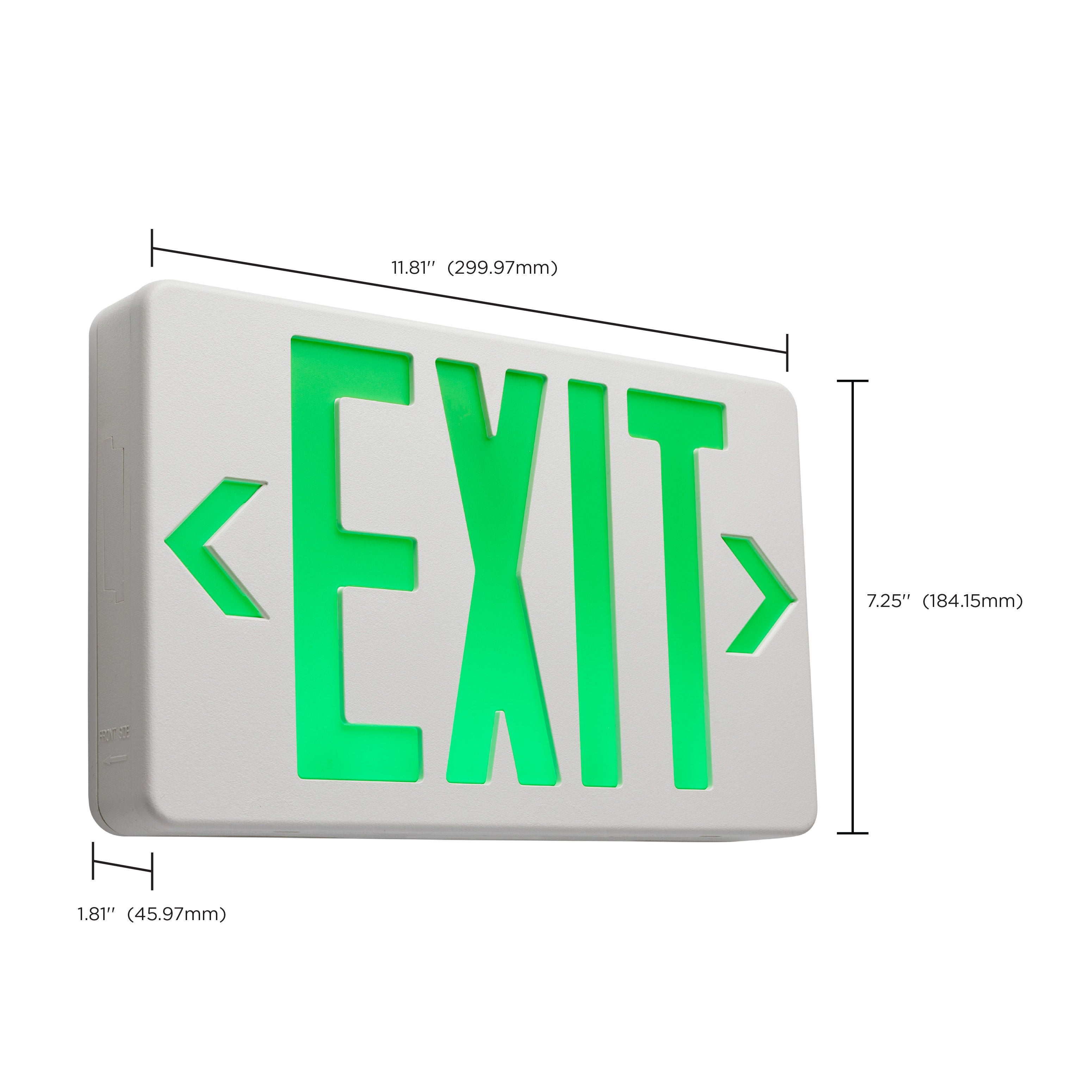

Width: 11.81"
-
Height: 7.25"
-
Depth: 1.81"
-
Battery Backup: 90 minutes duration, 24 hour charge time
