Product Description

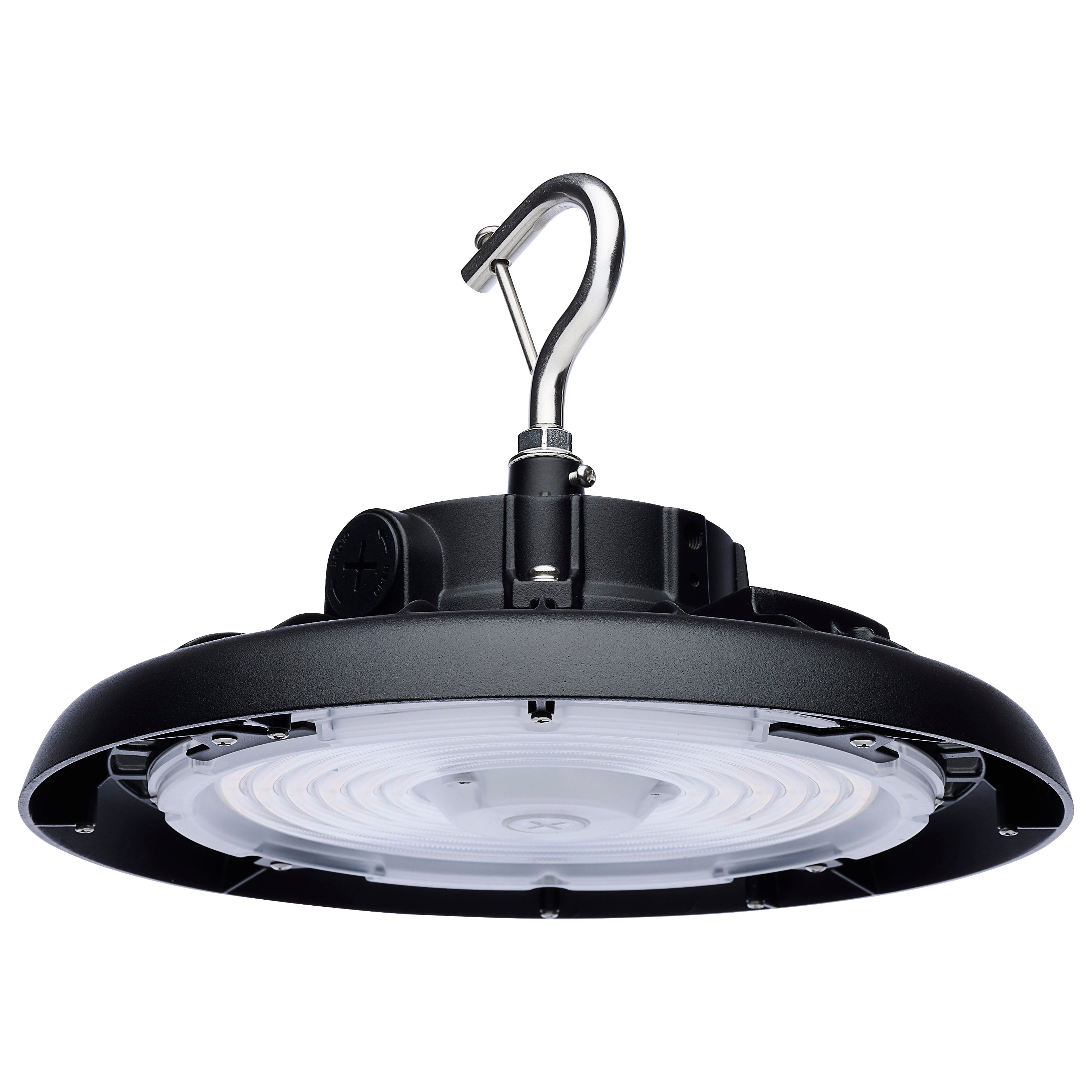

The SATCO 65770R3 LED UFO High Bay offers an energy-efficient and low-maintenance lighting solution. This field-selectable fixture allows users to choose from three wattage options (80W/100W/120W) and three CCT options (3000K/4000K/5000K) during installation. The durable die-cast aluminum housing and polycarbonate lens ensure long-term reliability in various commercial environments.
- Wattage 80W/100W/120W Selectable
- CCT Selectable 3K/4K/5K
- Built-in surge protection - 6KV
Product Highlights
This versatile high bay fixture delivers powerful illumination for warehouses, manufacturing facilities, and commercial spaces.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: 65770R3
Technical Specifications
-
Bulb Included: Integrated
-
Diameter: 11.0"
-
Dimmable Text: 0-10V Dimming Only
-
Material: Die-cast Aluminum
-
Fixture Type: UFO Hi-Bay
-
Includes: Locking Hanging Hook; 6 Foot Whip
-
Status: Active
-
Style: Utility
-
Surge Protection: Built-in surge protection - 6KV
-
Total Harmonic Distortion: 15%
-
Wire Length: 72.0
-
CCT Selectable: Yes
-
Wattage Selectable: Yes
-
Finish Family: Black
-
Amps: 0.667-0.231/0.833-0.288/1.000-0.346A
-
Has Camera: No
-
IOT Enabled: No
-
Lens Finish: Clear
-
Lens Material: Polycarbonate (PC)
-
Lensed: Yes
-
Photo Cell: Optional Add-On
-
Power Factor: 0.9
-
Indoor Outdoor: Indoor
-
Product Technology: LED
-
Incandescent Equivalent: 500W/600W/1000W
-
CCT (Kelvin Temp): 3000K/4000K/5000K
-
Dimmable: Yes-Dimmable
-
Hours Rated: 50000
-
Beam Angle (degree): 90
-
Color Temp: Warm White to Natural Light
-
CRI: 80+
-
Dimming Type: 0-10V Dimming
-
Operating Frequency: 50/60Hz
-
Operating Temp: -40C (-40F) to +50C (+122F)
-
HID Equivalent: 150W-250W
-
Lumens: 11840L-18600L
-
Volts: 120V-347V
-
Watts: 80W/100W/120W
-
Lamp Base: Integrated
-
Finish: BLACK
-
ANSI Base: Integrated
-
Lamp Type: Integrated LED
-
Fixture Shape: Round
-
Installation Notes: Mounting Height: Up to 20 feet
-
Product Category: Hi-Bay - UFO
-
Brand: Satco | Nuvo
-
DLC Product ID: S-3M8BV2
-
Manufacturer Part Number: 65/770R3
-
UPC: 045923651892
-
Input Voltage: 120-347V
-
Color Temperature: 3000K, 4000K, 5000K
-
Rated Hours: 50,000 Hours
-
Equivalent: 250W HID
-
Special Features: CCT Selectable, NSF Rated, Wattage Selectable, Wet Location Rated
-
Height: 7.3"
-
Lighting Type: UFO
-
Part No.: 65-770R3
-
Category: Lighting Fixture
-
Temperature (CCT): 3000K/4000K/5000K
