Product Description

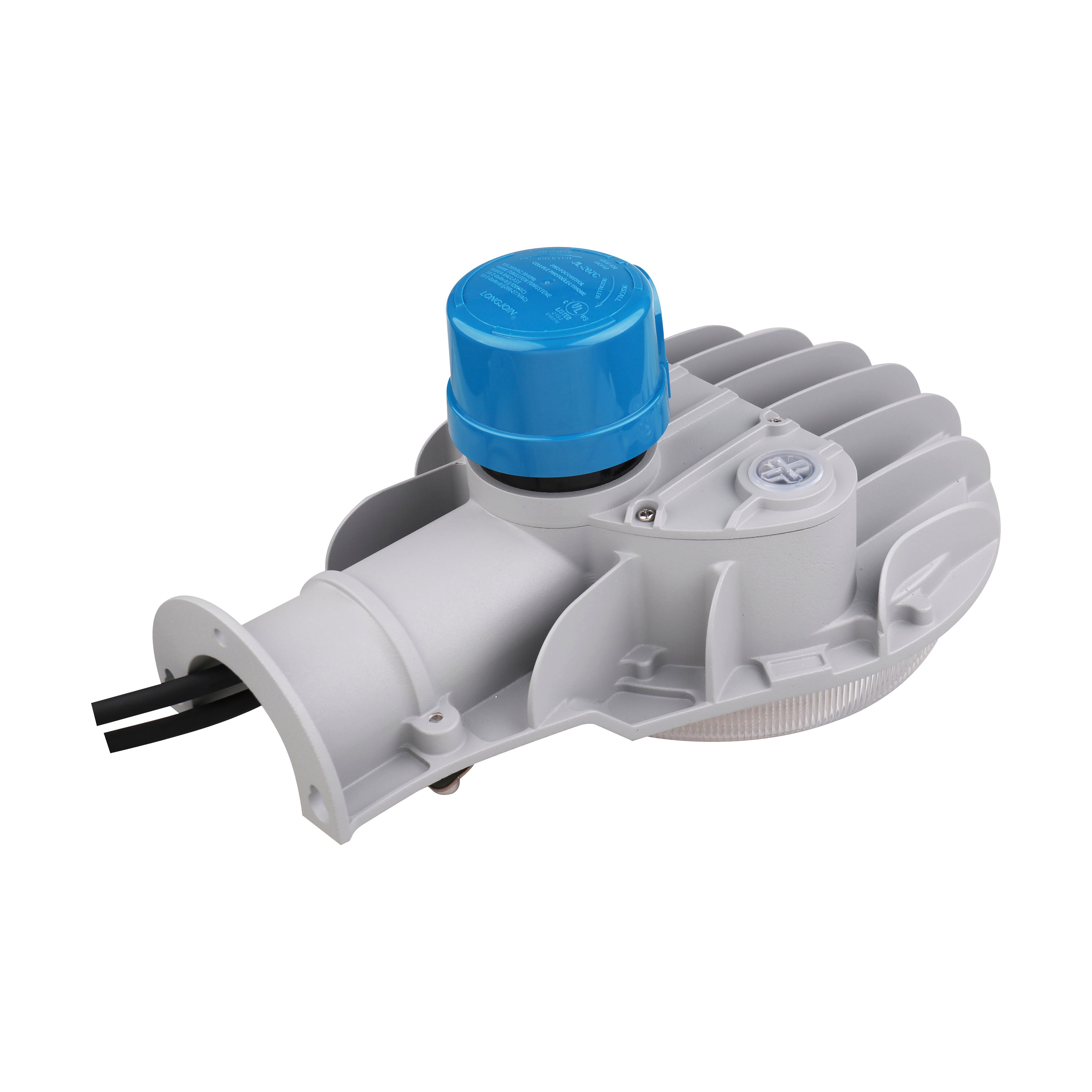

The SATCO 65682 is a 40W LED area light with a photocell, selectable CCT technology, and dimming capabilities. It features a gray finish and operates between 120V-277V, providing ultra-bright lumens. Designed with a durable housing, this area light is suitable for various weather conditions.
- Flicker Free
- Selectable CCT technology
- Dusk to dawn photocell included
Product Highlights
This energy-saving and cost-effective area light can be mounted directly to a wall or with a mounting arm and is suitable for 42-60mm pipe installation.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: 65682
-
Country of Origin: Canada
Technical Specifications
-
Bulb Included: Integrated
-
Dimmable Text: 0-10V Dimming Only
-
Extends (in): 13.62
-
Material: Aluminum
-
Fixture Type: Area Light
-
Status: Active
-
Style: Traditional
-
Surge Protection: Built-in surge protection - 2KV
-
Total Harmonic Distortion: 15%
-
CCT Selectable: Yes
-
Finish Family: Gray
-
Additional Info: Type V Lighting Distribution; Dusk to Dawn Lamp
-
Amps: 0.333-0.144A
-
Has Camera: No
-
IOT Enabled: No
-
Lens Material: Polycarbonate (PC)
-
Photo Cell: Has Photocell
-
Power Factor: >0.9
-
SDS Class: LED_Fixture
-
Indoor Outdoor: Outdoor
-
Product Technology: LED
-
Incandescent Equivalent: 300W
-
CCT (Kelvin Temp): 3000K/4000K/5000K
-
Dimmable: Yes-Dimmable
-
Hours Rated: 50000
-
Beam Angle (degree): 150x150
-
Color Temp: Warm to Cool White
-
CRI: 70+
-
Dimming Type: 0-10V Dimming
-
Operating Frequency: 50/60Hz
-
Operating Temp: -40C (-40F) to +50C (+122F)
-
HID Equivalent: 150W
-
Lumens: 5600L-6400L
-
Volts: 120V-277V
-
Watts: 40W
-
Lamp Base: Integrated
-
Finish: Gray
-
ANSI Base: Integrated
-
Lamp Type: Integrated LED
-
Installation Notes: Suitable for 42-60mm pipe installation
-
Certificate: DLC Premium, cUL/UL Listed, Wet Location, RoHS Compliant
-
Life Hours: 50000
-
Maximum Voltage: 120V-277V
-
Brand Name: Satco Products
-
Item Name: LED Yard Light Fixture
-
Type: 150° Beam, Dimmable
-
Voltage Rating: 120 - 277 V
-
Fixture Wattage: 40 W
-
Housing Finish: Gray
-
Color Temperature: 3000/4000/5000 K
-
Includes: Photocell
-
Fixture Finish: Gray
-
Standard: cULus - Certified
-
Environmental Conditions: Wet
-
Category: Lighting Fixture
-
EXTENSION: 13.62
-
BEAM SPREAD: 150.00
-
LIGHT OUTPUT: 5600.00LM
-
LIGHT SOURCE: LED
-
SAFETY LISTING: CULUS
-
SAFETY RATING: WET
-
BULB BASE: INTEGRATED
-
BULB TYPE: INTEGRATED LED
-
VOLTAGE: 120.00
-
MAX WATTAGE: 40.00
-
BULBS INCLUDED: YES
