Product Description

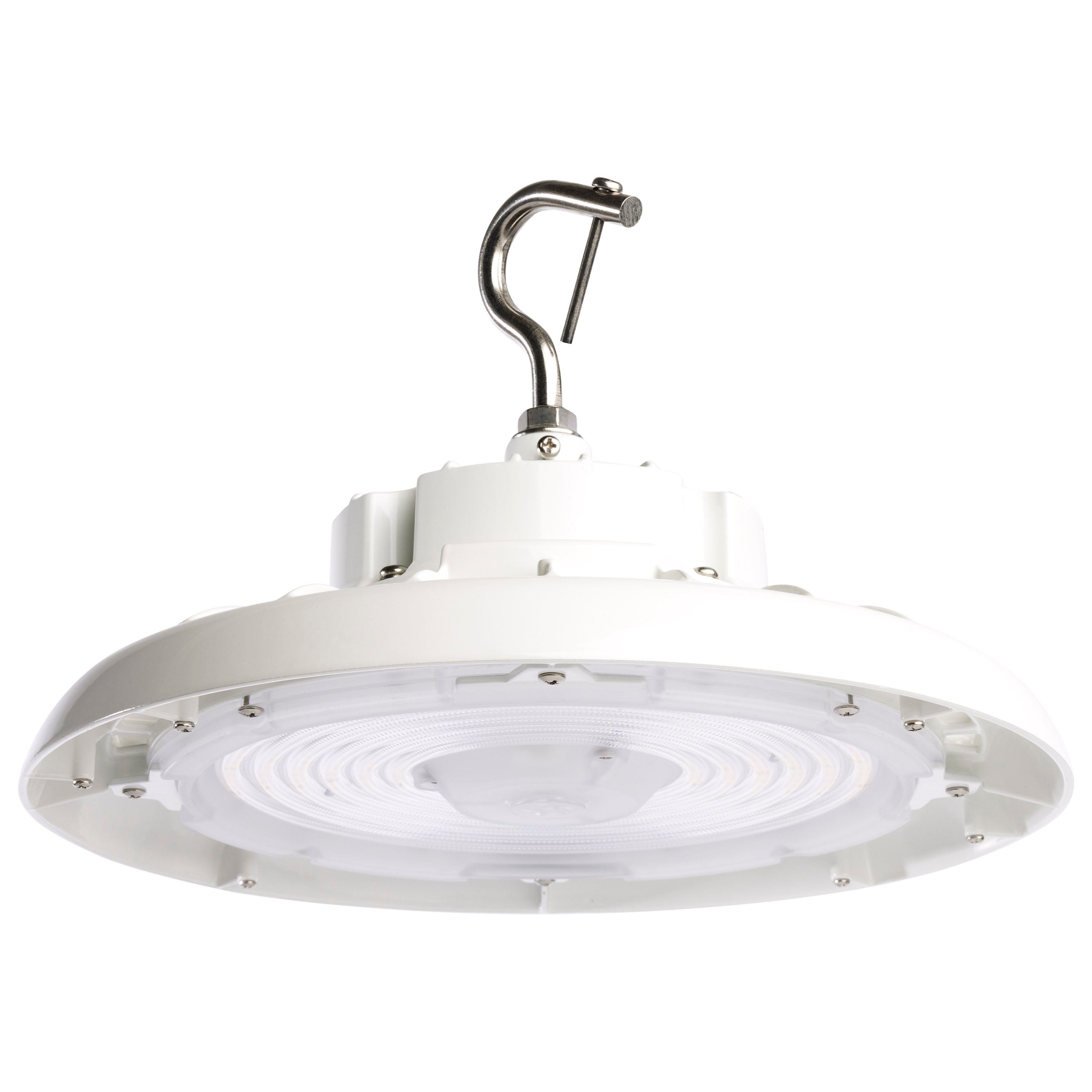

The SATCO 65/792R2 LED UFO Highbay is a 100 Watt fixture designed for efficient illumination. It delivers 14400 lumens with a 5000K color temperature, operating on 120-277 Volts. Constructed from die-cast aluminum with a white finish, this high bay features an integrated sensor port and built-in 6KV surge protection. It is IP65 and wet location rated, ensuring durability in various indoor environments. The fixture is dimmable with 0-10V dimming and has a 50,000-hour rated life.
- Delivers 14400 lumens at 5000K color temperature with 80+ CRI.
- Operates on 120-277V with 0-10V dimming and built-in 6KV surge protection.
- IP65 and Wet Location Rated, constructed from die-cast aluminum for durability.
Product Highlights
Efficient 100W LED UFO high bay with 14400 lumens, 5000K CCT, 0-10V dimming, and IP65 wet location rating.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: 65/792R2
Technical Specifications
-
Bulb Type: Integrated LED
-

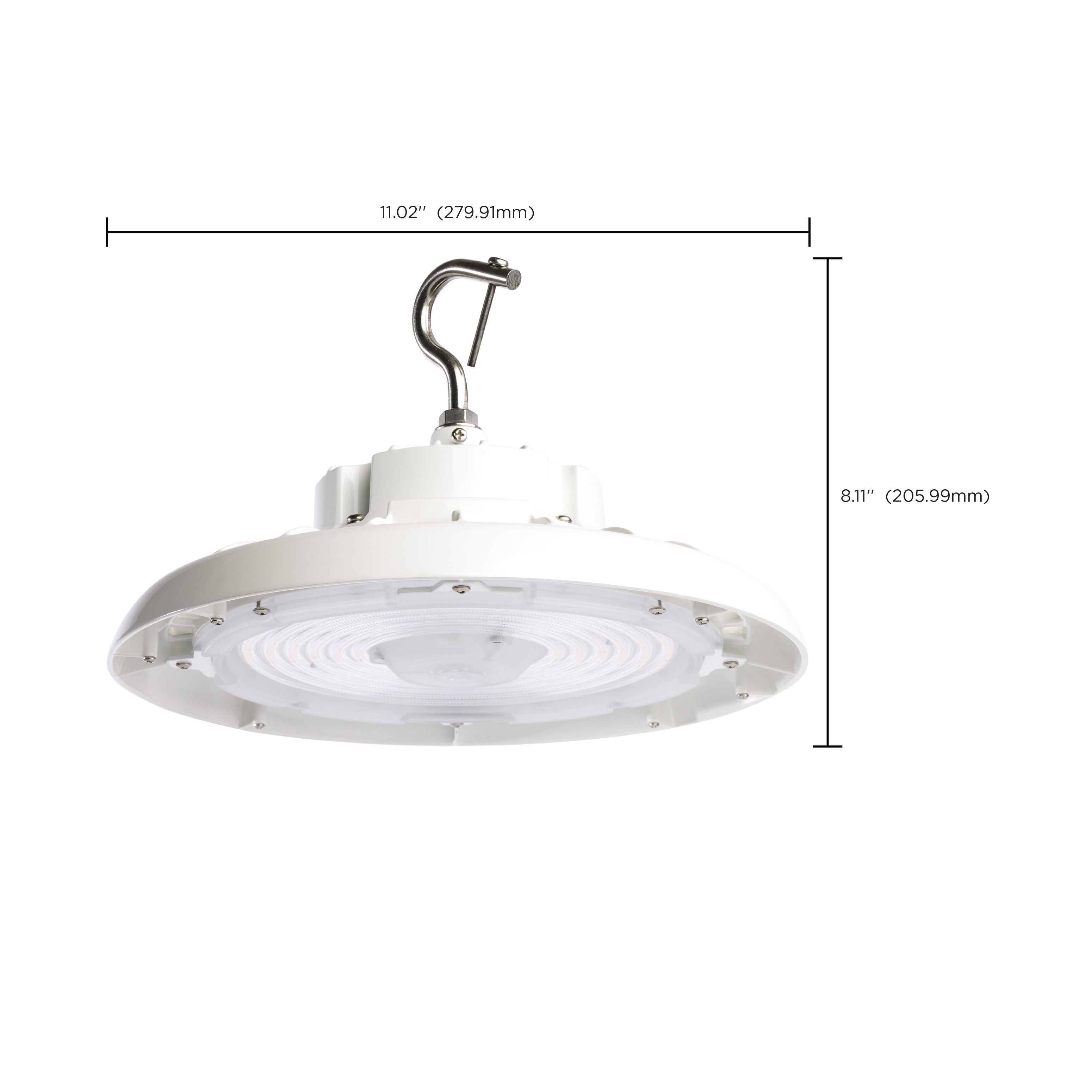

Diameter: 11.02 inches
-
Material: Die-cast Aluminum
-
Fixture Type: UFO High Bay
-
Included Accessories: Locking Hanging Hook, 6 Foot Whip
-
Surge Protection: 6KV
-
Total Harmonic Distortion: 15%
-
Wire Length: 72 inches
-
CCT Selectable: No
-
Wattage Selectable: No
-
Finish: White
-
Current: 0.833-0.361A
-
Integrated Features: Sensor Port
-
Lens Material: Polycarbonate (PC)
-
Photocell: Optional Add-On
-
Power Factor: 0.9
-
Location: Indoor
-
Technology: LED
-
Incandescent Equivalent: 600W
-
Color Temperature: 5000K
-
Dimmable: Yes
-
Rated Life: 50000 Hours
-
Beam Angle: 90 Degrees
-
CRI: 80+
-
Dimming Type: 0-10V
-
Operating Frequency: 50/60Hz
-
Operating Temperature: -40F to +122F (-40C to +50C)
-
HID Equivalent: 250W
-
Lumens: 14400
-
Input Voltage: 120-277V
-
Wattage: 100W
-
Lamp Base: Integrated
-
ANSI Base: Integrated
-
Fixture Shape: Round
-
Mounting Height: Up to 20 feet
-
IP Rating: IP65
-
Location Rating: Wet
-
Height: 8.11 inches
-
Certifications: FCC Compliant, NSF Approved, ROHS Compliant, cULus Certified, DLC Approved
