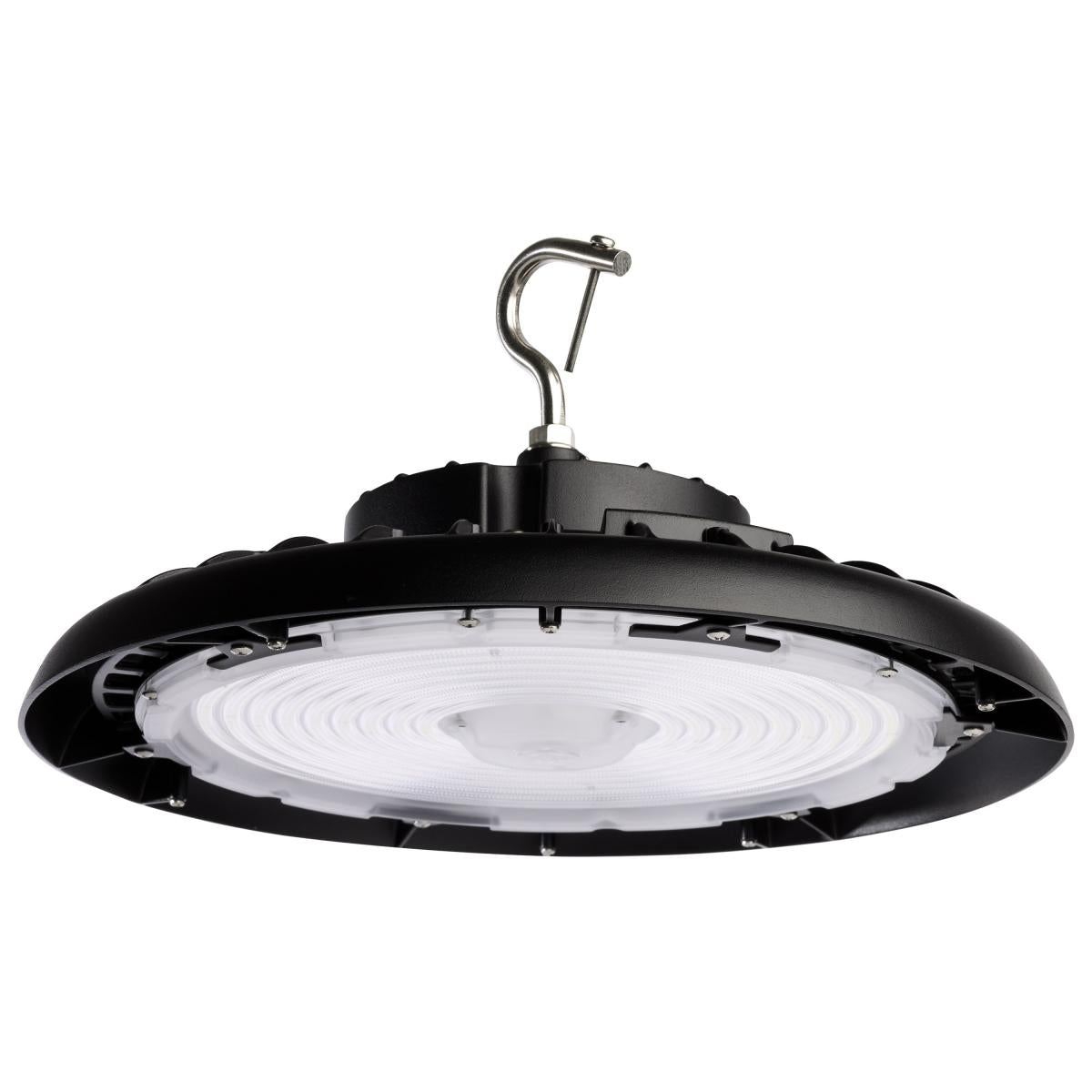

SATCO 65-788R2 240W LED UFO High Bay Fixture

Product Description

The SATCO 65-788R2 is a robust 240W LED UFO high bay fixture for large area illumination. It provides an output of 34560 lumens with a color temperature of 5000K, delivering bright and clear light. This fixture operates on a voltage range of 120-277V, allowing flexibility in various settings. The construction is made from durable die-cast aluminum with a polycarbonate lens, ensuring longevity and reliability.

• Powerful illumination of 34560 lumens
• Designed for wet locations, suitable for indoor and outdoor use
• Dimmable feature with 0-10V dimming capability

Product Highlights

Ideal for warehouses, factories, and large retail spaces, this fixture guarantees efficient lighting solutions.

Product Information

Standard Information

• Brand: SATCO
• Manufacturer Part Number: 65-788R2

Technical Specifications

• UPC: 045923648120
• Technology: LED
• Fixture Type: Hi-Bay
• Wattage: 240 W
• Input Voltage: 120-277V
• Color Temperature: 5000K
• Lumens: 34560
• Rated Hours: 50000
• Beam Angle: 90°
• CRI: 80
• Dimmable: Yes
• Fixture Finish: Black
• Location Rating: Wet
• Operating Temperature: -40C to +50C
• Lens Material: Polycarbonate
• Material: Die-Cast Aluminum
• Height: 8.11 inches
• Width: 13.39 inches
• Safety Listing: cULus Certified
• DLC Approved: Yes
• DLC ID: S-0X2L5V
• NSF Approved: Yes
• Surge Protection: Built-in surge protection - 6KV
• Weight: 6.42 lb
• Average Life (Hours): 50000
• Body Material: Die Cast Aluminum
