Product Description

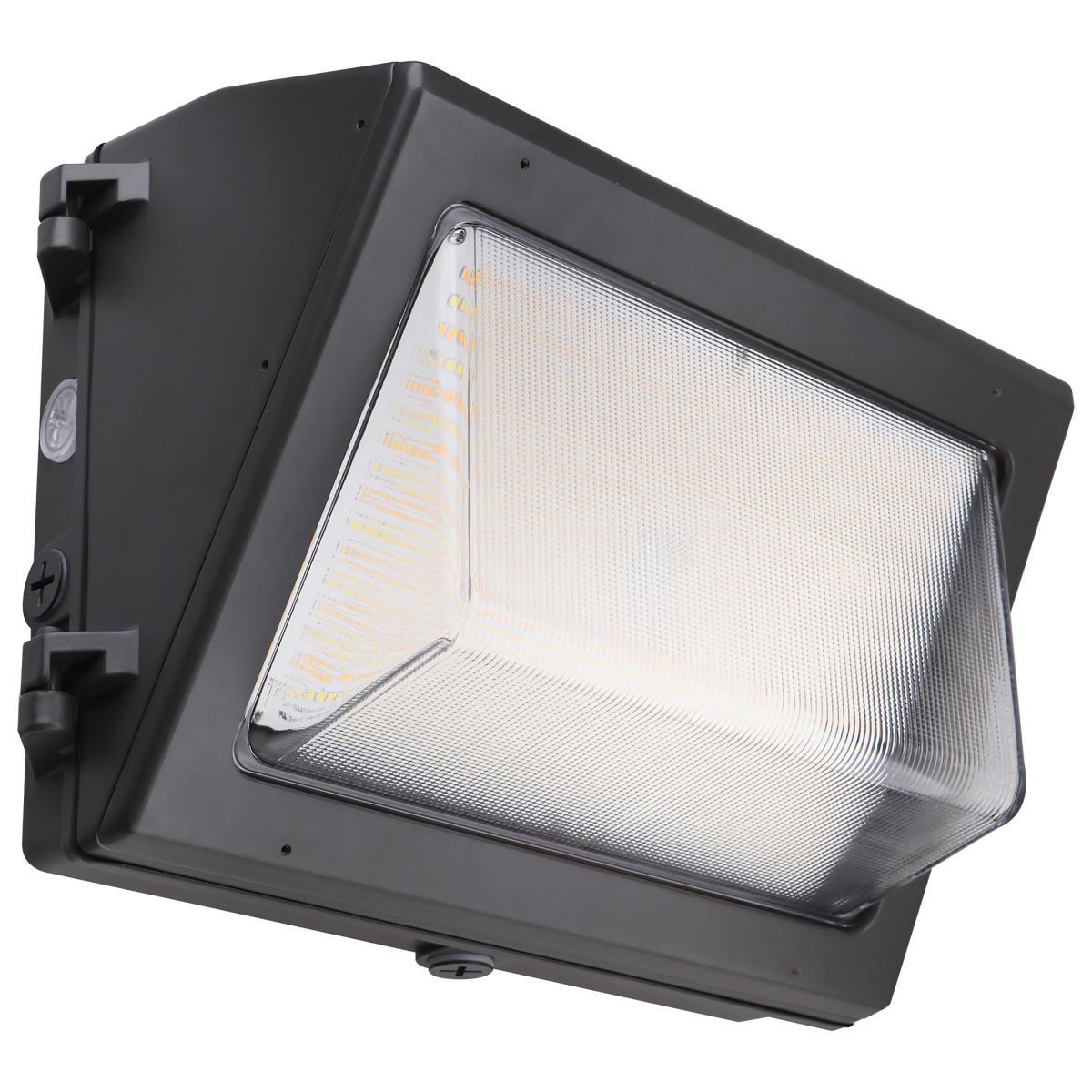

The SATCO 65-754 is an LED wall pack built for outdoor area lighting. This fixture provides selectable wattage and color temperature options, allowing adjustments to meet varying lighting needs. Users can choose from 29 watts, 40 watts, or 60 watts, along with color temperatures of three thousand Kelvin, four thousand Kelvin, and five thousand Kelvin. It operates on one hundred twenty to two hundred seventy-seven volts and is equipped with a bypassable photocell for automatic dusk-to-dawn operation. In addition, it features an emergency battery backup for temporary illumination during power outages. The fixture also supports 0-10V dimming capability.
- Offers selectable wattage and CCT (color temperature).
- Features a bypassable photocell for automatic operation.
- Provides emergency battery backup for use during power outages.
Product Highlights
This LED wall pack is designed for safety and versatility in outdoor lighting. With a robust construction and multiple features, it is ideal for various applications.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: 65-754
Technical Specifications
-
Fixture Type: Wall Pack
-
Technology: LED
-
Input Voltage: 120-277V
-
Wattage: 29W/40W/60W
-
Lumen Output: 4060L-8640L
-
Color Temperature: 3000K/4000K/5000K
-
CRI: 80+
-
Dimmable: Yes, 0-10V Dimming Only
-
Rated Hours: 50000
-
Operating Temperature: -40C to +50C
-
IP Rating: IP65
-
Location Rating: Wet
-
Lens Material: Glass
-
Fixture Finish: Bronze
-
Material: Die-Cast Aluminum
-
Height: 9.35 inches
-
Width: 13.8 inches
-
Extension: 7.39 inches
-
Weight: 9.5 lb.
-
Safety Listing: cULus - Certified
-
DLC Approved: Yes
-
DLC ID: S-YL8U14
-
RoHS Compliant: Yes
-
FCC Compliant: Yes
-
Surge Protection: Built-in surge protection - 4KV
-
Beam Angle: 110
-
Photocell or Sensor: Yes - Bypassable
-
Outdoor Rating: Wet Location Rated
-
Warranty: 5 years
