Product Description

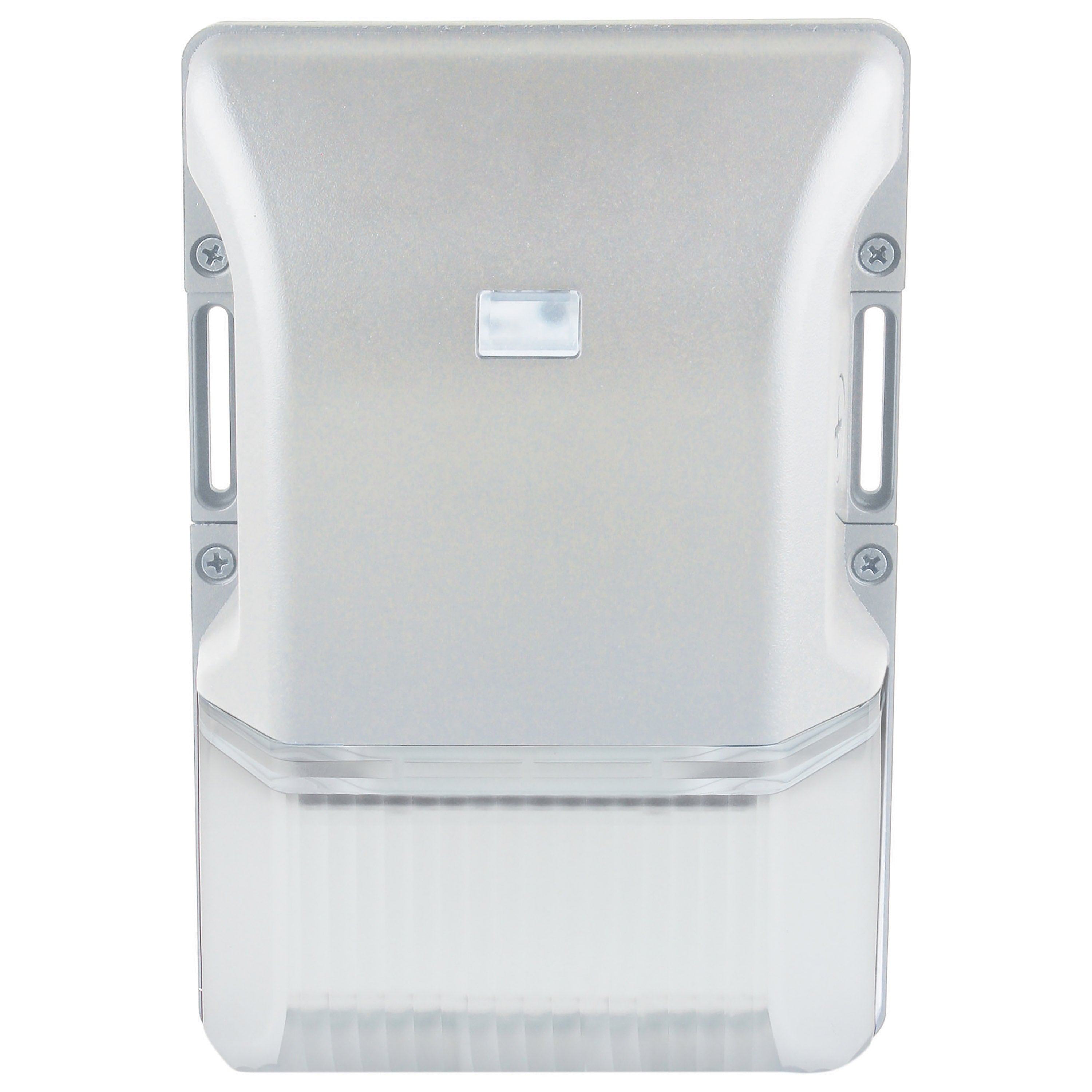

The SATCO 65-749 is an LED Small Wall Pack designed for outdoor illumination. This 20W fixture features CCT Selectable technology, offering 3000K, 4000K, or 5000K color temperatures, and operates on 100-277V. It includes an integrated photocell for automatic operation and a durable cast aluminum construction with a white finish, suitable for wet locations.
- 20W LED with CCT Selectable (3000K/4000K/5000K) for versatile lighting.
- Integrated photocell and 0-10V dimming for automated and adjustable illumination.
- IP65 rated, wet location suitable, and built with cast aluminum for outdoor durability.
Product Highlights
This 20W LED wall pack offers CCT selectable lighting, an integrated photocell, and is IP65 rated for outdoor use.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: 65-749
Technical Specifications
-
Bulb Included: Integrated
-
Material: Cast Aluminum
-
Fixture Type: Wall Pack
-
Style: Utility
-
Surge Protection: Built-in surge protection - 2.5KV
-
Total Harmonic Distortion: 20%
-
CCT Selectable: Yes
-
Wattage Selectable: No
-
Finish Family: White
-
Amps: 0.167-0.072A
-
Has Camera: No
-
Integrated Features: Integrated Photocell
-
IOT Enabled: No
-
Lens Material: Polycarbonate (PC)
-
Photocell: Has Photocell
-
Power Factor: 0.99
-
Indoor Outdoor: Outdoor
-
Product Technology: LED
-
Incandescent Equivalent: 100W
-
CCT (Kelvin Temp): 3000K/4000K/5000K
-
Dimmable: Yes-Dimmable
-
Hours Rated: 50000
-
Beam Angle: 100 degree
-
Color Temp: Warm to Cool White
-
CRI: 80+
-
Dimming Type: 0-10V Dimming
-
Operating Frequency: 50/60Hz
-
Operating Temp: -4F to +113F (-20C to +45C)
-
HID Equivalent: 100W-150W
-
Lumens: 2608.9L/2920.8L/2703.4L
-
Input Voltage: 120V-277V
-
Wattage: 20W
-
Lamp Base: Integrated
-
Finish: WHITE
-
ANSI Base: Integrated
-
Lamp Type: Integrated LED
-
Fixture Shape: Rectangle
-
ADA Compliant: Yes
-
Bug Rating: B1-U3-G2
-
CA Prop 65: Lead
-
DLC ID: S-GL6EYJ
-
FCC Compliant: Yes
-
IP Rating: IP65
-
Location Rating: Wet
-
NSF Approved: Yes
-
ROHS Compliant: Yes
-
Safety Listing: cULus - Certified
-
California Ban: Lawful for sale
-
DLC Approved: Yes
-
Title 20: Exempt
-
T24/JA8 Compliant: No
-
Fixture Application: Area/General Lighting
-
Fixture Environment: Outdoor
-
Shade/Lens Color: White
