Satco 65-680 80 watt adjustable led wall pack cct selectable 9600-10k lumens dlc premium

Product Description

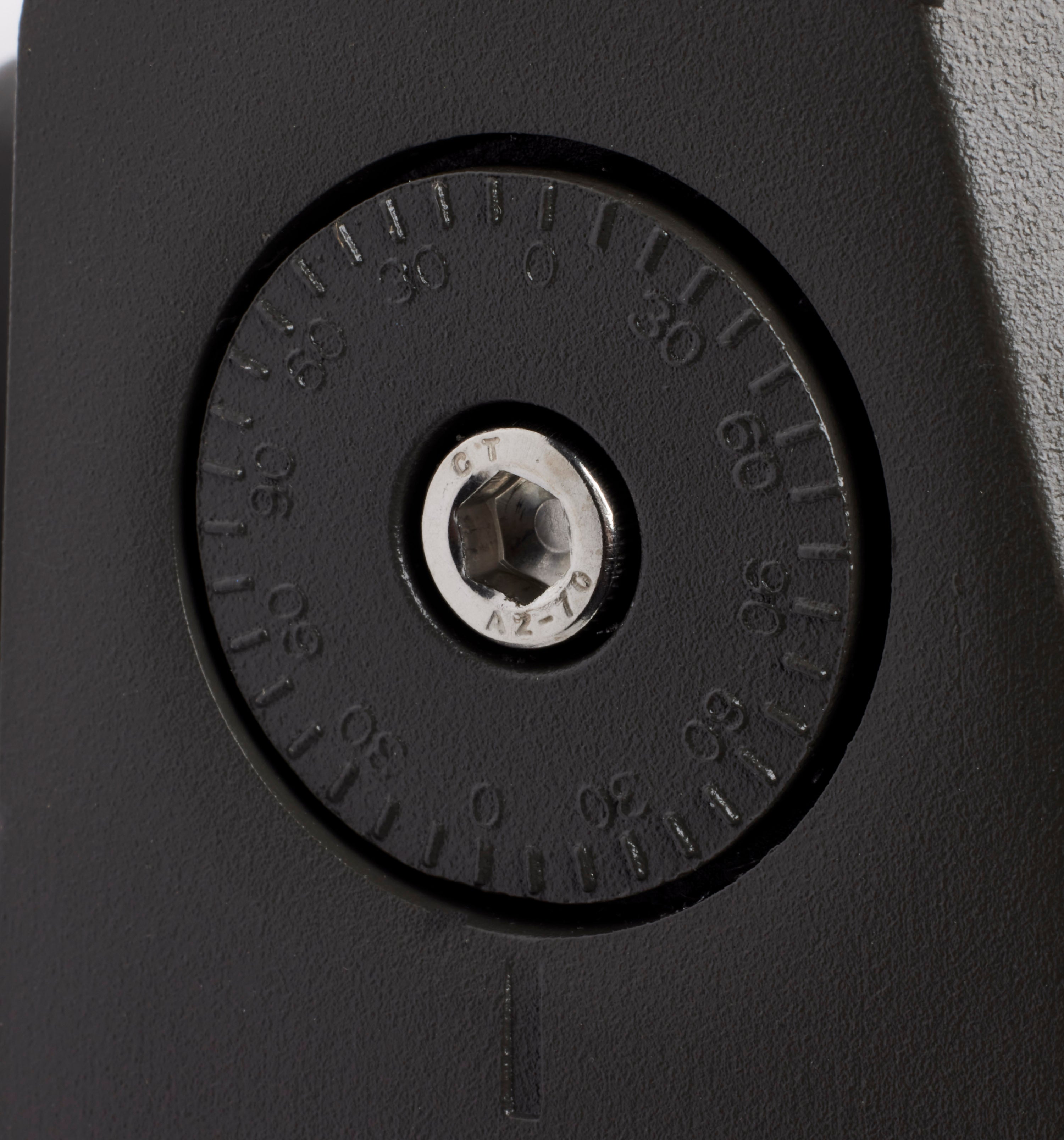

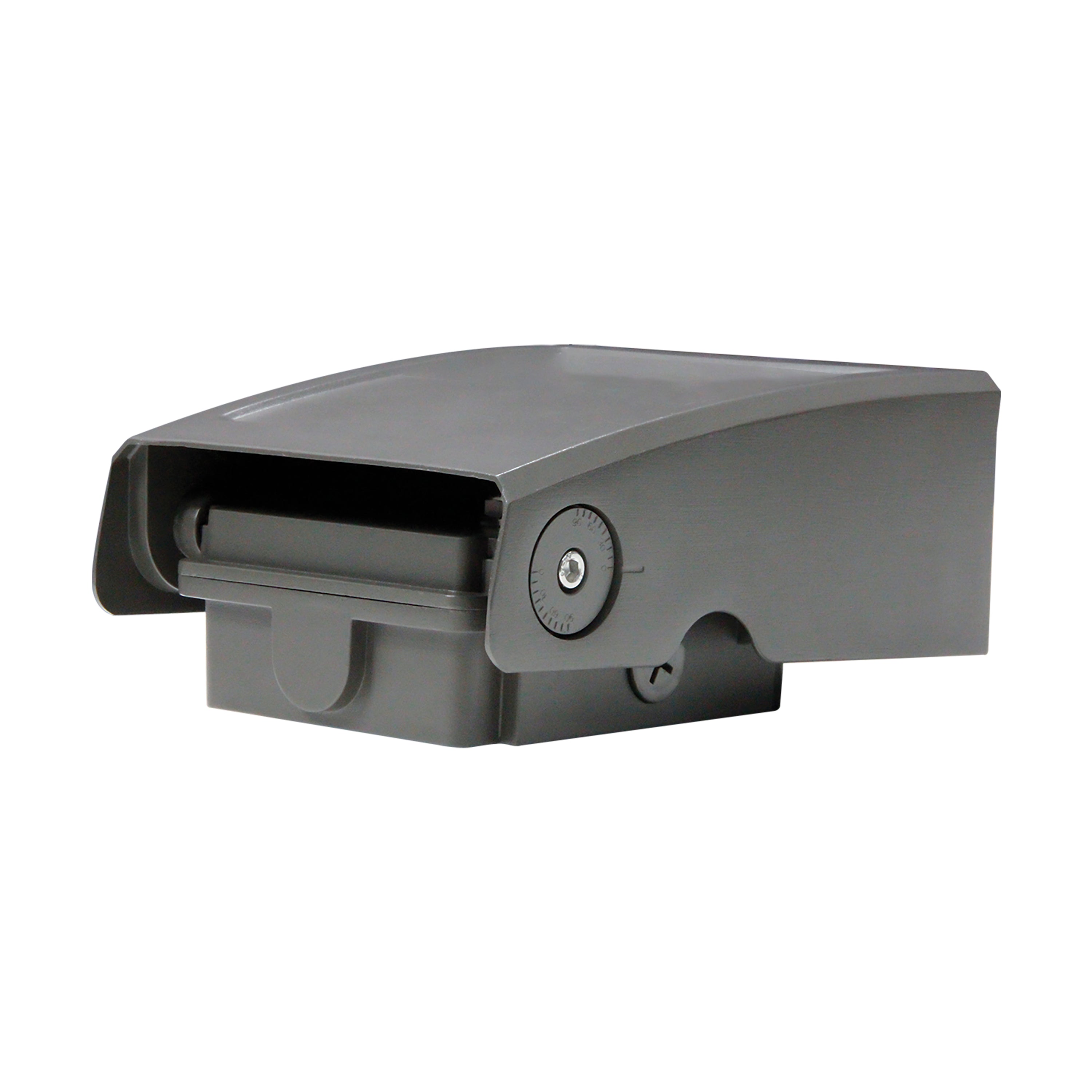

The SATCO 65-680 is an 80 Watt Adjustable LED Wall Pack designed for outdoor use. This fixture features CCT selectable color temperatures (3000K/4000K/5000K) and delivers 9600-10000 lumens. It is DLC Premium approved, ensuring energy efficiency, and includes built-in 4KV surge protection. The fixture head is adjustable 0-90 degrees from the wall, providing flexible illumination. It operates on 120V-277V and is 0-10V dimmable.

• CCT selectable (3000K/4000K/5000K) and 0-10V dimmable for versatile lighting control.
• Delivers 9600-10000 lumens with an 80W power consumption, offering efficient illumination.
• Features a die-cast aluminum body, IP65 rating, and built-in 4KV surge protection for durability and outdoor reliability.

Product Highlights

Adjustable LED wall pack with CCT selectable light, high lumen output, and robust outdoor design.

Product Information

Standard Information

• Brand: SATCO
• Manufacturer Part Number: 65-680

Technical Specifications

• Bulb Included: Integrated
• Material: Die-cast Aluminum
• Fixture Type: Wall Pack
• Style: Utility
• Surge Protection: 4KV
• Total Harmonic Distortion: 10.20%
• CCT Selectable: Yes
• Wattage Selectable: No
• Finish: Bronze
• Current: 0.667-0.289A
• Lens Material: Impact Resistant PC
• Power Factor: >0.9
• Location: Outdoor
• Light Technology: LED
• Incandescent Equivalent: 500W
• Color Temperature (CCT): 3000K/4000K/5000K
• Dimmable: Yes
• Rated Life (Hours): 50000
• Beam Angle (degrees): 65x95
• Color Temperature Range: Warm to Cool White
• CRI: 80+
• Dimming Type: 0-10V
• Operating Frequency: 50-60Hz
• Operating Temperature: -40F to +104F (-40C to +40C)
• HID Equivalent: 250W
• Lumens: 9600-10000
• Input Voltage: 120V-277V
• Wattage: 80W
• ADA Compliant: No
• BUG Rating: B3-U2-G1
• Dark Sky Rated: No
• FCC Compliant: Yes
• IP Rating: IP65
• Location Rating: Wet
• RoHS Compliant: Yes
• Safety Listing: cULus Certified
• DLC Approved: Yes
• Title 20 Compliant: Exempt
• Title 24 / JA8 Compliant: No
• Mounting Type: Wall
