Product Description

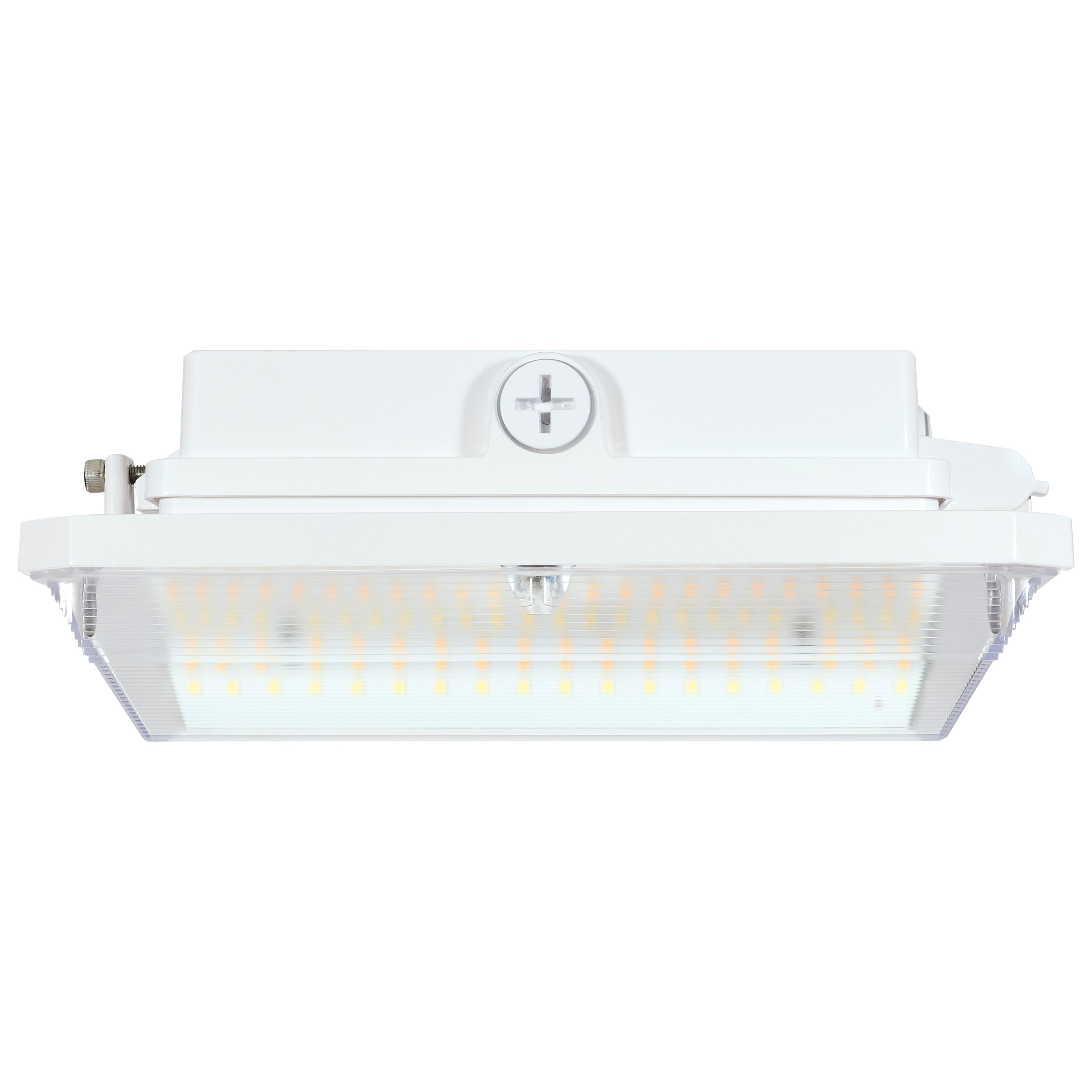

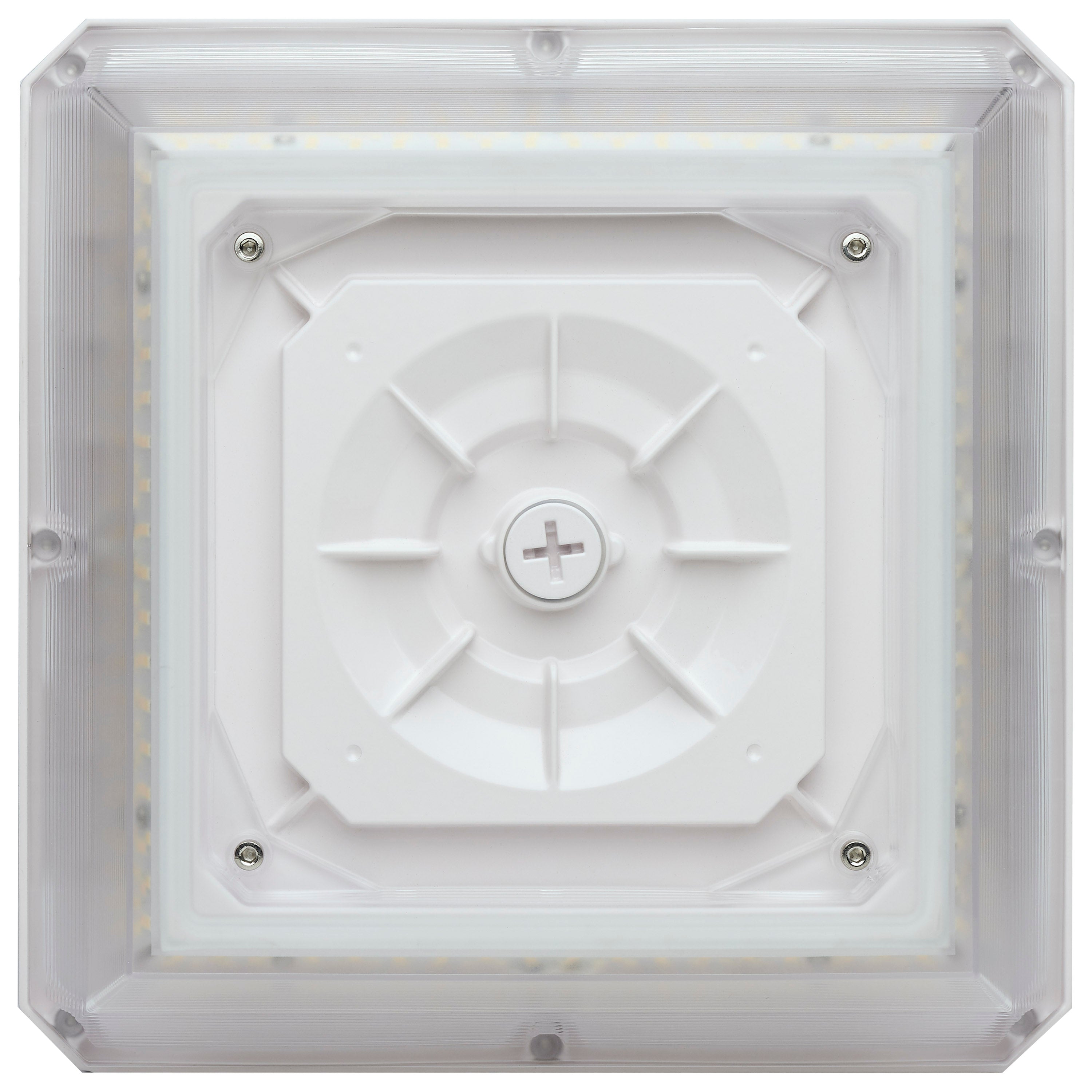

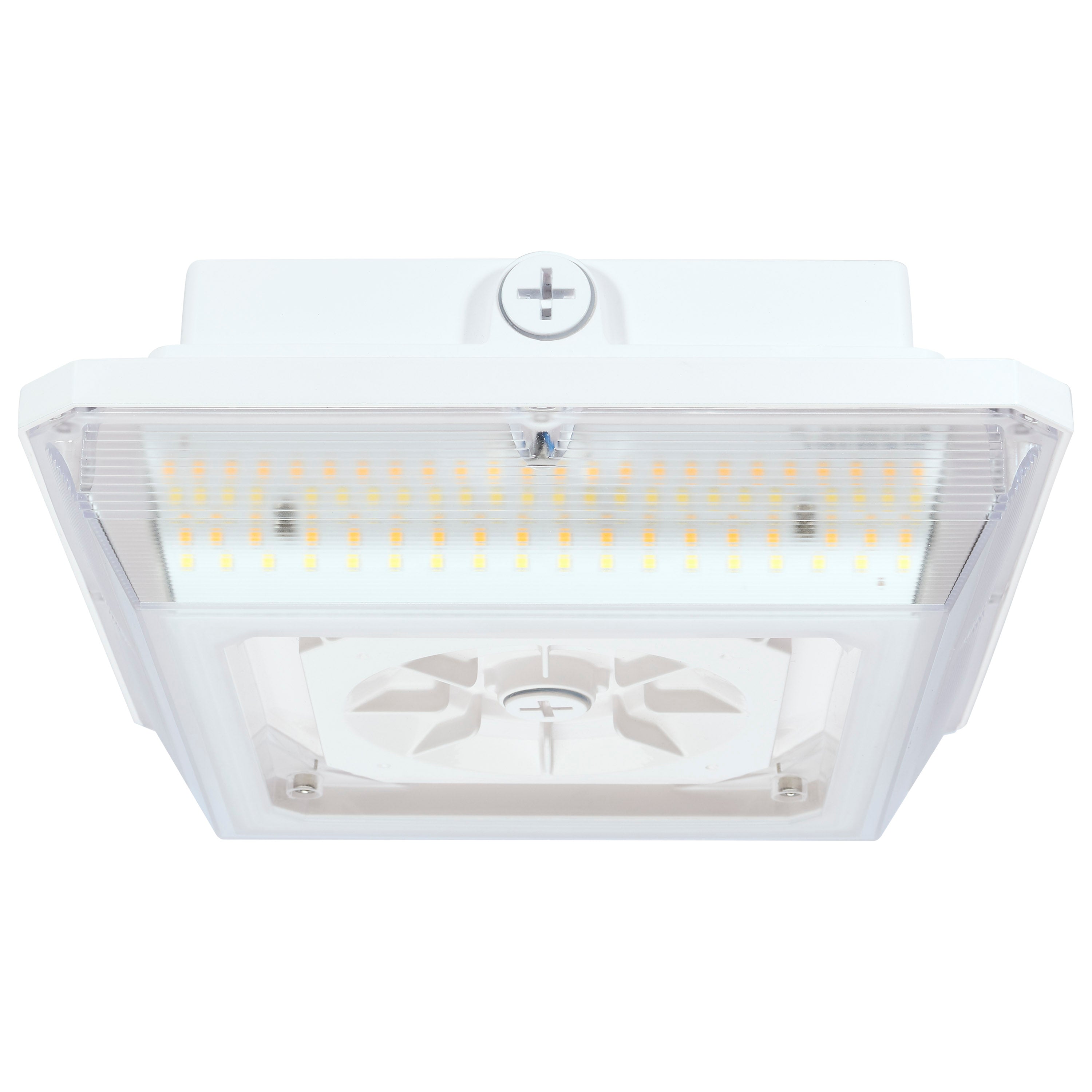

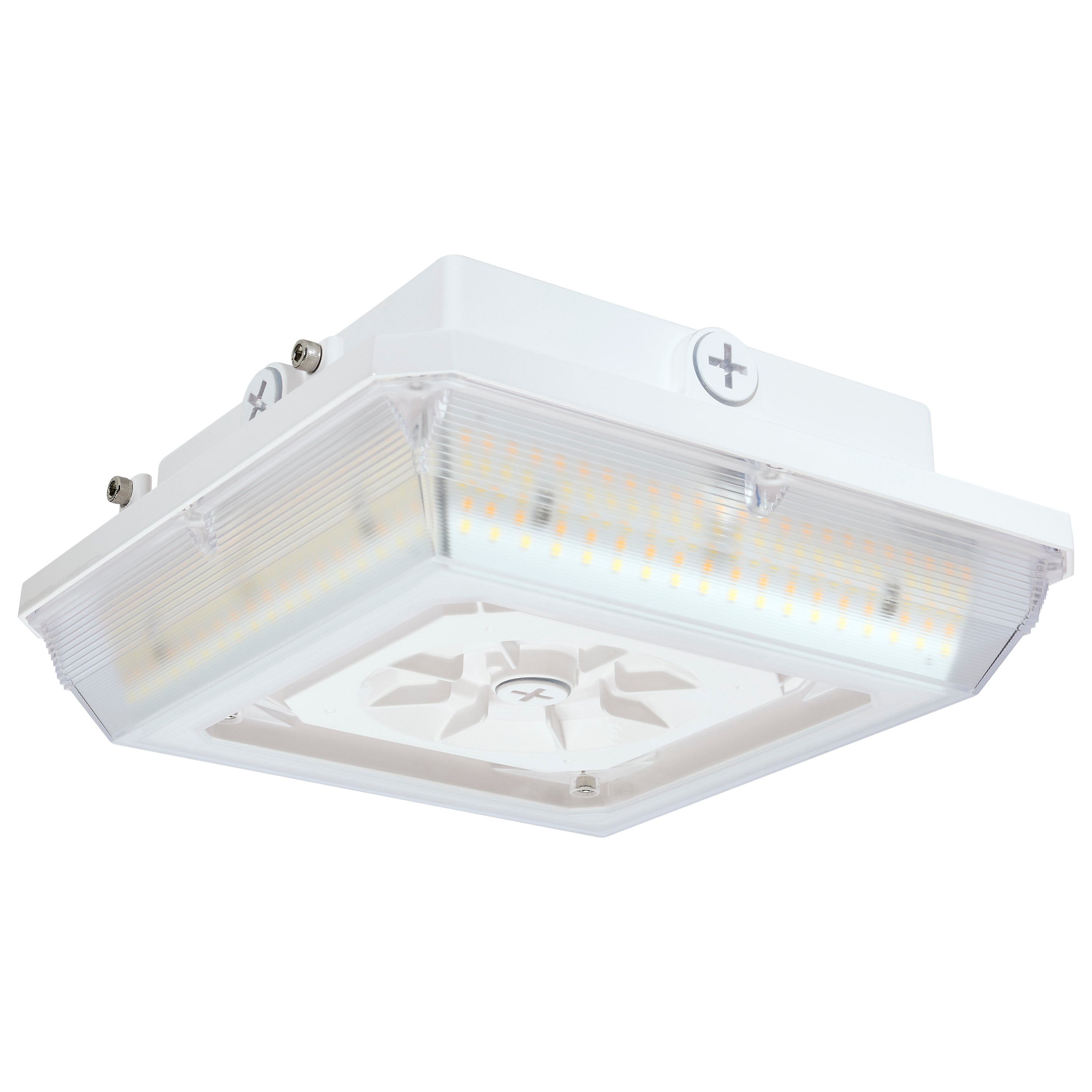

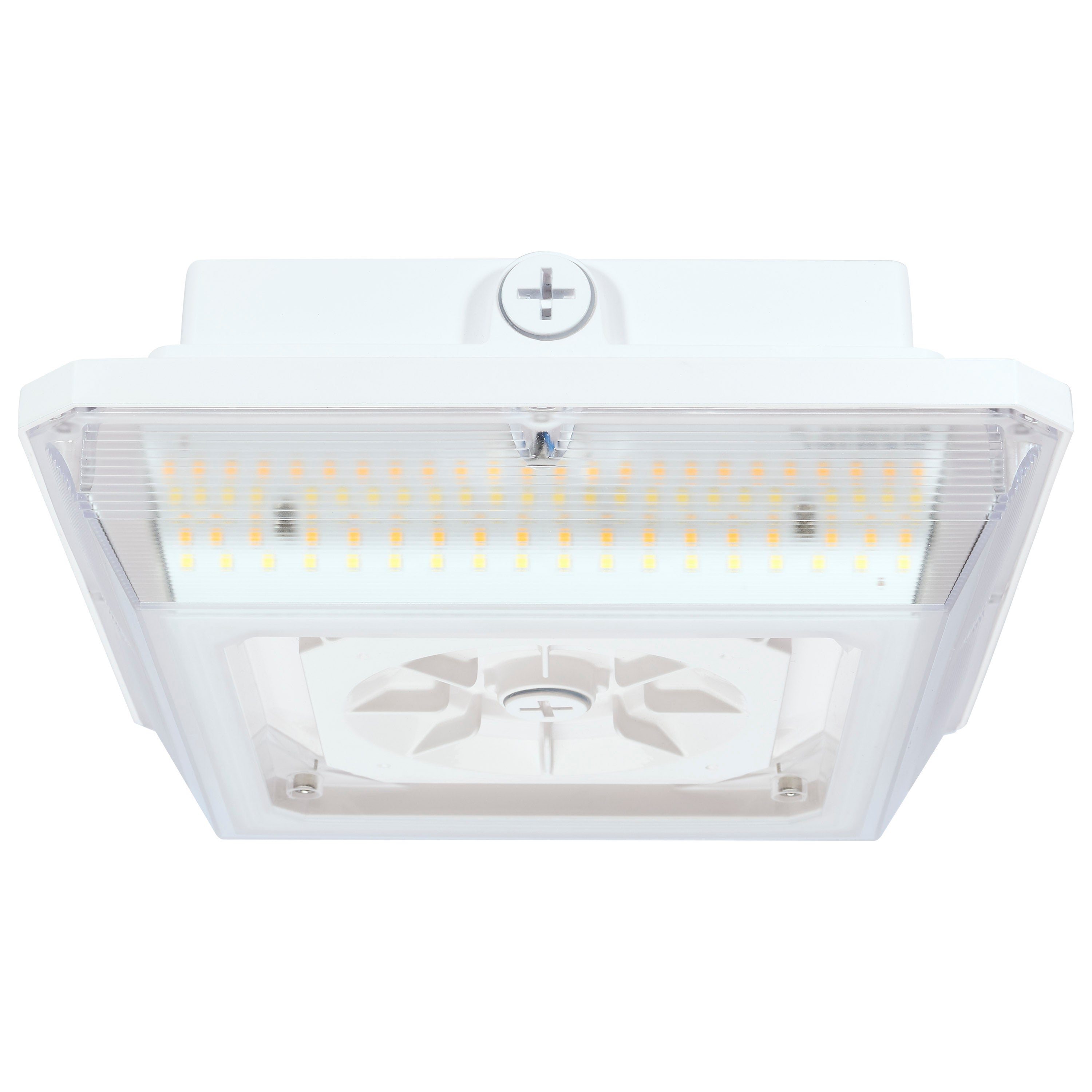

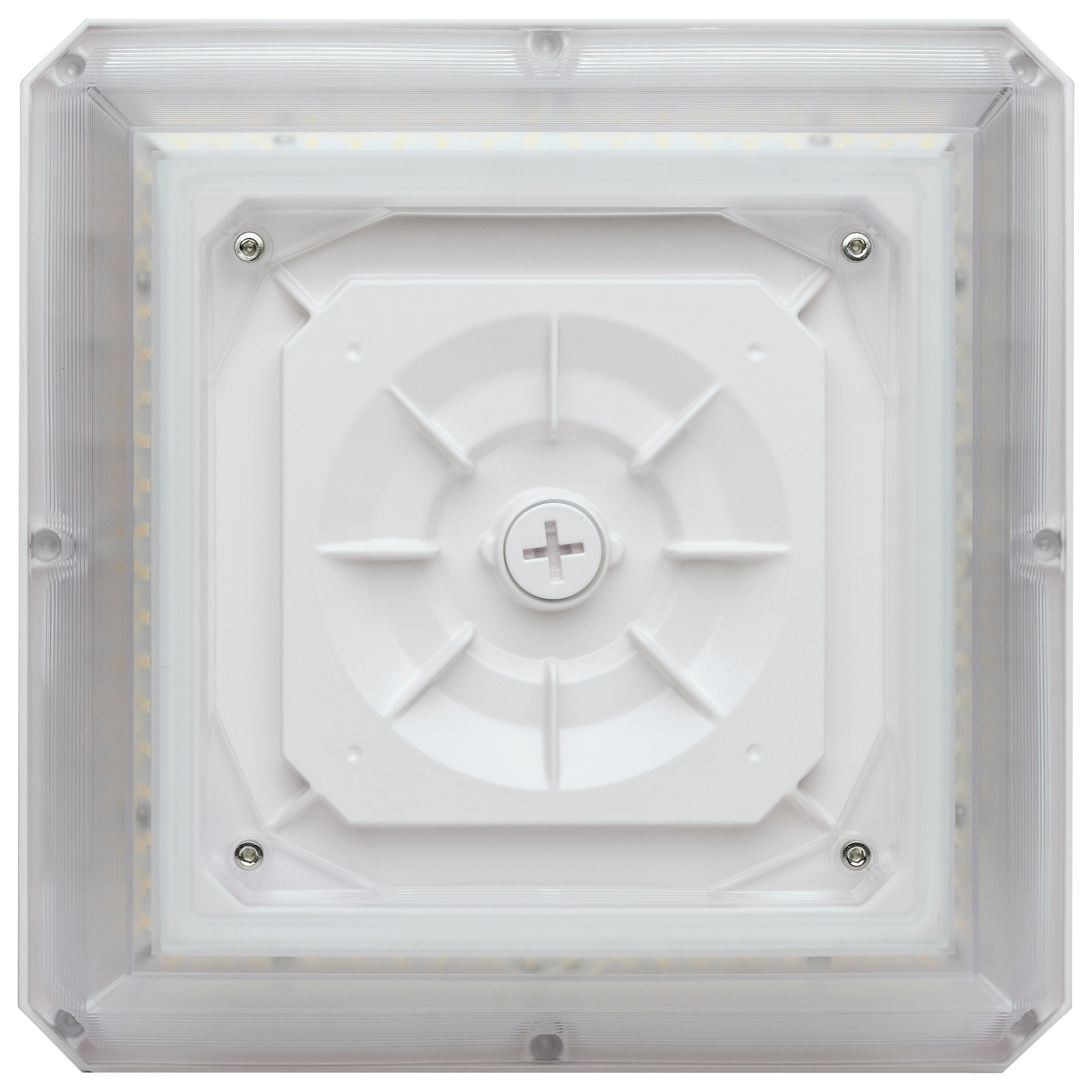

The SATCO 65-635 LED Wide Beam Angle Canopy Light is a square, integrated LED fixture designed for outdoor applications. This versatile canopy light features selectable CCT (3000K, 4000K, 5000K) and wattage (60W, 75W, 90W), providing adjustable illumination from 7920 to 12557 lumens. Operating on 120-277V, it includes 0-10V dimming and is constructed from durable die-cast aluminum. It is wet location rated with an IP65 rating.
- Features selectable CCT (3000K/4000K/5000K) and wattage (60W/75W/90W) for versatile lighting.
- Equipped with built-in 6KV surge protection and an integrated DC sensor port.
- Durable die-cast aluminum construction with an IP65 wet location rating for outdoor use.
Product Highlights
Square LED canopy light with wide beam angle, CCT/wattage selectable, 0-10V dimming.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: 65-635
Technical Specifications
-
Fixture Type: Canopy
-
Lamp Type: Integrated LED
-
Body Material: Die-cast Aluminum
-
Surge Protection: 6KV
-
Total Harmonic Distortion: <20%
-
CCT Selectable: Yes
-
Wattage Selectable: Yes
-
Finish: White
-
Recommended Mounting Height: 15 to 20 Feet
-
Input Current: 0.500-0.217/0.625-0.271/0.750-0.325A
-
Integrated Features: Integrated DC Sensor Port
-
Lens Material: Polycarbonate (PC)
-
Photo Cell: Optional Add-On
-
Power Factor: >0.9
-
Location Rating: Wet
-
Technology: LED
-
Incandescent Equivalent: 300W
-
Color Temperature: 3000K/4000K/5000K
-
Dimmable: Yes
-
Rated Life: 50000 Hours
-
Beam Angle: 190 Degrees
-
CRI: 80+
-
Dimming Type: 0-10V
-
Operating Frequency: 50/60Hz
-
Operating Temperature: -40F to +122F (-40C to +50C)
-
Lumens: 7920-12557
-
Input Voltage: 120-277V
-
Wattage: 60W/75W/90W
-
Fixture Shape: Square
-
Bug Rating: B3-U4-G5
-
IP Rating: IP65
-
Length: 9.57 inches
-
Width: 9.57 inches
-
Height: 3.62 inches
