Product Description

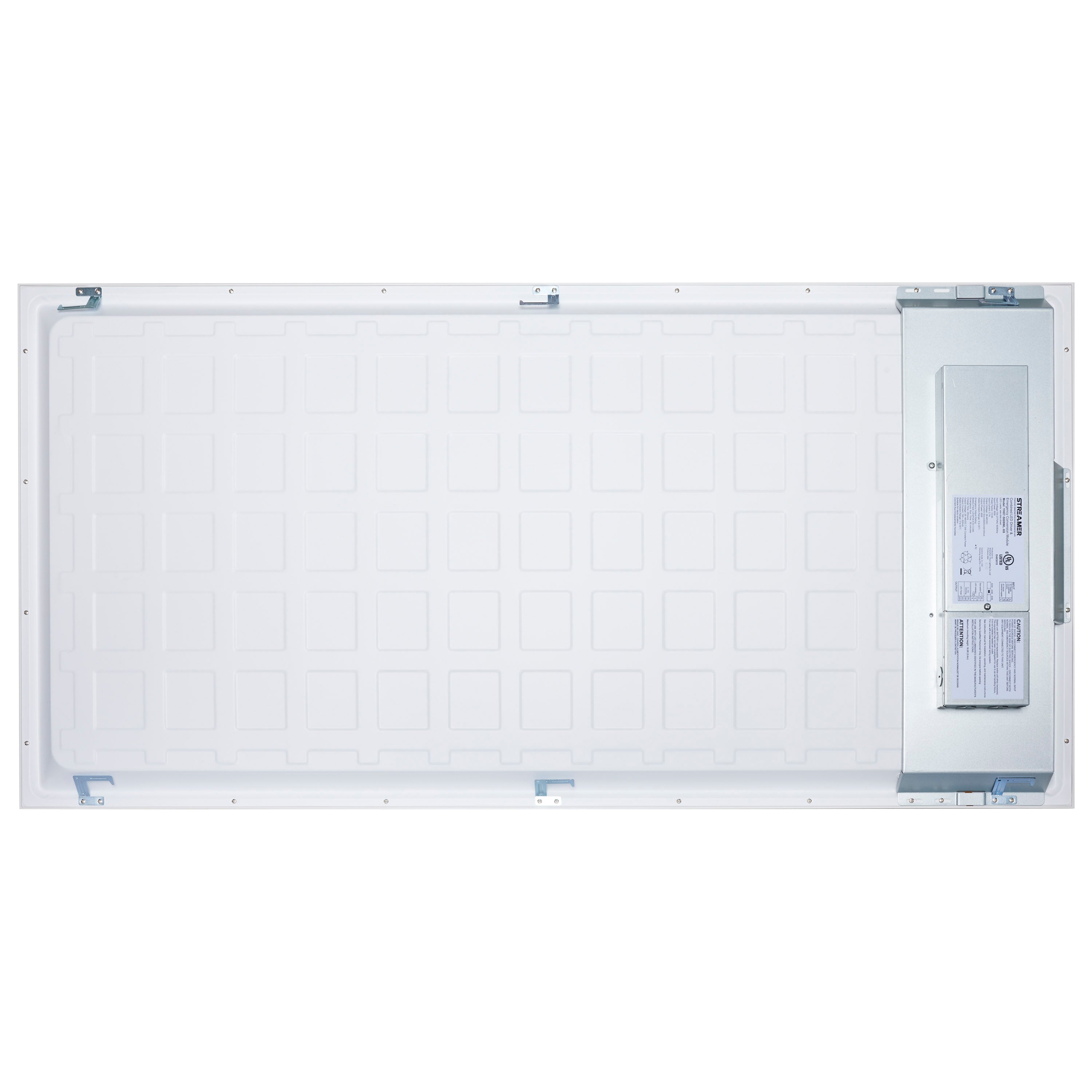

The SATCO 65-576R1 is a 2x4 ft. LED emergency backlit flat panel with selectable wattage (30W, 40W, 50W) and CCT options (3500K, 4000K, 5000K). This fixture features ColorQuick and PowerQuick Technology. Designed for indoor use, it delivers lumen outputs ranging from 3300L to 5750L, ensuring efficient and uniform illumination. It operates on 100V-277V.
- Flicker Free
- Wattage and CCT Selectable
- ColorQuick Technology
Product Highlights
This LED flat panel offers adjustable color temperatures and reduces energy consumption with selectable wattage options. Integrated emergency backup ensures illumination during power outages.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: 65-576R1
Technical Specifications
-
Bulb Included: Integrated
-
Dimmable Text: 0-10V Dimming Only
-
Material: Aluminum / Steel
-
Fixture Type: Backlit Flat Panel
-
Status: Active
-
Style: Utility
-
Surge Protection: Built-in surge protection - 2KV
-
Total Harmonic Distortion: 9.70%
-
Wire Color: White / Black / Green
-
Wire Length: 3.54
-
CCT Selectable: True
-
Wattage Selectable: True
-
Finish Family: White
-
Additional Info: Driver Specs - VDC38-48V; 630/810/1030mA
-
Amps: 0.300-0.108/0.400-0.144/0.500-0.181A
-
Has Camera: False
-
IOT Enabled: False
-
Lens Finish: Frost
-
Lens Material: Poly methyl methacrylate (PMMA)
-
Photo Cell: No Photocell
-
Power Factor: 0.9
-
SDS Class: LED_Fixture
-
Indoor Outdoor: Indoor
-
Product Technology: LED
-
Incandescent Equivalent: 150W-175W
-
CCT (Kelvin Temp): 3500K/4000K/5000K
-
Dimmable: Yes-Dimmable
-
Hours Rated: 50000
-
Beam Angle (degree): 120
-
Color Temp: Warm to Cool White
-
CRI: 80+
-
Operating Frequency: 50/60Hz
-
Operating Temp: -17C (+1.4F) to +45C (+113F)
-
Lumens: 3300L-5750L
-
Volts: 120V-277V
-
Watts: 30W/40W/50W
-
Lamp Base: Integrated
-
Finish: WHITE
-
ANSI Base: Integrated
-
Lamp Type: Integrated LED
-
Fixture Shape: Rectangle
-
Model No.: 65-576R1
-
Lighting Technology: Integrated LED
-
Voltage: 100V-277V
-
Lumen: 3300 lm to 5750 lm
-
Color Temperature: CCT Selectable
-
CCT Range: 3500K/4000K/5000K
-
Emergency Operation: 90 Minute
-
Life Hours (Avg): 50,000 Hrs.
-
Rating: Damp Rated
-
Operational Temperature: +1.4°F - +113°F
-
Length (in.): 47.72
-
Diameter (in.): 23.75
-
Height (in.): 3.06
-
IP Rating: IP20
-
Indoor or Outdoor Fixture: Indoor
-
Technology: LED
-
Rated Hours: 50000
-
Dimming Note: 0-10V Dimming Only
-
Photocell or Sensor: No Photocell
-
Safety Listing: cETLus - Listed
-
Location Rating: Damp
-
UL Application: LED Panel Luminaire
-
ENERGY STAR: No
-
DLC Approved: Yes
-
DLC ID: PLLY8Z4OITK8
-
NSF Approved: Yes
-
Air Tight Rated: No
-
IC Rated: Yes
-
California Status: Non-Compliant
-
Title 20 / 24 Status: Non-Compliant
-
California Prop 65: Lead
-
RoHS Compliant: Yes
-
FCC Compliant: Yes
-
Flicker Free: Yes
-
SDS Sheet: LED Fixture
-
Wattage Range: 40-45 W
-
Lumens Range: 4k-6k lm
-
Product Code: 65-576R1
-
Manufacturer Part Number: 65/576R1
-
Lumens / Brightness: 3300 lm - 5750 lm
-
Base: Integrated
-
Light Kelvin: 3500K/4000K/5000K
-
Color Of Light: CCT Selectable
-
Fixture/Body Finish: White
-
Glass/Cover Finish: Frost
-
Panel Size: 2x4
