Satco 65-1523 LED selectable high bay 240/200/150 wattage selectable 60/80/100 beam angle selectable

Product Description

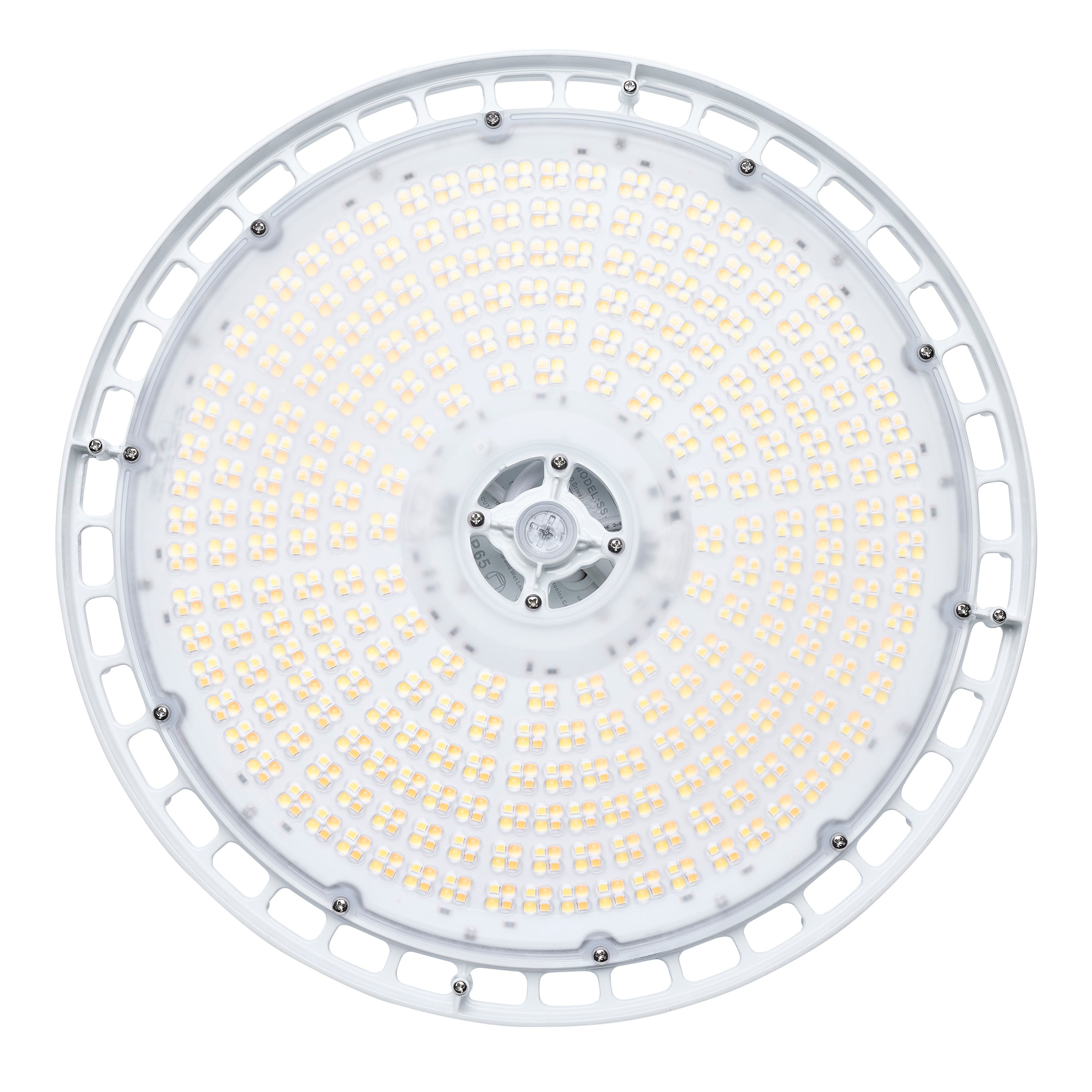

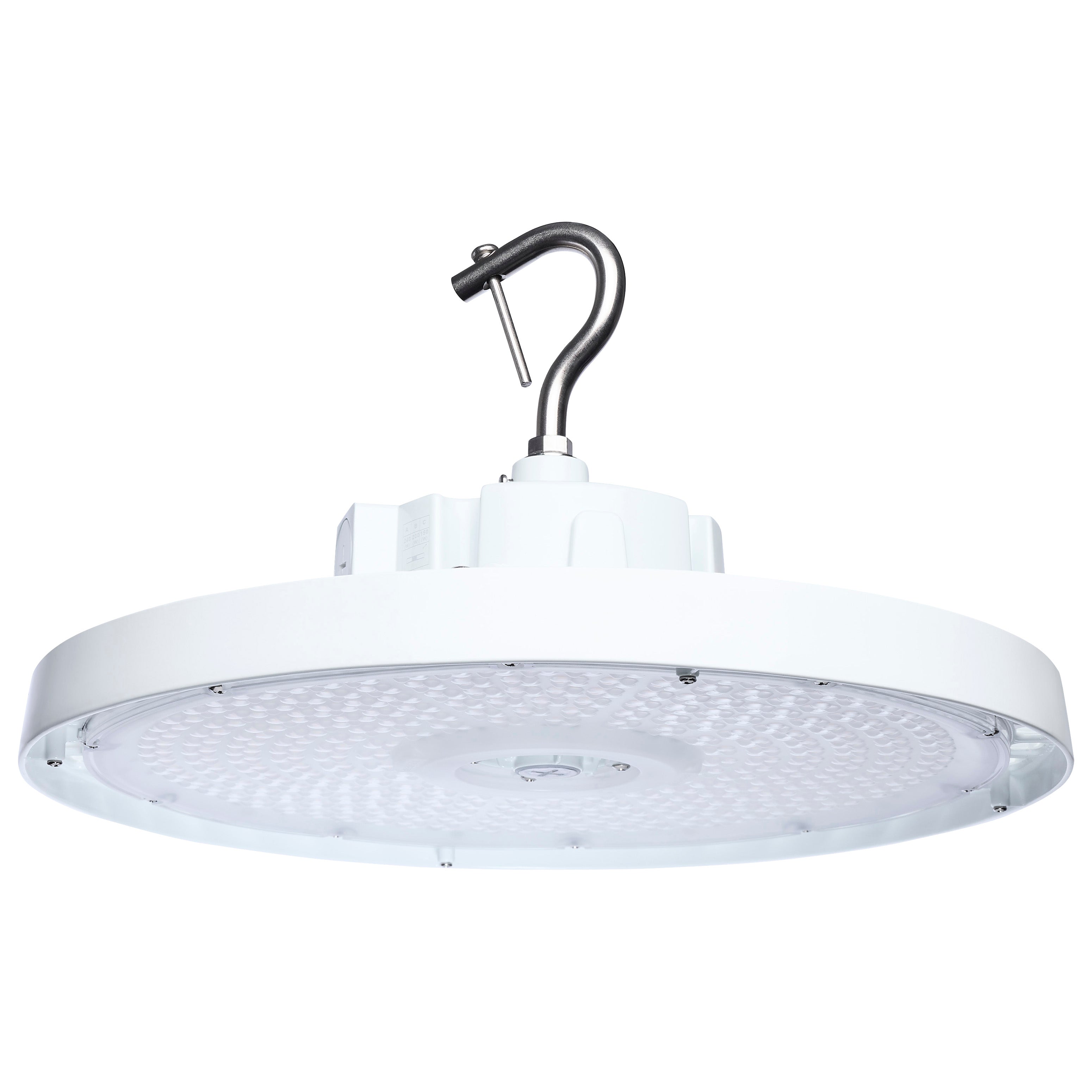

The SATCO 65-1523 is an LED selectable high bay fixture designed for industrial and commercial lighting applications. This versatile UFO high bay offers selectable wattage at 240W, 200W, or 150W, and selectable color temperatures of 3000K, 4000K, or 5000K. Operating on 120-347V, it features 0-10V dimming and a selectable beam angle of 60, 80, or 100 degrees. Constructed from die-cast aluminum, it is IP65 rated for wet locations and has a 50,000-hour lifespan.

• 240/200/150 Wattage Selectable
• 3K/4K/5K CCT Selectable
• 60/80/100 Beam Angle Selectable

Product Highlights

Features selectable wattage, CCT, and beam angle, 0-10V dimming, and is IP65 rated for wet locations.

Product Information

Standard Information

• Brand: SATCO
• Manufacturer Part Number: 65-1523
• Country of Origin: Vietnam

Technical Specifications

• Light Source: Integrated
• Housing Material: Die-cast Aluminum
• Fixture Type: UFO Hi-Bay
• Surge Protection: Built-in 6KV
• Total Harmonic Distortion: <20%
• Wire Color: White
• CCT Selectable: Yes
• Wattage Selectable: Yes
• Finish: White
• Input Current: 2.000-0.690/1.670-0.580/1.250-0.430A
• Integrated Features: Integrated Sensor Port
• Lens Finish: Clear
• Lens Material: Polycarbonate (PC)
• Lensed: Yes
• Operating Humidity: 20% to 95% R.H.
• Power Factor: >0.9
• Technology: LED
• Incandescent Equivalent: 800W-1500W
• Color Temperature: 3000K/4000K/5000K
• Dimmable: Yes
• Rated Life: 50000 hours
• Beam Angle: 60/80/100 degrees
• CRI: 80+
• Dimming Type: 0-10V Dimming
• Operating Frequency: 50/60Hz
• Operating Temperature: -40F to +122F (-40C to +50C)
• HID Equivalent: 300W-450W
• Lumen Output: 22822L-37938L
• Input Voltage: 120V-347V
• Wattage: 240W/200W/150W
• Lamp Base: Integrated
• ANSI Base: Integrated
• Lamp Type: Integrated LED
• Fixture Shape: Round
• DLC ID: S-7910NQ
• FCC Compliant: Yes
• IP Rating: IP65
• Location Rating: Wet
• NSF Approved: No
• RoHS Compliant: Yes
• Safety Listing: cULus - Listed
• DLC Approved: Yes
• Title 20 Compliance: Exempt
• T24/JA8 Compliant: No
• Cord Length: 72 inches
• DLC Classification: Premium
• DLC Primary Use: High-Bay Luminaires for Commercial and Industrial Buildings
• Emergency Battery: No
• Mounting Type: Ceiling
• Replaceable Light Source: No
• Style: Utility
