Satco 65-1511 2 light 12 inch wide LED commercial high bay 120/135/160 watt

Product Description

The SATCO 65-1511 LED Beam Selectable Linear Highbay is designed for higher-output commercial and industrial applications. This fixture offers field-selectable wattage options of 120W, 135W, or 160W, delivering 17600 to 24200 lumens with an efficacy up to 151 LPW. It also features selectable CCTs of 3000K, 4000K, and 5000K, and selectable beam distributions for precise light control. Constructed from die-cast aluminum with a polycarbonate lens, it supports universal 120-347V operation.

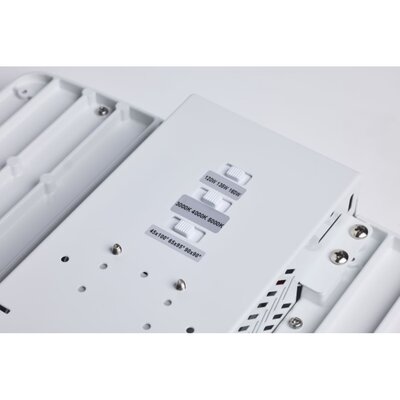

• Field-selectable wattage options (120W, 135W, or 160W) and CCTs (3000K, 4000K, and 5000K).
• Selectable beam distributions (45x100, 65x95, or 90x90) for precise light control.
• Durable die-cast aluminum housing with polycarbonate lens, IP20 and IK09 rated for damp locations.

Product Highlights

This LED linear high bay is suitable for commercial and industrial use, offering versatile lighting control and robust construction.

Product Information

Standard Information

• Brand: SATCO
• Manufacturer Part Number: 65-1511
• Country of Origin: Vietnam

Technical Specifications

• Number of Light Sources: 2
• Bulbs Included: Yes
• Wattage: 120, 135, 160 W
• Color Temperature: 3000K, 4000K, 5000K
• CRI: 80
• Lumens: 17600 - 24200
• Rated Life: 50000 hours
• Input Voltage: 120-347V
• IP Rating: IP20
• IK Rating: IK09
• Technology: LED
• Dimmable: Yes
• Accessories: 65-1514, 65-1517, 65-1014, 65-1015, 86-238, 86-239, 86-237
• Base Type: Integrated
• Beam Spread: 45x100, 65x95, 90x90
• CCT Selectable: Yes
• Chain Length: 41 inches
• Dimming Function: 0-10V Dimming
• Finish: White
• Driver Included: Yes
• Emergency Battery: No
• Height: 1.89 inches
• Max Height: 42.89 inches
• HID Equivalent: 225W-300W
• Location Use: Indoor
• Lamp Shape: Integrated LED
• Length: 15 inches
• Lens Finish: Clear
• Lens Material: Polycarbonate (PC)
• Location Rating: Damp
• Material: Die-Cast Aluminum
• Mounting Type: Ceiling
• Operating Frequency: 50/60 Hz
• Operating Temperature: -40C (-40F) to +50C (+122F)
• Power Factor: >0.9
• Product Type: Linear High Bay
• Replaceable Light Source: No
• Sensor Type: Daylight
• Operational Humidity: 20% to 90% R.H.
• Style: Utility
• Surge Protection: Built-in 6KV
• THD: <20%
• Wattage Selectable: Yes
• Width: 11.2 inches
