Product Description

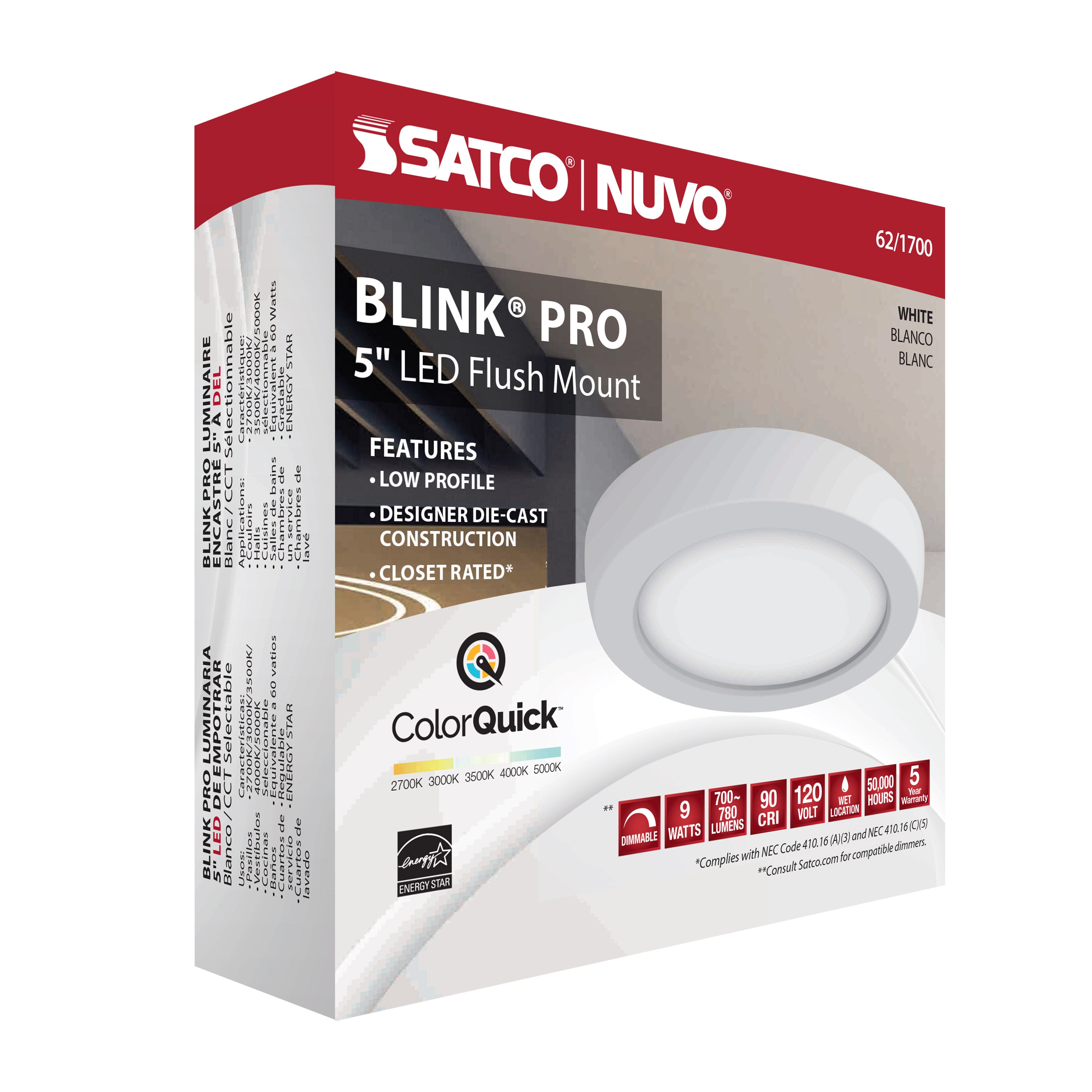

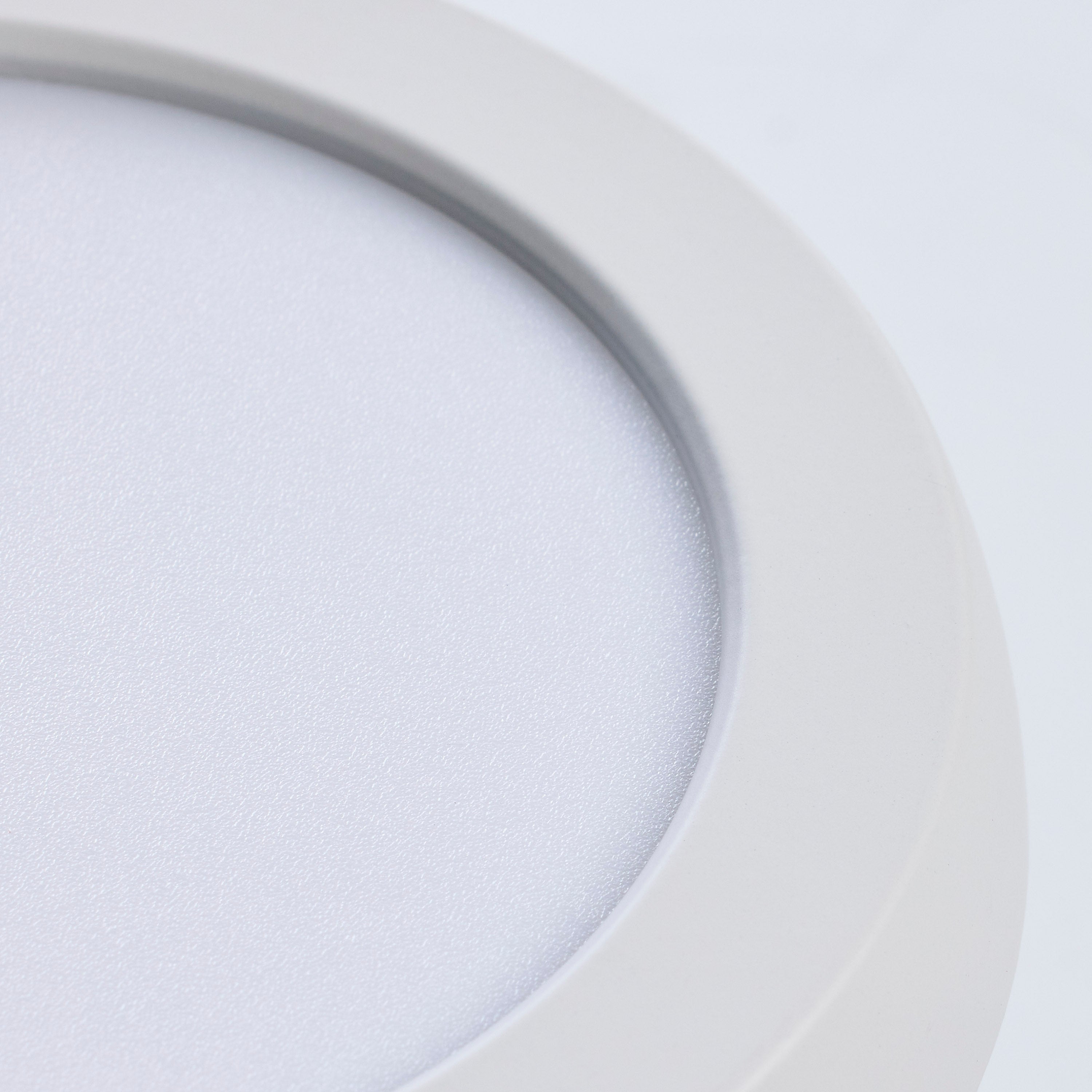

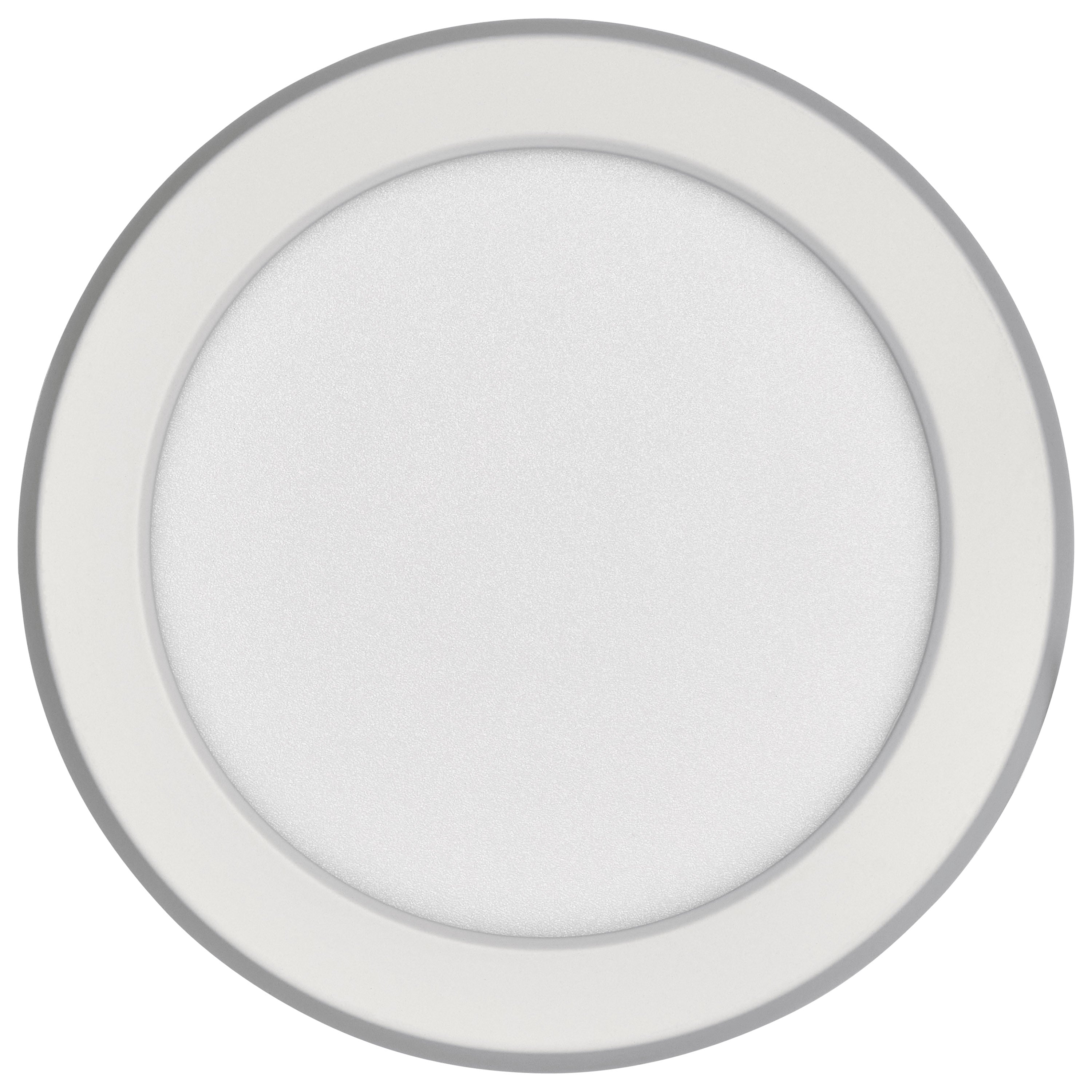

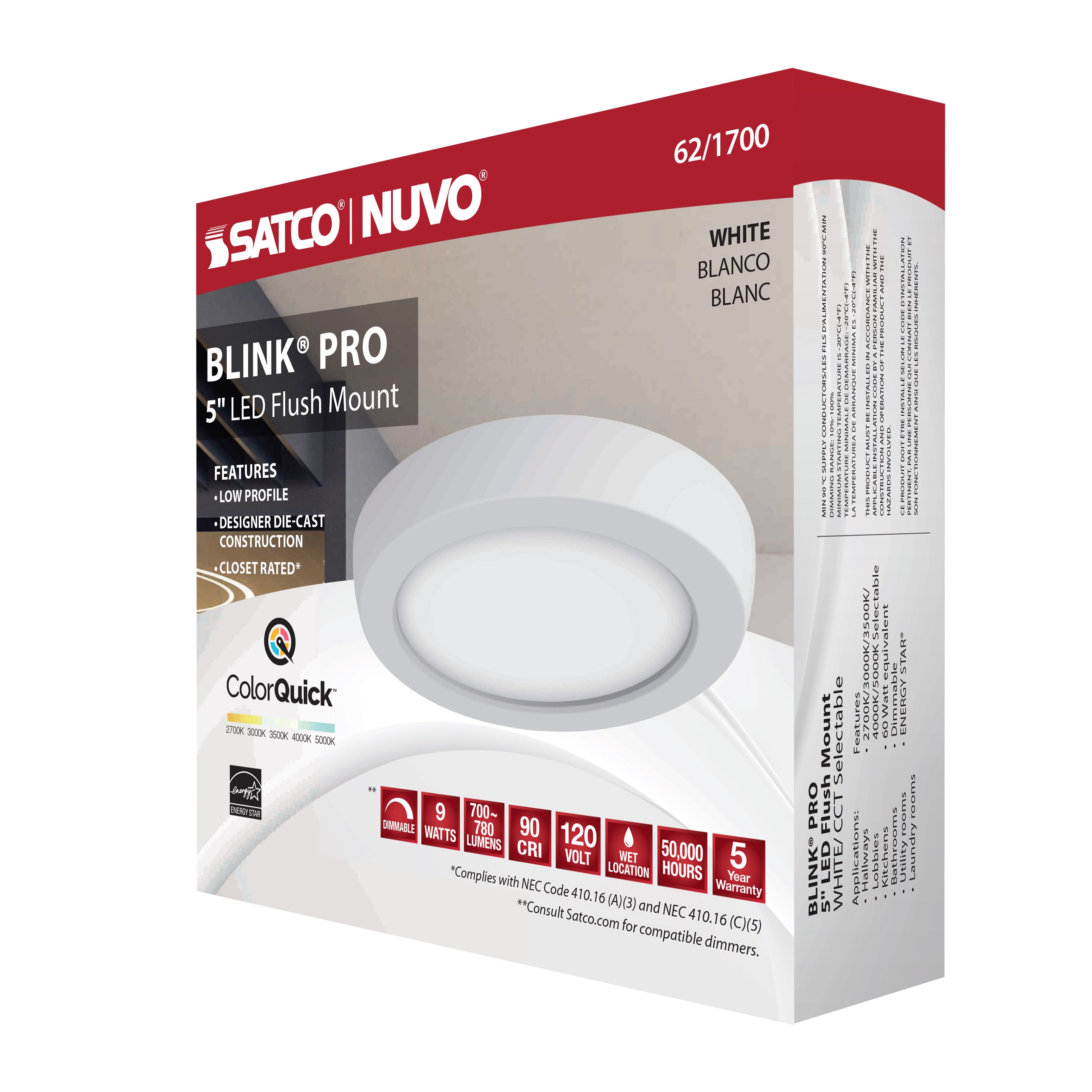

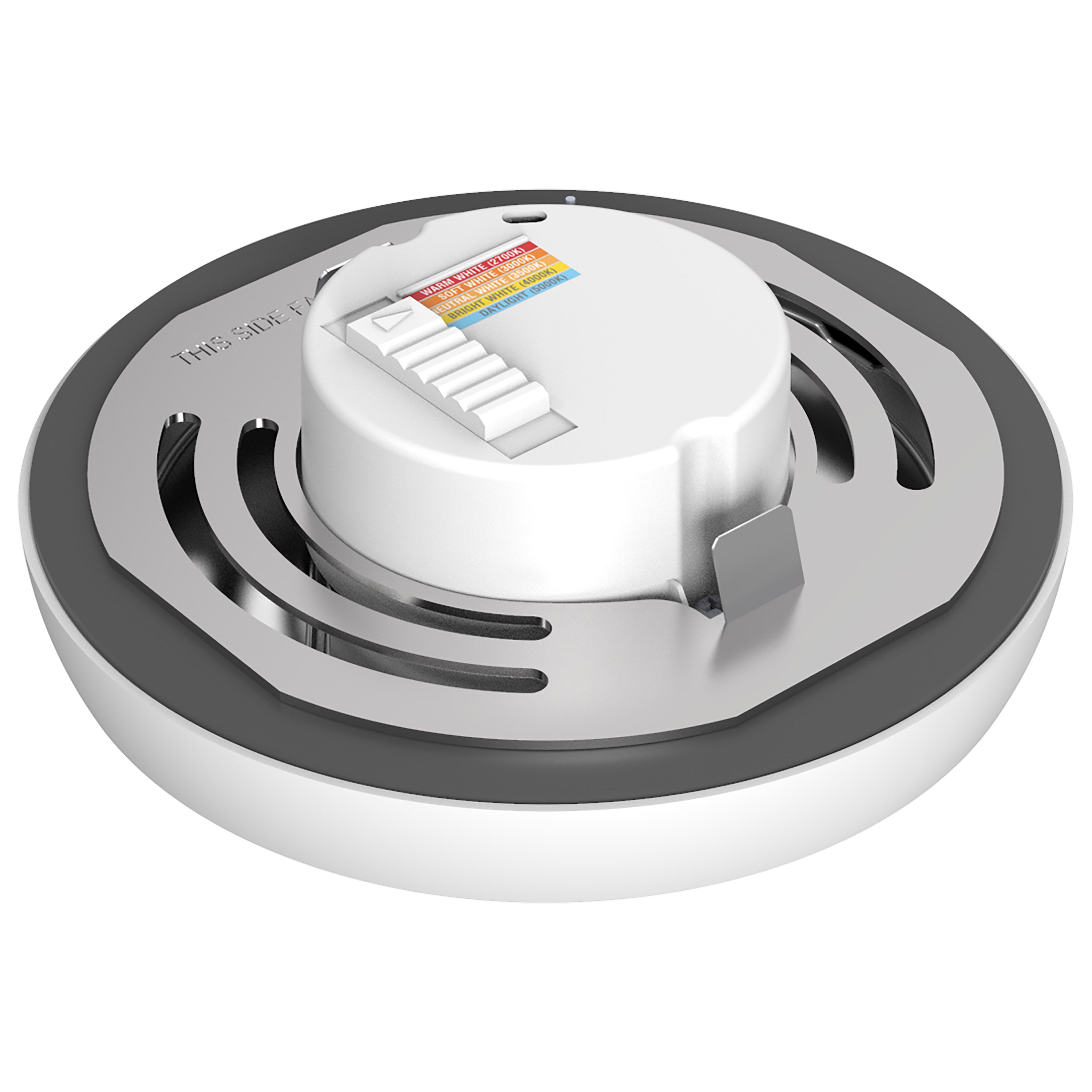

The Satco 62-1700 Blink Pro LED surface mount fixture provides long-lasting, energy-efficient LED illumination for residential or commercial ceiling lighting. This sleek, low-profile 9W, 5-inch round fixture features die-cast construction and is CCT selectable, with five preset options. It is ideal for installations where space is at a premium.
- CCT Selectable with five preset options from warm to natural light
- Features a robust driver for enhanced surge protection and flicker-free operation
- Wet location certified for applications with a closed ceiling
Product Highlights
The Satco Blink Pro series is perfect for corridors, closets, kitchens, bathrooms, and bedrooms. It features smooth dimming and provides years of trouble-free operation.
Product Information
Standard Information
-
Brand: Satco
-
Manufacturer Part Number: 62-1700
Technical Specifications
-
Bulb Included: Integrated
-
Diameter: 5.0"
-
Dimmable Text: 120V only
-
Material: Die-cast Aluminum
-
Fixture Type: Flush Mount
-
Product Notes: Overall height of fixture and driver: 1.59"
-
Style: Utility
-
Surge Protection: 2.5KV
-
Total Harmonic Distortion: <20%
-
CCT Selectable: True
-
Wattage Selectable: False
-
Finish Family: White
-
Additional Info: UGR - 28.89; SDCM - 464; Hi pot - DC-1550V; Edge-lit - Yes
-
Amps: 0.075A
-
Has Camera: False
-
IOT Enabled: False
-
Lens Material: Poly methyl methacrylate (PMMA)
-
Power Factor: 0.9
-
Sloped Ceiling Compatible: Yes
-
Indoor Outdoor: Indoor
-
Product Technology: LED
-
Incandescent Equivalent: 60W
-
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
-
Dimmable: Yes-Dimmable
-
Hours Rated: 50000
-
Beam Angle (degree): 100
-
Color Temp: Warm White to Natural Light
-
CRI: 90+
-
Operating Frequency: 60Hz
-
Operating Temperature: -20C (-4F) to +40C (+104F)
-
Lumens: 700L-780L
-
Input Voltage: 120V
-
Watts: 9W
-
Lamp Base: Integrated
-
Finish: WHITE
-
ANSI Base: Integrated
-
Lamp Type: Integrated LED
-
Fixture Shape: Round
-
Installation Notes: Surface mount; Compatible with 3in. & 4in. J-box and pancake J-box with additional accessory
-
Product Category: Close-to-Ceiling - Surface Mount Panel
-
Manufacturer Part Number: 62/1700
-
UPC: 045923624940
-
Height: 0.67"
-
Rated Life: 50,000 hours
-
Location Rating: Wet
-
Edge-Lit: Yes
-
UGR: 28.89
-
Safety Listing: cETLus
-
Energy Star: Yes (ESID-2402966)
-
California Title 24 JA8: Listed (2016–2022)
-
California Prop 65: Lead
-
RoHS Compliant: Yes
-
FCC Compliant: Yes
-
NEC Compliance: Clothes Closet Certified (410.16 (A)(3), 410.16 (C)(5))
-
Flicker Free: No
