Satco 62-1137 1 lt LED small up or down sconce 10w 40 degree beam angle

Product Description

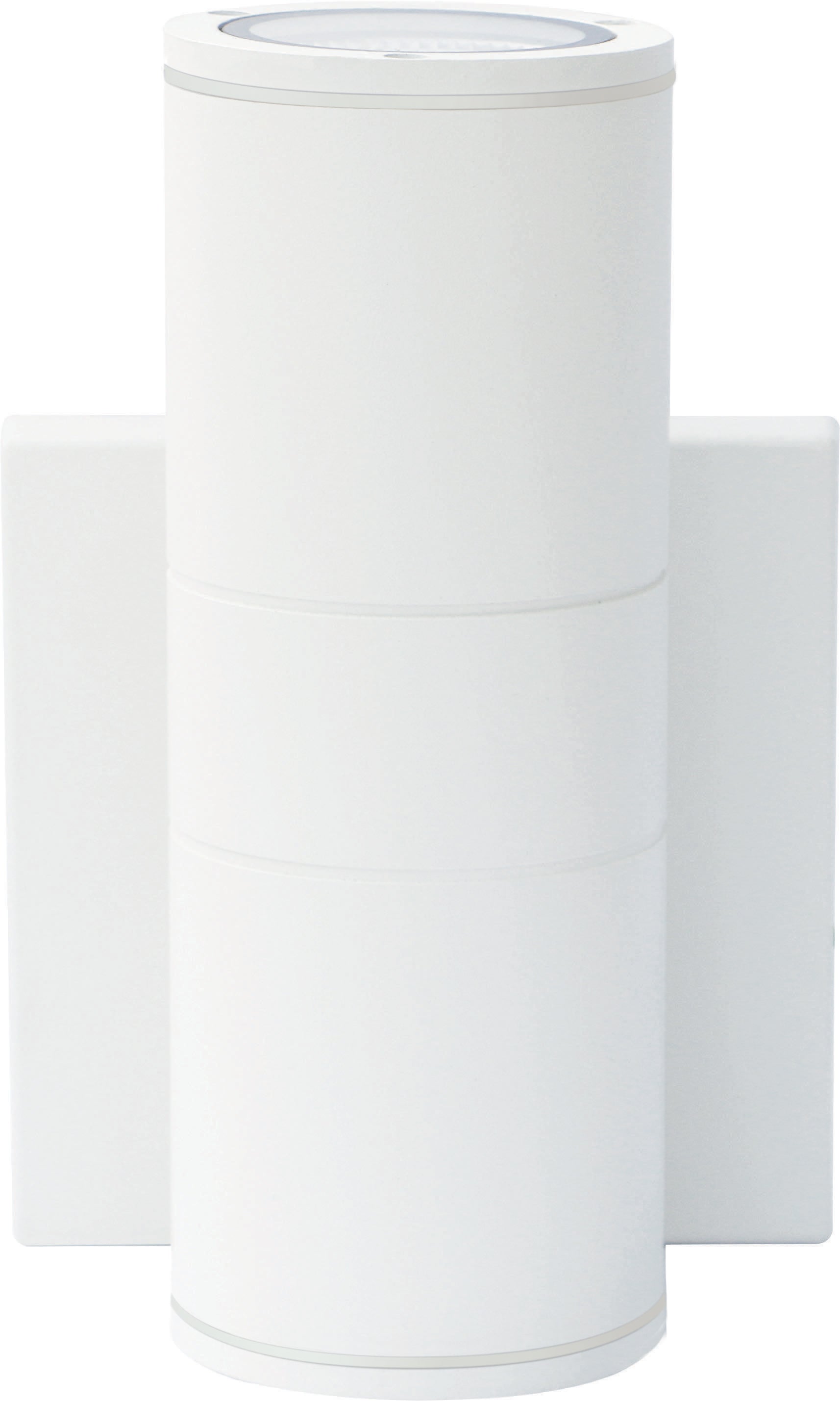

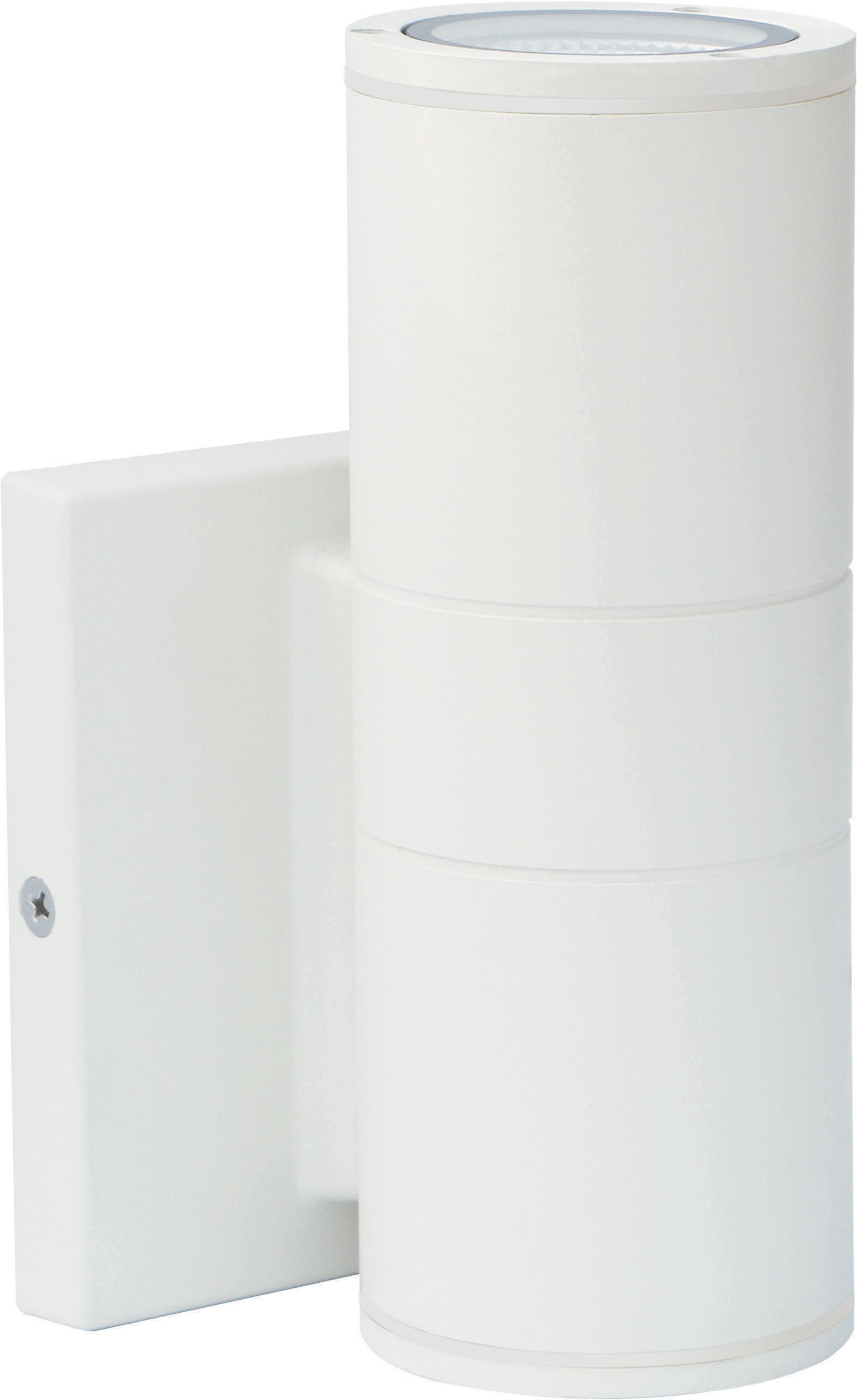

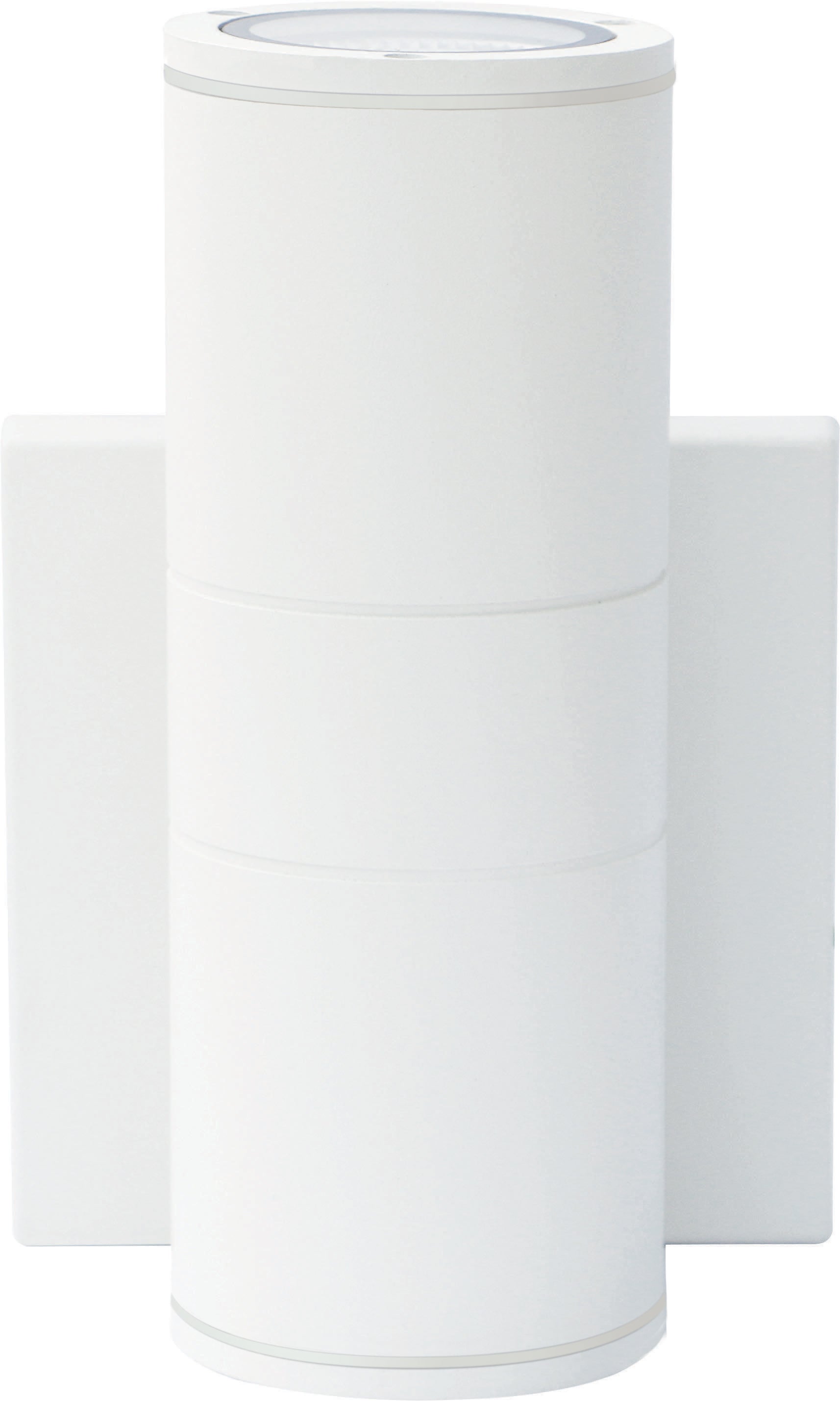

The SATCO 62-1137 is a 10W LED small up or down sconce fixture designed for outdoor use. This integrated LED fixture operates on 120V/277V, providing 900 lumens of 3000K warm white light with a 40-degree beam angle. Constructed from die-cast aluminum, it features a non-dimmable design and is rated for wet locations, ensuring durability and performance in various outdoor environments.

• Integrated LED lighting for efficient illumination.
• Universal up/down installation for flexible lighting direction.
• IP65 rated and suitable for wet locations, ensuring outdoor durability.

Product Highlights

This fixture is ADA, FCC, and ROHS compliant, and cULus certified, ensuring safety and quality standards.

Product Information

Standard Information

• Brand: SATCO
• Manufacturer Part Number: 62-1137
• Country of Origin: China

Technical Specifications

• Mounting Height: 4.53
• Mounting Width: 4.53
• Bulb Included: Integrated
• Diameter: 2.56
• Extends (in): 3.43
• Material: Die-cast Aluminum
• Fixture Type: Sconce
• Style: Utility
• Up Down Installation: Universal
• CCT Selectable: No
• Wattage Selectable: No
• Amps: 0.083/0.036A
• Photo Cell: No Photocell
• Power Factor: 0.99
• Indoor Outdoor: Outdoor
• Product Technology: LED
• Incandescent Equivalent: 60W
• Color Temperature: 3000K
• Dimmable: Non-Dimmable
• Rated Life Hours: 50000
• Beam Angle (degree): 40
• Light Color: Warm White
• Color Rendering Index (CRI): 90+
• Operating Frequency: 50/60Hz
• Operating Temp: -22F to +122F (-30C to +50C)
• Lumens: 900L
• Input Voltage: 120V/277V
• Wattage: 10W
• Lamp Base Type: Integrated
• ANSI Base Type: Integrated
• Lamp Type: Integrated LED
• Installation: Mounts Up and Down
• ADA Compliant: Yes
• Bug Rating: B0-U3-G2
• CA Prop 65: Lead
• Dark Sky Rated: No
• FCC Compliant: Yes
• IP Rating: IP65
• Location Rating: Wet
• ROHS Compliant: Yes
• Safety Listing: cULus - Certified
• California Ban: Lawful for sale
• UL Application: Outdoor
• DLC Approved: No
• Title 20: Exempt
• T24/JA8 Compliant: No
• Power Source: Hardwired
• Number of Lights: 1
• Mounting: Wall Mounted
