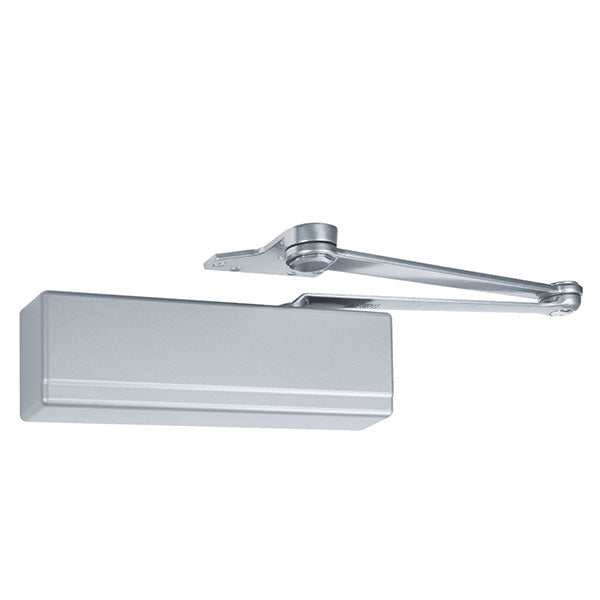

SARGENT TB-351P10-BSP 351-P10 Door Closer with Heavy Duty Parallel Arm

Product Description

The SARGENT TB-351P10-BSP 351 Series Powerglide Door Closer is designed for heavy use in busy environments such as schools, healthcare facilities, and commercial buildings. It features strong construction for durability and longevity. Its front-facing valves simplify installation and maintenance for both interior and exterior doors. The product includes thru bolts, wood, and machine screws for easy setup.

• Certified ANSI/BHMA A156.4 Grade 1
• Heavy duty one piece die cast aluminum silicon alloy body
• All weather fluid for operation in extreme temperatures

Product Highlights

This door closer is ideal for high-traffic areas, ensuring reliable operation under various conditions.

Product Information

Standard Information

• Brand: Sargent
• Finishes: EP/691 Sprayed Satin Bronze, EAB/696 Sprayed Brass Enamel, EN/689 Sprayed Aluminum Enamel, EB/690 Sprayed Bronze Enamel, BSP Black Suede Powder Coat

Technical Specifications

• Usage: Heavy Duty
• Templating (Hole Pattern): 2-1/2 inches x 9 inches
• Mounting Options: Parallel Arm (Push Side)
• ANSI/BHMA Standard: ANSI/BHMA Grade 1 156.4
• Fire Rating: UL and cUL Listed – up to 3 Hours
• ADA Compliance: Meets A117.1 Accessibility Code
• Fasteners: Packed w/Thru Bolts, Wood & Machine Screws
• Body Construction: Cast Aluminum
• Fluid: All Weather Fluid
• Cover: Full Cover
• Spring Size: Adjustable Spring Size 1-6
• Handing: Non-Handed
• Warranty: 25 Year Limited
