SARGENT & GREENLEAF D003-003 Lock Dial Front Reading Small Knob

Product Description

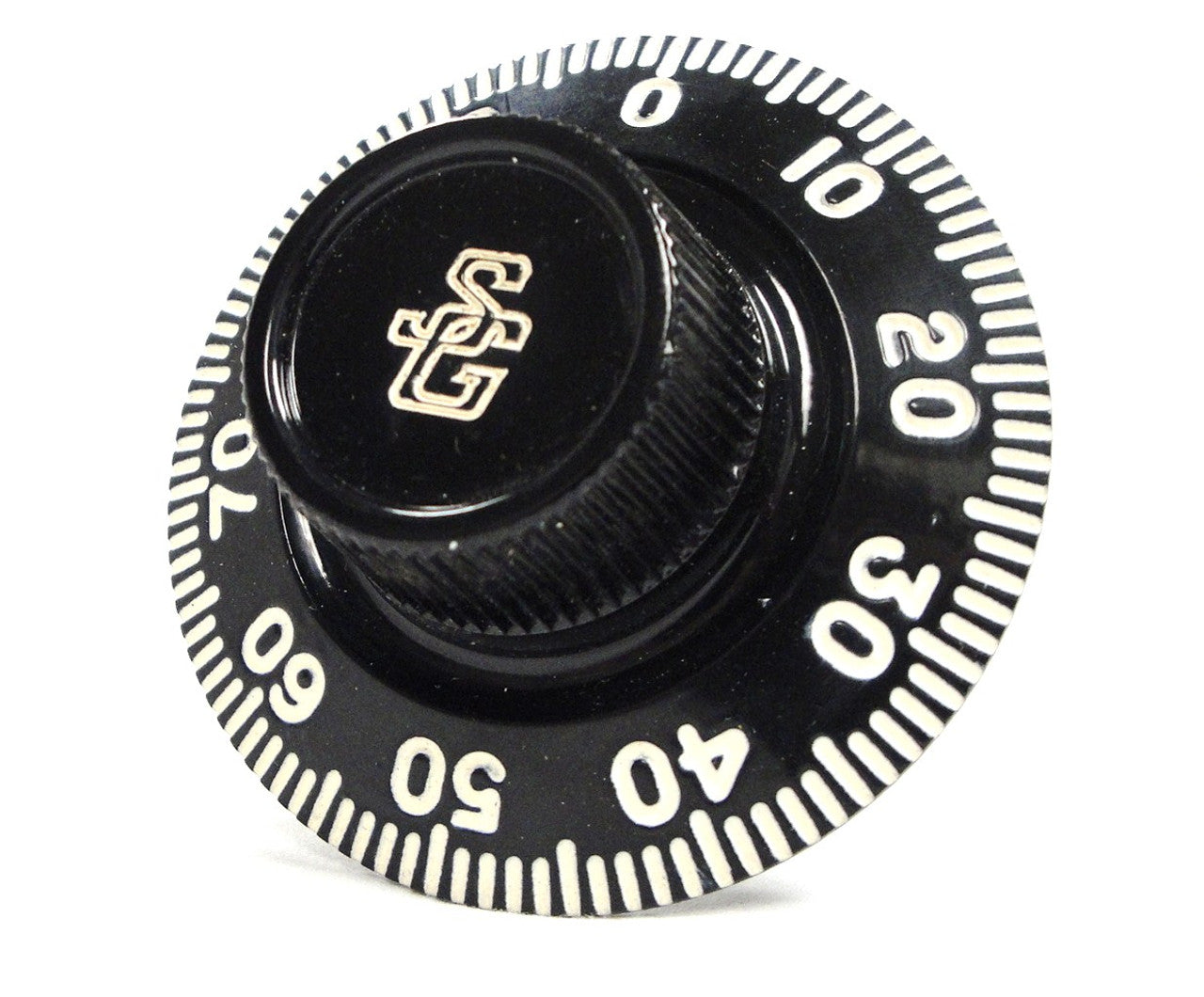

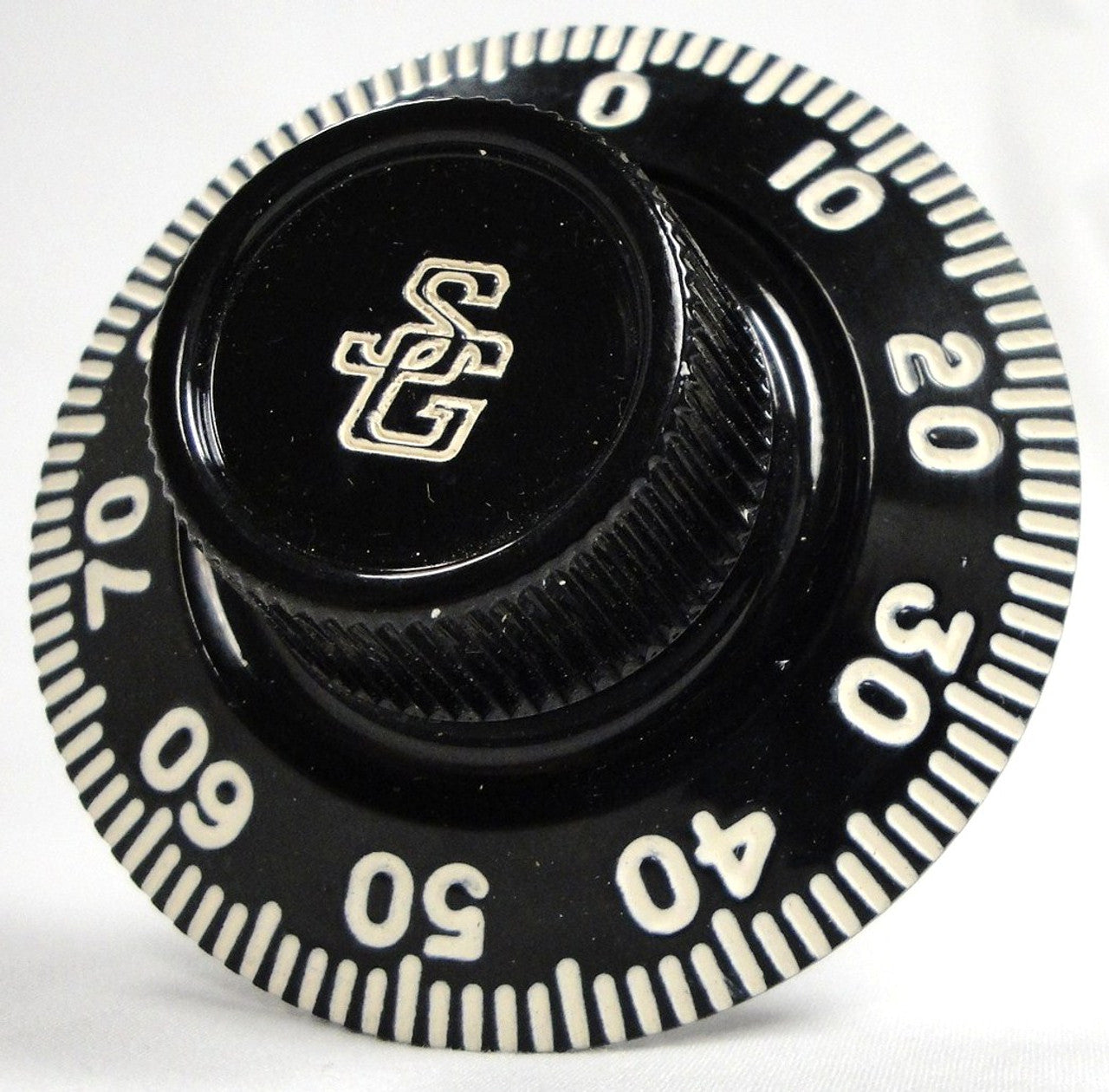

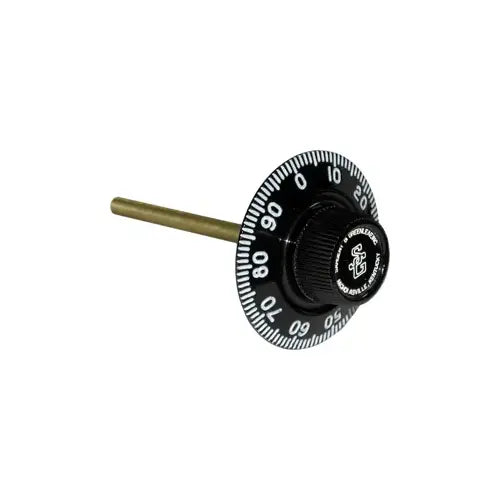

The SARGENT & GREENLEAF D003-003 is a front reading lock dial designed for specific lock series. This product is compatible with 6630, 6631, 6651, 6730, 6731, 6738, 6741, 6748, and 6700 series locks. Features a small knob dial with a clear logo at the center for easy identification.

• Black and white front reading dial.
• No hassle installation with compatible Sargent & Greenleaf locks.

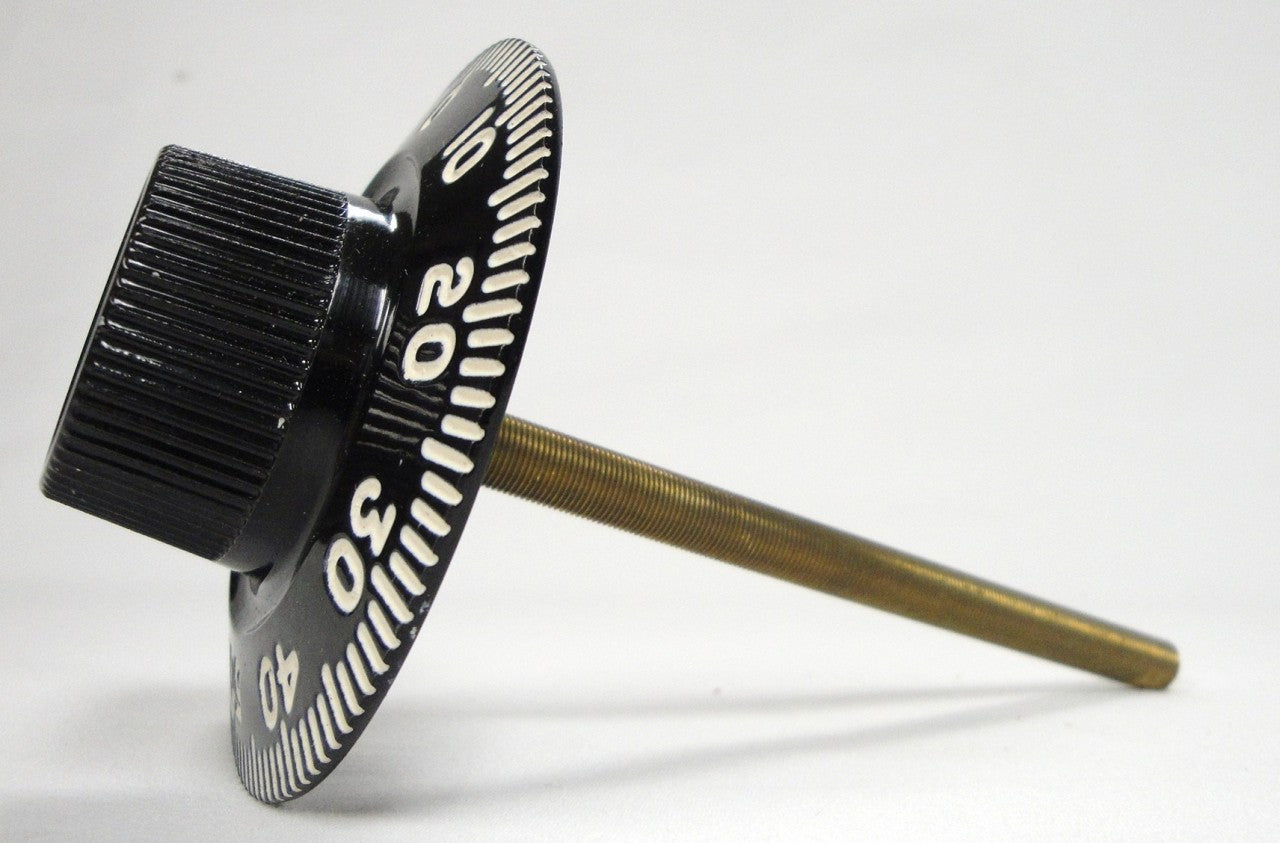

• Brass spindle suits door thicknesses up to three point four zero six inches.

Product Highlights

The dial offers precise control and durability as a mechanical lock solution.

Product Information

Standard Information

• Finish: Black
• Lock Type: Mechanical Dial

Technical Specifications

• Product Type: Safe Lock
• Sales Category: Dial/Ring
• MPN: D003-003
• Spindle Threading: 5/16x40
• Accommodates Door Thickness: Up to three point four zero six inches
• Spindle Material: Brass
• Spindle Length: Approx. four and one half inches long
• Includes: Spline key
• Alternate Part Number: 117235
