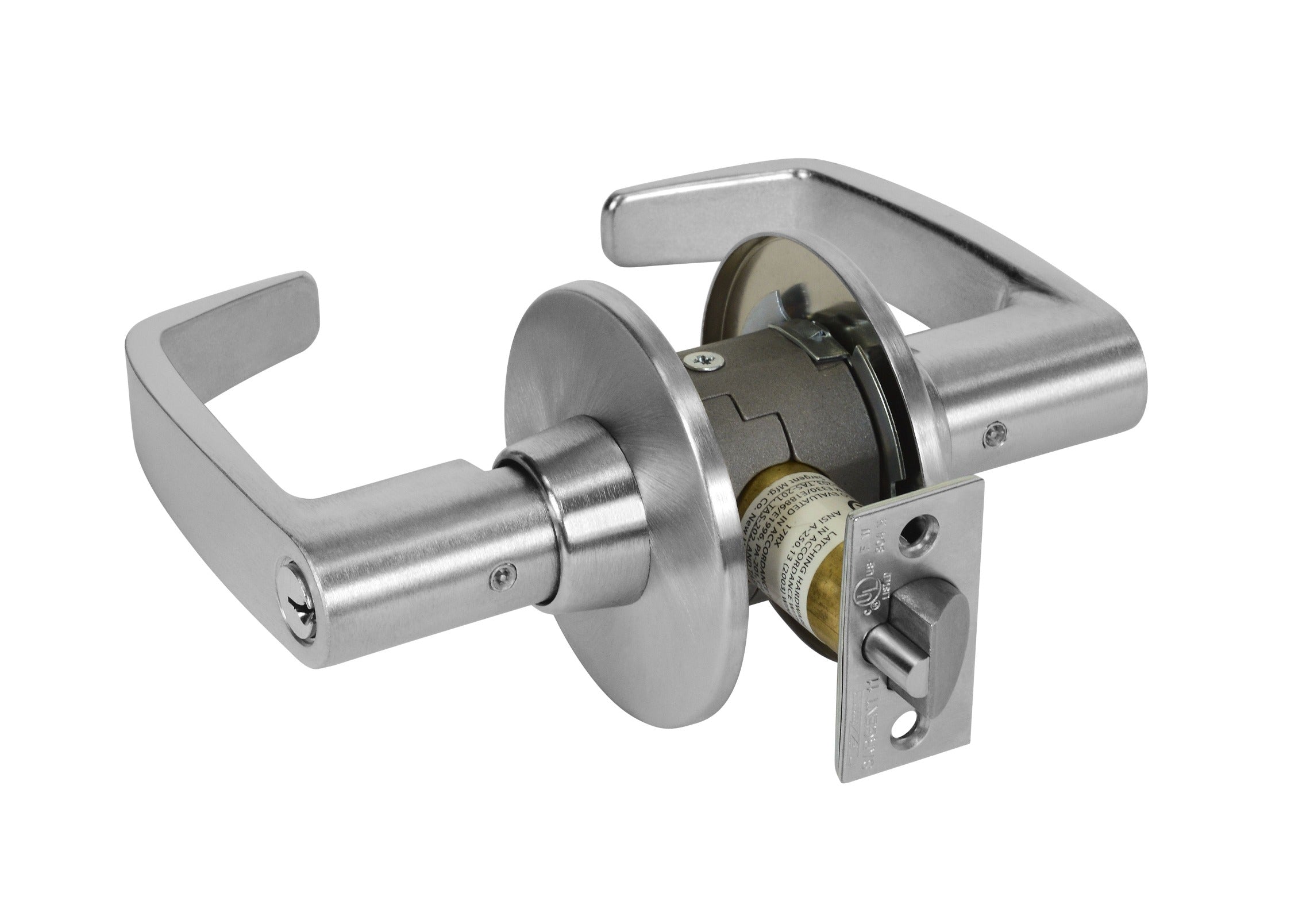

Sargent 283011G04LL26D Storeroom Tubular Bored Lock Grade 1

Product Description

The SARGENT 283011G04LL26D is a Grade 1 tubular bored lockset configured for storeroom and closet function. It ships with an L Lever handle, L Rose trim, a 2-3/4 inch backset, an ASA strike plate, and a Satin Chrome (26D) finish. The unit is prepped for Schlage door prep, making it a direct fit for doors already machined to that standard. Grade 1 classification indicates it meets the highest commercial-duty cycle and force requirements under ANSI/BHMA testing. Licensed contractors and commercial door hardware installers are the primary trade for this product.

This lockset is suited for commercial, healthcare, industrial, and educational facilities where storeroom security function is required. Storeroom function means the outside lever is always locked and requires a key to retract the latch, while the inside lever remains free-turning at all times. The Schlage prep compatibility makes it a practical replacement or upgrade on existing commercial door hardware without full door modification.

Key Features

• ANSI/BHMA Grade 1 heavy-duty rating for high-traffic commercial applications
• Storeroom function: outside lever locked at all times, key entry required
• 2-3/4 inch backset for standard commercial door prep
• Includes ASA strike plate for straightforward frame installation
• Schlage door prep compatible — no additional boring required on Schlage-prepped doors
• Satin Chrome (26D) finish for a clean, professional appearance in institutional environments

Compatibility

Designed for installation on commercial doors machined to Schlage prep specifications. Suitable for storeroom and closet applications in commercial, healthcare, industrial, and educational buildings.

Installation Notes

Installation should be performed by a qualified door hardware technician or licensed locksmith familiar with ANSI/BHMA tubular lockset procedures. Power is not required, but all door alignment and frame prep should be verified before installation. Confirm door thickness and backset measurement match the lockset specifications before mounting. Refer to the manufacturers installation template for strike and latch alignment.
