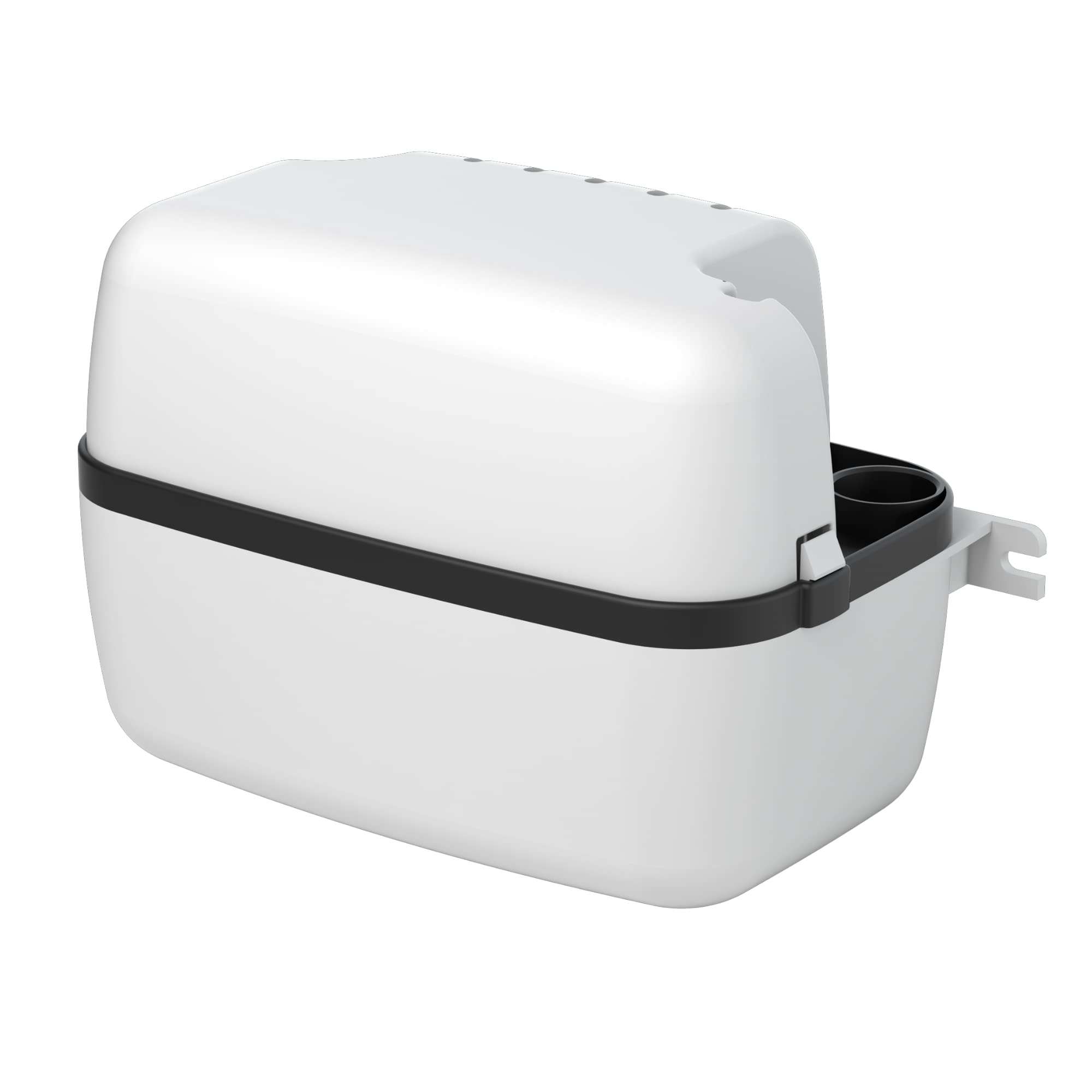

Saniflo 40 Sanicondens Condensate Pump 1/30 HP

Product Description

The SANIFLO 40 Sanicondens is a small pump used to pump condensate from condensing boilers, HVAC systems, and water heater systems. The Sanicondens will pump condensate waste up to 15 feet in height and/or 150 feet away from a soil stack. The pumping unit can be floor or wall mounted and includes hardware for installation. It has a pre-wired connection for an external overflow switch.

• Pumps condensate up to 15 feet vertically and/or 150 feet horizontally.
• Can be floor or wall mounted.
• Includes pre-wired connection for external overflow switch.

Product Highlights

The Sanicondens condensate pump is designed for residential and commercial applications where condensate needs to be moved away from boilers, HVAC systems, and other water-producing fixtures.

Product Information

Standard Information

• Brand: SANIFLO
• Manufacturer Part Number: 40

Technical Specifications

• Motor: 1/30 HP oil-filled thermally protected
• Noise level: ≤ 44 dBA (Lp)
• Discharge rate at 15 ft: 30 GPH
• Certification code: CSA (IPC, NSPC)
• Connections: Condensing boiler, HVAC systems, air conditioners
• Manufacturer: Saniflo
• Manufacturer #: 40
• MPN: 040
• Manufacturer Part Number: 040
• Series: Sanicondens
• Discharge Pipe Diameter (in): 3/8'' vinyl tubing
• Horizontal Discharge (ft): 150
• Maximum Temperature (°F): 160
• Vertical Discharge (ft): 15
• Application: Pumps the Condensate Discharge From a Condensing Boiler or Other Water Producing Fixtures to an Existing Drain
• Discharge Head: 15FT
• Discharge Size: 3/8IN
• Flow Rate: 86.0GPH
• Input Supply Rating: 115Volts
• Power Rating: 1/30HP
