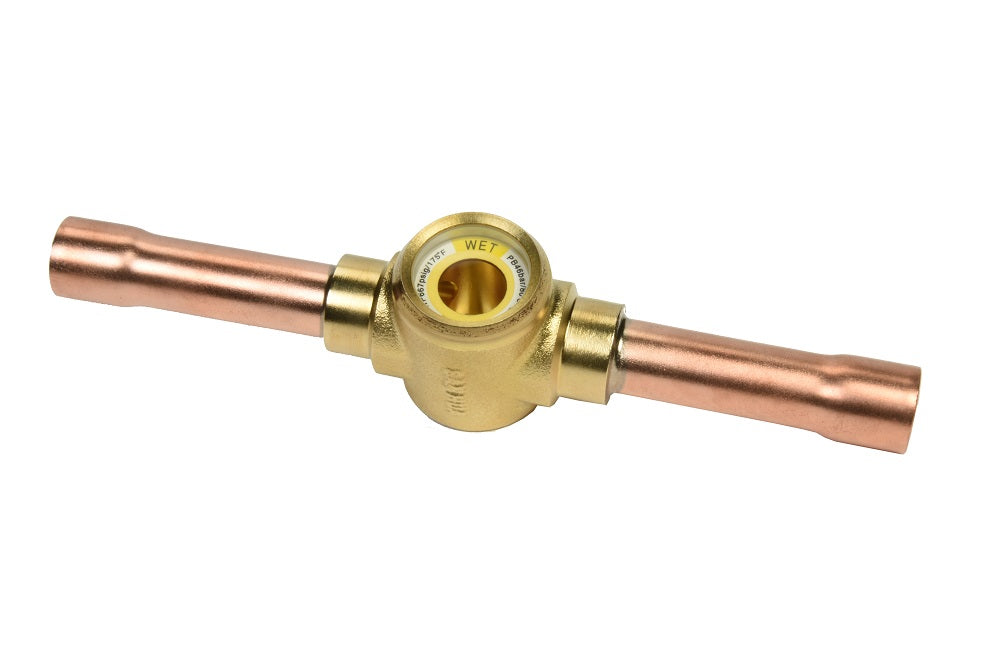

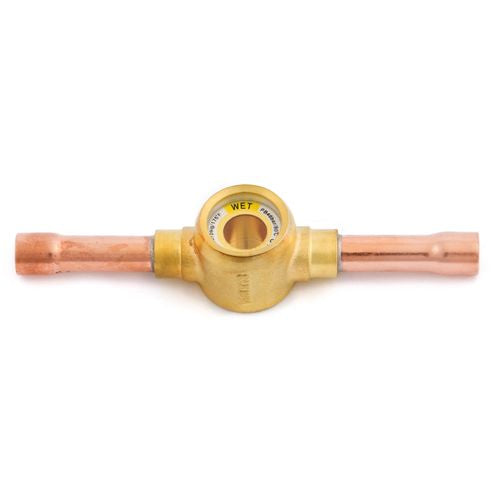

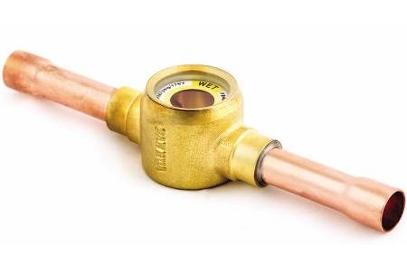

Sanhua SG-3-S Sight Glass 3/8 in. ODF

Product Description

The Sanhua SG-3-S sight glass offers a clear view of the liquid condition in cooling systems. This sight glass helps in identifying bubbles that suggest a refrigerant shortage or blockage in the system. It is approved for use with common HCFC and HFC refrigerants, operating safely up to a maximum pressure of 667 psig.

• Wide angle sight glass for easy readability
• High precision color indicators for system diagnostics
• Compatible with various HCFC and HFC refrigerants

Product Highlights

This sight glass allows HVAC professionals to quickly assess refrigerant flow and moisture levels, ensuring optimal system performance.

Product Information

Standard Information

• Brand: Sanhua
• MPN: SG-3-S

Technical Specifications

• Applicable refrigerants: All common HCFC and HFC refrigerants such as R22, R134a, R404A, R407C, R410A, R507
• Min./max. ambient temperature: -50 degrees C to +80 degrees C
• Maximum Pressure Rating: 667 psig
• Connection Size: 3/8 inch ODF x 3/8 inch ODF

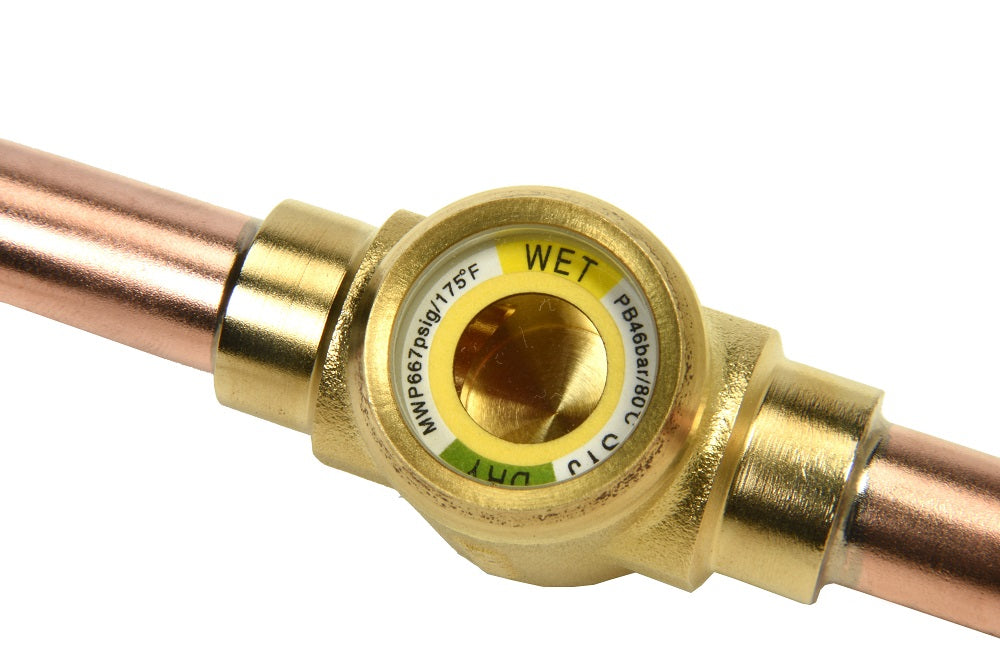

• Visual indicator: Flow and moisture indicator
• Color indicators: Green/yellow indicators for diagnostics
• Installation: Easy installation in HVAC systems
• Overall Length: 4.69 inches
• Primary Depth: 4.92 inches
• Primary Width: 0.98 inches
• Primary Height: 1.18 inches
