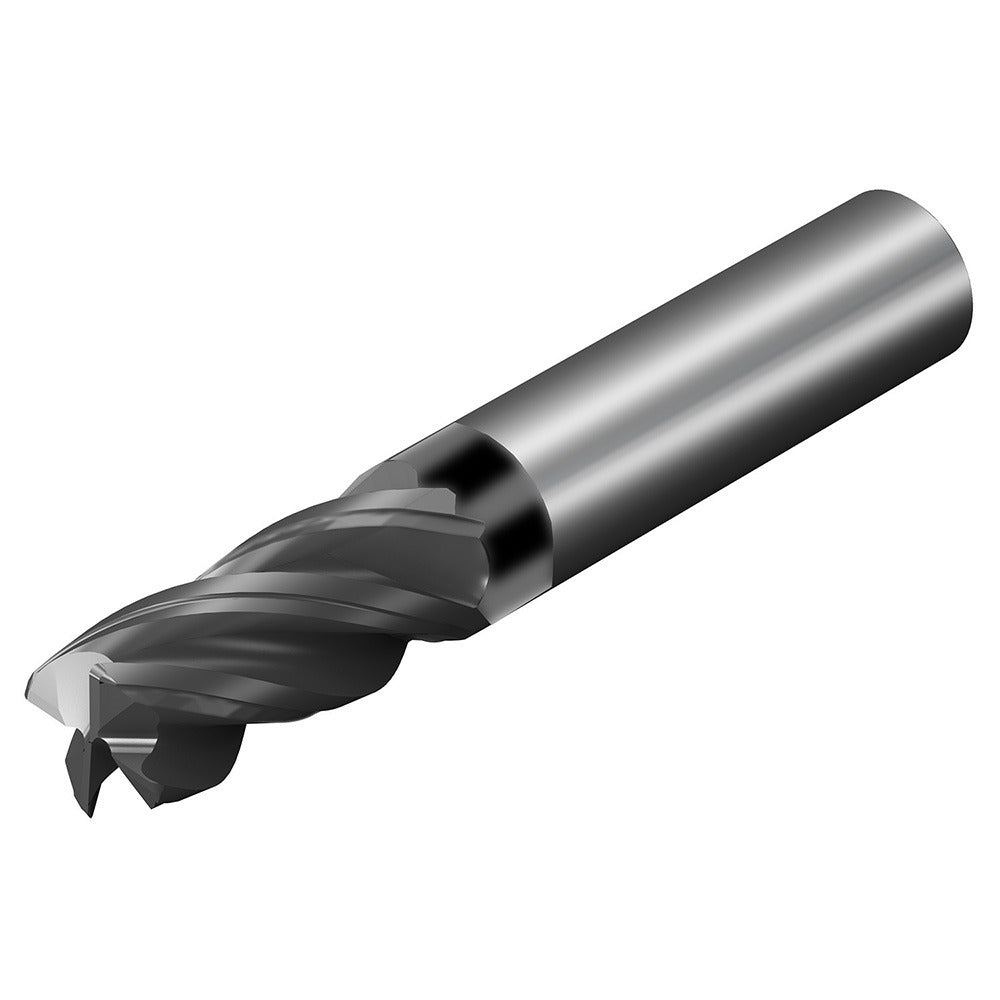

Sandvik Coromant 8036163 Corner Radius End Mill 1/8 in

Product Description

The SANDVIK COROMANT 8036163 is a solid carbide corner radius end mill from the CoroMill Dura series, designed for high-performance milling in demanding materials. It features a 1/8 inch diameter, a 0.015 inch corner radius, and an AlTiN coating that provides heat and wear resistance for dry and semi-dry cutting applications. With 4 flutes, a right-hand spiral flute geometry, and both variable helix and variable index design, this end mill reduces chatter and improves surface finish in ferrous and hardened materials. It weighs 0.02 pounds and is 2 inches in overall length.

This end mill suits precision milling operations in job shops, tool rooms, and production environments. It is centercutting and capable of plunge operations. The straight cylindrical shank fits standard end mill holders and collet chucks. Typical applications include slotting, profiling, and contouring in steel, stainless steel, and other difficult-to-machine alloys where corner protection and edge integrity are critical. The material grade designation is X1BH, aligning it with harder workpiece materials. It is a single-end tool intended for CNC machining center use.

Key Features

• 0.015 inch corner radius protects the cutting edge and improves workpiece corner geometry
• AlTiN coating delivers high-temperature oxidation resistance for extended tool life
• Variable helix and variable index geometry reduce harmonic vibration during cutting
• Centercutting capability allows direct plunge entry without a pre-drilled hole
• Right-hand flute direction and right-hand cutting for standard CNC spindle compatibility
• Solid carbide construction provides rigidity and dimensional stability in tight-tolerance work

Compatibility

Designed as an OEM end mill replacement for CNC machining applications requiring a 1/8 inch straight cylindrical shank. Part of the SANDVIK COROMANT CoroMill Dura series, material grade X1BH.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and locked out before tool changes. Use a properly sized collet or end mill holder rated for 1/8 inch shank diameter and verify runout with a dial indicator before production cuts. Follow machine tool manufacturer torque specifications for the tool holding system in use.
