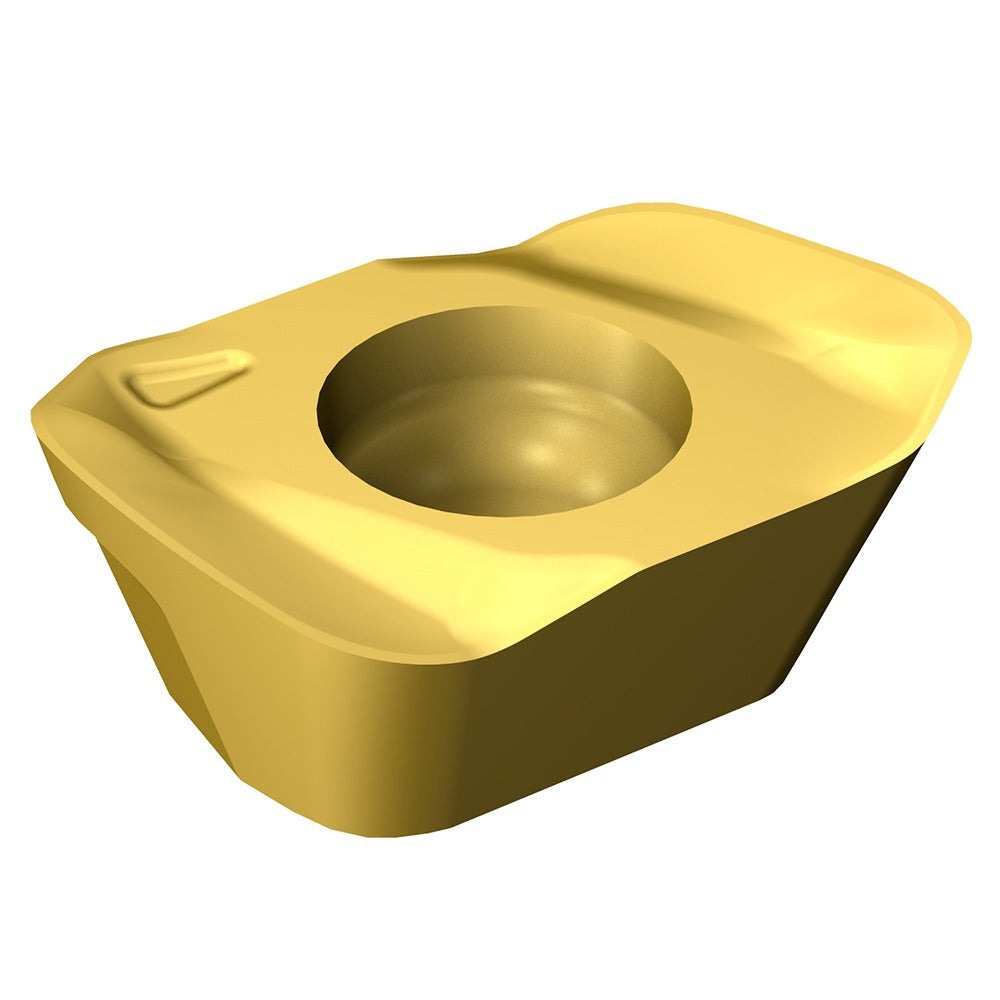

Sandvik Coromant 8029483 Milling Insert MH20 2040 Carbide

Product Description

The SANDVIK COROMANT 8029483 is a solid carbide milling insert carrying the ANSI and ISO designation MH20-080425E-L30 2040. It belongs to the MH20 cutter series and is designed for indexable milling operations on difficult-to-machine materials. The insert features a parallelogram shape with a positive 13-degree rake angle and a corner-rounded cutting edge style. Two cutting edges are available per insert. The CVD-applied multilayer coating stack — TiCrN, Al2O3, and TiN — provides thermal resistance and wear protection during aggressive milling passes on stainless steel, superalloys, and titanium. Holding is by screw clamp.

This insert is intended for use in the MH20 cutter series and is suited for both roughing and semi-finishing passes on stainless steel and high-temperature superalloys and titanium in manufacturing environments. The L30 chip breaker geometry manages chip control on these tough, work-hardening materials. It is a right-hand, single-sided insert. Typical users include CNC machinists and tooling specialists in aerospace, oil and gas, and precision manufacturing shops running demanding milling programs.

Key Features

• CVD multilayer coating: TiCrN, Al2O3, and TiN for thermal and abrasion resistance
• Positive rake angle of 13 degrees reduces cutting forces on difficult materials
• L30 chip breaker optimized for stainless steel, superalloys, and titanium
• Two cutting edges per single-sided insert for extended tool life per unit
• Screw-lock insert holding for positive, repeatable seating in MH20 toolholders
• Corner-rounded cutting edge reduces notching and edge chipping

Compatibility

Designed for use with the MH20 cutter series. Material grade designations 2040 correspond to ISO application ranges P45, M40, and S30, covering stainless steel and superalloy and titanium milling applications.

Installation Notes

Installation is performed by a qualified machinist or tooling technician. Ensure the machine spindle is fully stopped and locked out before indexing or replacing inserts. Use the correct torx or hex key to seat the clamping screw to the toolholder manufacturer's specified method — do not overtighten, as this can crack the carbide substrate. Inspect the insert pocket and seating surfaces for chips or debris before seating a new insert.
