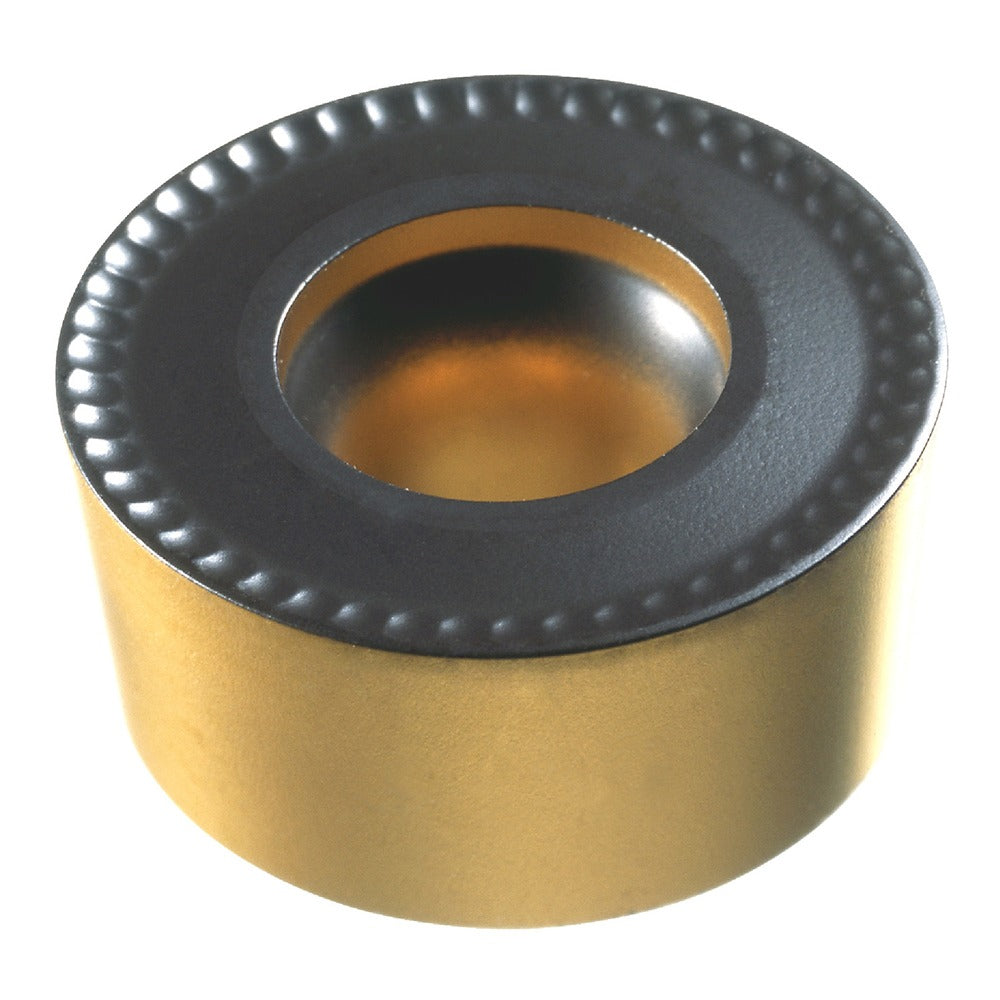

Sandvik Coromant 8019533 Rcmt 20 06 M0 4425 Turning Insert

Product Description

The SANDVIK COROMANT 8019533 is a round carbide turning insert conforming to ISO designation RCMT 20 06 M0 4425. It is engineered for external and internal turning operations on steel workpieces in CNC and manual lathe applications. The insert features a CVD-applied multilayer coating of TiCN, Al2O3, and TiN, which provides wear resistance and thermal stability during continuous and interrupted cuts. With a 0.7874-inch inscribed circle and a 0.2500-inch thickness, this neutral-hand insert seats into standard RCMT-style toolholders using clamp or screw clamping methods. Machinists and CNC operators in production and job-shop environments specify this insert for reliable material removal rates on steel components.

This insert is suited for turning steel in both residential-scale job shops and high-volume production settings. The M0 chip breaker geometry supports a broad range of depths of cut and feed rates on primary steel workpieces. The round insert shape provides multiple indexing positions, maximizing the number of usable cutting edges per insert and reducing tooling cost per part. The ISO code RCMT 20 06 M0 4425 identifies this insert for straightforward cross-referencing in tooling catalogs and CNC program documentation.

Key Features

• CVD-applied TiCN, Al2O3, and TiN multilayer coating for wear resistance and heat management
• Round insert shape (Shape Code R) with neutral hand orientation for versatile mounting
• M0 chip breaker geometry for broad steel cutting applications
• Clamp and screw holding compatibility with standard RCMT toolholders
• 0.7874-inch inscribed circle diameter with 0.2500-inch insert thickness
• Grade 4425 carbide substrate optimized for primary steel workpiece materials

Compatibility

Designed for use in RCMT-style toolholders that accept clamp or screw insert retention. Compatible with turning operations on steel as the primary workpiece material and secondary material code K. Refer to the ISO code RCMT 20 06 M0 4425 when cross-referencing with toolholder and catalog specifications.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Always power down and lock out the machine spindle before indexing or replacing inserts. Use the manufacturer-specified torque driver for clamping screws to ensure proper seating without cracking the carbide. Inspect the insert pocket and seating surface for chips or debris before loading a new insert.
